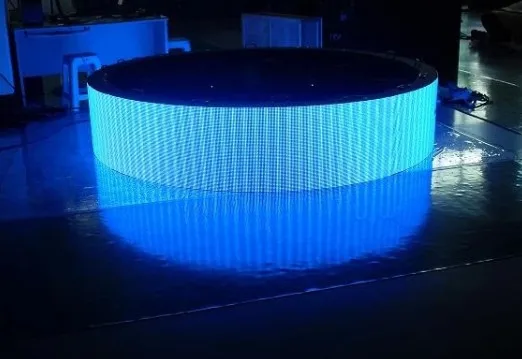

P5 Flexible Indoor Soft led module 320x160mm for ad cylinder led display screen
soft led display Panel Features:

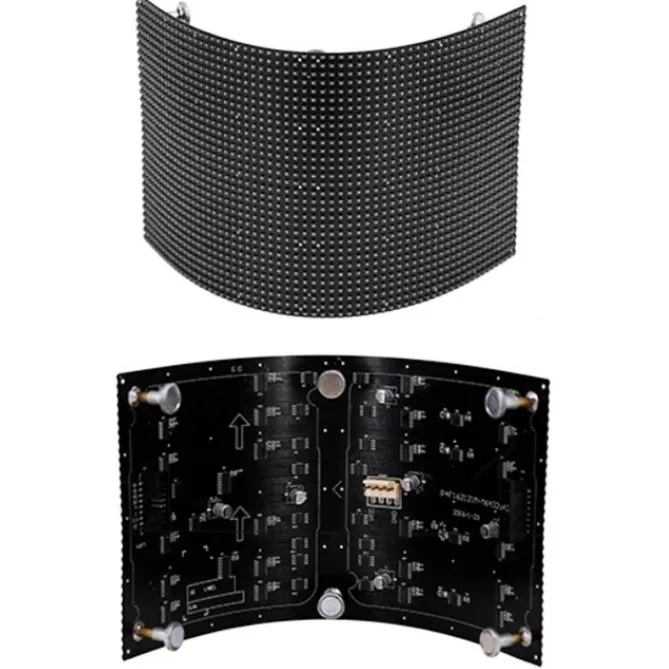

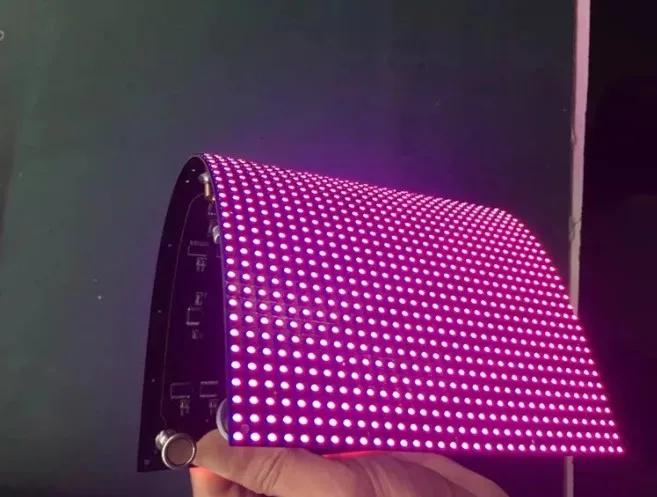

soft led module is super thin, very light weight and most flexible to design shapes, effects, in any types, arc in any angles.With repeating curving, it won't break LEDs as well design of mask covers.
1.Module with small-unit and flexible design,makes possiblity of more complicated shapes for the video show.
2.Assembling screen with soft led modules directly,saving time and effort,easy operation.
3.Magnet connection,easy to assemble & disassemble,it is frontal service maintenance.
4.No cabinet metal frame,drastically deducting the screen weight.we can design any shape of structure as you need.
5.Strict quality control and long-term application experience verified the stablity and excellent performance by using Xinda LED, and Fusion 6124 Driving IC for high refresh rate and performance.
6.Widely applied in shaped stage background/exhibition/shopping mall etc.
Specification:
| Model | p5 |
| Pixel pitch | 5mm |
| Pixel density | 250,000 dots /sqm |
| Module size(W*H) | 320 mm(w)*160 mm(h) |
| Module pixels(W*H) | 64 dots *32 dots |
| Pixel configuration | 1R 1G 1B |
| Drive mode | constant current driving 1/16 scan |
| LED lamp type | SMD2121 |
| Cabinet size(W*H*D) | Customized |
| Color scale | 65,536 degree |
| View angle(H/V) | 120 / 120 degree |
| Brightness (White balance) | about 1300 cd / sqm. |
| Power consumption(one cabinet) | Max : 300 Watte / cabinet , Average : 120 Watte / cabinet |
| Operating temperature | - 30 °C----+ 60 °C |
| Operating humidity | 10% - 95% RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | 25-60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater) , single mode fiber : 20km, multi mode fiber: 500m |
| Inputting voltage | 90-264VAC 47--63Hz |
| LED control system | LINSN , Nova-sta rs selectable |
| Operating system | Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
| Protection grade | IP31 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL / NTSC / SECAM , S-Video ; VGA ;RGB ; Composite Video ; SDI |
Package include:
1XP5 Flexible Indoor Soft led module
1X DATA CABLES
1X POWER CABLES
4X MAGNETIC SCREWS
