OX-Gen 2035 1.24 CFM Pond and Water Garden Diaphragm Aeration Kit OXK-2035

Slide Slide Slide Slide Slide Slide
$158.0
Type
Aerator Pump
Brand
HALF OFF PONDS
Water Type
All Water Types, Pond, Fresh
Features
Easy Installation, Safe for Fish, Easy Assembly
Item Height
12 in
Item Width
12 in
Mounting
Freestanding
Material
Metal, Plastic
Assembly Required
Yes
Item Weight
15 lb.
MPN
OXK-2035
Power Source
Corded
Set Includes
Aerator Pump, Full Instructions, Air Hose, Air Stone, Clamp
Voltage
120
Power
20 W
Country/Region of Manufacture
China
Model
OXK-2035
Manufacturer Warranty
2-Year Manufacturer's Warranty
OEM Equivalent Part Number
OXK-2035
Bundle Listing
No
Weighted Tubing Included
20' of 3/8" Tubing
Diffusers Included
(1) 8 in. Air Diffusers
Enclosure Included
System Only
Noise Rating
32 dBA
Optimal Depth
1 ft. - 3 ft.
Pressure
4.06 PSI @ 0 CFM
UPC
658848590797
condition
New
OX-Gen 2035 1.24 CFM Pond and Water Garden Diaphragm Aeration Kit OXK-2035
OX-Gen 2035 1.24 CFM Pond and Water Garden Diaphragm Aeration Kit OXK-2035

Half Off Ponds OX-Gen OX-2035 1.24 CFM Subsurface Aeration Kit

The OX-Gen 2035 Air Pump is the perfect aerator to maintain and keep a healthy koi pond and water feature.

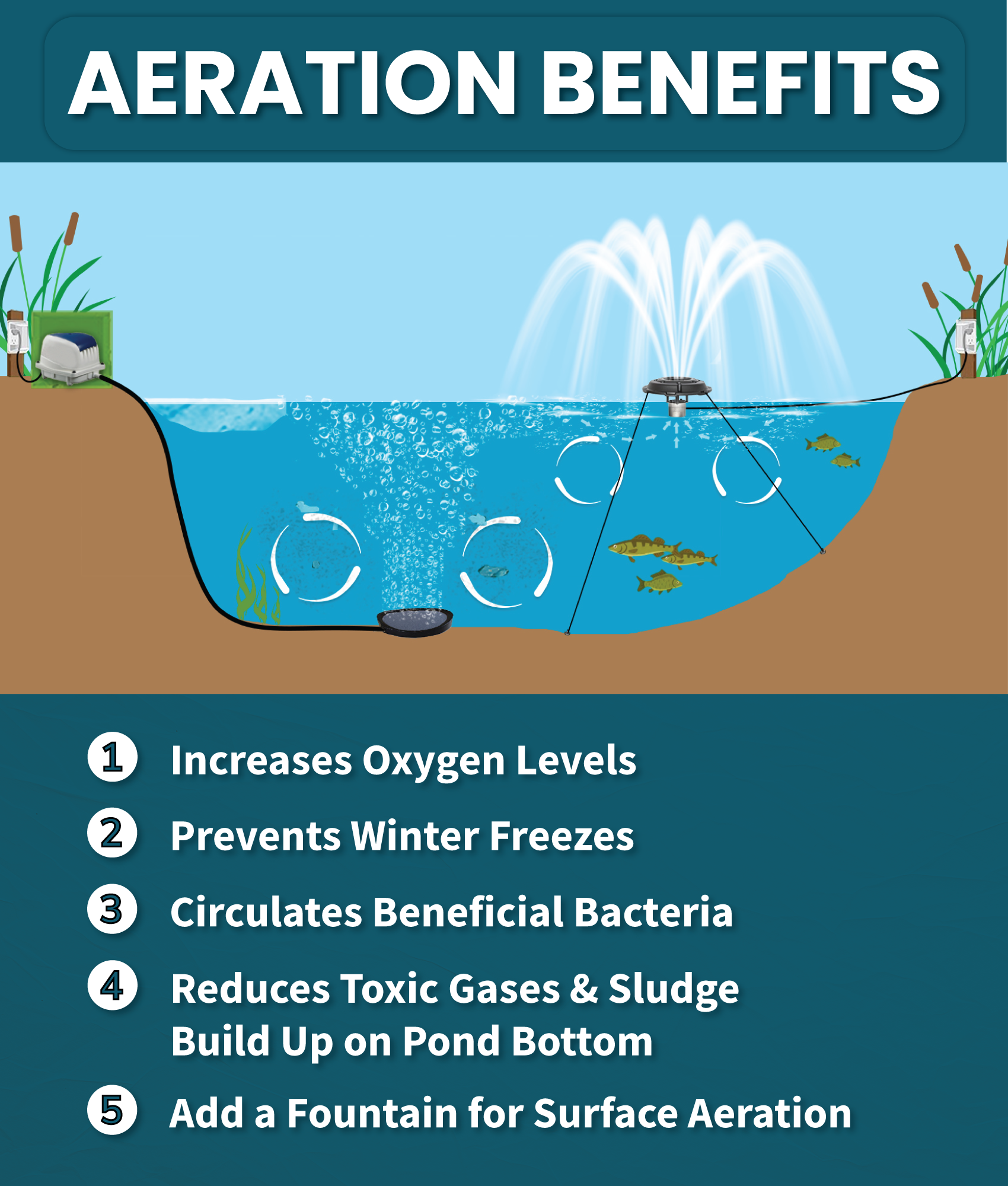

OX-Gen Air Pumps are built to be reliable and efficient for everyday use. This aeration pump is easy to install and maintain. Aerator usage helps ponds and lakes by cycling the water from the bottom of the pond to the top. This water cycle adds oxygen to the water, reduces thermocline, and brings debris into suspension to allow filtration systems to remove it.

Aeration provides a long-term solution that lasts longer than seasonal chemical treatments. With aeration, there are no hazardous chemicals, electricity, or motors in the water. Aeration speeds up organic decomposition and helps break down fish waste. During the hot summer months, aeration keeps the water moving to deter mosquito hatches and cycles oxygen to the bottom of your pond. This extra oxygen allows Koi and other fish to retreat to the deeper, cooler water. During the winter, OX-Gen Aerators maintain a hole in the ice to protect fish, boats, and docks. The opening in the ice allows natural gasses that are harmful to Koi and fish to escape.

The OX-Gen 2035 Air Pump has an overload sensor that prevents the pump from burning out and is oil-free, making them the perfect choice to create and sustain a healthy pond environment.

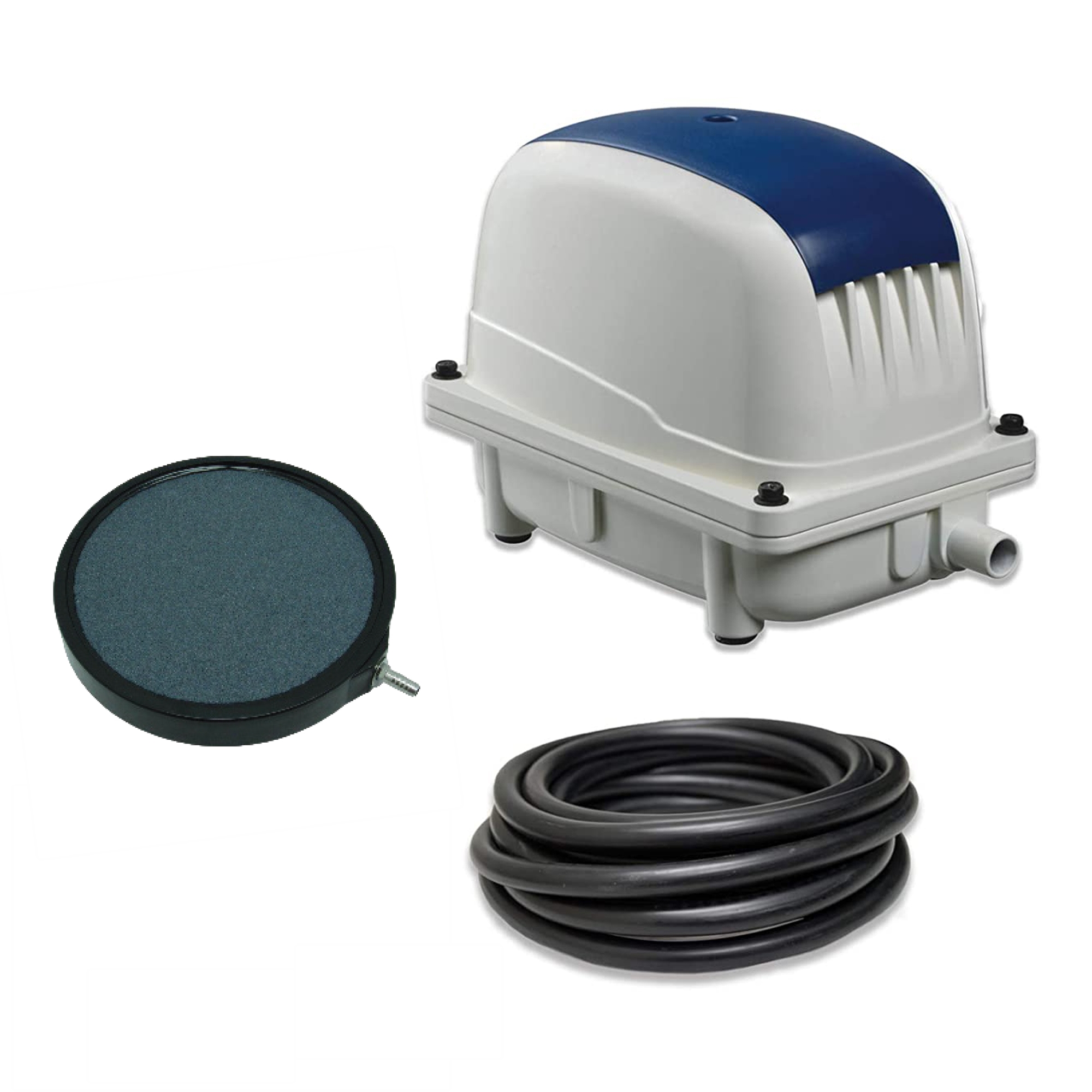

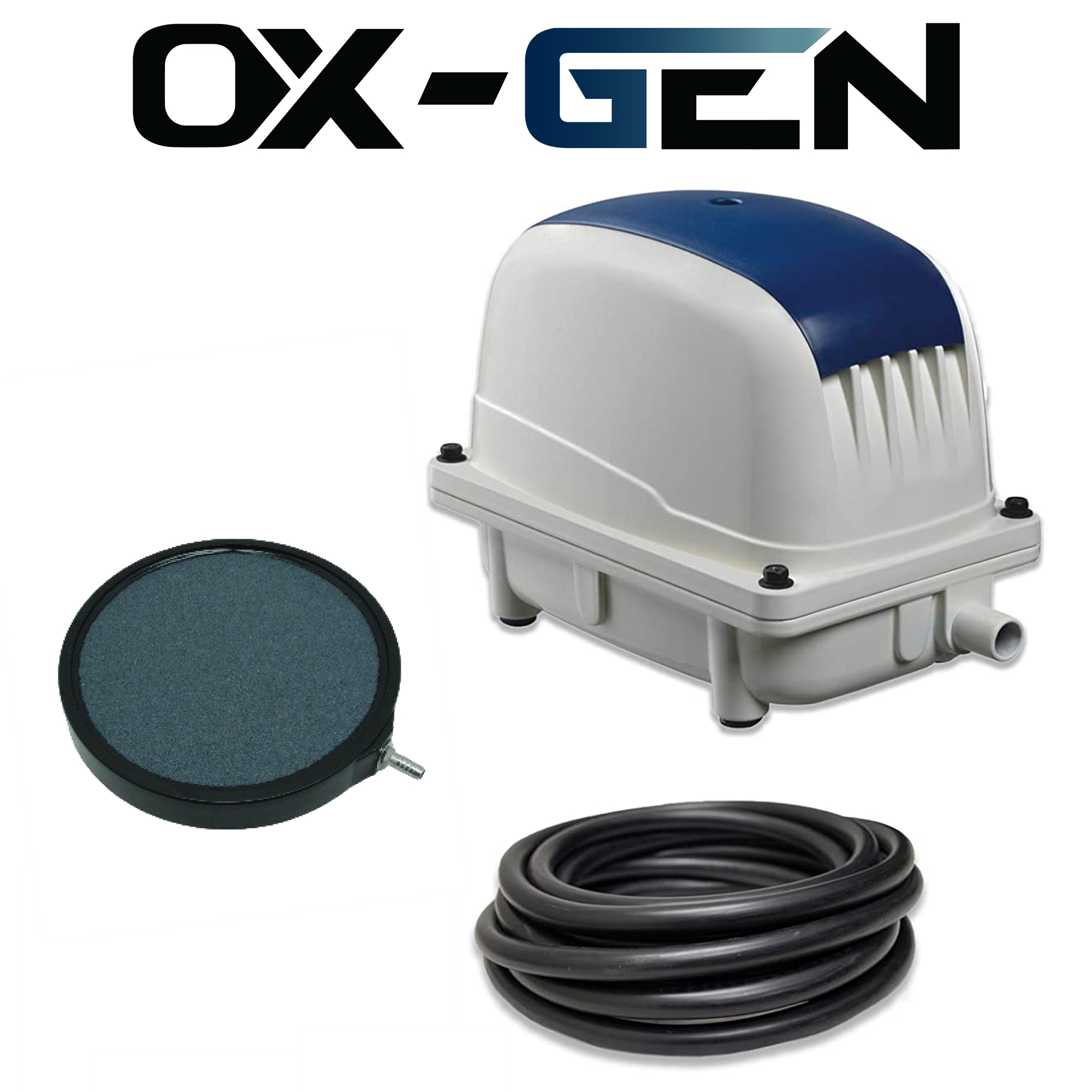

Half Off Ponds OX-Gen 2035 - 1.24 Cubic Feet per Minute, Subsurface Aeration Kit Includes:
  • Half Off Ponds OX-Gen OX-2035 1.23 CFM Air Pump

  • 20' of self-sinking Half Off Ponds Weighted Black Vinyl Tubing

  • (1) 8" Half Off Ponds Air Disc Diffusers

  • All Necessary Plumbing Fixtures

OX-Gen 2035 1.24 CFM Pond and Water Garden Diaphragm Aeration Kit OXK-2035


  • OX-Gen Air Pumps are the best option for healthy fishponds and water gardens. These aerators provide a year-round solution without dumping harmful chemicals into your water feature. The OX-Gen Aerator cycles pond water, adds oxygen to the water feature, reduces thermocline, and brings debris into suspension allowing filtration systems to remove it.
    •

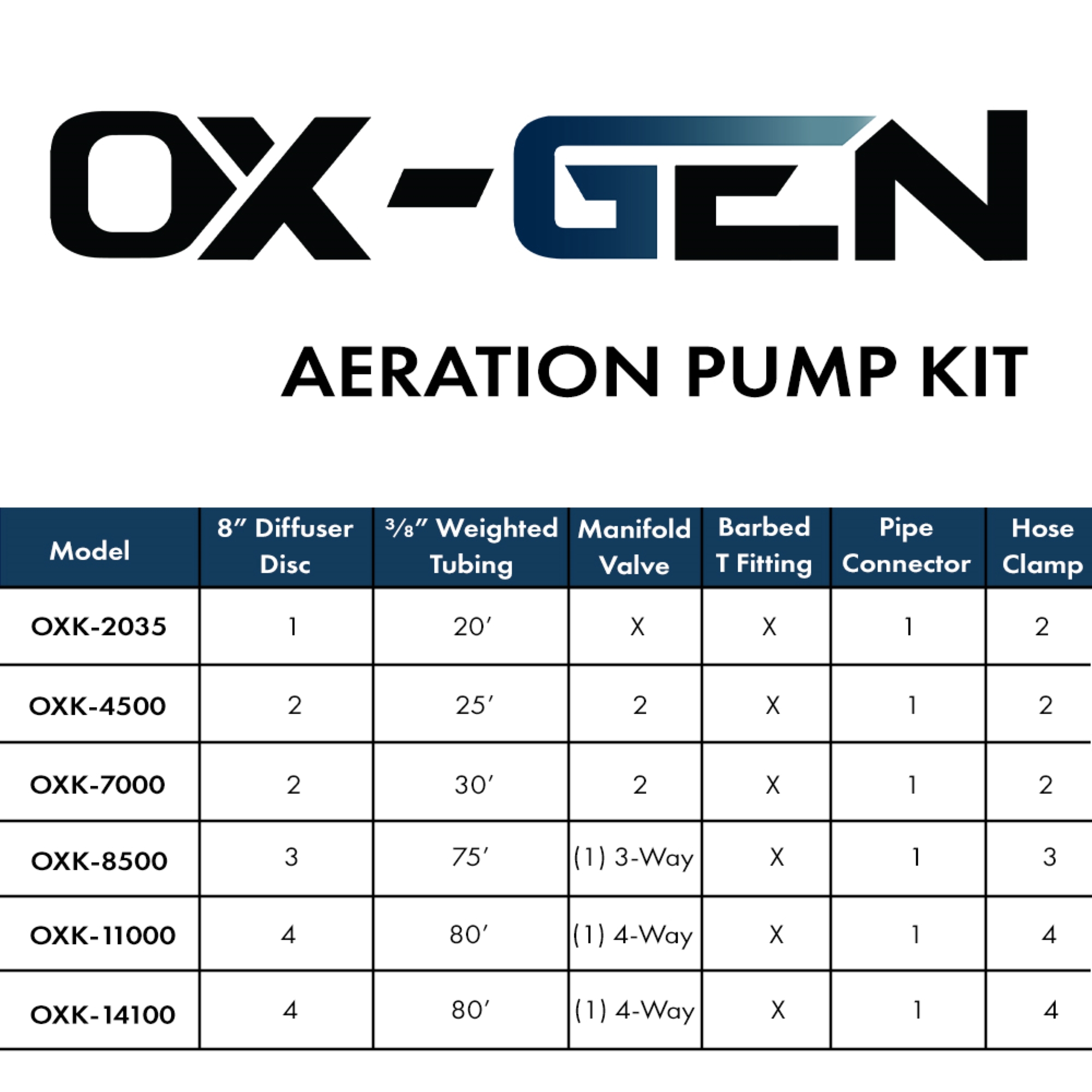

  • OX-Gen OX-2035 1.24 CFM Subsurface Aeration Kit includes: (1) OX-2035 1.24 CFM Air Pump, (1) 8" Diffuser Disc, 20' of 3/8" Weight Tubing, and all necessary plumbing fixtures
    •
  • Whisper quiet operation: reliable, oil-free, and extremely energy efficient
    •

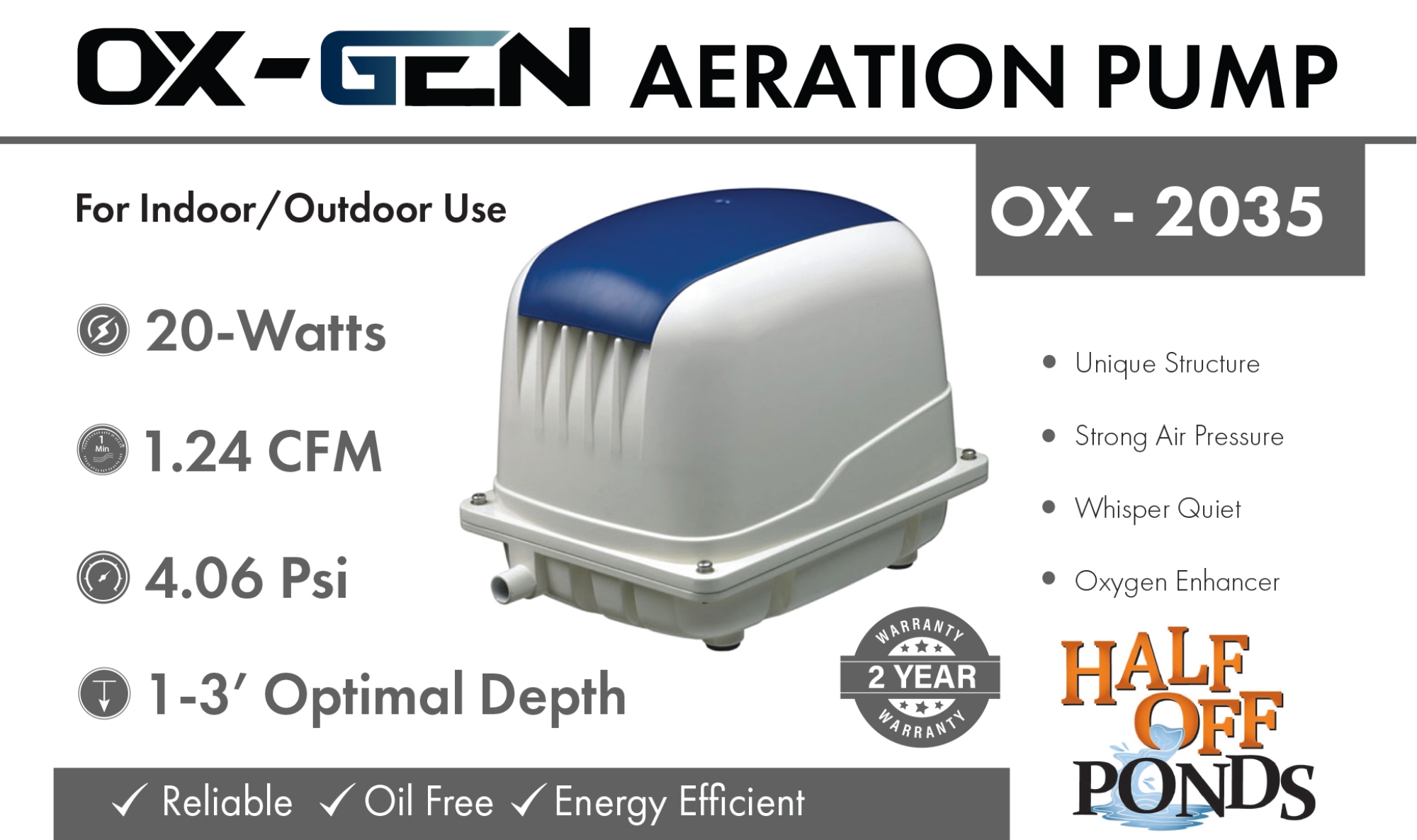

  • Optimal Depth: 1'-3' - Output: 1.24 CFM - Psi: 4.06 - Noise Rating (dBA): 32 - Volts: 20 - Watts: - Frequency (Hz): 60 - Amps: 0.167
    •
  • Indoor / Outdoor Use. 2-year warranty. ground delivery

FAQs & Calculations to Help Select the Correct Kit

1. How Many Gallons of Water does My Water Feature Hold?

Rectangular Ponds

Length x Width x Average Depth x 7.48 = Gallons

Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...

15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons

Oval Ponds

Length x Width x Average Depth x 0.8 x 7.48 = Gallons

Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...

15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons

Round Ponds

Length x Width x Average Depth x 7.48 =Gallons

Example: 15’ long, 10’ wide and 1.5’ Deep Pond

15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons


Streams

Length x Width x Average Depth x 0.25 x 7.48 = GALLONS =Gallons

Example: 15’ long, 10’ wide and 1.5’ Deep Pond

15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons

2. How Big of a Pump Do I Need??
Minimum pump size is determined by pond type, water volume, head height and friction loss. The minimum pump size recommendations are:

Water Garden, Few Small Goldfish

Circulate total pond water valoume every 2 hours.

Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.

Fish Pond, Several Small Fish

Circulate total pond water valoume every 1 hour.

Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.


Koi Pond, Several Large Fish

Circulate total pond water valoume every 3/4 hours.

Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.

Calculating Head Height

Dynamic head pressure is found by taking the vertical height of your waterfall; the distance between where your pump is (typically in the skimmer) and where your waterfall is, and adding the static head pressure (pipe and fittings) 1’ for every 10’ of tubing and 1’ for every elbow or “T” fitting.

Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure

Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.

3. What Size Tubing Do I Need?
Tubing Size Efficiency GPH Minimum GPH Maximum GPH

0.5”
< 300
60
420

0.75”
< 720
300
900

1”
< 1,200
700
1,500

1.25”
< 1,600
900
3,200

1.5”
< 2,600
2,000
4,400

2”
< 4,800
3,000
6,800

3”
< 9,000
6,000
14,000

4”
< 21,000
14,000
28,000

6”
< 42,000
33,000
60,000

About Half Off Ponds

Customer service is our business. We have been satisfying fish pond, water garden, and backyard waterfall enthusiasts for over 25 years! We're glad to assist you with your pond building project - from start, to finish!

Thanks for your business! We appreciate it!

- The Half Off Ponds Team
