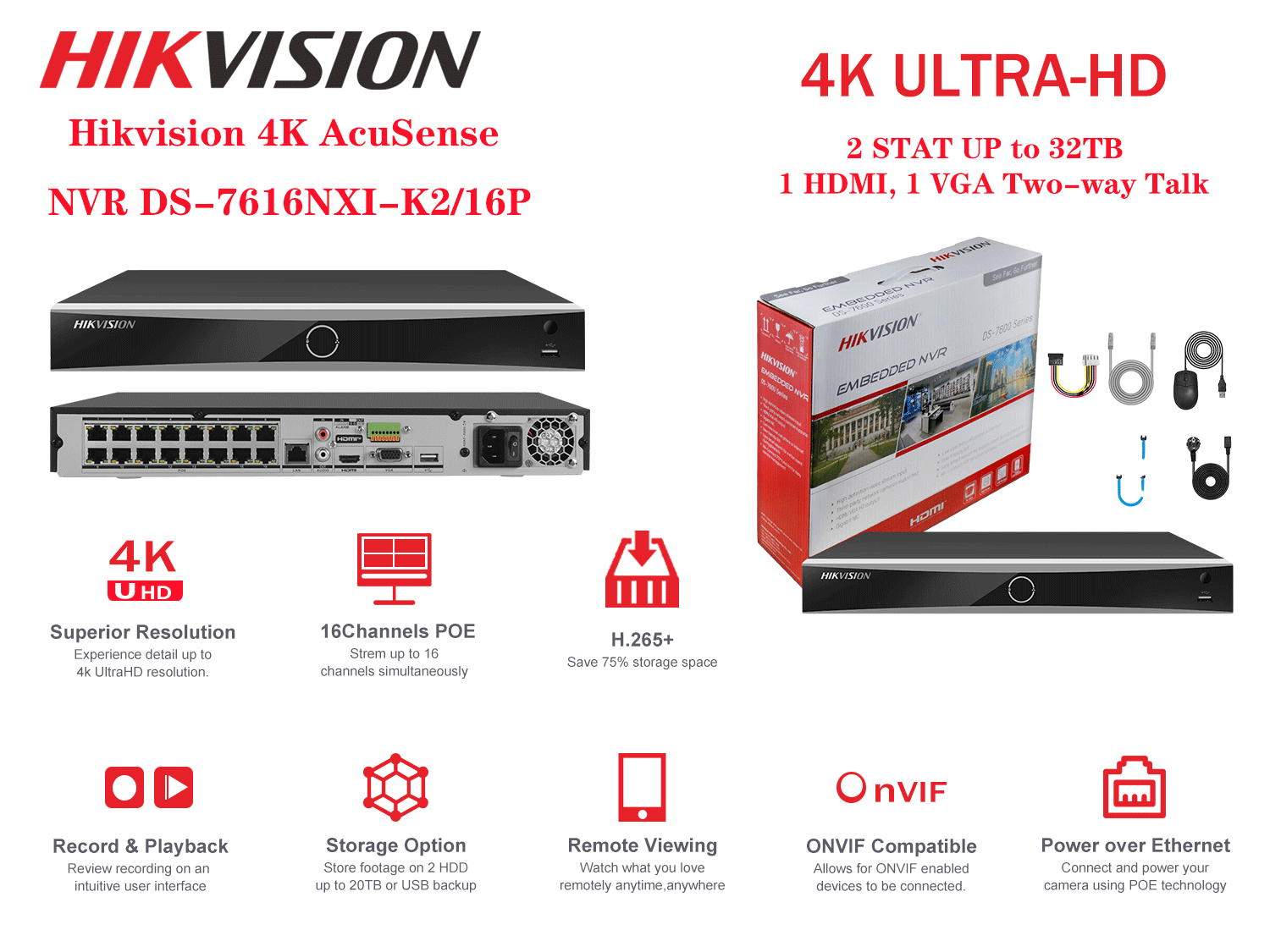

Original Hikvision 4K 16CH NVR 12MP Acusense 16POE 2 SATA 20TB DS-7616NI-K2/16P
Hikvision APP : hik-connect, guard viewer, IVS-4200
>Search Tool：SADP （search device and change IP address）
>Warranty: 3years
>Delivery time: 1 working day
>If there is any problem with use, please contact with us at any time. we have very professinal engineer, can help you set online.
>>> This NVR is Hikvision original genuine products, support firmware upgrade.
Hikvision APP : hik-connect, guard viewer, IVS-4200
>Search Tool：SADP （search device and change IP address）
>Warranty: 3years
>Delivery time: 1 working day
>If there is any problem with use, please contact with us at any time. we have very professinal engineer, can help you set online.
>>> This NVR is Hikvision original genuine products, support firmware upgrade.
DS-7616NXI-K2/16P 16-ch PoE 1U K Series AcuSense 4K NVR
- Up to 16-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
- Up to 160 Mbps incoming bandwidth
- Adopt Hikvision Acusense technology to minimize manual effort and security costs
Intelligent Analytics
AI By DeviceFacial recognition, perimeter protection, motion detection 2.0
AI By CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Facial Recognition
Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection And Analytics Performance1-ch, 8 MP
Face Picture Comparison4-ch
Motion Detection 2.0
By DeviceAll channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
By CameraAll channels
Perimeter Protection
By Device2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
By CameraAll channels
Video And Audio
IP Video Input16-ch
Incoming Bandwidth160 Mbps
Outgoing Bandwidth160 Mbps
HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output ModeHDMI/VGA independent output
CVBS OutputN/A
Audio Output1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Two-Way Audio1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding FormatH.265/H.265+/H.264+/H.264
Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16-ch
Decoding Capability
AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC
Network
Remote Connection128
APIONVIF (profile S/G); SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤ 200 W
StandardIEEE 802.3af/at
Auxiliary Interface
SATA2 SATA interfaces
CapacityUp to 10 TB capacity for each HDD
USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm In/Out4/1
General
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 15 W (without HDD and PoE off)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0")
Weight≤ 3 kg (without HDD, 6.6 lb.)
Certification
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
