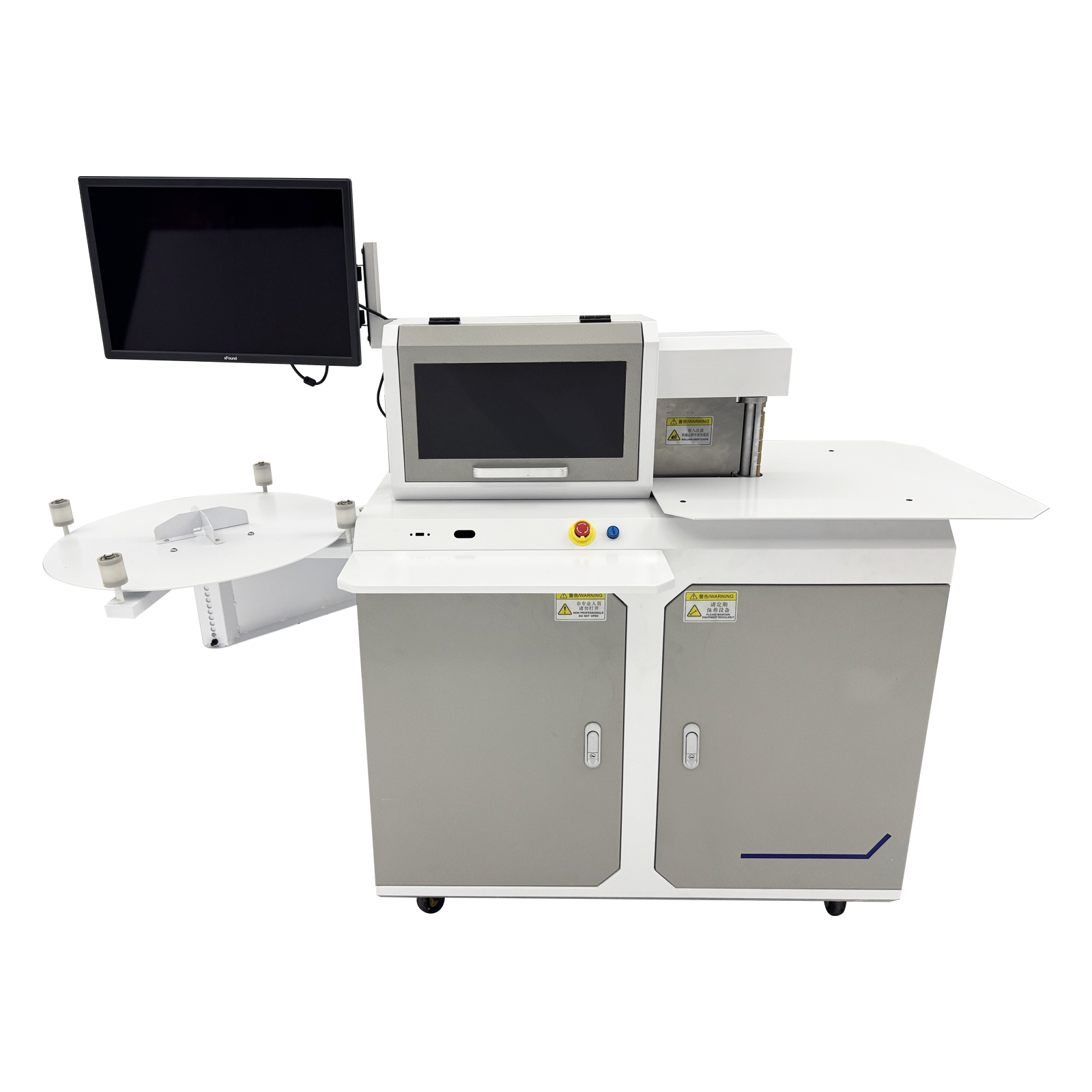

220V 1PH Automatic Channel Letter Bending Machine Bender for Aluminum Channelume

Name: OpenBox Aluminum Profile AD Text Borderless & luminous Character Bender 220V 1PH
Brand: TECHTONGDA®
SKU: 197491017044
Price: 2744.8 USD
Availability: InStock
Rating: 5.0 (99 reviews)

TECHTONGDA®

	ITEM DESCRIPTION
	The entire machine is constructed from stainless steel sheet metal, offering lightweight yet durable performance.
	When processing flat aluminum materials, users can customize grooving methods via software, supporting single-side/double-side grooving.
	Electrically controlled lifting rotary milling cutter system for precise cutting.
	Software automatically identifies optimal bending modes: Large arcs: Extrusion molding; Small arcs: Tapping molding.
	For flanged aluminum materials, the system auto-detects grooving angles from design files, enabling forward / backward grooving.
	Premium quality stepper drive and motor ensure high-speed, stable operation.
	Dual-axis synchronized copper shaft bending system maximizes material surface protection against scratches.

This is a unique machine to make channel letters. During material processing, the software automatically identifies slotting angles and directions, allowing users to manually set front/back slotting in the software according to processing needs, with high recognition accuracy. Featuring intelligent operation for easy use, it automatically slots and bends arcs by importing path-format files. It is mainly used in the advertising signage industry, especially for automated production of metal illuminated letters (such as aluminum-border seamless letters, aluminum-edged super letters, folded-edge aluminum letters, etc.).

ITEM PARAMETERS

Voltage:	AC220V
Phase number:	1
Power:	750W
Air pressure:	0.6-0.8MPa
Material type:	Flanged aluminum / Flat aluminum sheet / PVC
Material Height:	0.8"-5.1" (20mm-130mm)
Material thickness:	Flanged aluminum: Max. 0.6mm; Flat aluminum sheet: 0.5mm-0.8mm; PVC: 0.8mm
Supported formats:	PLT / DXF / NC
Feeding accuracy:	Length: ±0.1mm; Radius: >7mm
Slot degree:	45-135 Degree
Speed:	600-1000 Meters/8 Hour
Min bending diameter:	≧12mm(0.47in)
Max bending angle:	360 degree
Max approach speed (in/sec):	4
Max bending speed (in/sec):	40

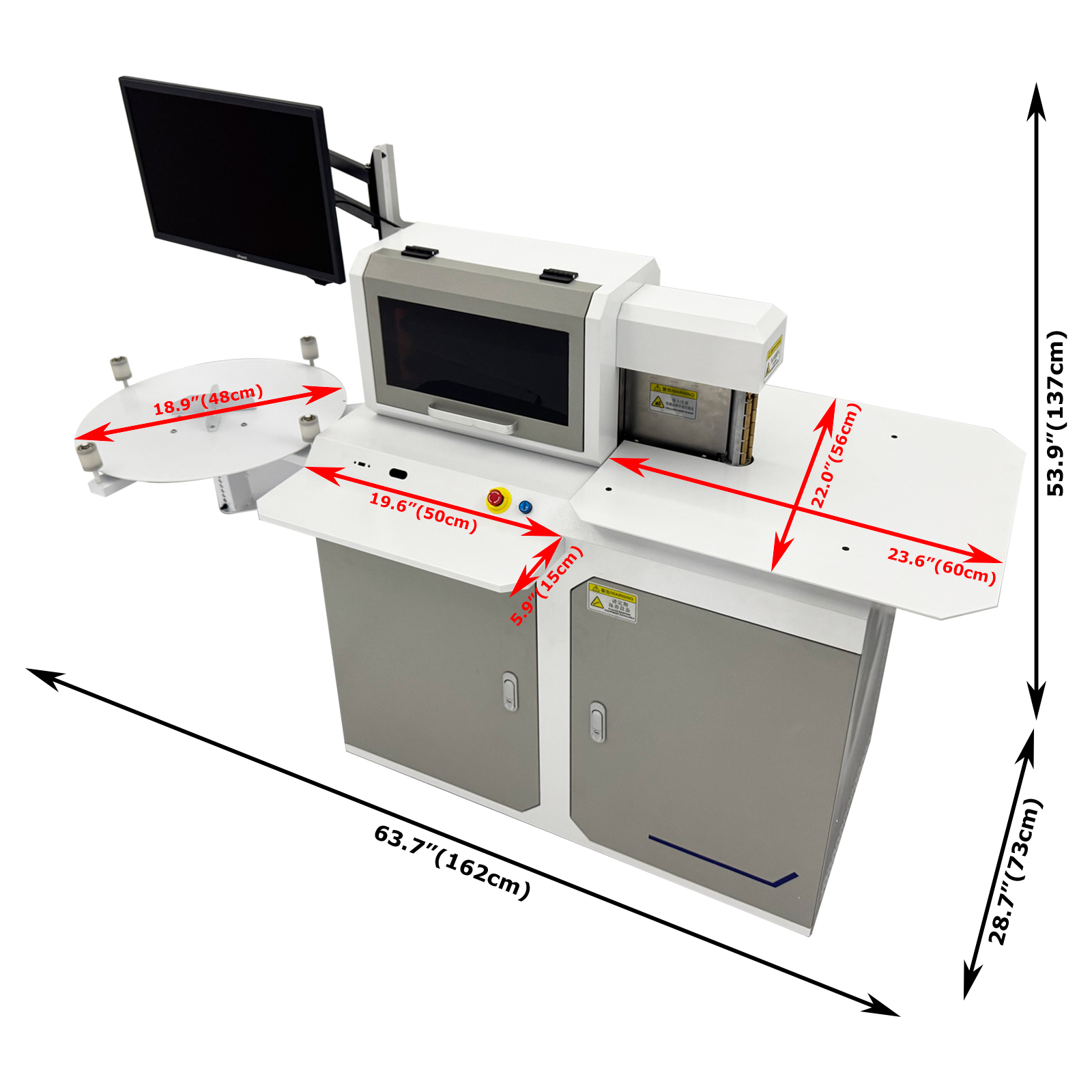

Package size:	42.5"25.2"53.5" (108cm64cm136cm)
Net weight / Gross weight:	238.0lbs(108kg) / 308.6lbs(140kg)
Before You Buy: Please use with your own air pump or air compressor (not included)

ITEM DETAILS


Feeding Module The feeding system adopts a polyurethane roller pressing mechanism for continuous material feeding, delivering fast, stable, and highly responsive performance. The polyurethane rollers feature a soft texture, providing enhanced friction compared to traditional metal feed rollers while eliminating physical indentations, ensuring optimal material flatness and color integrity.	Slotting Module The equipment adopts an electronically controlled lifting operation mode, featuring fast response speed and high processing efficiency. The cutting guide rail uses 1.5 linear square rails to ensure stability and verticality during slotting. TBI slider units are employed to achieve smoother vertical movement.	Bending Module The bending system adopts a dual-axis synchronized brass roller bending mechanism. Large-radius extrusion forming ensures fast shaping speed, while small-radius tapping forming delivers excellent shaping quality. It is particularly suitable for processing aluminum hemming coils. The brass rollers minimize scratches on the material's paint surface during the bending process, ensuring the aesthetic quality of the final letter casings.

Electrical Module The equipment adopts an ‌integrated circuit design‌, consolidating the motor driver, power supply, signal adapter board, solenoid valve, and relay into a ‌single cabinet‌ for easy maintenance. It utilizes ‌high-quality electrical components‌ to ensure stable and reliable performance.	Software The software can show bending parameters (e.g., angle, speed, pressure) in real time, enabling precise adjustment of aluminum profile processing data. The screen provides direct feedback on machine status (e.g., slotting depth, bending progress), enhancing work efficiency.‌	Emergency Switch There is an emergency switch on the front of the machine, which can stop the operation of the machine immediately in case of emergency to ensure the personal safety of the operator.

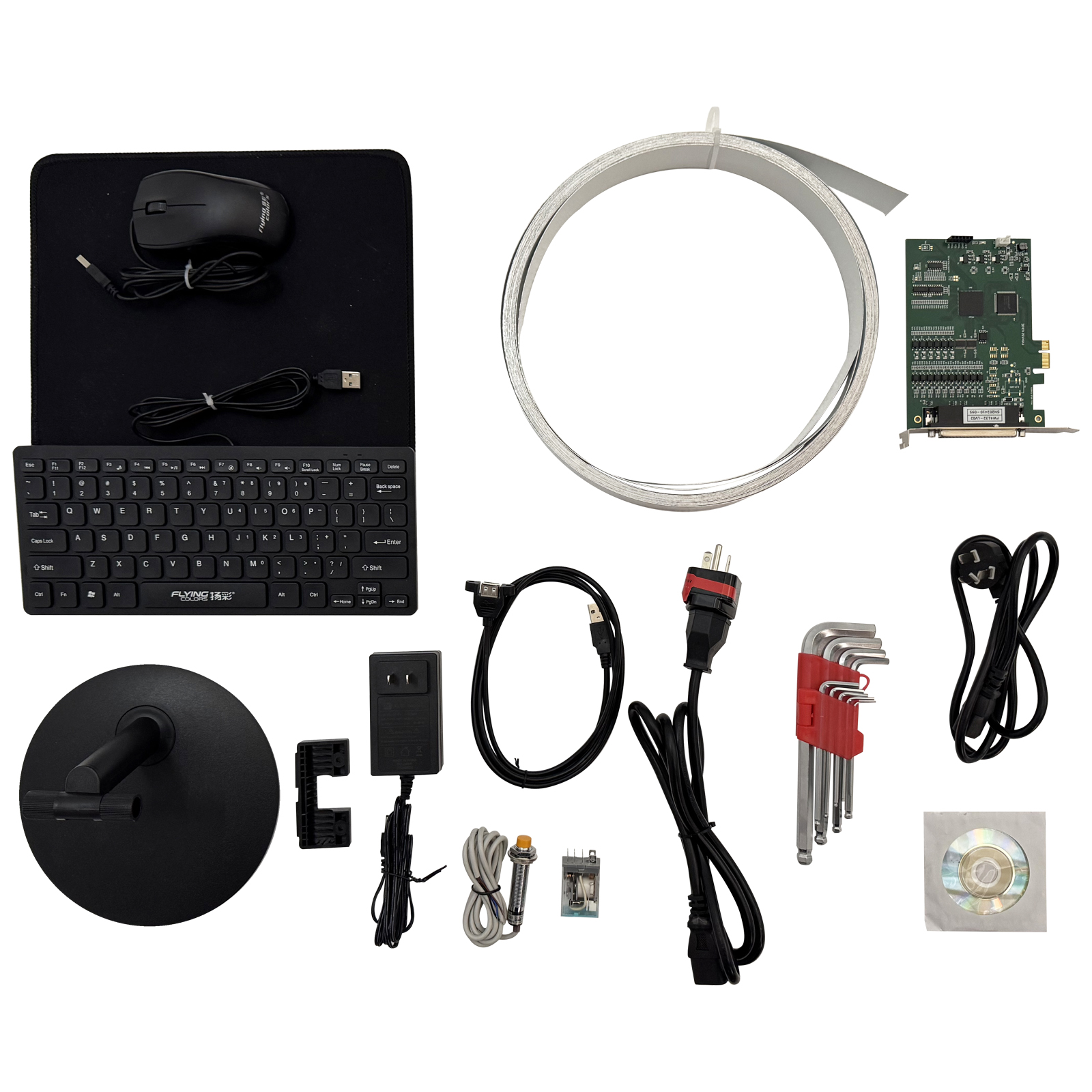

ITEM INCLUDED(057085)

Automatic Channel Letter Bending Machine Bender *1

Accessory Kit *1

You can make order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
