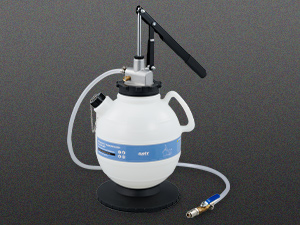

OMT Oil Dispenser Tool Kit 2 Gallon Transmission Fluid Oil Transfer Pump Set US

Slide Slide Slide Slide Slide Slide Slide
$62.09
Type
Oil Pump
Brand
ORION MOTOR TECH
Manufacturer Part Number
MPN1BBTD002-00
Material
Nylon, Silicone, A3 Steel, Aluminum Alloy
Color
White, Blue, Black
Tank Capacity
2 gal. (8 qt. or 7.5 L)
Max. Dispense Volume
2.7 fl. oz./Cycle (80 mL/Cycle)
Hose Length
47.2 in. (1.2 m)
Case Dimensions
10.8 x 8.5 x 2.4 in. (17.5x21.5x6 cm)
Net Weight
7.2 lb. (3.3 kg)
UPC
719868667453
condition
New
Specifications

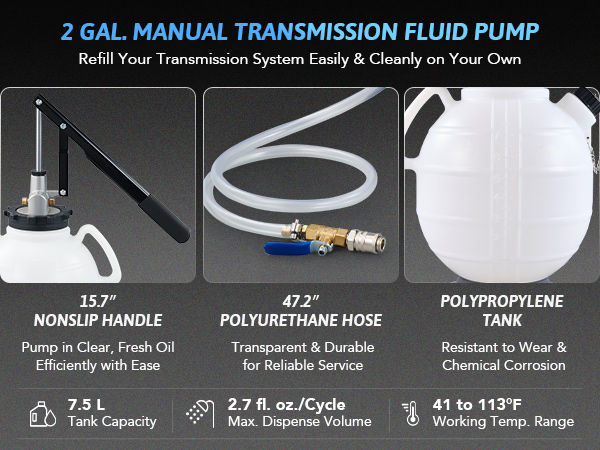

  • Material: Nylon, Silicone, A3 Steel, Aluminum Alloy
  • Color: White, Blue, Black
  • Tank Capacity: 2 gal. (8 qt. or 7.5 L)
  • Max. Dispense Volume: 2.7 fl. oz./Cycle (80 mL/Cycle)
  • Hose Length: 47.2 in. (1.2 m)
  • Case Dimensions: 10.8 x 8.5 x 2.4 in. (17.5x21.5x6 cm)
  • Net Weight: 7.2 lb. (3.3 kg)

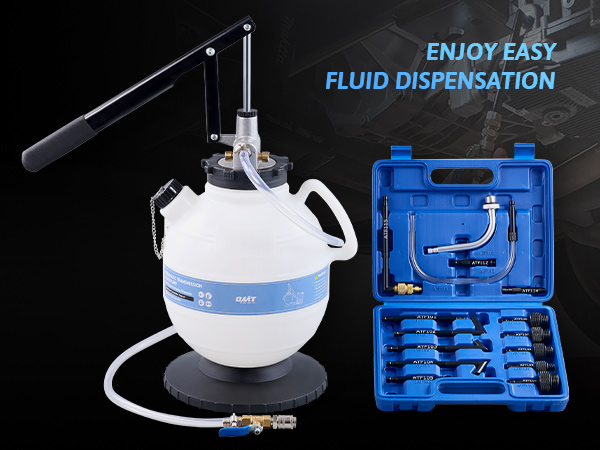

Package List
  • 1 x Main Reservoir
  • 1 x Pump Handle

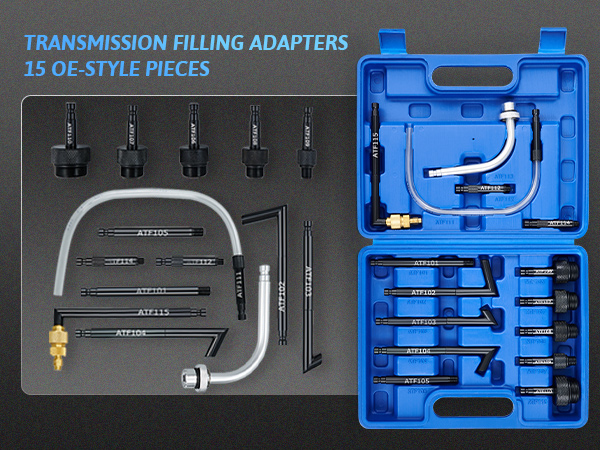

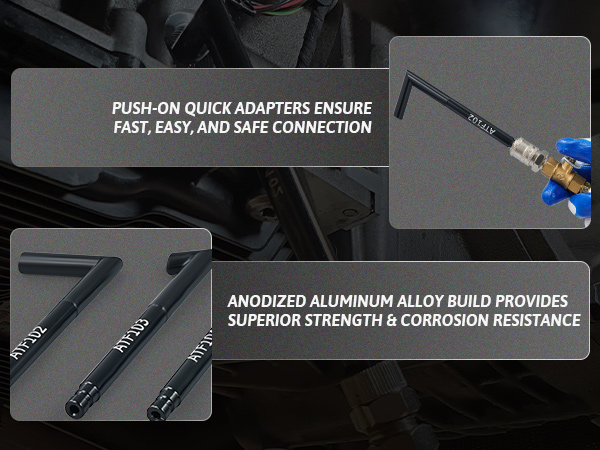

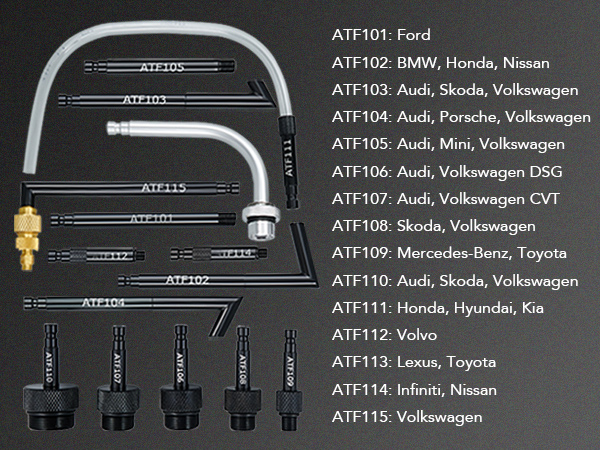

  • 15 x Adapters
  • 1 x Hose
  • 2 x Bolts
  • 1 x Open-End Wrench
  • 1 x Phillips-Head Screwdriver
  • 1 x Pair of Gloves
  • 1 x Blow-Molded Case
  • 1 x Instruction Manual

Easy Operation

Step 1

Attach the handle to the main reservoir, connect the hose, and unlock the handle.

Step 2

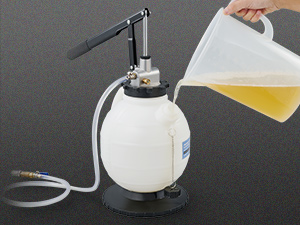

Unscrew the chained cap for the filling hole and add clear, fresh fluid through the wide inlet.

Step 3

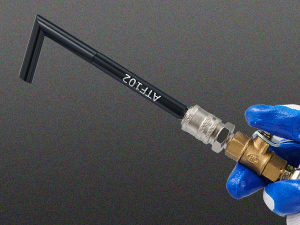

Select the ATF adapter t
