NOYAFA NF-8509 Network Cable Tester Cat6 PoE Tracker Measure Length Wiremap Tool

$71.13
Transmitter Ambient temperature display
Support
Transmitter Frequency
0-lOMHz (accuracy: ±1.0%+3)
Cable(s) Tested
RJ45
Transmitter Port flashing test
10M/100M/1000M
Transmitter Wire scanning
RJ45 600m
Receiver LED light
Support
MPN
NF-8509
Transmitter POE
4-core/8-core power supply detection POE voltage detection
Transmitter Wire mapping test
Max. distance of 2,000m
Brand
NOYAFA
Transmitter AC/DC measurement
lmA-3A DC (accuracy: ±0.8%+3)
Receiver Telephone function
Support
Transmitter Resistance measurement
6OOO-6OMO (accuracy: ±1.0%+5)
Unit Type
Unit
Model
NF-8509
Transmitter Wire length test
5-200m (±3m)
Transmitter NCV function
Inductive voltage detector (0-4 levels)
Transmitter AC/DC voltage measurement
600mV-610V (DC accuracy: ±0.5%+3; AC accuracy: ±0.5%+3)
Country/Region of Manufacture
China
Unit Quantity
1
Transmitter Power
3.7V/1,500mA lithium battery
condition
New
NOYAFA NF-8509 Network Cable Tester Cat6 PoE Tracker Measure Length Wiremap Tool

Function for Network Cable Tester:

1. Line-to-line Test: Test the short circuit, open circuit, crossover, normal, etc. of the network cable. (≤2000m)

2. Length Test: Network cable length breakpoint test, no calibration required. (Note: The network cable cannot be powered on during length measurement, and cannot be connected to equipment and instruments. The length must be between 5m and 200m, otherwise the measurement data will be inaccurate)

3. Line Hunting Mode: Normal mode/Anti-jamming mode.

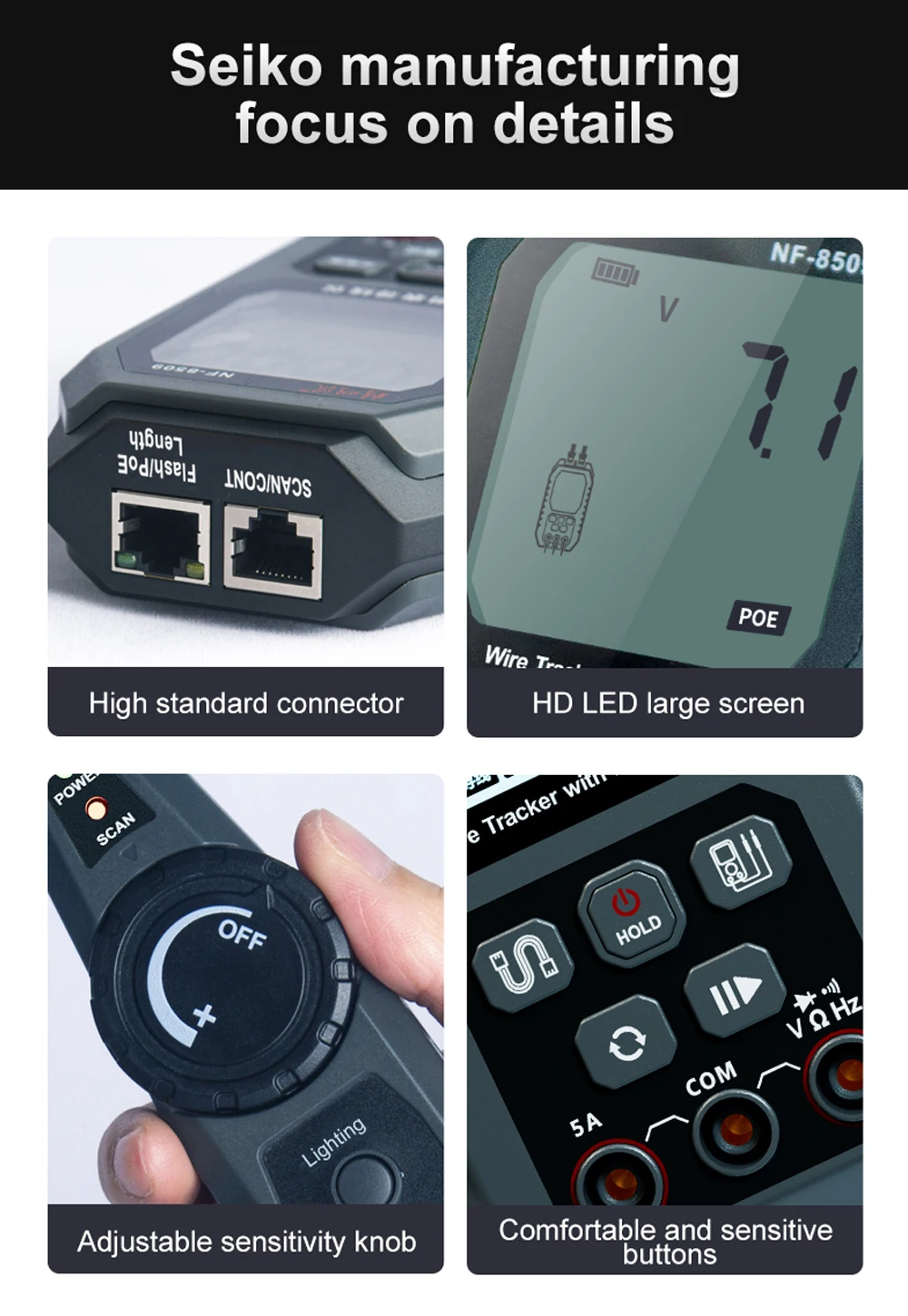

(1)The closer the receiver probe is to the target line, the stronger the signal and the louder the sound. The adjuster on the receiver is used to adjust the sensitivity when line hunting.

4. POE Test: Power supply wire core and power supply voltage detection, both standard and non-standard PoE can be tested.

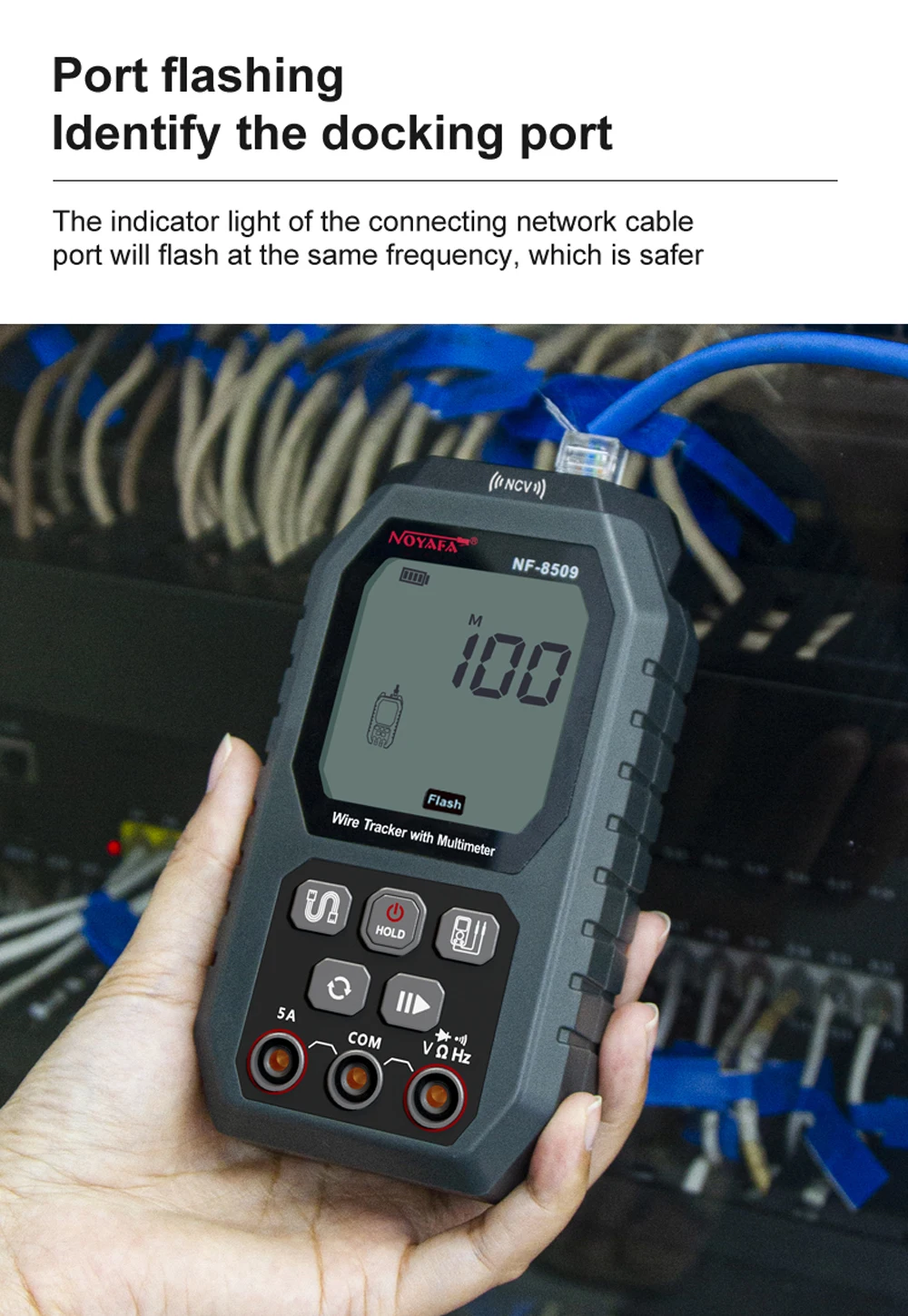

5. Port Flashing Function: Quickly find the network cable on the switch/router. (10/100/1000 trillion recognition)

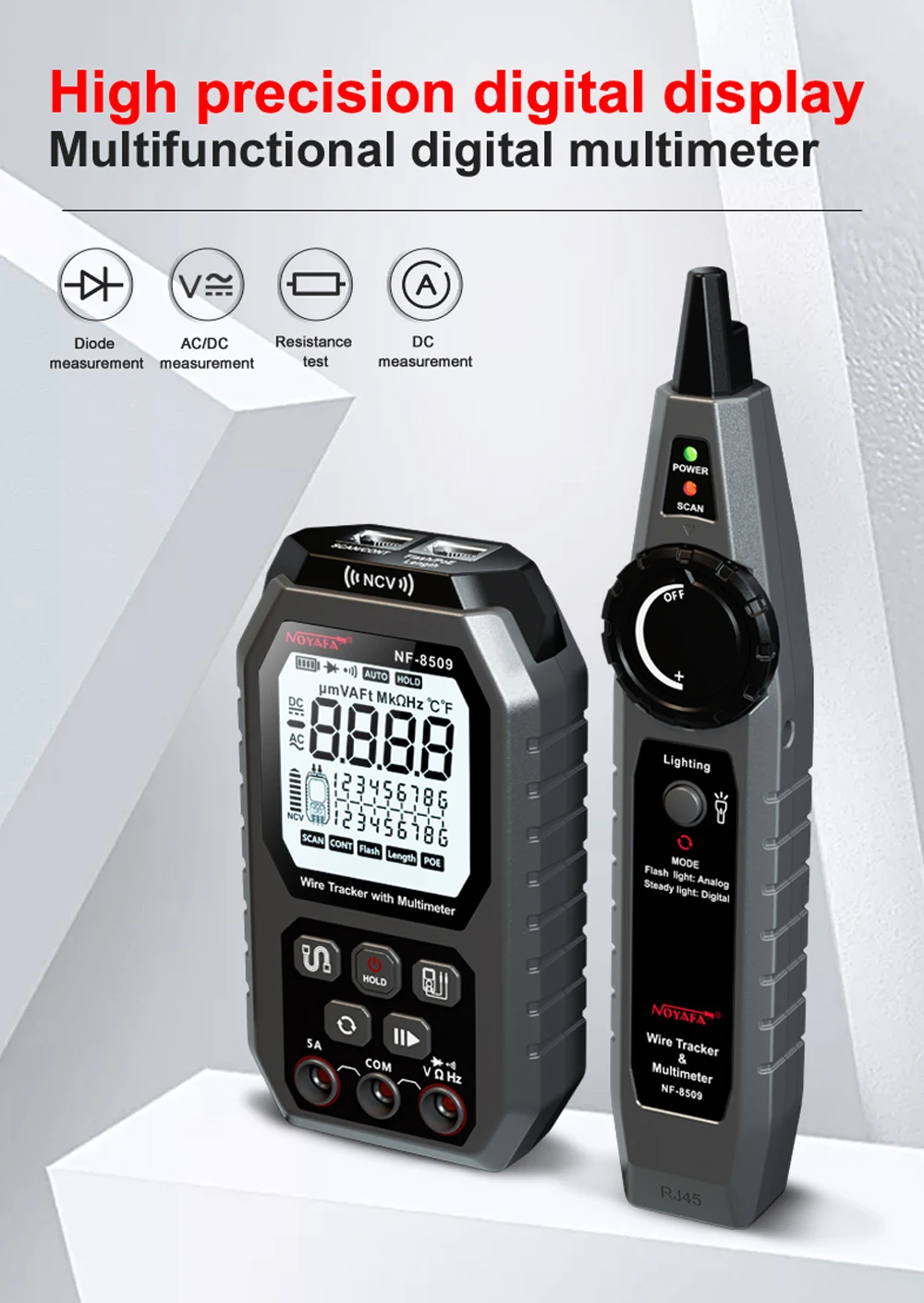

Function for Multimeter(DMM) :

1. Frequency Measurement,

2. Diode/Interrupt Measurement,

3. NCV Measurement: Induction-type electric pen (level 0-4)

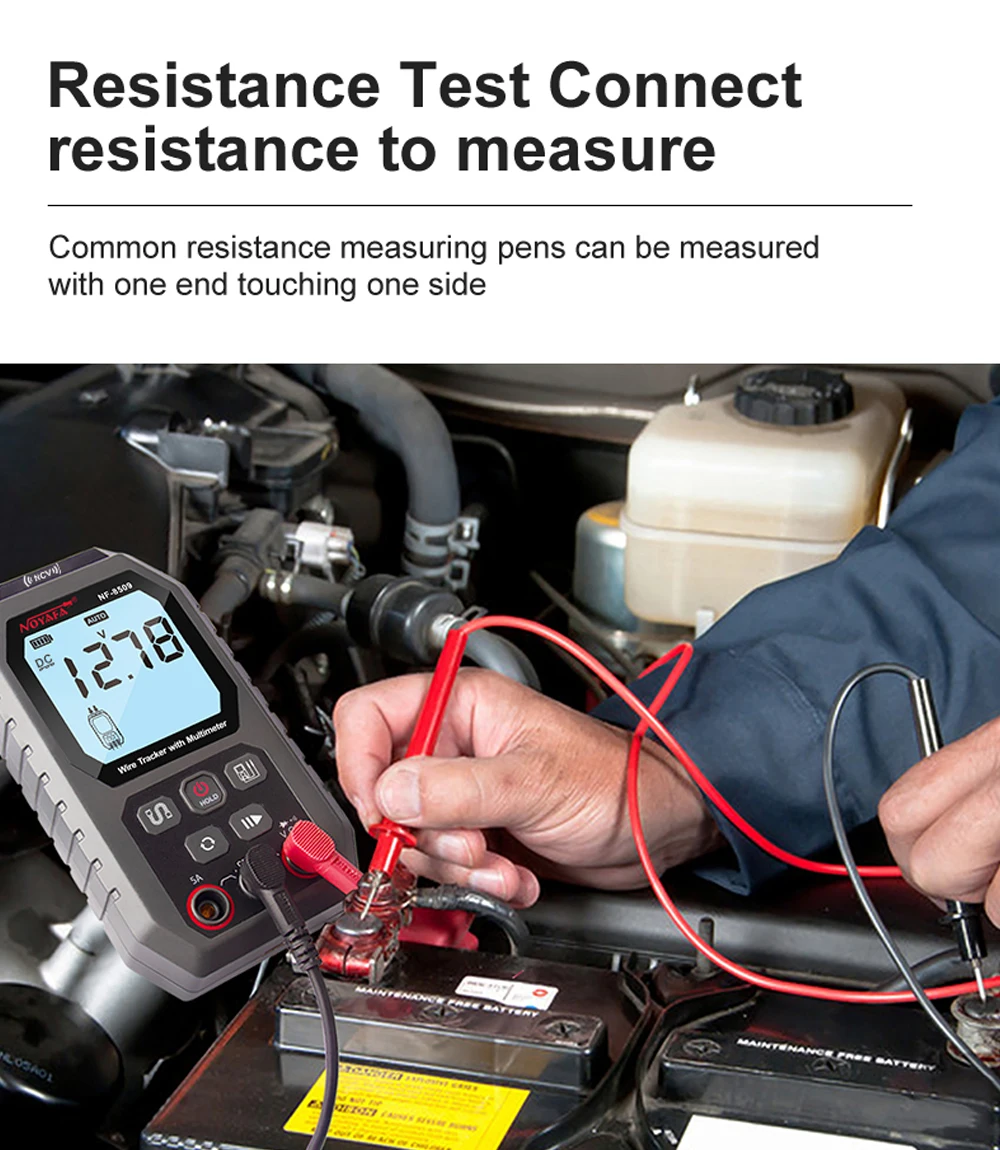

4. Resistance Measurement: 600Ω~60MΩ

5. DC/AC Voltage Measurement: 600mV~610V

6. DC/AC Current Measurement: 1mA~3A

7. Ambient Temperature Test



Product Description:

Brand: NOYAFA

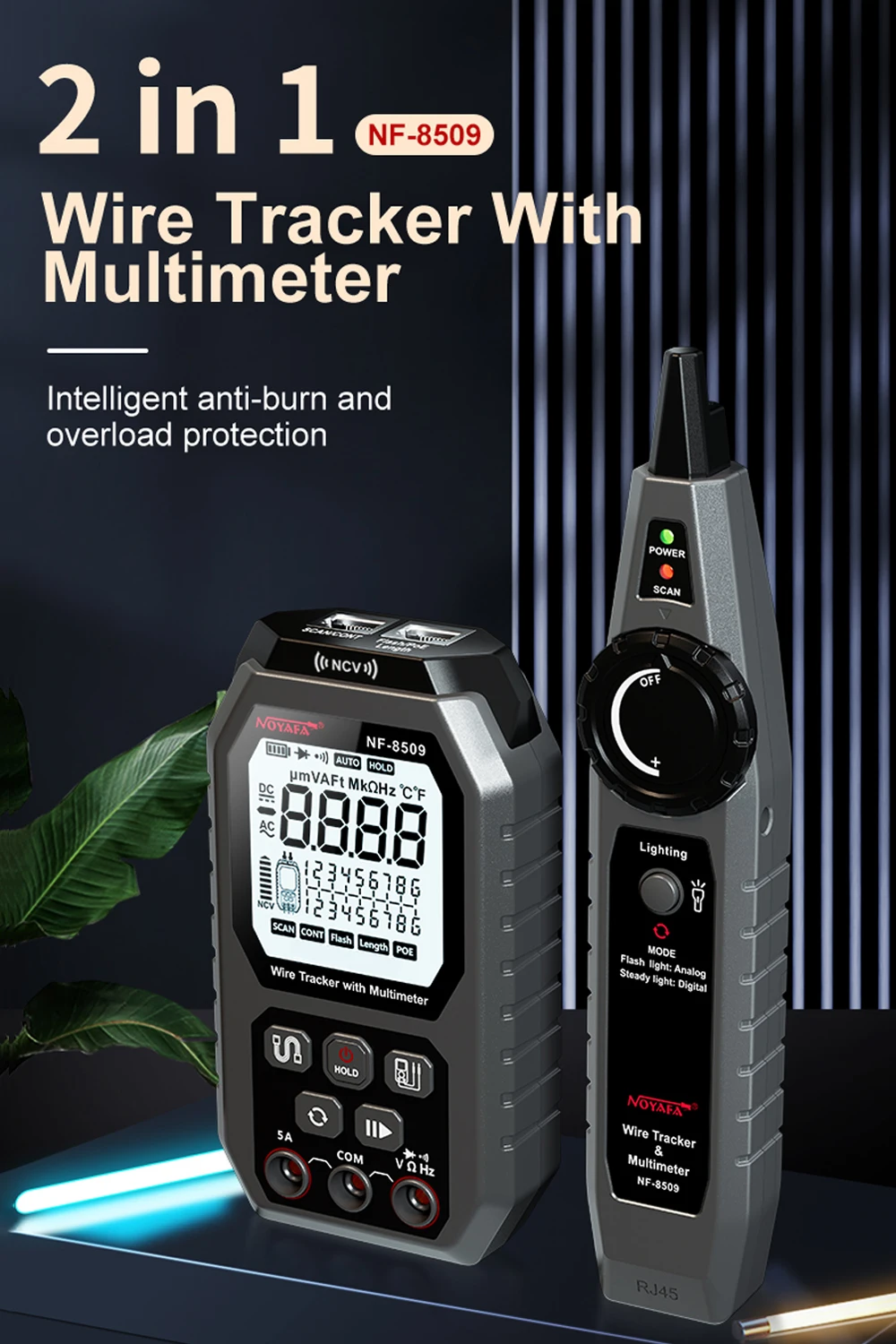

Product Name:Network Cable Tester+ Multimeter

Type: NF-8509

Dimension(LxWxD): 205x38x29mm, 138x76x34mm

Applicable Network Cable: CAT5, CAT6

Length Measurement Range: 5~200m(±3m)

Low Battery Reminder: Yes

Lighting Function: Yes

Battery Type: 3.7V/1500mAh Lithium Battery(Transmitter)



Package Include:

1Pc x NF-8509 Cable Tester

1Pc x Type-C Data Cable

1Pc x RJ45 Adaptation Line

1Pc x Test Pen

1Pc x Earphone

1Pc x Toolkit

1Pc x Product Manual

1Pc x Safety Cord

1Pc x Packing Box


Please Note:

1. DC/AC Current Measurement (Not prevent burning, because there will be a current choice of current during current measurement, 8509 has no gear selection, but there will be a choice of jack position. If you insert the wrong position, the instrument will be burn out.)
