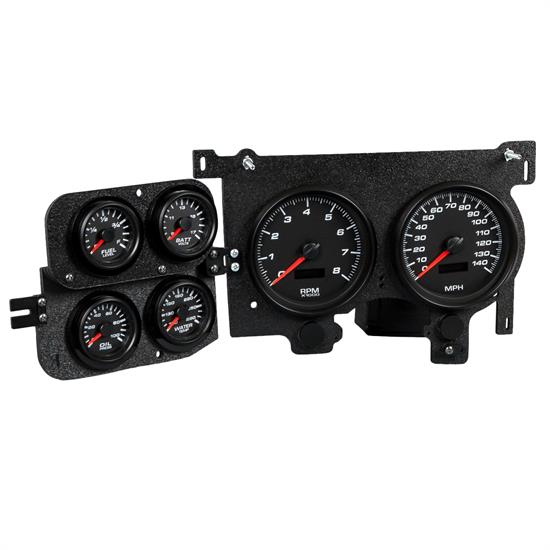

New Vintage USA complete gauge packages for 1973-1987 GM full size trucks are designed to install in the factory location and update the style and functions in the dash. Each kit is hand assembled in Detroit and features NVU's unique mounting bracket, CNC laser cut and formed to precise specifications for a superior fit. Each kit comes complete with senders, factory-match fuel gauge (0-90). NVU instruments are easy to integrate with your old school engine or the latest LS powerplants. Programmable speedometer reads vehicle speed from any most any aftermarket and OE speed senders (including GPS); can also read from a GM PCM. Tachometer operates from any ignition output or PCM.
Kits include NVU exclusive mounting bracket and hardware, 4-3/8" programmable speedometer, 4-3/8" programmable tachometer operates on any cylinder configuration, 2-1/16" oil pressure, water temperature, volt and 0-90 fuel gauge. (0-90 ohm factory match fuel gauge utilizes stock sender-not included). Sender bushings, jumper wiring harnesses where required and programming button.
The Performance II gauge style brings an updated performance look without the "in your face" look of a racing gauge, with bold graphics, blue back lighting and lit pointer.
- LED Blue backlighting
- Bold styling
- Easy programming and setup
- Built-in indicators (Turn signal, hi beam, warning lights)
- 4-3/8" Speedometer 140 MPH programmable with 1 auxiliary input
- 4-3/8" Tachometer 8,000 RPM with TWO auxiliary inputs
- 2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)
- Temperature gauge 140-280 F
- Oil pressure gauge 0-100 PSI
- Voltmeter 9-17V
- 2 ea AMP connector harnesses
- 2 ea Programming buttons
- Bushing kit
- Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 O)
- Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)
- 73-87 GM Truck bracket
For all technical/repair/warranty product questions or needs, please contact New Vintage directly. For all other inquiries regarding shipping and delivery information, please contact the Speedway Motors Customer Experience Center.
