New leter Automatic Self Leveling 2 Line 5 Point 1V1H red Laser Level

• red laser: 5dots,1V,1H,
• Horizontal line accuracy: ≤ ± 1mm /10m
• Vertical line accuracy: ≤ ± 1mm /10m
• Up beam accuracy: ≤1.5mm /10m
• Down beam accuracy: ≤1.5mm /10m
• Left right and front 3 dots leveling accuracy: ≤4mm /10m
• Superposition accuracy(Dots & lines): ≤ 1mm /10m
• Self-leveling range: 4°±1°
• Dot Working range: ≤30m
• Line Working range: ≤10m; >25m with Laser detector
• Diode power: 635nm±5nm, Class 2M, EN60825-1
• Working time: ≥7hs
• Dimensions(LxWxH): 116x69x112mm

Features:

*Self-Leveling with magnetic pendulum.

*5beams & 1V,1H(cross over the ceiling) ,laser lines have a large fan angle (150°) .

*High visibility laser line .full orientations,high stability,handeling.

*Laser lines & laser dots can be combined or independent for operation.

*In /Outdoor function for option.(working with laser detector).

*Laser line or laser dots blink if the unit is out of the self-leveling rang.

*Center locking system to lock the pendulum while in transportation to avoid the vibration(patent).

*Compact size and handling housing with elastomeric rubber for easy carrying.

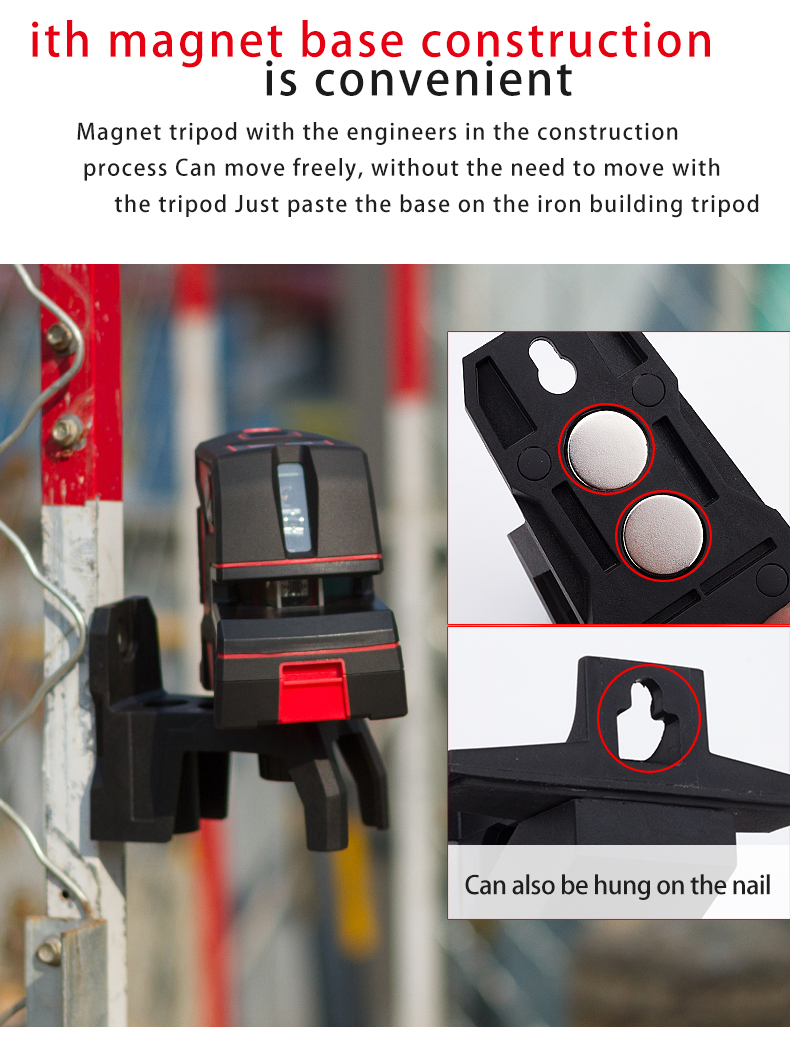

*Multi-function wall mount & base & fine adjusting screws to cooperate with

At the moment the optical circuit LETER  LT303 is simply unrivalled in the market.
With three laser emitters the level can build not only the classic “cross” (horizontal and vertical plane sweep with 160 ° angles), but also five orthogonal beams (Zenith, Nadir and three horizontal: forward, left, right). The device can be mounted on a tripod in such a way that the plumb point
will be located on the mounting axis of the level. Therefore, when the device turns around its axis, the zenith and nadir remain static
