Come with customized standard

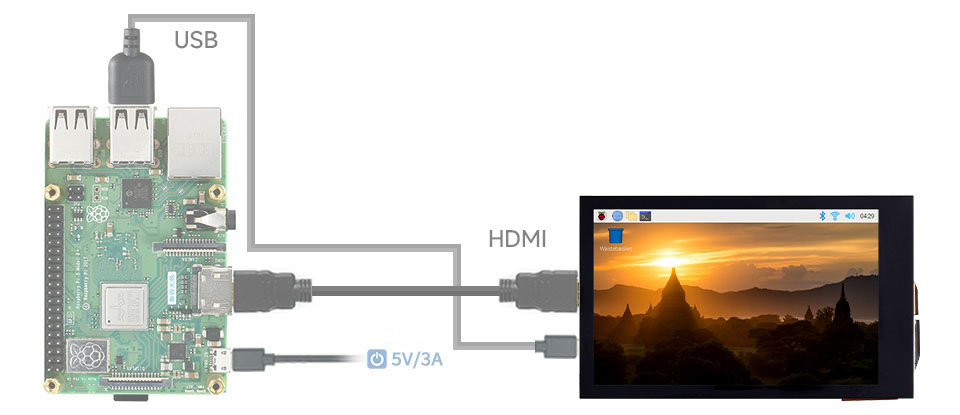

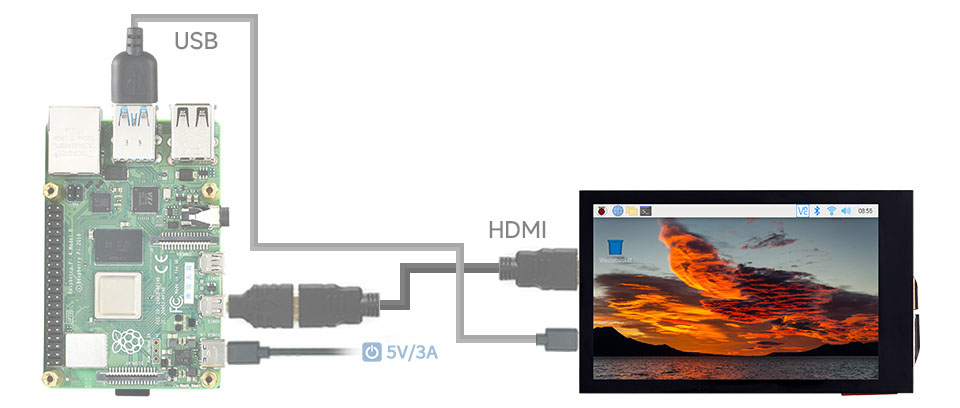

Free driver in Raspberry Pi support Raspbian, Ubuntu, Kali, win10I0T and other single touch

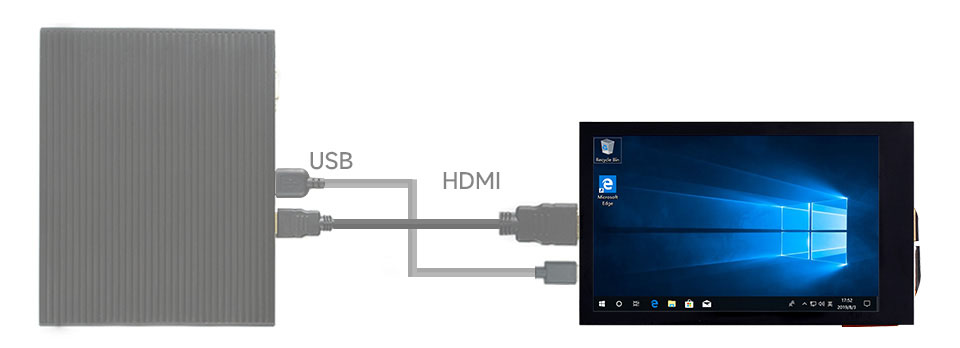

Free driver in computer xp (single point), win7 (some single point) win8, winl0 five point touch

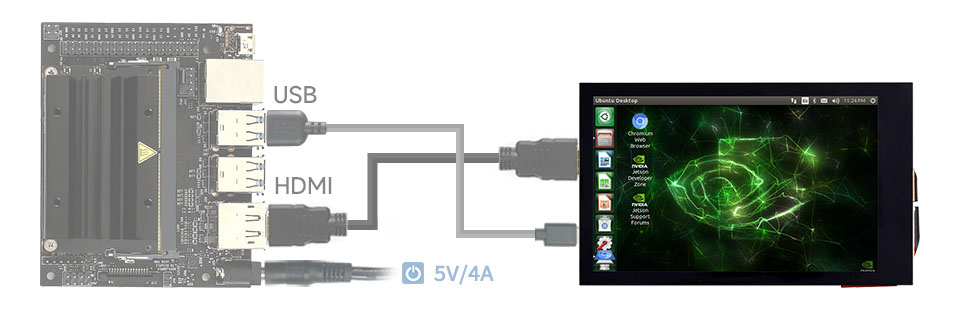

Support for HDMI devices such as set-top boxes, BB black, Banana/0range pi, Jetson nano and car recorders

Support backlight switch control, open 350ma current, turn off 100ma current,

Support universal Android usb interface, usb voltage input does not affect, usb touch interface card off

USB touch interface supports USB touch, supports display power supply, does not affect usb voltage interface

Free driver Support for Ubuntu, Debian, Cent0S, Arch, Kali, Redhat, etc.

Full HD fidelity stereo audio output, support 44. 1Khz to 196Khz audio track

Parameters

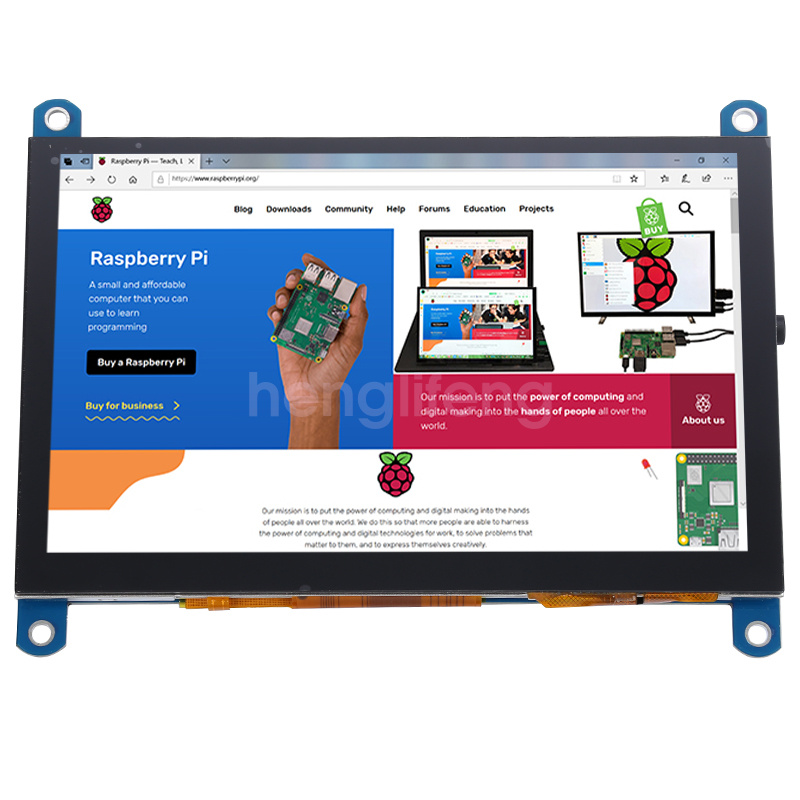

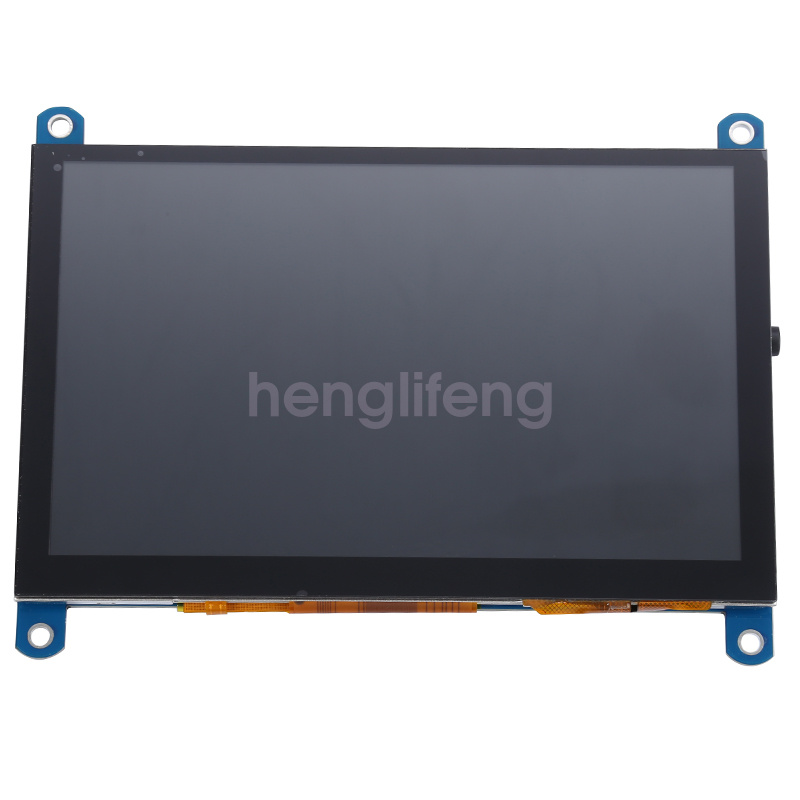

LCD display size: 5 inch

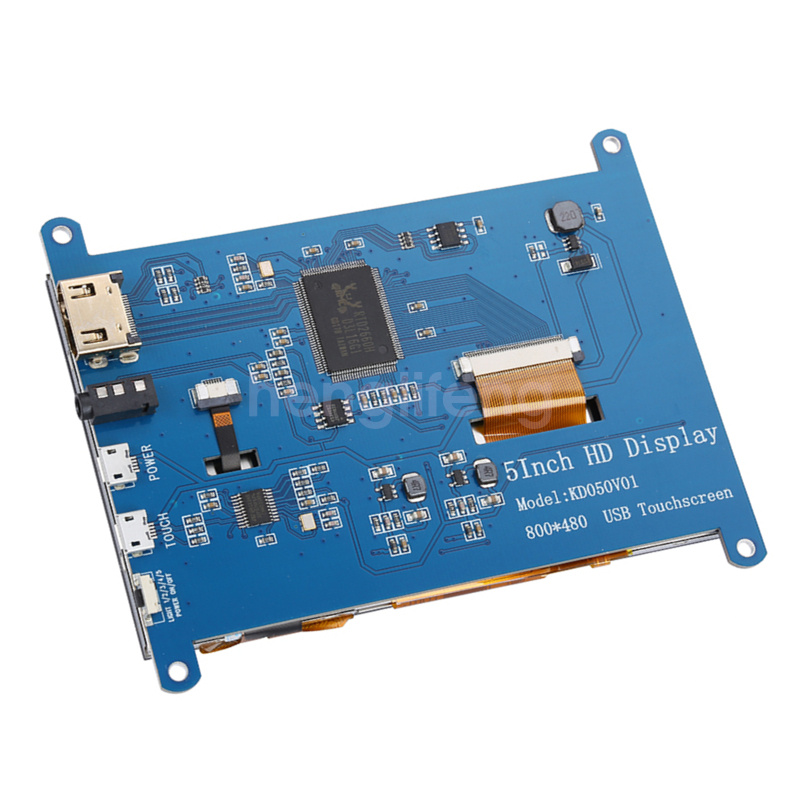

Module structure:HDMI Display + USB touch +PCB

Display resolution:800*480

Module dimensions:121x77x7.75mm

Active area dimesnsions:109x67mm

Pixel pitch:0.1506x0.1432mm

Color pixel arrangement:RGB stripe

Display mode:Transmissive type, Normally white mode

View direction(Gray inversion): 6'clock

LCD interface type: HDMI

CTP interface type: USB

CTP structure type: Cover Glass + ITO Glass (G+G)

CTP structure hardness:>6H

Brightnees:500(typ) cd/m2

Contrast Ratio:300：1

Operating temperture:-20 ~70C

Storage temperture:-30~80C
