The size of this gearbox is 60 x 60 mm and the input shaft diameter is 8mm. This high-precision planetary gearbox is belong to EG series gearbox. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This inline planetary gearbox built-in an input shaft coupling which can match any standard 8mm diameter shaft of Nema 23 stepper motor and brushless dc motor.
Gearbox Specifications
- Manufacturer Part Number: EG23-G5-D8
- Gearbox Type: Planetary
- Gear Ratio: 5:1
- Efficiency: 94%
- Rotor Inertia: 0.13kg·cm²
- Backlash at No-load: <=15arcmin
- Max.Permissible Torque: 28Nm(247.82lb-in)
- Moment Permissible Torque: 56Nm(495.64lb-in)
- Noise: <=55dB(1000rpm)/65dB(3000rpm)
- Waterproof Rating: IP54
- Lifetime: 20000hours
Physical Specifications
- Frame Size: 60 x 60 mm
- Gearbox Length: 73.5mm
- Output Shaft Type: Key way
- Output Shaft Diameter: Φ14mm
- Output Shaft Length: 35mm
- Input Shaft Diameter: Φ8mm
- Input Shaft Length: 12-31mm
Gearbox Specifications
- Manufacturer Part Number: EG23-G10-D8
- Gearbox Type: Planetary
- Gear Ratio: 10:1
- Efficiency: 94%
- Rotor Inertia: 0.13kg·cm²
- Backlash at No-load: <=15arcmin
- Max.Permissible Torque: 10Nm(88.51lb-in)
- Moment Permissible Torque: 20Nm(177.01lb-in)
- Noise: <=55dB(1000rpm)/65dB(3000rpm)
- Waterproof Rating: IP54
- Lifetime: 20000hours
Physical Specifications
- Frame Size: 60 x 60mm
- Gearbox Length: 73.5mm
- Output Shaft Type: Key way
- Output Shaft Diameter: Φ14mm
- Output Shaft Length: 35mm
- Input Shaft Diameter: Φ8mm
- Input Shaft Length: 12-31mm
Gearbox Specifications
- Manufacturer Part Number: EG23-G20-D8
- Gearbox Type: Planetary
- Gear Ratio: 20:1
- Efficiency: 94%
- Backlash at No-load: <=20arcmin
- Max.Permissible Torque: 30Nm(265.52lb-in)
- Moment Permissible Torque: 60Nm(531.04lb-in)
- Noise: <=55dB(1000rpm)/65dB(3000rpm)
- Waterproof Rating: IP54
- Lifetime: 20000hours
Physical Specifications
- Frame Size: 60 x 60mm
- Gearbox Length: 89.5mm
- Output Shaft Type: Key way
- Output Shaft Diameter: Φ14mm
- Output Shaft Length: 35mm
- Input Shaft Diameter: Φ8mm
- Input Shaft Length: 12-31mm
Gearbox Specifications
- Manufacturer Part Number: EG23-G50-D8
- Gearbox Type: Planetary
- Gear Ratio: 50:1
- Efficiency: 94%
- Rotor Inertia: 0.03kg·cm²
- Backlash at No-load: <=20arcmin
- Max.Permissible Torque: 25Nm(221.27lb-in)
- Moment Permissible Torque: 50Nm(442.54lb-in)
- Noise: <=55dB(1000rpm)/65dB(3000rpm)
- Waterproof Rating: IP54
- Lifetime: 20000hours
Physical Specifications
- Frame Size: 60 x 60mm
- Gearbox Length: 89.5mm
- Output Shaft Type: Key way
- Output Shaft Diameter: Φ14mm
- Output Shaft Length: 35mm
- Input Shaft Diameter: Φ8mm
- Input Shaft Length: 12-31mm

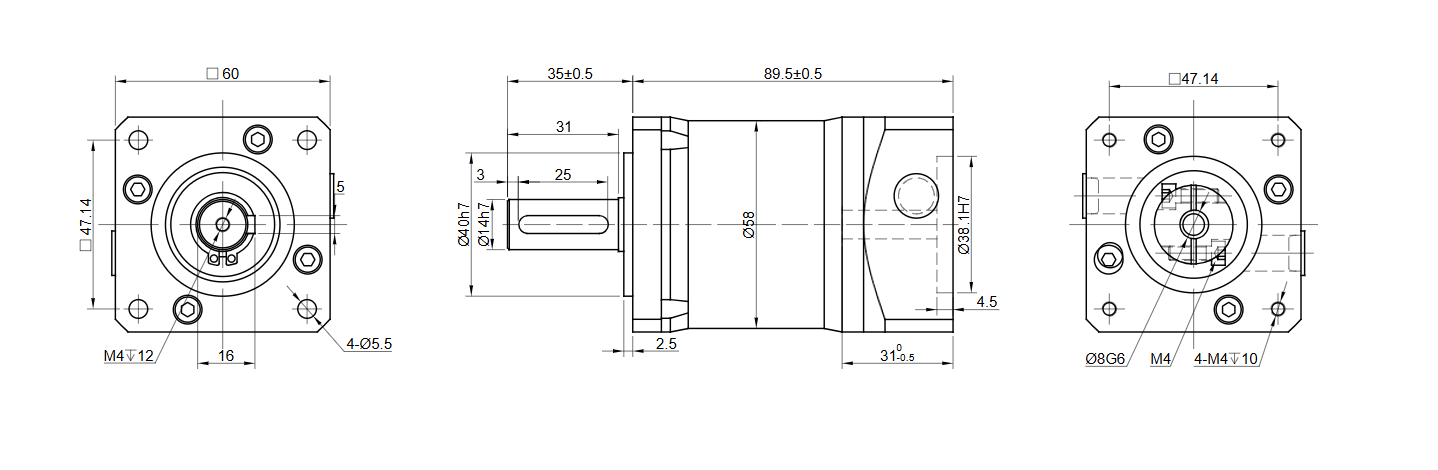

Dimension
