Specifications
Display: 2.8 inch TFT (320 x 240)
RF Output: 0 dbm (±2dbm)
Port SWR: ＜1.1
Size: 54mm x 85.5mm x 11mm
Weight: 249 grams
PCB: 50mm x 68mm x 10mm (without connector, lever switch)
Measurement Frequency:10KHz - 1.5GHz
Measurement Range: 70dB (50kHz-300 MHz), 60dB (300M-900MHz, 40dB (900M-1.5GHz)
USB Interface: USB type-C
Communication Mode: CDC (serial)
Power: USB 5V 120mAh can use battery powered, maximum charging current 300mAh( battery included)
Number of Scanning Points:101(fixed)
Display Tracking: 4, Marking 4, Setting Save: 5
Package list:
1X NanoVNA Host (2.8-inch touch screen and 450mAh battery are included)
2X 20cm SMA Male to Male RG174 RF Cable
2X SMA Female to Female Connector
1X SMA Simple Calibration Kit SHORT
1X SMA Simple Calibration kit OPEN
1X SMA Simple Calibration kit LOAD
1X USB Type-C Data Cable
1X Type-c to Type-c Line
1X Touch Paddle
With this HW3.6 Antenna Analyzer
You can see exactly where antennas are resonant!

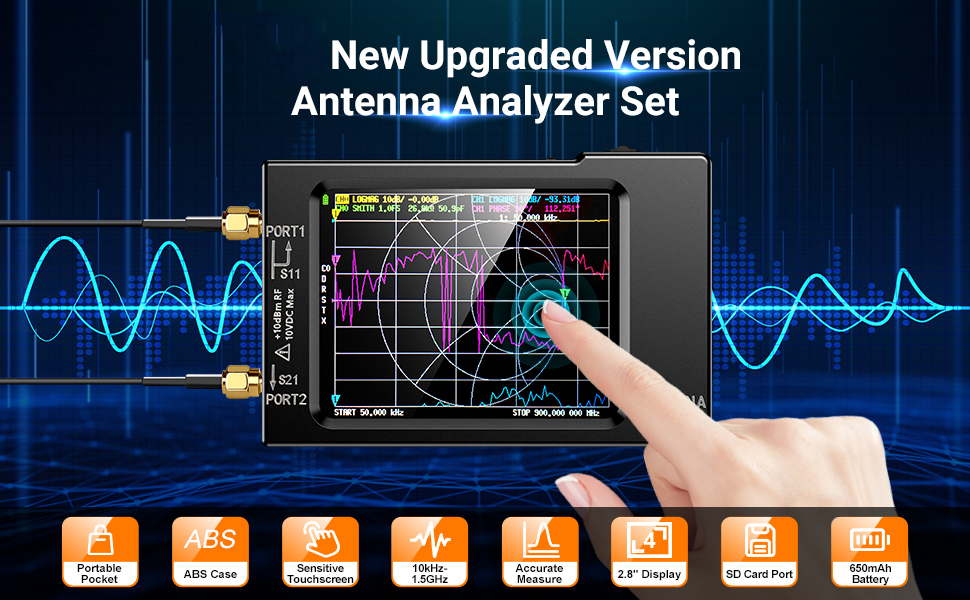

Elikliv NanoVNA-H Vector Network Analyzer 10KHz -1.5GHz Latest HW Version 3.6 | HF VHF UHF Antenna Analyzer Measuring S Parameters
|
|
|
|
|---|---|---|
Portable Pocket VNAThis 2.8 inch Vector Network Analyzer is a pocket VNA, which is very convenient to carry and use at any time or place. |
Sensitive TouchscreenFeatured with a very sensitive touchscreen, this NanoVNA-H allows you to use both fingers and stylus to operate it. |
Accurate MeasuringProvide you accurate measuring, suitable for measuring S Parameters, Voltage Standing Wave Ratio, Phase, Delay, Smith Chart. |
