Monport Lightburn 40w Pro V2.0 Co2 Laser Engraver Marke Cutter 12x8in Air Assist

New Official Upgraded Monport 40W Pro v2.0 (12" X 8") CO2 Laser Engraver & Cutter with FDA Approval -The ONLY ONE 40W Compatible with Lightburn on the Market

Description

Discover the power of Monport's upgraded 40W Pro CO2 laser engraver.Staying true to its compatibility with Lightburn and Laser GRBL software, this advanced model introduces the Built-in Air Assist, combating wood discoloration and delivering pristine, high-clarity results that stand out.

Dive into the expansive 8"x12" (200x300 mm) flat work table, accompanied by an innovative clamping design table, catering to a plethora of design ventures while supercharging your small business productivity.

40W CO2 Engraver Features

• 【v2.0 Upgrade】Monport 2.0 40W Laser Engraver, we have upgraded the air assist function inside the machine. The adjustable laser head allows customers to control it more freely. The new aluminum Liner makes the machine run more stable. What are the upgrades to the 40W co2 laser pro? Here's the upgrade points： 1. We added air assist. 2. The laser head is adjustable 3. The rail is changed to a linear guide rail 4. The water temperature is powered by the power supply, not the batteries. 5. The motherboard on it is our nano replacement board.
• 【Lightburn Compatibility】We've equipped this 40W machine with an upgraded control board to ensure compatibility with Lightburn - the leading, most widely-used software in the industry. With Lightburn, your design possibilities are virtually limitless.

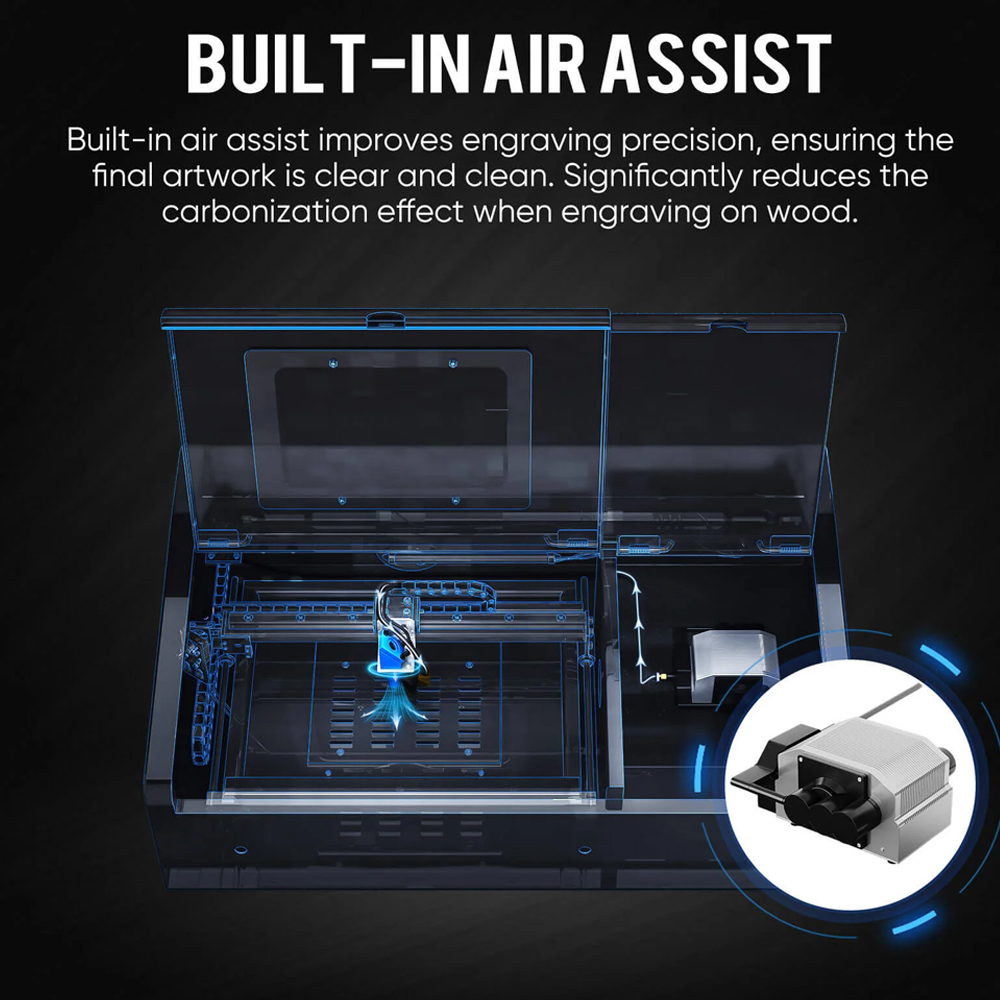

• 【Built-in Air Assist】Built-in air assist enhances the engraving precision, ensuring that the final artwork is clear and clean. Significantly reduce the carbonization effects when engraving on wood, delivering flawless results every time.
• 【Machine Component Upgrade】The Monport 40W Pro boasts a suite of enhanced features, including a 19mm Adjustable Laser Head, Professional-Grade Metal Rails, and a top-tier mirror holder. Together, these upgrades ensure a refined engraving experience for users.
• 【Exceptional Speed and Precision】Our Desktop Engraving Machine guarantees high-speed engraving, reaching up to 350mm/s. It's also incredibly precise, offering an engraving accuracy of 0.01 inches. Whether it's wood, glass, acrylic, or leather, this machine engraves it all with utmost perfection.

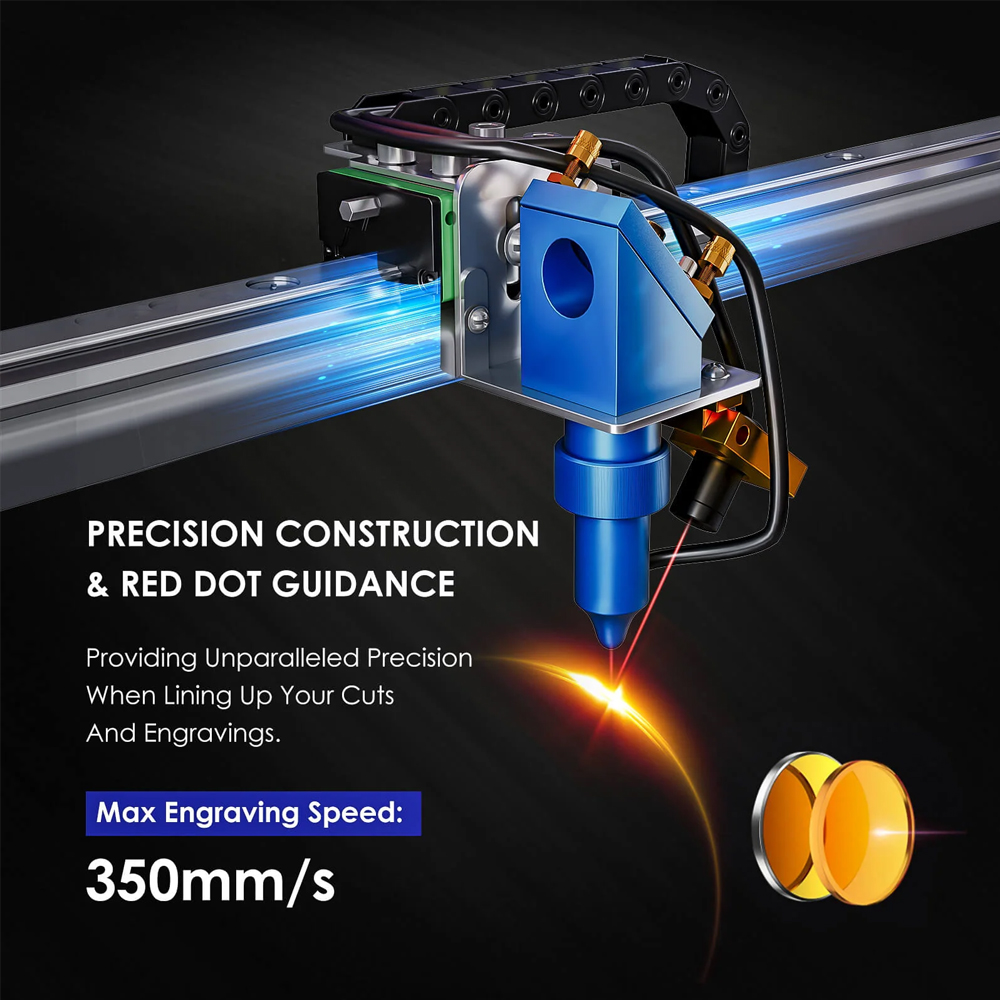

• 【Red Dot Guidance】Never miss the mark with our Red Dot Guidance feature. Mounted on the laser head, it illustrates the laser's path, providing unparalleled precision when lining up your cuts and engravings.

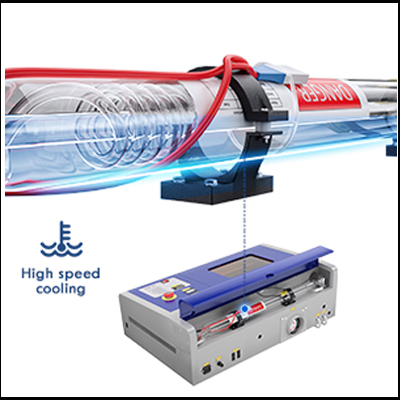

• 【Water Cooling System 】The easy setup water cooling system, including a compact water pump & built-in hoses. This ensures the machine works within the tube's temperature parameters for longer life. A better cooling system with distilled water only so that it can keep the temperature of the laser tube maintained at 60–70°F (16–21°C).

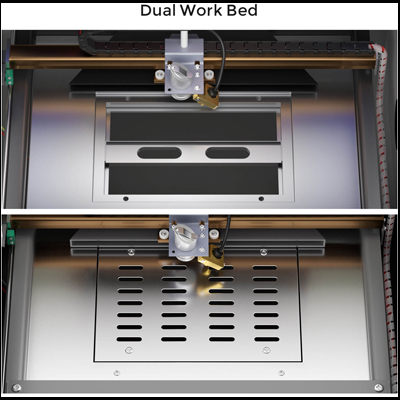

• 【Innovative Dual Work Bed】The machine comes with a dual work bed, offering two options for more possibilities. The stabilizer clamp secures irregularly shaped objects in place, while the vented level board caters to regular shapes, making every engraving project a breeze
• 【Built-in Ventilation】Integrated fan to boost laser performance, improve ventilation, and reduce noise.The exhaust port helps to create a safe work environment, so you can vent the fumes to the outdoors.

Specifications

• Working Dimension: 8’’ x 12’’ (200 mm x 300 mm)
• Machine Dimension: 31.4'' x 19.7'' x 10'' ( 79cm x 50cm x 26cm )
• Package Dimension: 37” x 25” x 16” ( 94 cm x 64 cm x 41 cm )
• Maximum Engraving/Cutting Speed: 350mm/s
• Max Engraving Depth: 10mm
• Min Engraving Depth: 0.2mm
• Focal Lens Diameter: 12mm
• Mirror Diameter: 20mm
• Exhaust Port Diameter: 4''
• Precision: 0.01''
• 0.5” Standard Z-depth ( workspace height with the vented level board installed )
• 2.5” Max Z-depth ( workspace height with vented level board removed )
• Net Weight: 48.5 lbs. ( 22 kg )
• Package Weight: 63 lbs. ( 28.6 kg )



Warranty

• 1-year warranty on all 40W laser machines and parts (Monport official Warranty Provided )
• 6-month warranty on laser tube
• FDA Approved & CE Certified

Package Contents

• Laser Engraver Machine *1
• A Pair of Laser Protective Glasses *1
• Accessory Bag *1
• Venting Exhaust Duct *1
• USB 2.0 Cable *1
• Power Cord *1
• Stainless Steel Clamp *1
• Water Pump *1
• Double-sided Tape *1
• Silicone Sealant *1
• Random Material for Test *1
• Wrench *1
• A Focus Plate *1
• Instruction Manual *1

QUESTIONS & ANSWER

• ❓Q: What are the upgrades to the 40W co2 laser pro?
  A: Here's the upgrade points： 1. We added air assist. 2. The laser head is adjustable 3. The rail is changed to a linear guide rail 4. The water temperature is powered by the power supply, not the batteries. 5. The motherboard on it is our nano replacement board.


• ❓Q: What's the width of the 40w co2 laser beam?
  A: About 0.3mm.


• ❓Q: Does your 40W co2 laser engraver come with its own software?
  A: We will provide LaserDR K40 Whisperer，and our machine is compatible with Lightburn


• ❓Q: Can the workbed be removed and how to remove it?
  A: Yes，it can be removed and you just need to remove the screws on it.


• ❓Q: Do I need to purchase additional water cooling system?
  A: Monport 40W co2 laser engraver comes with a convenient, easy-to-set-up water cooling system, featuring a compact water pump and built-in hoses. For superior cooling performance, consider upgrading to a Monport 5200 Chiller or 3000 Cooling System.

- - - - - Main Features - - - - - -
ADVANCED FEATURES

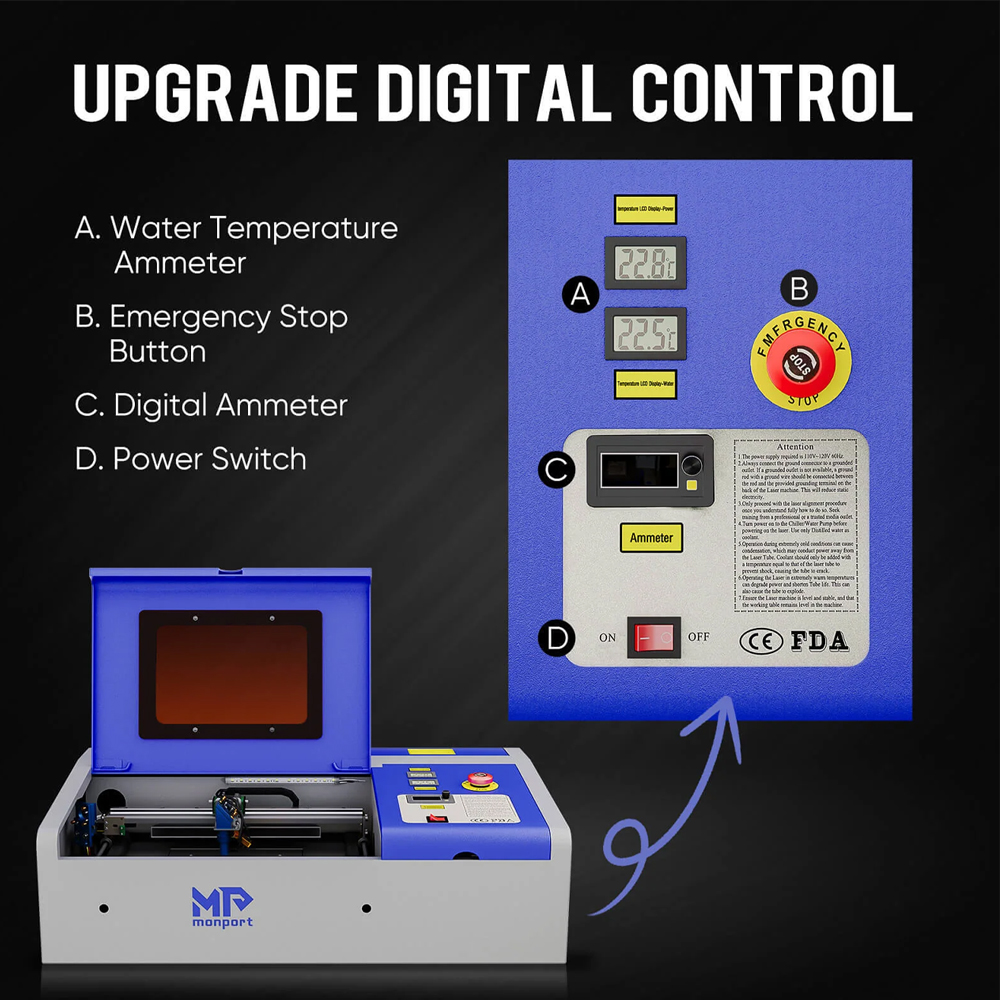

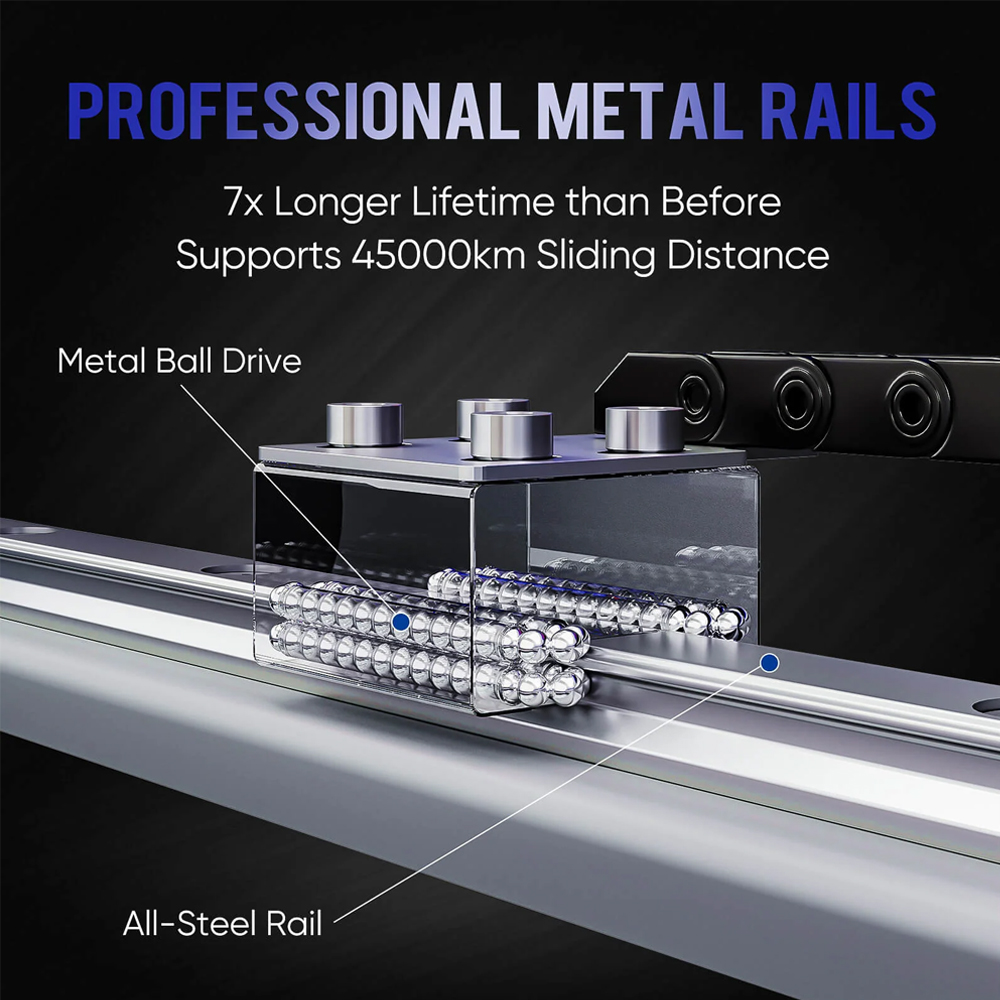

PROFESSIONALMETAL RAILS 7x Longer Lifetime than Before Supports 45000km Sliding Distance	BUILT-IN AIR ASSIST Built-in air assist improves engraving precision, ensuring thefinal artwork is clear and clean. Signifcantly reduces thecarbonization effect when engraving on wood.	UPGRADE DIGITAL CONTROL A.Water Temperature Ammeter; B. Emergency StopButton; C. Digital Ammeter; D.Power Switch

Water Cooling System and 40W Laser Tube The easy setup water cooling system, including a compact water pump & built-in hoses. Laser Tube Lifetime Up to 2,000 operation hours depending on power setting	Red Dot Guidance It mounts on the laser head which shows the laser path of the machine and can offer more precision when lining up cutting and engraving.	K40+ Nano Motherboard Monport's brand-new K40+ Nano motherboard not only enabling uses an ARM Cortex M4 32-bit processor, making the engraving more accurate and efficient., but also working with LightBurn to create intricate photorealistic grayscale images.

3 LED Monitor Displays There are 3 LED displays with real-time data. They can monitor the water temperature, laser temperature and the current power, which help you to find wheter any problem occurs.	Dual Workbed & Efficient Exhaust System 40W engraver support Dual workbed to compatiable for your work.Our high-performance exhaust system works perfectly with our built-in fan, directing hazardous debris away from the engraving surface and into your ventilation system, enhancing your work quality and safety.	LightBurn Software Compatible Directly LightBurn communicates directly with your MONPORT CO2 Laser Engraver and most other DSP controlled laser engraving machines. Take advantage of a complete set of composition tools to artistically draw, arrange and edit shapes to create beautiful vector graphic designs for breathtaking engravings.

DETAILED PARAMETERS

Monport 40W Pro CO2 Laser Engraver
