Monport Laser Rotary Axis 360° for 40w CO2 Laser Engraver to hold cylindrical objects
Features & Benefits
- 【360° Engraving】Designed for cylindrical items like cups, bottles, and pipes. Compact 2.9" height ensures unobstructed laser movement.
- 【Flexible Design】Adjustable rollers for 0.4 to 1.6-inch diameters, perfect for cylinders
- 【Simple Setup】Position on your engraver workbed, connect with a 4-wire cable, and configure via software.
- 【Durable & Efficient】Powered by a Nema17 stepper motor, it features a sturdy SPCC steel structure and silicone rollers that do not scratch the surface of carved objects, enabling smooth and noise free operation.
Specification & Others
- Input Voltage: 24V
- Rated Power: 10 W
- Product Dimensions: 14.1x6.1x2.9 in.(35.9x15.5x7.3cm)
- Distance between Rollers: 0.2-2.9 in.(5-73 mm)
- Roller Length: 10.4 in. (26.4 cm)
- Fixed Roller Height: 2.9 in. (7.3 cm)
- Net Weight: 3.5 lb.(1.6 kg)
- Warranty: 1-year warranty on the rotary roller axis
- Certifications: FDA Approved & CE Certified
Package Contents
- Rotary Axis *1
- Cable *1

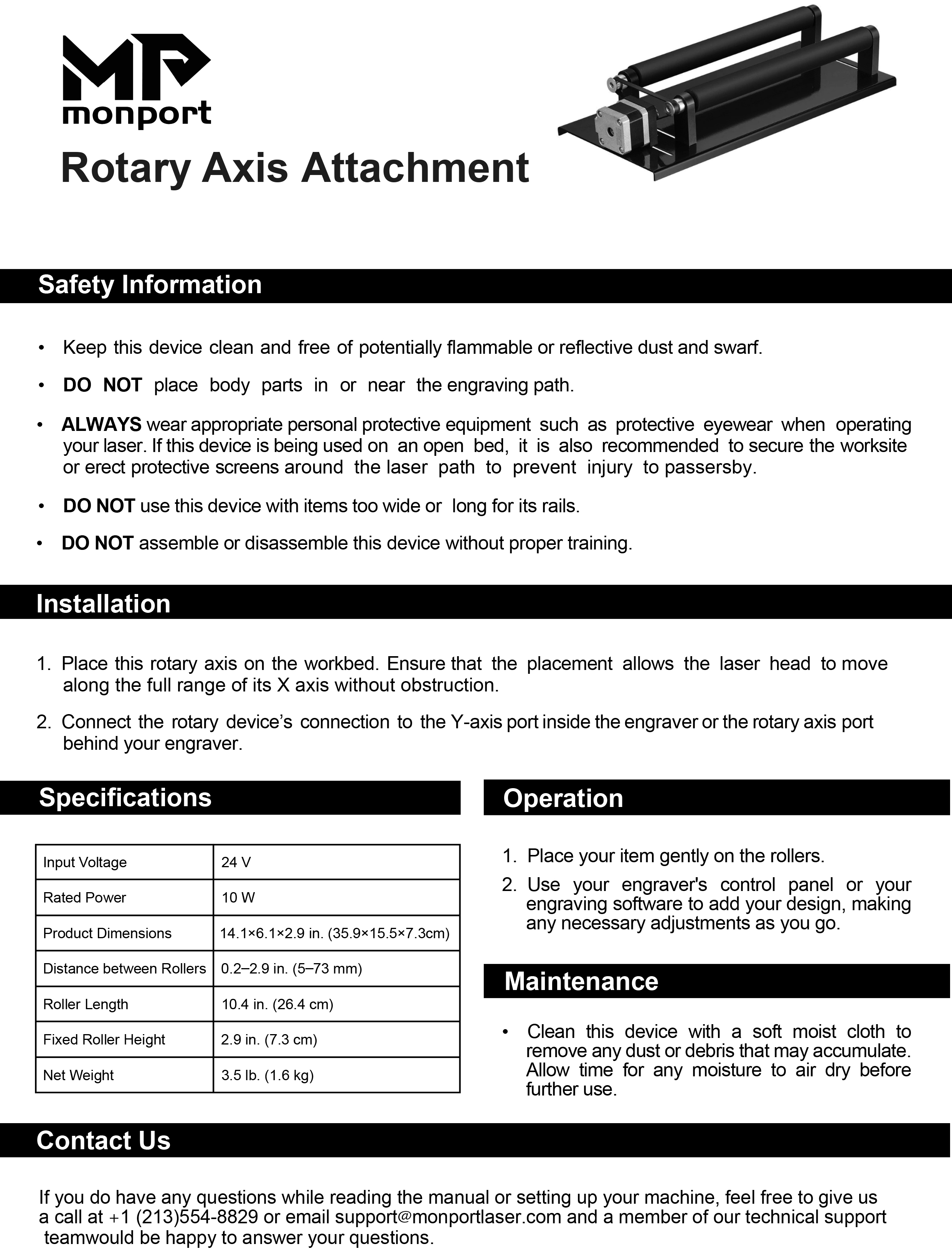

User Manual
