Monport 220W Laser Solder Fume Extractor Smoke Absorber with Remote Control

• ⭐【STRONG SUCTION POWER】With 220W strong power, the fume extractor generates 310 cubic meters/hour of airflow. It can better absorb visible particles and fine dust around the hood head to achieve ideal ventilation effects.

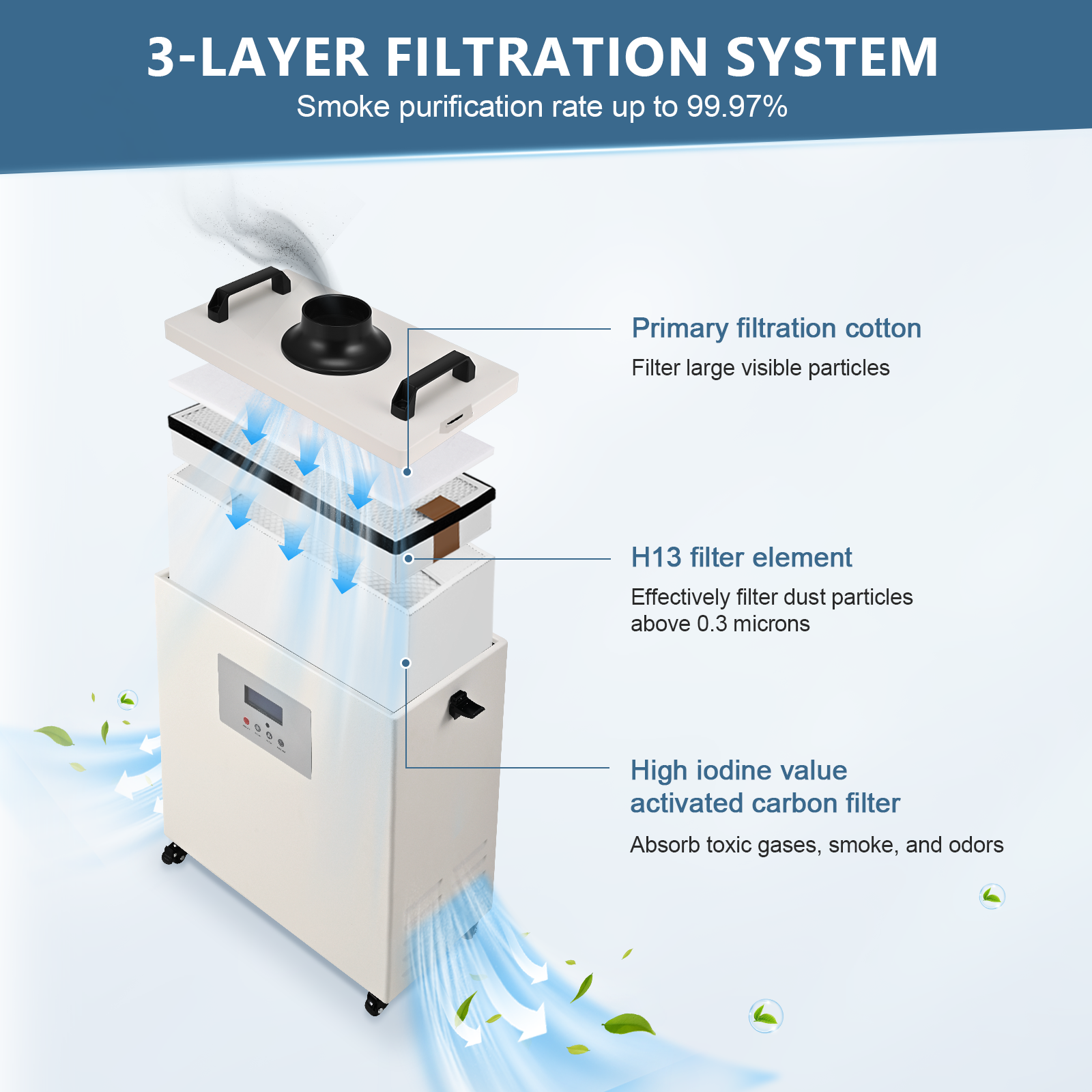

• ⭐【MULTI-LAYER FILTER】This older fume extractor is designed with primary filtration cotton, an H13 filter element, and activated carbon. The 3-layer filter provides a purification rate of up to 99.97% to keep the air in the best condition, effectively filtering dust particles above 0.3 microns and absorbing toxic gases, smoke, and odour. (Note: Comes with 4 sheets of primary filtration cotton)
• ⭐【HIGH-IODINE COLUMNAR CARBON】This laser fume extractor uses columnar carbon with 1000-1100 high iodine to provide you with a fresh working environment to ensure respiratory health. (Note: Pillar carbon is affected by the iodine value. The higher the iodine value, the greater the porosity; the larger the surface area, the stronger the adsorption capacity. Its service life is 1.4 times that of ordinary coal-based carbon, and it has higher purification and deodorization capabilities than ordinary activated carbon.)

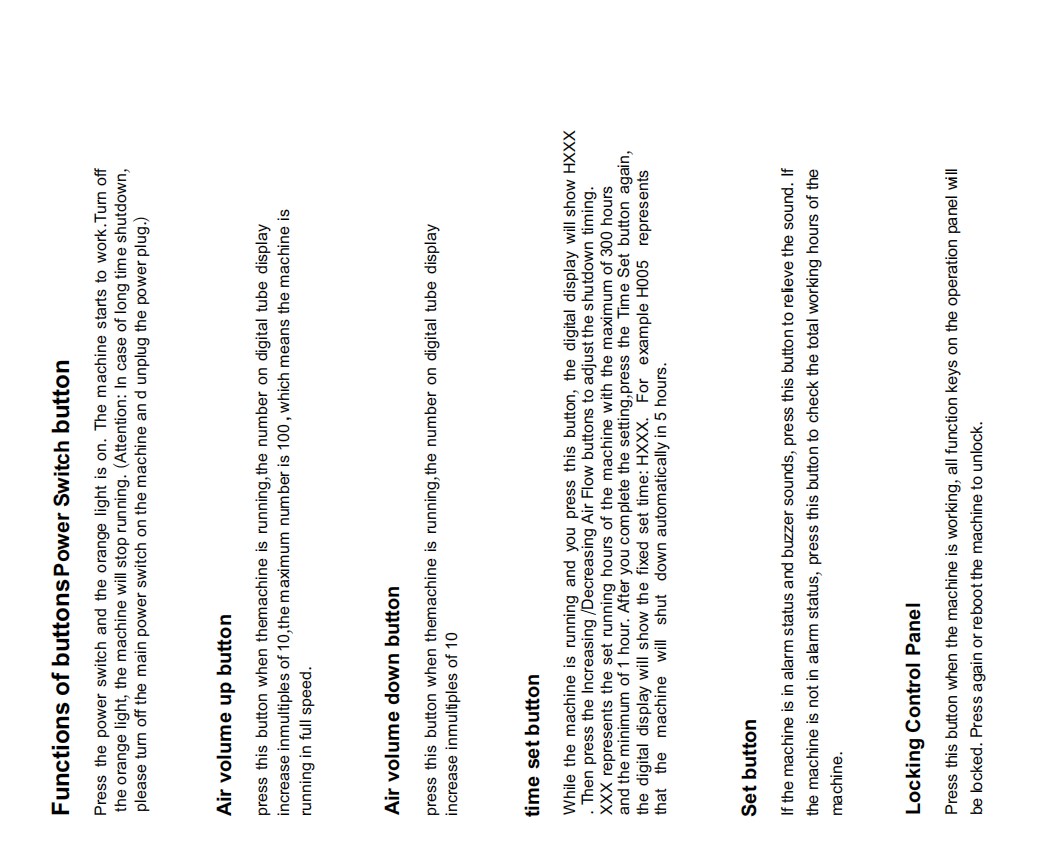

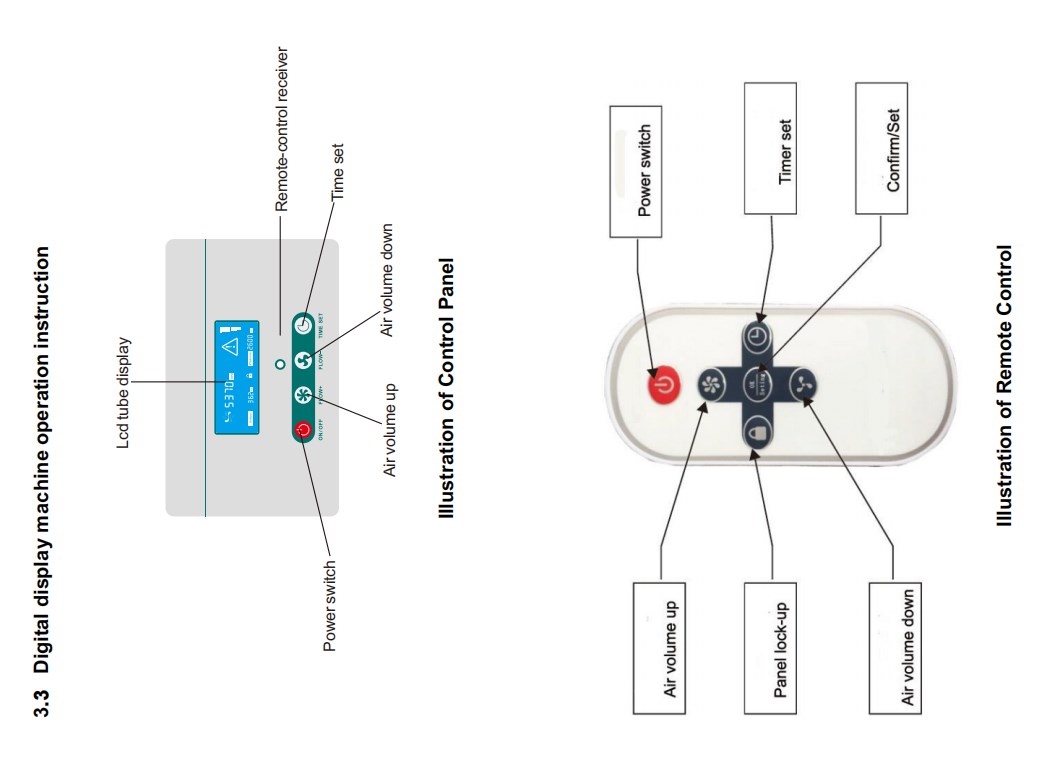

• ⭐【REMOTE CONTROL】The fume extractor comes with a remote control, which has four functions: power switch, multi-level wind speed adjustment, time setting, and safety lock, which effectively improves work efficiency; Alarm of filter element clogging : The machine will automatically detect the change in pressure difference of the filter layer and send out an audible and visual alarm signal when the filter element is clogged.

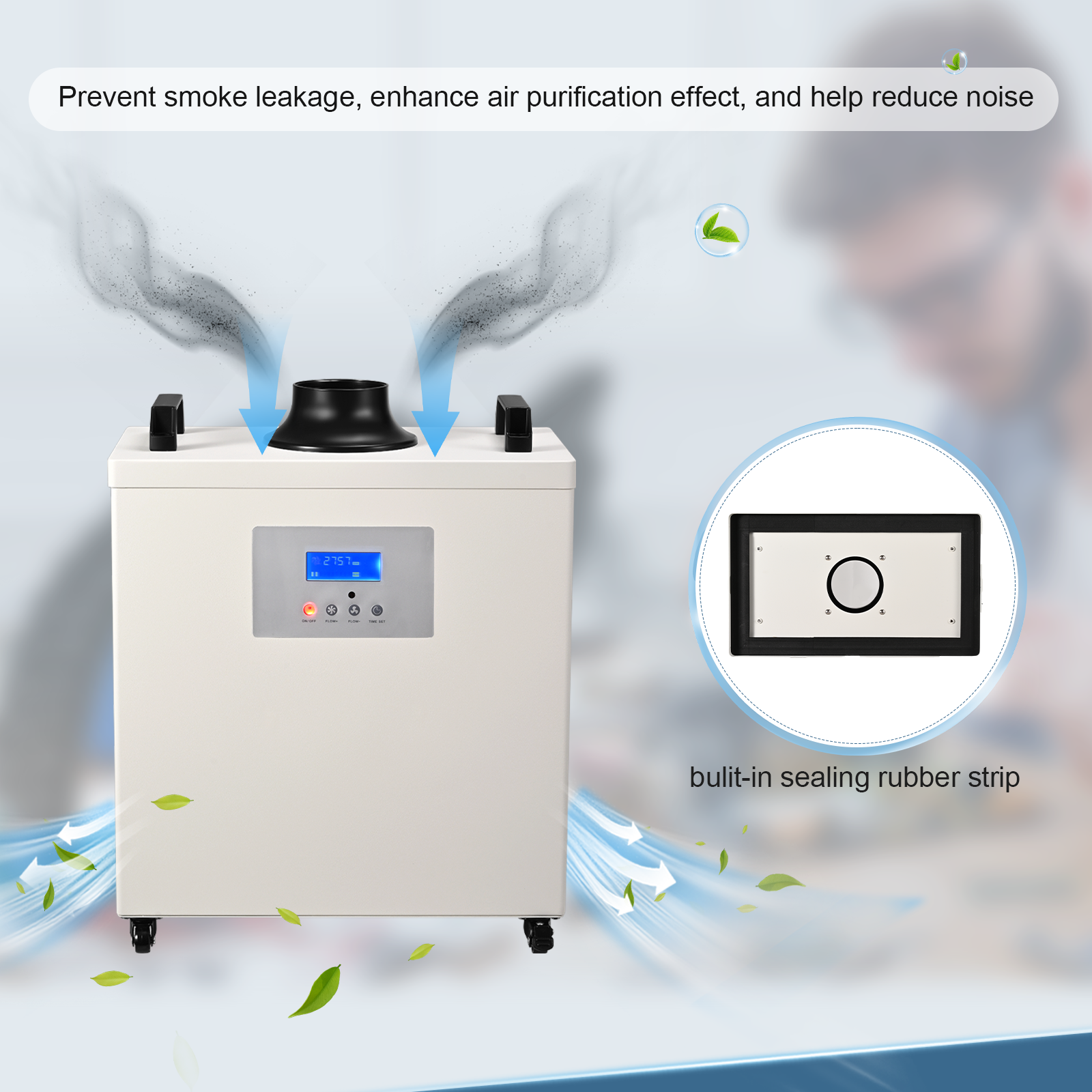

• ⭐【FOAM COTTON SEALING】There is foam cotton on the inside of the cover, which not only prevents smoke leakage, but also enhances the air purification effect, and helps reduce noise to ensure a quiet working environment.

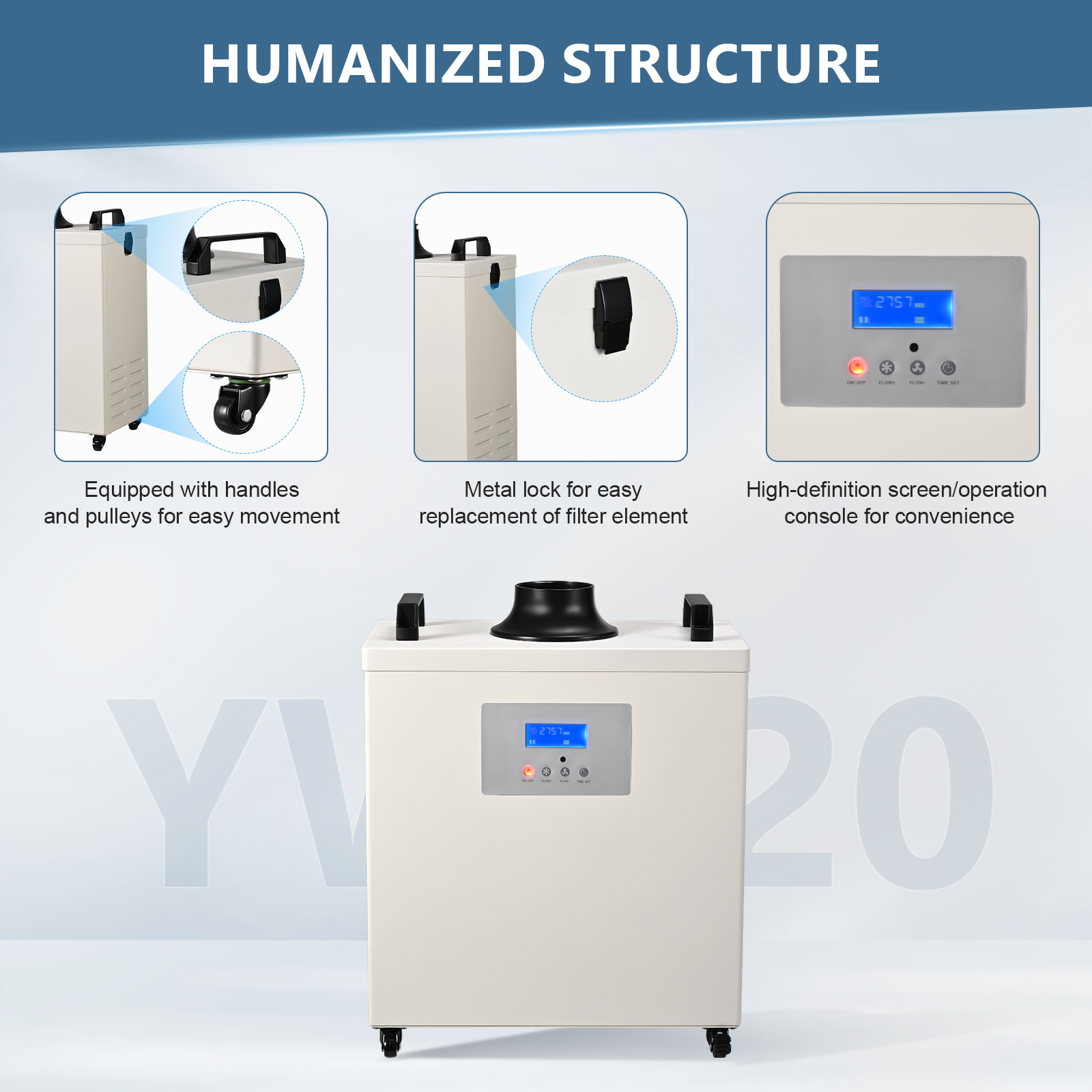

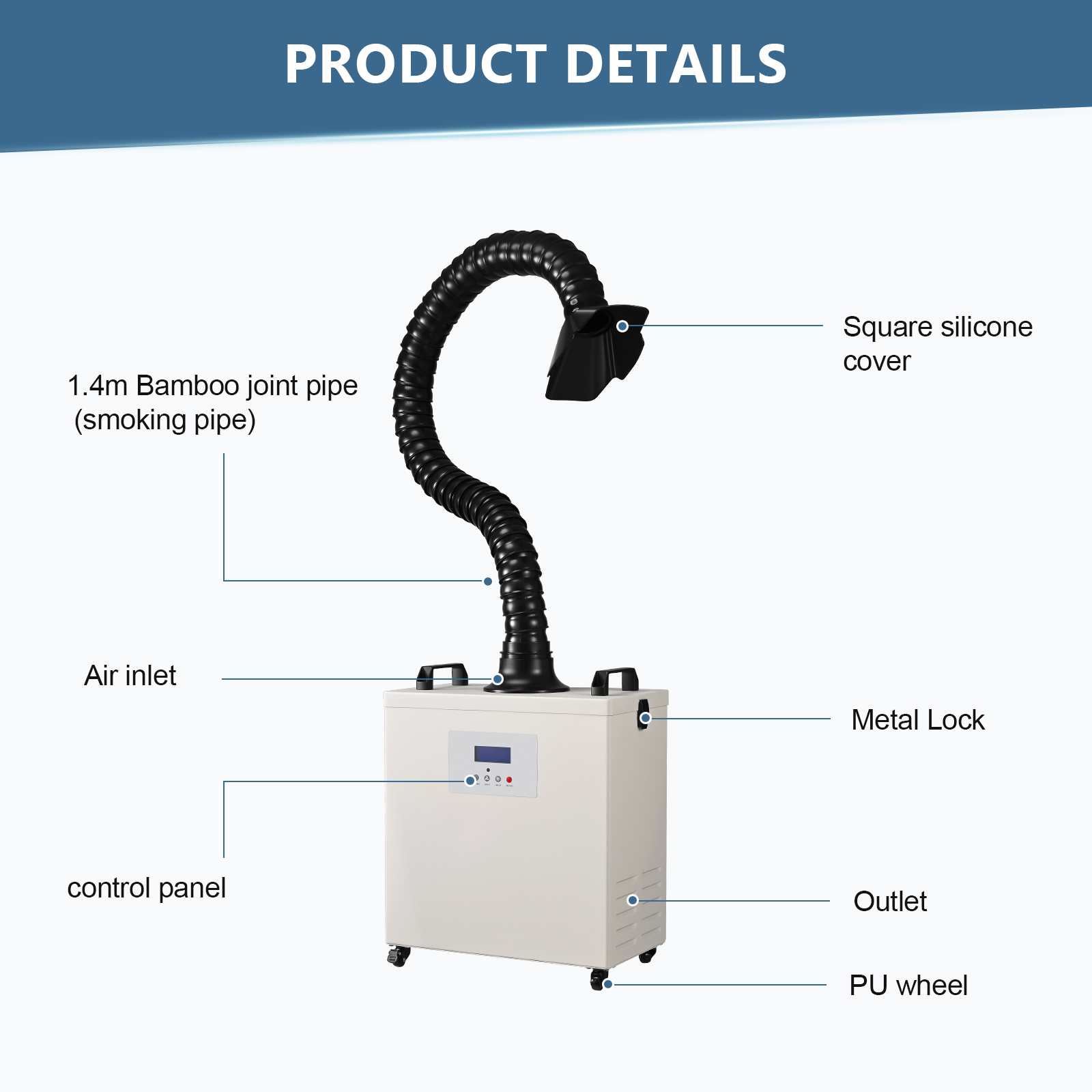

• ⭐【HUMANIZED DESIGN】The body is made of durable metal frame. The vents on both sides of the fuselage assist air diffusion. The high-definition screen and operating console make it easy to adjust the parameters as needed. The PU wheel and handle design provide simple and convenient operation.
• ⭐【COMPATIBLE MODELS】This fume extractor provides 100mm adapter and bamboo tube. The 82mm air inlet is suitable for 82mm bamboo tubes and 100mm smoke pipes. It is recommended to use our co2 engraving machines and optical fiber marking machines below 50W. It is also compatible with most diode engraving machines, optical fiber marking machines, and co2 engraving machines on the market.

• Power: 220w
• Max. Airflow Speed: 310m³/h
• Filter Layers: 3
• Air Inlet Diameter: 82mm
• Extraction Tube: 1.4m length, φ75mm
• Filter Effect: 0.3μm ， 99.97%
• Max. Noise Level: ＜55db
• Highest Negative Pressure: 2200pa
• Universal Wheels: yes
• Control Method: remote with display

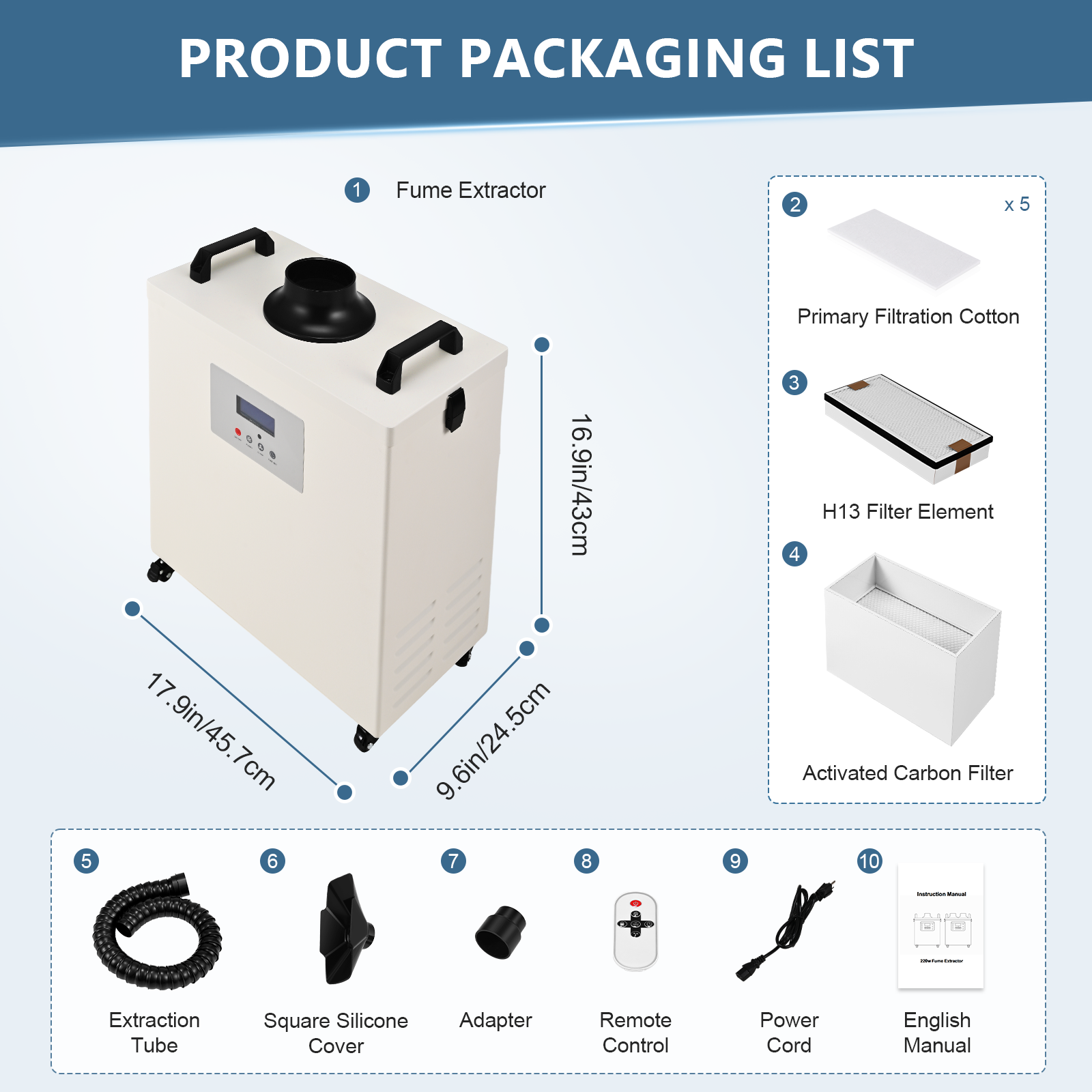

• Fume Extractor*1
• Extraction Tube*1
• Square Silicone Cover*1
• Power Cord*1
• English Manual*1
• Adapter*1
• Primary Filtration Cotton*5
• H13 Filter Element*1
• High Iodine Activated Carbon Filter*1

Warranty & Certifications

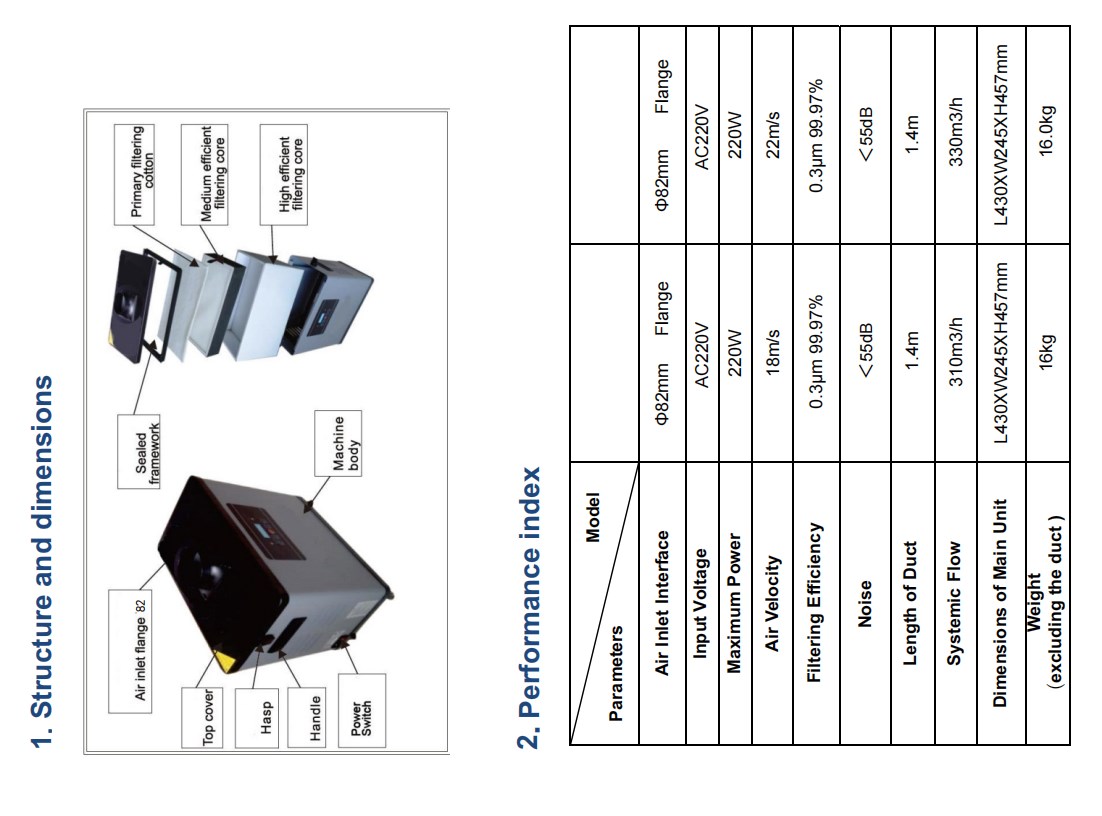

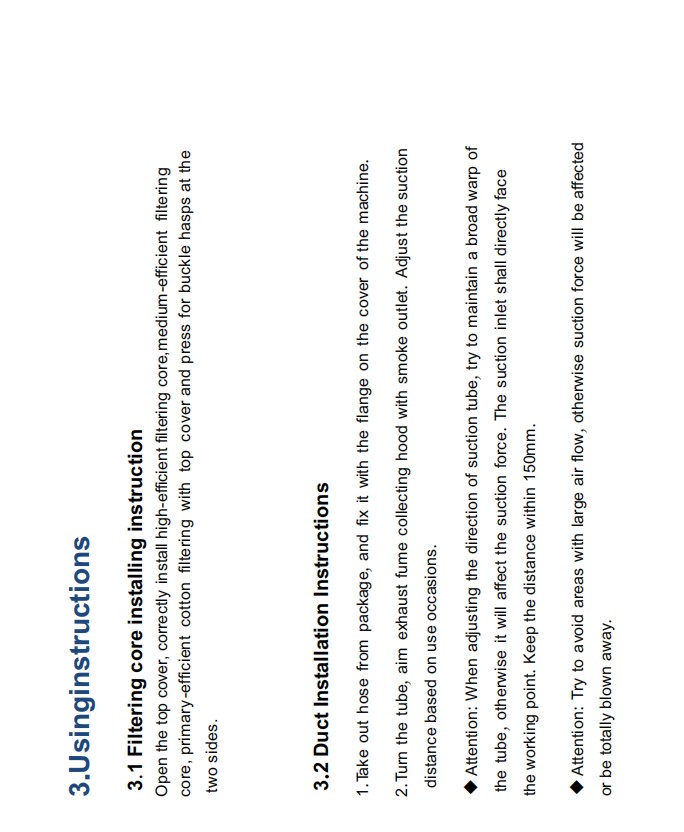

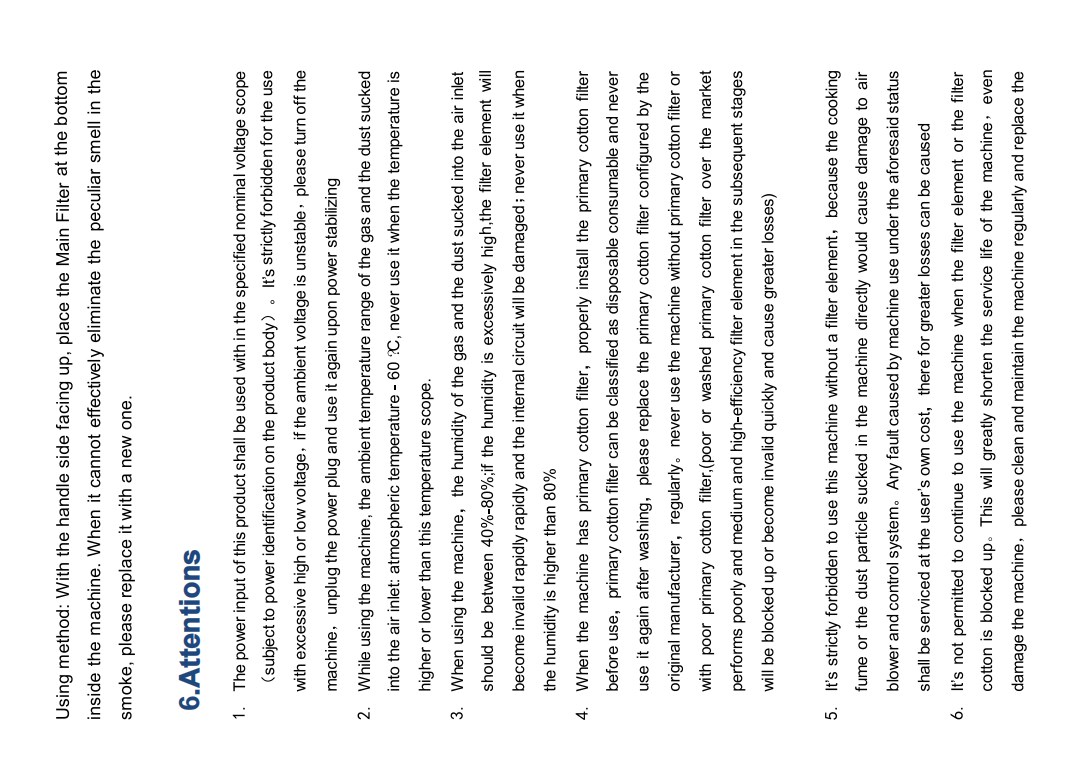

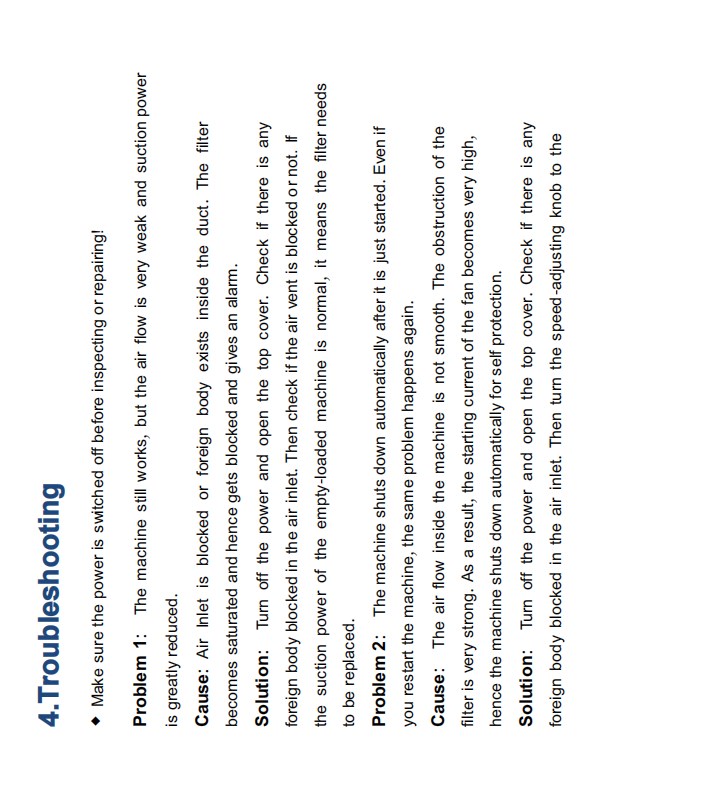

User manual for Monport 220W Laser Fume Extractor
