Mishimoto Performance Intercooler Fits Ford F-150 EcoBoost 2015+ Sleek Silver

Name: Mishimoto Performance Intercooler Fits Ford F-150 EcoBoost 2015+ Sleek Silver
Brand: Mishimoto
SKU: 226726346527
Price: 999.95 USD
Availability: InStock
Rating: 5.0 (99 reviews)

Keep those intake air temps down! With Mishimoto's Performance Intercooler for the 2015+ Ford F-150 EcoBoost, your engine will reach a better level of cooling from the help of both an increase in core volume by 77% over stock and external fin surface area by 163%. We put our core through some grueling tests to see how our design can alleviate the effects of heat soak. With temperature drops averaging 10 degrees under the stock numbers, your F-150 will take in cooler air, providing better performance and increased tuning potential. Our intercooler design also focuses on strength. With cast end tanks and bar-and-plate construction, this core has a much greater resistance to the outside elements. Whether you need an upgraded core for the work truck or an intercooler that can efficiently handle high boost, Mishimoto has you covered. This intercooler is offered in either sleek silver or black, and it comes with our Mishimoto Lifetime Warranty.

— PRODUCT FEATURES —
Feature 1	Direct fit for the 2015+ Ford F-150 EcoBoost--2017+ Ford Raptor 3.5L V6 EcoBoost--2018+ Ford Expedition 3.5L V6 EcoBoost--2018+ Lincoln Navigator 3.5L V6 EcoBoost
Feature 2	10°F (5.5°C) reduction in intake air temp
Feature 3	77% increase in internal core volume with 163% increase in external fin surface area
Feature 4	Internal fin design for maximum heat transfer with minimal pressure drop
Feature 5	Available in Sleek Silver or Stealth Black and comes with the Mishimoto Lifetime Warranty
— Purchase Includes —

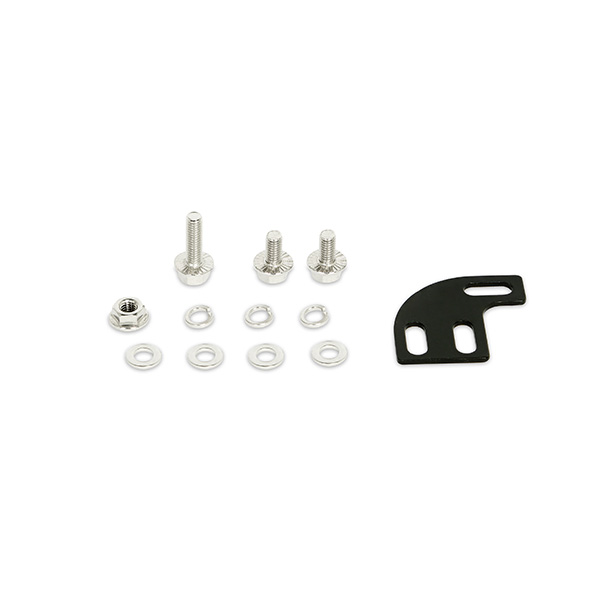

Includes	(1) Mishimoto Intercooler w/ Assembled Rubber Trim (1) Bypass Valve Bracket Mounting Hardware Bypass Valve Hardware Mishimoto Lifetime Warranty;TechSpec Inlet (in):2.5
— ITEM SPECIFICATIONS —
Color	Sleek Silver
Brand	Mishimoto
Manufacturer	Mishimoto
— Technical Specifications —
Tech Specs	Applications: 2015+ Ford F-150 EcoBoost--2017+ Ford Raptor 3.5L V6 EcoBoost--2018+ Ford Expedition 3.5L V6 EcoBoost--2018+ Lincoln Navigator 3.5L V6 EcoBoost Centerline Radius: N/A Chassis Codes: N/A Core Height (in): 9.4 Core Length (in): 19.6 Core Thickness (in): 4.72 Core Type: Bar-and-Plate Engine Codes: 2.7L V6 EcoBoost--3.5L V6 EcoBoost Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Bypass Valve Bracket--Mounting Hardware--Bypass Valve Hardware--Mishimoto Lifetime Warranty Inlet (in): 2.5 Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM). Maximum Recommended Boost Pressure (PSI): 50 Maximum Recommended Horsepower: N/A Note: N/A Outlet (in): 3 Overall Height (in): 9.5 Overall Length (in): 29 Overall Width (in): 7 Pipe Diameter: N/A Pipe Length: N/A Pipe Shape: N/A Weight (lbs): N/A
