Product indicator:
Poweron:The red and blue indicator lights up at the same time, and they always light up for tens of seconds to wait for the equipment to enter the standby state.
Do not operate at this time.
Standby:
The blue indicator is off and the red indicator is always on. At this time, the device WiFi hotspot can be connected.
Hotspot connection:
The red indicator light is always on.
Routerconnection: The red indicator flashes, and the red indicator goes out and the blue indicator is always on after the connection is success
Reset device:
After pressing the reset key for 5 seconds, the red indicator lights up and flashes, the blue indicator goes out,
and then the red indicator lights up and returns to the standby state.
Charging: No indicator light
Networking steps:
Download APP V380 Pro on your mobile phone and register-put the camera into the memory card, connect the battery (it needs to be recharged for the first time),
and reset the device when you use it for the first time-keep the device powered on after the reset is completed, turn on the mobile phone settings,
find the WiFi hotspot of the product in the WiFi list, and connect it-after the connection is successful, enter the APP,
and pull down and refresh to add the device-add the device for the first time.
Product selling point:
1, 1920*1080P HD lens, clear monitoring;
2, short-range hotspot connection monitoring+remote WiFi monitoring, local video recording, complete functions;
3. Using the mature APP V380 Pro, the APP setting function is complete and the user experience is good;
4. Built-in battery, which can disconnect the power cord for continuous use for 100 minutes after being fully charged, which is convenient for installation in different areas;
5, with a large battery, it can also be plugged in, and it is not necessary to charge the equipment frequently when plugged in;

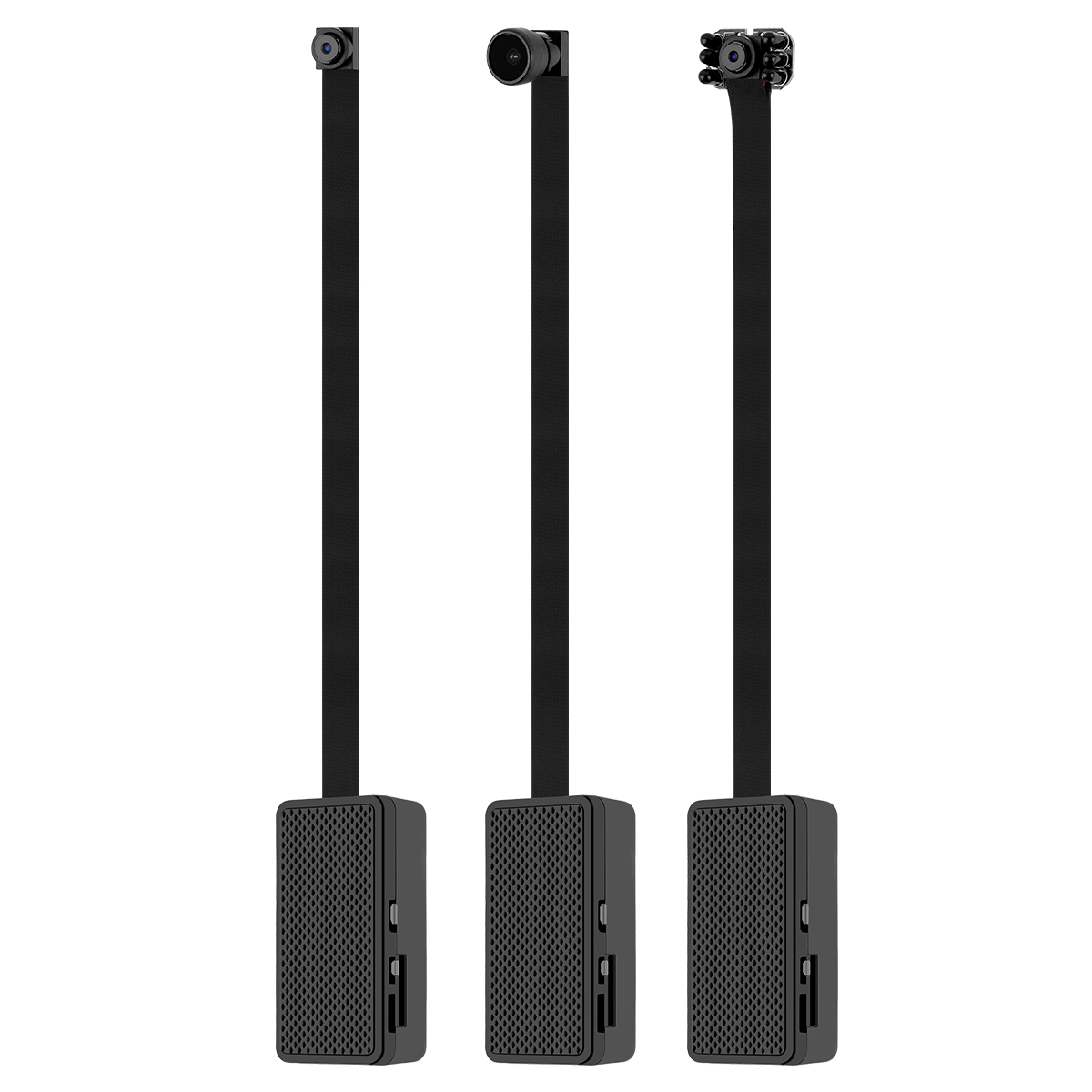

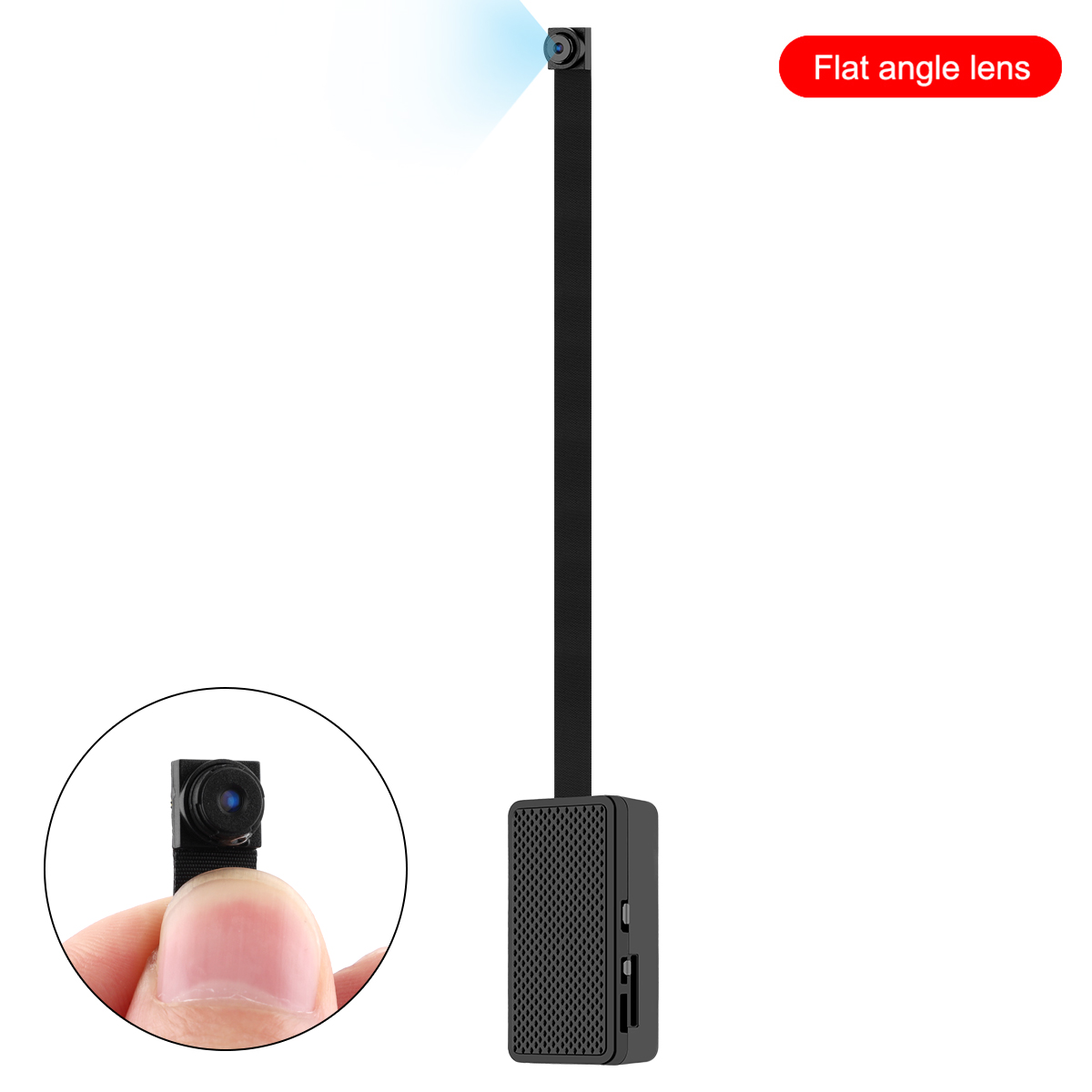

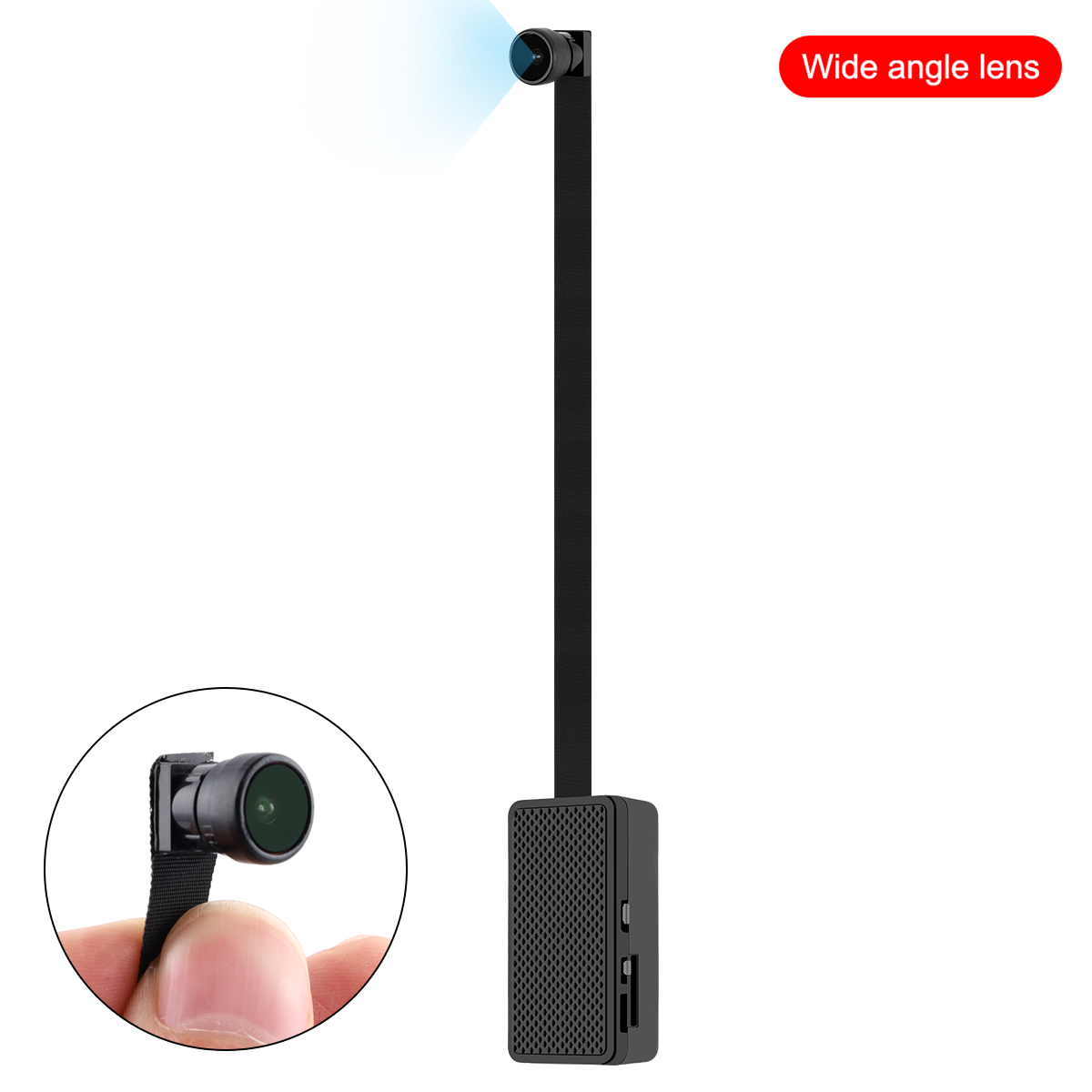

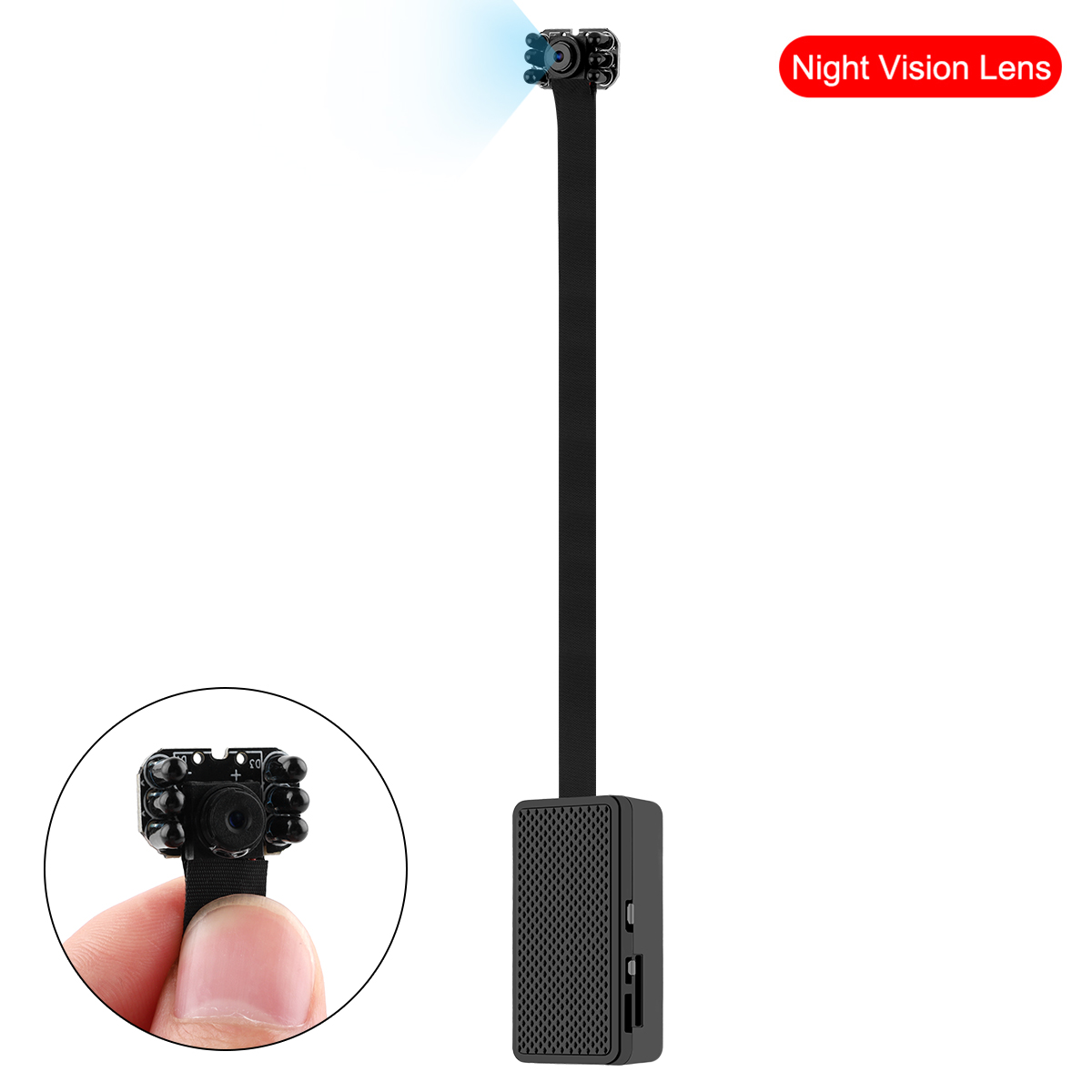

6. There are conventional small lenses, wide-angle lenses and night vision lenses to choose from. Please note that only night vision lenses support night vision.
7, small size, light weight, easy to carry and install;
8. There are mobile monitoring videos and mobile monitoring push functions. When strangers are found to push messages at the first time,
they will be reminded to open the monitoring view;
9. Support extended storage of 128G large-capacity memory card. Video can be played back online on the APP. Video recording supports all-day video recording
and event (mobile monitoring) video recording, which effectively saves storage space. And support automatic cycle video recording, and the card is full to cover early video files;
10, WiFi wireless connection, no need to connect the network cable, connect to the router through the 2.4G WiFi network, and remotely view and monitor through the APP.
Product parameters:
Material: ABS

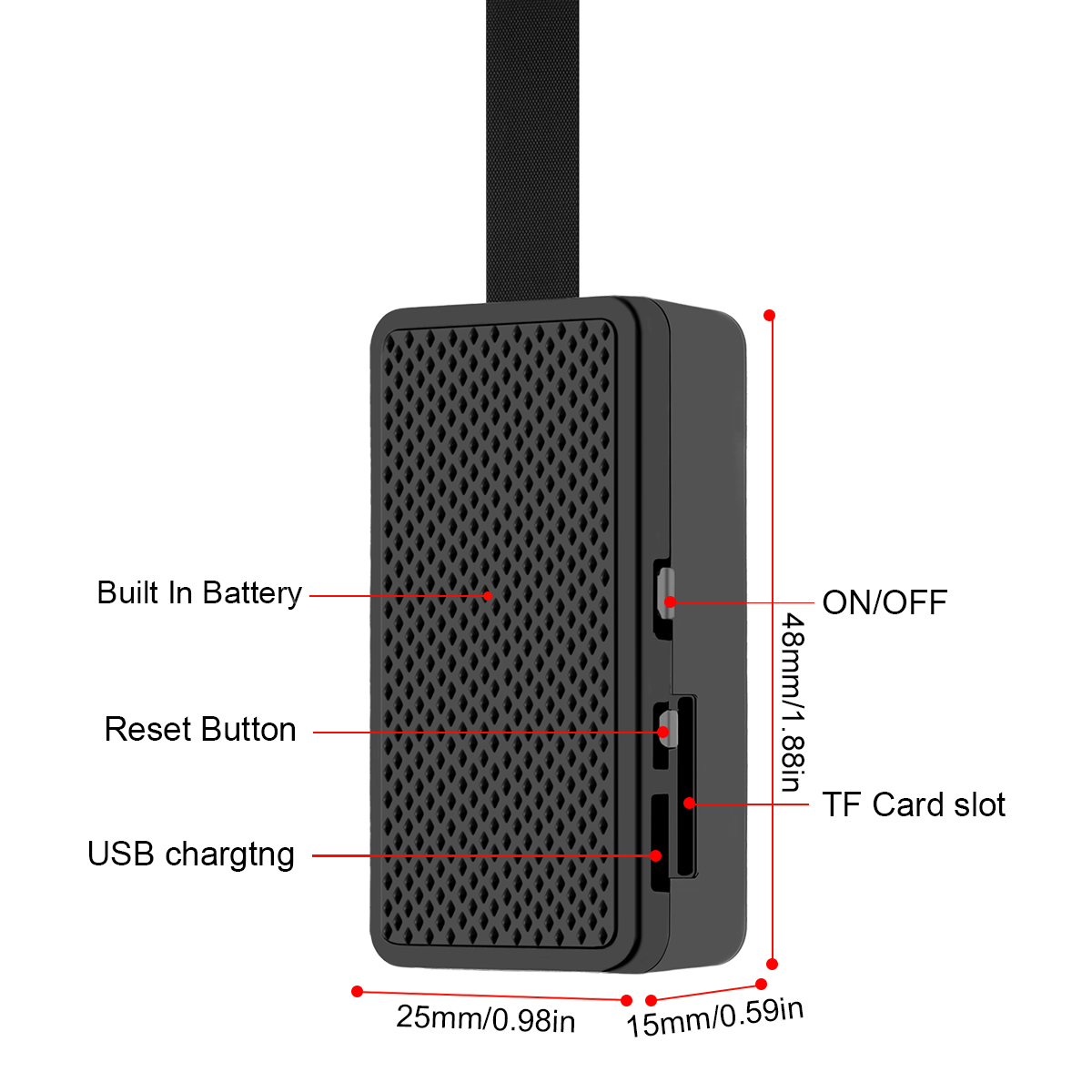

Main body size: 48*25*15MM
Lens line length-14cm
Product features: WiFi remote monitoring, mobile detection alarm, card recording video, APP remote viewing.
Lens pixel: 200W
Video resolution: 1080P, 720P optional (choose HD and plain on the APP).
Video frame rate: 25-30FPS
Lens angle of view: 90° for straight angle and night vision; Wide-angle 120°
Networking mode: 2.4G WiFi (5G WiFi is not supported)
Networking distance: within 20 meters from the router (use as close as possible to the router)
Adaptation app: v380pro
Power supply: battery; It can also be connected to a USB power supply.
Battery capacity: 500mAh
Battery life: about 100 minutes
Charging head usage: 5V 1A/2A
Motion detection: Yes
Night vision function: Only the head of night vision goggles has night vision function.
Voice intercom: None (without speaker)
Microphone: Yes (video recording)
Memory card expansion: maximum support for 128G memory card (excluding memory card with C10 or above).
Video recording methods: all-day video recording and motion detection video recording (event video recording).

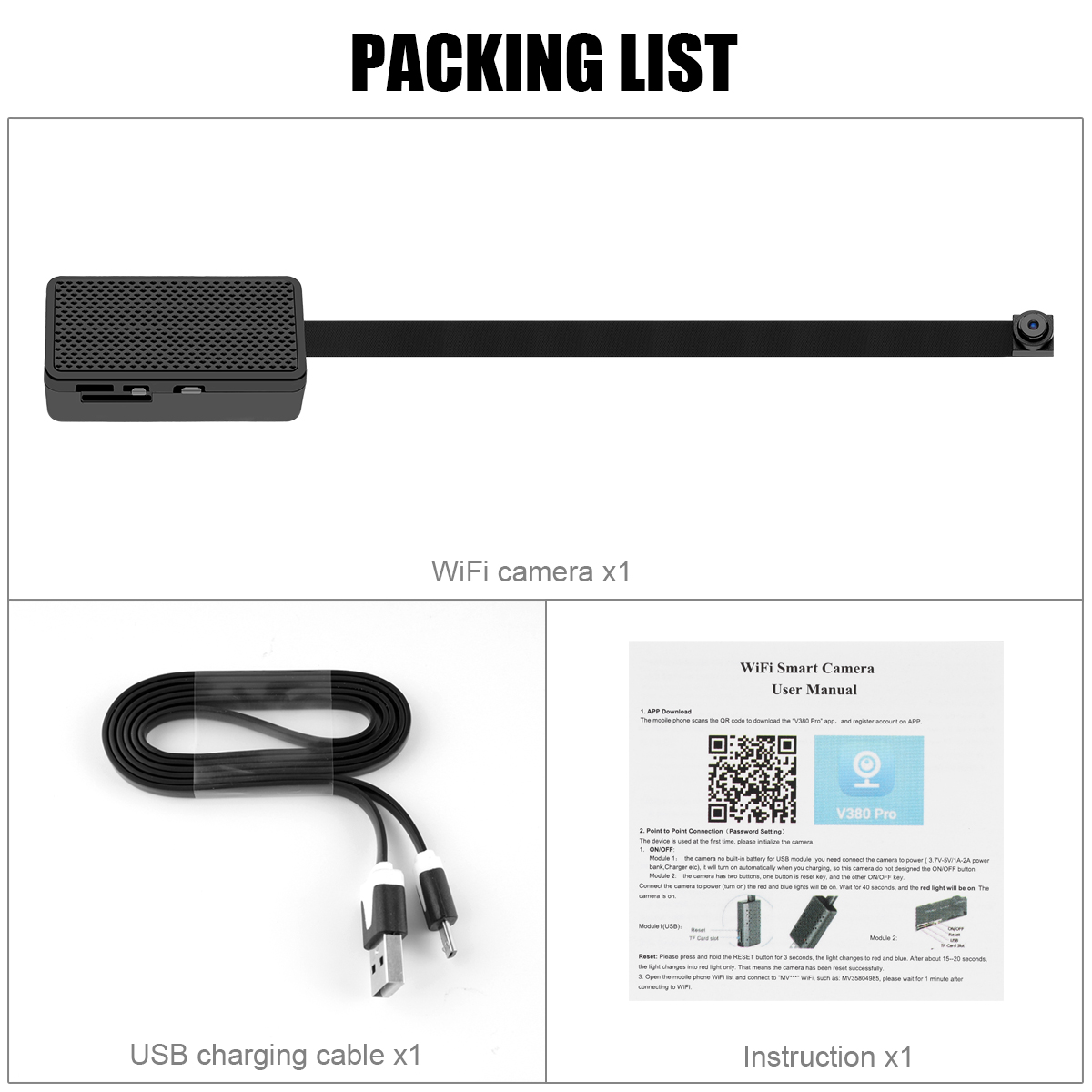

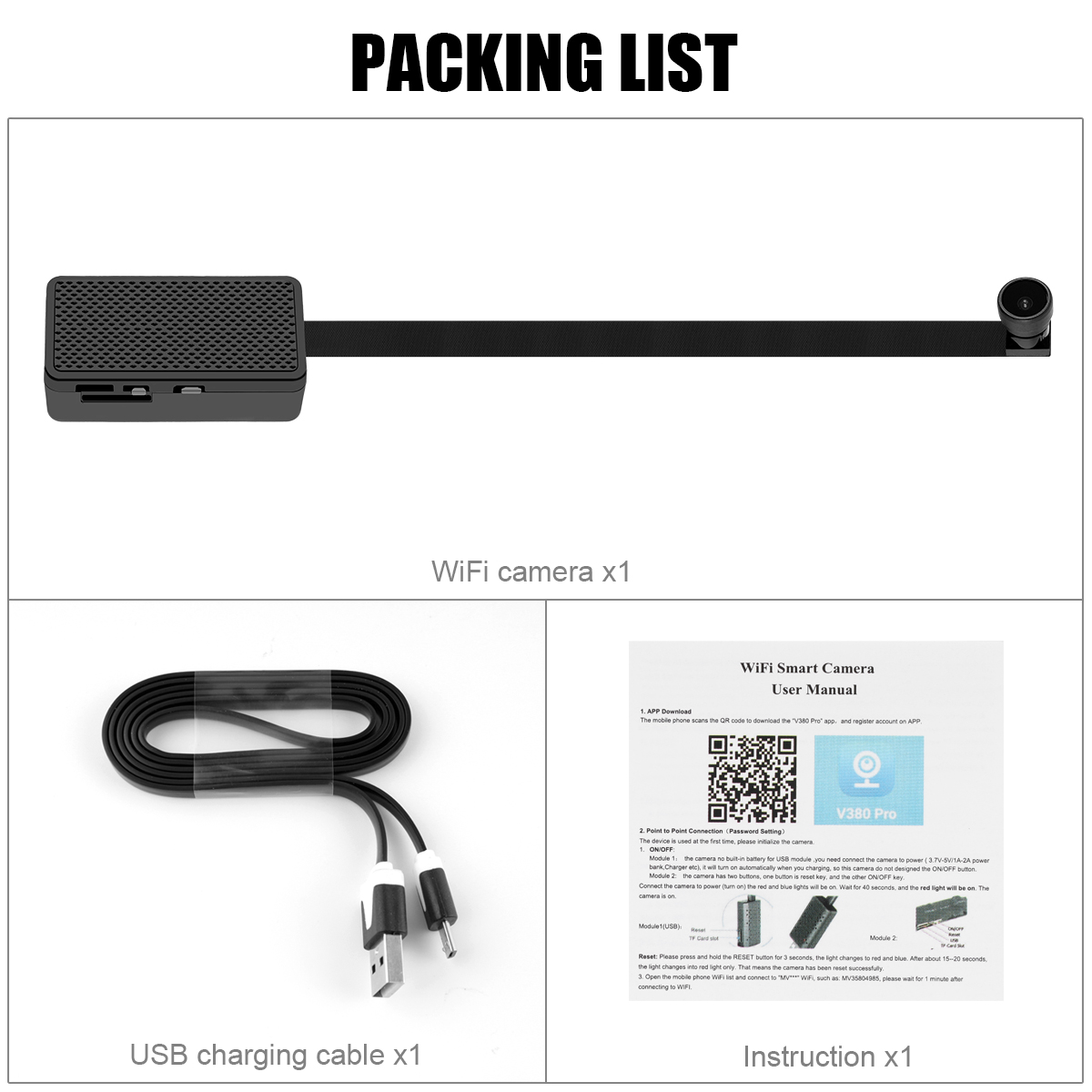

Packing list:
WiFi camera x1
USB charging line x1
Instruction x1
