Metal Push Button Switch 12/16/19/22mm Momentary Latching High Head Car Boat LED

Slide
$3.99
Head | LED Color
Power White
Size
12mm
Action
Momentary
Voltage
3-9V(5V)
Customizable Material
Stainless steel
Switch Type
Push Button Switch
Switch Style
Push Button/Retractive
Suitable For
Ceiling, Exterior, Interior, Wall
Certification
CCC,ce,CQC
Brand
kitzme
Operation Method
On/Off
Type
Momentary Switch
IP Rating
IP65
Contact Material
Metal
Country/Region of Manufacture
China
Room
Any Room, Basement, Bathroom, Bedroom, Caravan, Conservatory, Dining Room, Foyer, Garage, Guestroom, Hallway, Home Office/Study, Indoor/Outdoor, Kid's Bedroom, Kitchen, Living Room, Lounge, Patio, Porch, Teen's Bedroom, Terrace, Utility/Laundry Room
LED Colors
Red Yellow Blue White Green
condition
New
Metal Push Button Switch 12/16/19/22mm Momentary Latching High Head Car Boat LED illuminated


Difference between auto-recovery button and auto-lock button:
1. Self-recovery button: press this button to turn on the power (light on);
Release your hand, the power will appear and turn off automatically (the light goes out)
2. Self-locking button: press the power button, release your hand, and keep the button stationary (lit);
Press the button again to display and turn off the power (the light goes out).
Product parameters
Head type: round head
Housing material: metal

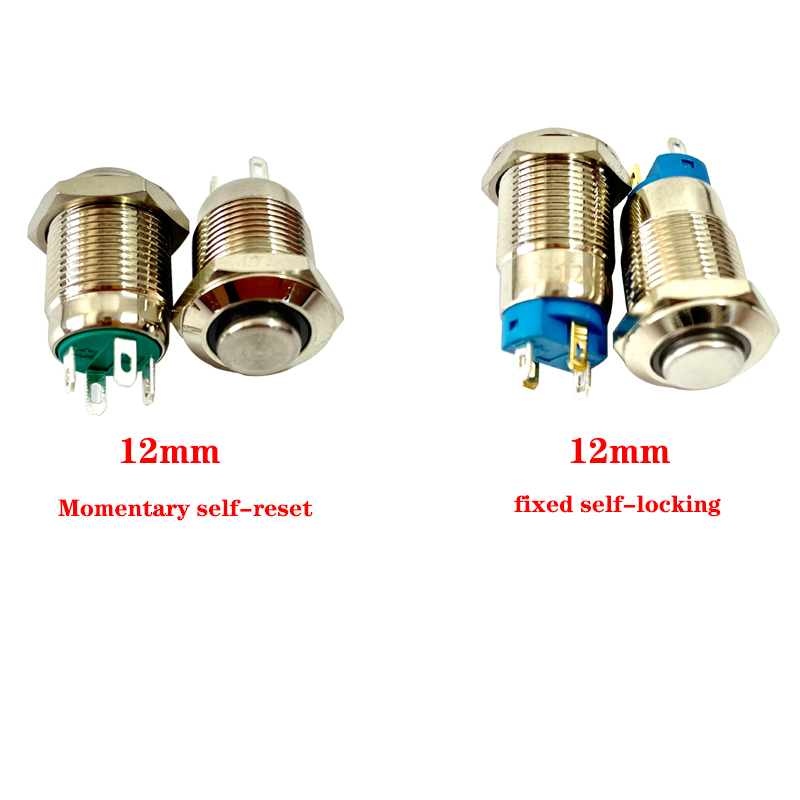

Operation type: Momentary self-reset/fixed self-locking
Emitting color: red / yellow / blue / green / white

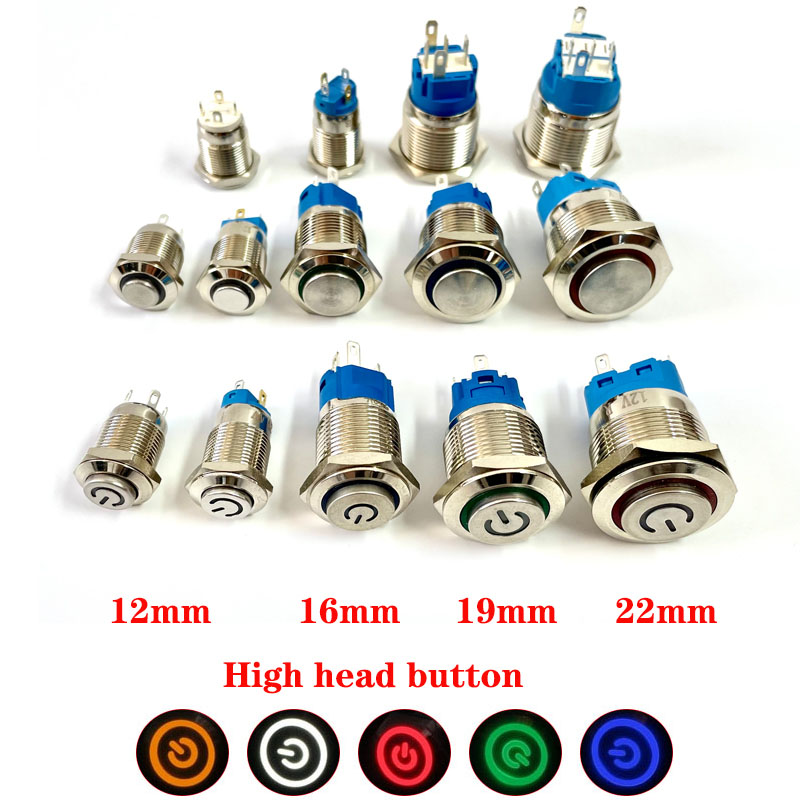

Opening size: 12mm/16mm/19mm/22mm


Product Details:

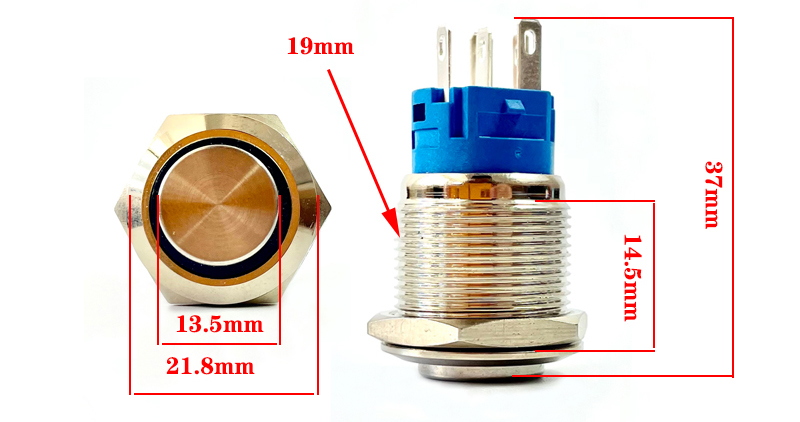

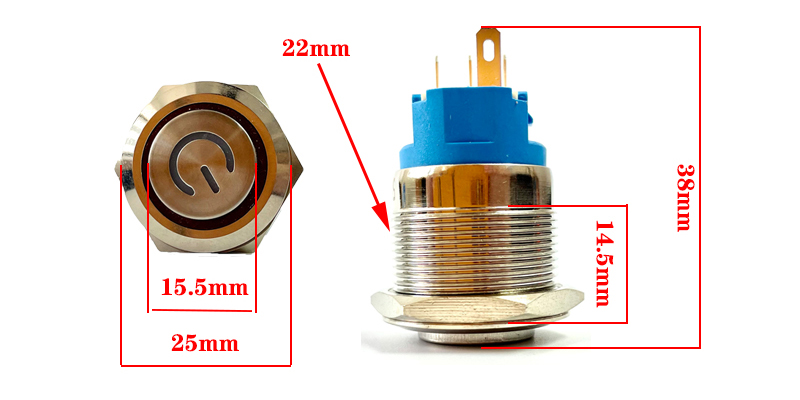

Diameter:12mm/16mm/19mm/22mm
Contact configuration:1NO+NC
Operation Type:Latching/Momentary
Lamp type:Ring light+high
Material : Nick-plated Brass
IP Degree:IP67,IK08

NOTE: If you have other requirements or are unclear, please contact us.

Latching=Self-locking=When you push the button down it works; When you push it again then it is off

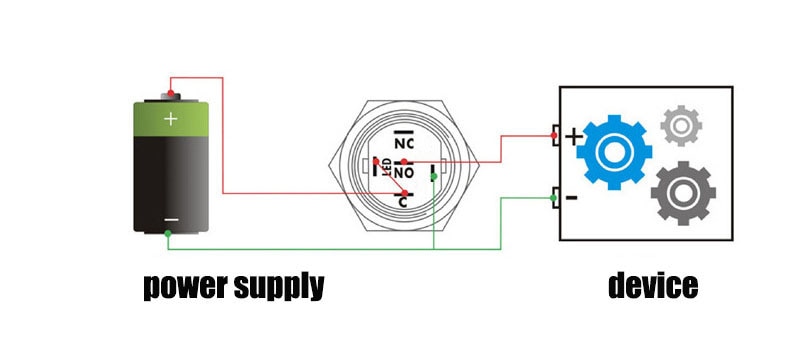

Press the switch, the load is energized, and the LED lights at the same time.

Press the switch again, the button is reset, the load is powered off, and the LED goes out.

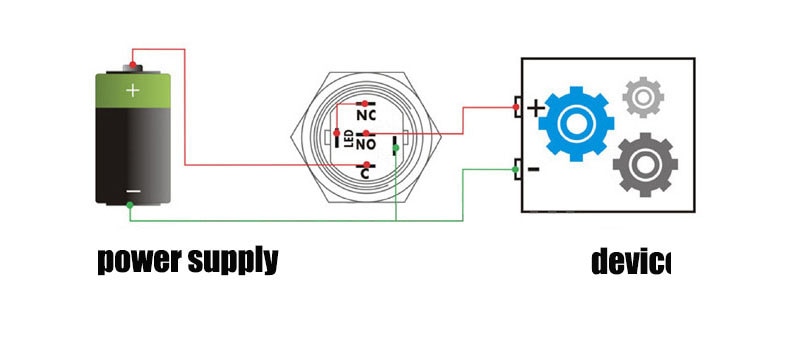

Turn on the power, the LED lights, press the switch, and the load is energized.

Press the switch again, the button is reset, and the load is powered off.

Turn off the power and the LED goes out.

Press the switch, the load is energized, and the LED turns off

Press the switch again, the button is reset, the load is powered off, and the LED lights at the same time.

Press the switch, the load is powered off, and the LED turns off at the same time.

Press the switch again, the button is reset, the load is energized, and the LED lights at the same time.

Turn on the power and the LED lights up. Press the switch, the load is powered off.

Press the switch again, the button is reset, and the load is energized. Turn off the power and the LED goes out.
