Model FW8800 Log Skidding Winch, 25-60 HP，8800lbs
It allows you to haul trees and lumber up to 8800 lb from the woods, up hills, across fields and anywhere you need them cleared from or brought to on your farm or rural property. is compatible with 25-60 HP tractors for a simple, quick-attach system that gets you working in no time.The cable is 200 feet long and 3/8 inch in diameter. The breaking force of the wire rope is at least twice the pulling force.The design of the butt plate is ergonomic and durable. There is plenty of space on the front of the docking board.
- It is a powerful and efficient tool designed to aid in the extraction and transportation of logs from forested areas. Mounted on the rear of a tractor via its three-point hitch system, this winch provides landowners, foresters, and loggers with a safer, faster, and more effective method for skidding logs than manual labor or traditional chain dragging.
- Ideal for small woodlot owners and professional forestry operations alike, the 3-point hitch winch enhances productivity, reduces physical strain, and minimizes damage to the forest floor compared to less controlled methods. Its compatibility with standard agricultural tractors makes it a cost-effective and versatile addition to any forestry equipment lineup.
- It is compatible with 25-60 HP tractors for a simple, quick-attach system that gets you working in no time. The cable is 200 feet long and 3/8 inch in diameter.
- The whole machine is made of steel structure, which is sturdy and durable and can maintain long-lasting work.
| Recommended Tractor Power | 25-60hp |
| Pulling Capacity | 8800lbs |

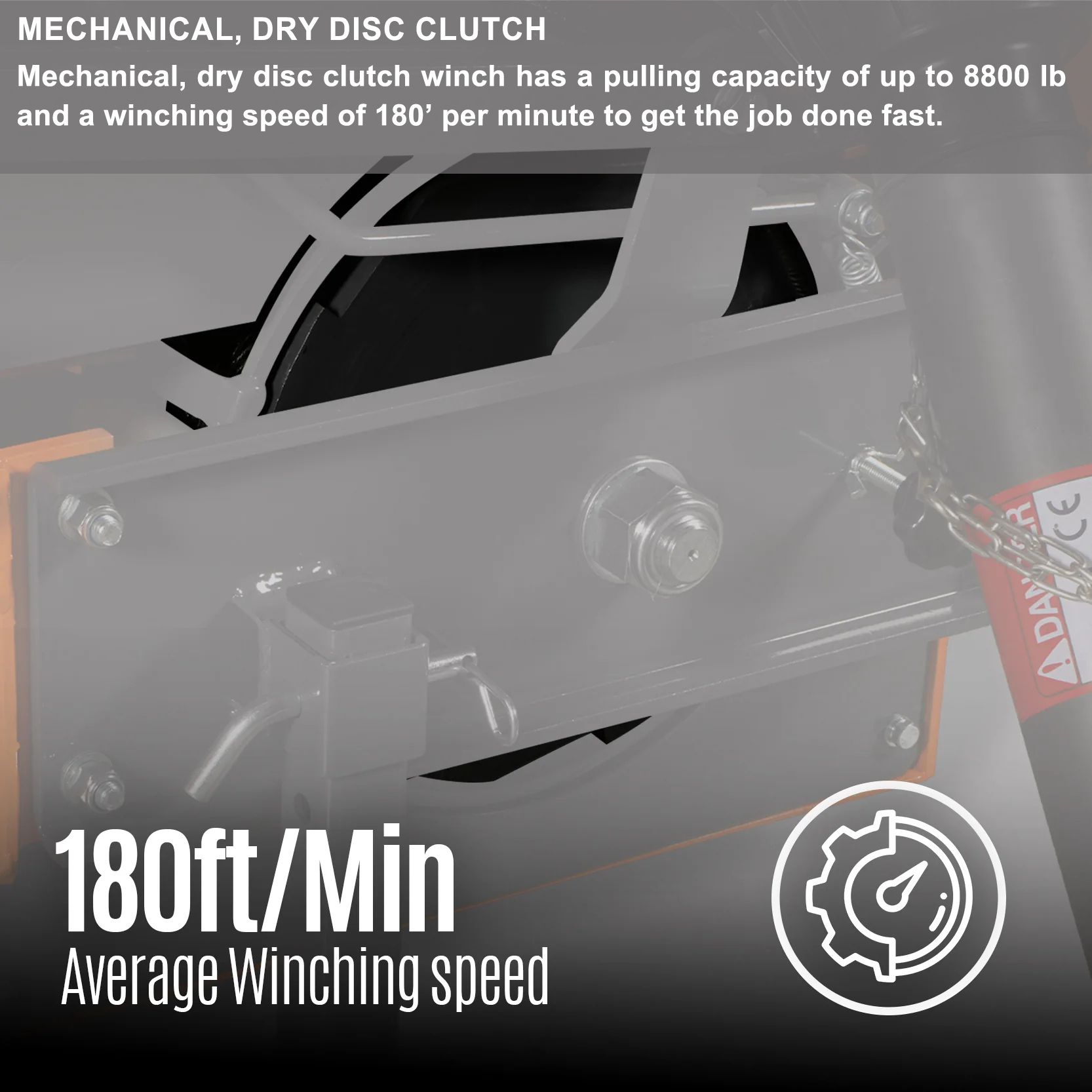

| Winch Type | Mechanical, Dry Disc Clutch |
| Average Winching Speed | 180 ft/minute |
| Cable Length | 200 ft |
| Cable Diameter | 3/8 in |
| Cable Type | Steel |
| Tractor CAT | CAT 1 |
| PTO Input Speed | 540 RPM |

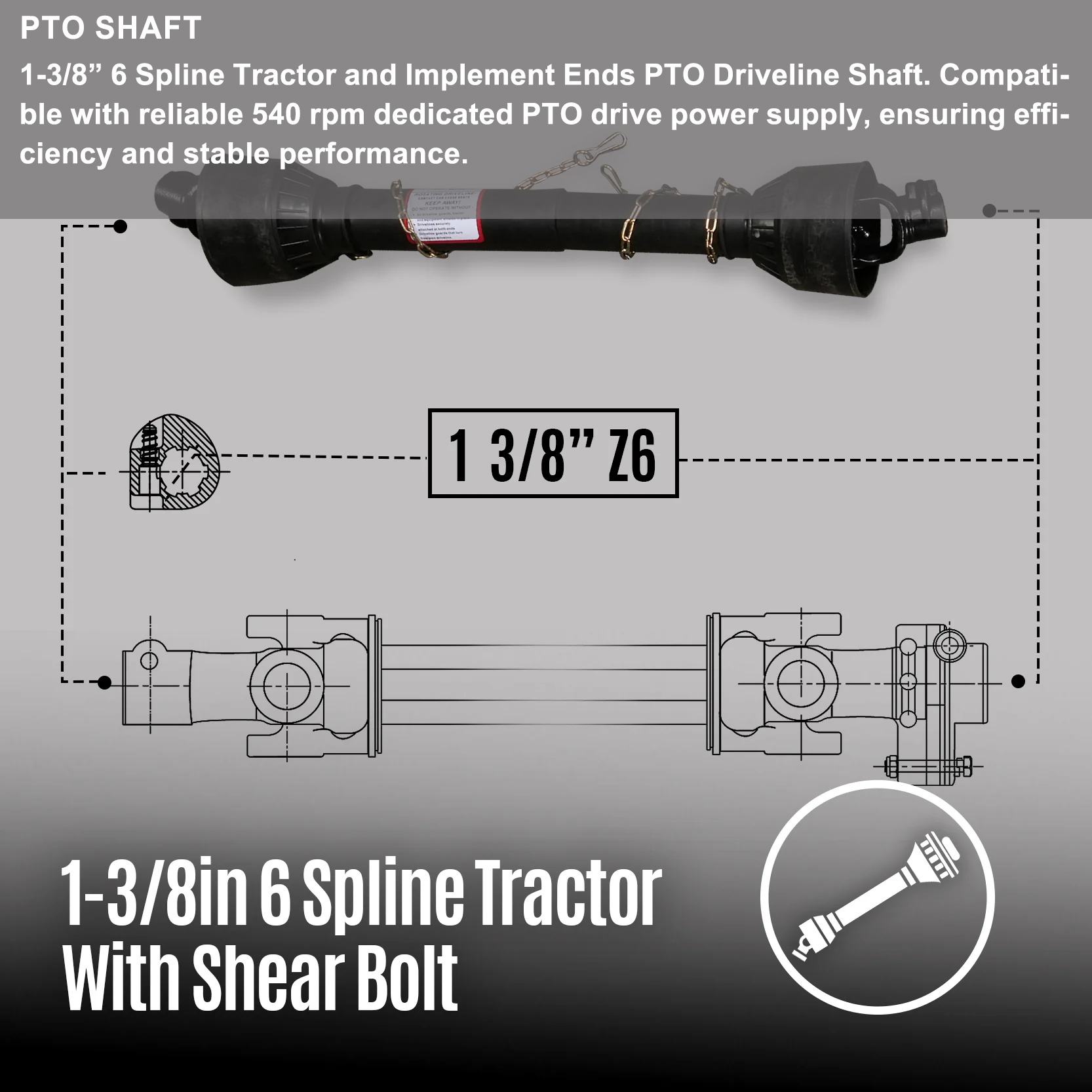

| PTO Shaft | 1-3/8in 6 Spline Tractor， With Shear Bolt |
| Dimensions | 47 X 20 X 71 in |
| Packing Size | 49 x 21 x 73 in |
| Weight (N.W/G.W.) | 602/659 lbs |
