Mapei 94285-30 Mapeguard UM Uncoupling Membrane 323 Ft² Roll -Floor Underlayment

$389.82
Brand
MAPEI
Type
Membrane
Material
Polypropylene
MPN
94285-30
Item Length
39.4" (1 m)
Item Width
98.4' (30 m)
UPC
691327636364
condition
New

Global Trade and Distribution Inc.
1- 905 660 7600 Technical support line
https://gtdsupply.com


Product Features:

  • Premium Uncoupling Membrane – Provides crack isolation, waterproofing, and vapor management for ceramic tile and stone installations in residential and commercial applications.
  • Prevents Tile Cracking and Delamination – Neutralizes tension between substrates and tile covering, reducing lateral stress to protect tiled floors from damage.

  • Advanced Tri-Layered Design – Features a textured foil layer, backing fleece, and fiber reinforcement mesh for superior flexibility, durability, and impact resistance.

  • Compatible with Multiple Substrates – Can be installed over plywood floors, OSB, wood, concrete, cement backer board, gypsum, and properly prepared tiled subfloors.

  • Ideal for High-Moisture Areas – Suitable for bathrooms, kitchens, shower floors, steam rooms, laundry rooms, basements, entryways, and commercial environments such as hotels and industrial kitchens.

  • Reliable Waterproofing and Crack Prevention – Acts as an infloor uncoupling layer, preventing moisture infiltration while preserving the surface and integrity of tile and grout.

  • Easy-to-Cut and DIY-Friendly – Simple to install with adhesive thin-set mortar, ensuring a seamless and secure tile installation with minimal labor.

  • Supports Various Flooring Types – Compatible with ceramic tile, porcelain tile, vinyl tile, cement tile, granite tile, marble tile, travertine tile, slate tile, limestone tile, sandstone tile, onyx tile, quartzite tile, mosaic tile, glass tile, concrete blocks, and linoleum tiles.

  • Perfect for Home and Commercial Renovations – An excellent choice for bathroom decor, kitchen decor, room decor, and home decor needs, ensuring a long-lasting, durable floor system.

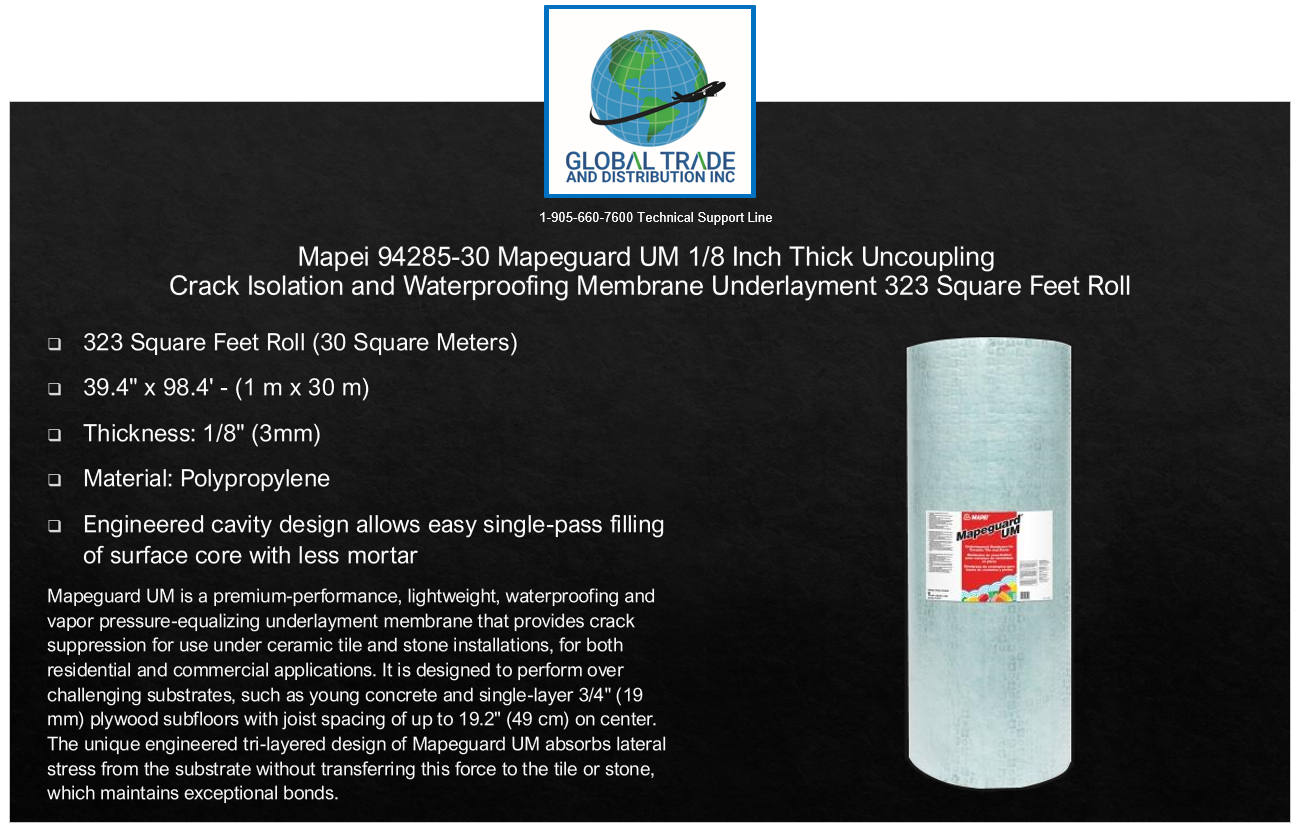

  • Dimensions – Mapeguard UM polypropylene membrane roll is 1/8" (3 mm) thick and covers 323 Sq Ft (30 Sq M), and measures 39.4" x 98.4' (1 m x 30 m).



Product Description:

Mapei Mapeguard UM is a thin, lightweight, and highly flexible premium flooring underlayment polypropylene membrane (floor mat), engineered for neutralizing tensionuncoupling membrane for tile, crack isolation, waterproofing characteristics, and vapor management solutions in ceramic tile and stone installations.

Designed for both commercial and residential flooring applications, this advanced underlayment solution provides enhanced durability and flexibility, effectively preventing tile cracking, delamination, and lateral stress from transferring to tile covering surfaces in bathrooms, kitchens, shower floors, steam rooms, laundry rooms, basements, living rooms, dining rooms, entryways, hallways, and other high-moisture areas. It is also ideal for commercial spaces such as hotels, restaurants, retail stores, office buildings, shopping malls, healthcare facilities, and industrial kitchens, providing long-lasting protection in high-traffic environments.

The tri-layered design of Mapeguard UM features a textured foil layer, backing fleece, and fiber reinforcement mesh, allowing it to absorb substrate movement and shear stress without transferring this force to the tile or stone flooring. This innovative premium infloor uncoupling layer compensates for differential movement in all directions, ensuring a strong and stable tile installation over plywood, OSB, wood, concrete, cement backer board, gypsum, and properly prepared tiled subfloorsThe translucent structure allows for easy verification of adhesive thin-set mortar coverage, ensuring even bonding and a secure floor system.

Mapei uncoupling waterproofing and crack prevention membrane (underfloor mat) is ideal for use in your shower, bathroom tile, kitchen tile, hot tub surround and bathtub surround, laundry room, and living room floors.

Mapeguard tile underlayment membrane is suitable for ceramic tile, porcelain tile, vinyl tile, cement tile, granite tile, marble tile, travertine tile, slate tile, stone tile, limestone tile, sandstone tile, onyx tile, quartzite tile, mosaic tile, glass tile, concrete blocks, and linoleum tiles. It can be used in wet areas such as shower floors, steam rooms, hot tub surrounds, bathtub surrounds, laundry rooms, and living room floors, providing an effective waterproofing and crack prevention barrier that preserves the surface and integrity of the tile and grout.

This DIY-friendly flooring underlayment is easy to cut and install, reducing labor time while providing a seamless, professional finish. Designed for single-layer 3/4" (19 mm) plywood floors with joist spacing up to 19.2" (49 cm) on center, or double-layer plywood subfloors with joist spacing up to 24" (61 cm) on center, it is compatible with underfloor heating systems, ensuring energy-efficient radiant heat distribution and effective uncoupling and anti-fracture properties.


The Mapeguard UM Uncoupling Mat is highly resistant to chemicals and moisture infiltration, making it ideal for high-traffic flooring systems and demanding commercial environments. Available in a convenient 323 sq. ft. roll, this high-performance tile underlayment is a superior choice for home renovation, such as kitchen tile flooring and DIY home improvement projects, bathroom decor, kitchen decor, room decor, and other home decor needs. Whether used in new construction or remodeling projects, Mapeguard UM delivers long-lasting protection, superior waterproofing, and unparalleled crack isolation, ensuring a strong and durable flooring system for years to come.


Choosing The Right Thin-set Mortar for Mapeguard Membrane Installation:

​Selecting the appropriate thin-set mortar is crucial for a successful installation of the Mapei 94285-30 Mapeguard UM Uncoupling Membrane. A polymer-modified mortar should be used both beneath the membrane and for adhering tiles on top. ​

Under the Membrane:
For bonding Mapeguard UM to the substrate, Mapei recommends using polymer-modified mortars such as Ultraflex 1 and Ultraflex 2. These mortars provide excellent adhesion between the membrane and substrate, ensuring proper bonding. ​

Over the Membrane:
When installing tile over the Mapeguard UM membrane, large-and-heavy-tile mortars are ideal. Products like Ultraflex LHT, Ultraflex LFT, Ultraflex LFT Rapid, and Ultraflex LHT SG are recommended. These mortars are specifically formulated to support the weight of large-format tiles and prevent sagging during installation. ​

Other Compatible Mapei Mortars:

Keraflex Plus:
A highly versatile, nonsag/nonslump, large-and-heavy-tile mortar suitable for tile and stone installations on floors, walls, and countertops. It offers excellent adhesion and can be used over uncoupling membranes. ​

Keraflex Super:
A premium, extra smooth, large-and-heavy-tile mortar with polymer, ideal for installations on floors, walls, and countertops. It provides enhanced adhesion and flexibility. ​


Alternative Brand Mortars Compatible with Uncoupling Membranes:

Schluter SET®:
A premium unmodified thin-set mortar specifically formulated for use with Schluter® membranes and boards. It is suitable for use with ceramic, porcelain, and stone tile, including large and heavy tile. ​

Custom Building Products' Uncoupling Mat Mortar:
A premium, cement-based mortar designed for the installation of ceramic tile and stone over uncoupling membranes. It meets the requirements of ANSI A118.1 for non-modified thin-set mortars. ​


Key Considerations:

Substrate Preparation:
Ensure that the substrate is clean, dry, and free from contaminants that could affect adhesion. Proper surface preparation is essential for optimal performance.​

By selecting the appropriate thin-set mortars and adhering to Mapei's installation instructions, you can achieve a durable and long-lasting tile installation over the Mapeguard UM Uncoupling Membrane.


Available
uncoupling & waterproofing membranes by Schluter Systems and
other manufacturers:


Schluter Systems KERDI-DS, KERDI200, KERDI200200, DITRA30M Uncoupling membrane, DITRA-XL/175, Laticrete Hydro Ban 9455-0323-2, Laticrete Hydro Ban XP, Laticrete Hydro Barrier 9256-0401-4, Mapei Mapeguard 2850930, Prova Protegga Plus TT8000RED82R, ARDEX SK-175, ARDEX FLEXBONE UI740, UI720, Profilitec Floortec, Profilitec Foiltec ‎FOILTEC/05/G, Wedi Subliner Dry Mat US5000005, IB Tools.


Available floor heat membranes by Schluter Systems and
other manufacturers:

DH512M Ditra Heat Membrane Roll or DH5MA Ditra Heat Sheets, DHD810M Ditra Heat DUO Membrane Roll or DHD8MA Ditra Heat DUO Sheets with sound control and thermal break layer, DHPS512M Self-Adhesive Peel & Stick Ditra Heat Membrane Roll or DHPS5MA Self-Adhesive Peel & Stick Ditra Heat Sheets, DHDPS810M Self-Adhesive Peel & Stick Ditra Heat DUO Membrane Roll or DHDPS8MA Self-Adhesive Peel & Stick Ditra Heat DUO Sheets.
SunTouch HeatMatrix 8006GRY161-ST Heating Membrane or 8006GRY11-ST Heat Sheets
Laticrete Strata Heat 0179-0161-H Heating Membrane or 0177-1084-H Heat Sheets
Ardex Flexbone UH900 Heating Membrane or UH905 Heat Sheets
nVent NuHeat NUMEM161 Heating Membrane (AC0105) or NUMEM250 Heat Sheets (FG0800)
nVent NuHeat NUMEM250PS Peel & Stick Self Adhesive Heat Sheets (FG0801)
Mapei Mapeheat 2855915 Heating Membrane by Prodeso or 2855925 Heat Sheets
Prova FLEX-HEAT TT8006RED15 Heating Membrane

Please note that it's highly recommended to overlap all joint lines using the Kerdi Polyethylene waterproof band/ tape/ strip. Applicable for both residential and commercial usage. To control the In-floor heating system and set the underfloor temperature of your heated floors, you can use a variety of thermostats (120V/ 240V).


Available thermostats and power modules:

Schluter Systems Ditra Heat-E-RS1 DHERT105/BW Smart WiFi Programmable Thermostat, Ditra Heat-E-WiFi DHERT104/BW Touchscreen Programmable Thermostat, Ditra Heat-E-R DHERT103/BW Non-Programmable Thermostat, Ditra Heat-E-RT DHERT102/BW Touchscreen Programmable Thermostat, Ditra Heat E-RRS Power Module, Ditra Heat E-RR Power Module.

nVent NuHeat AC0055 Signature WiFi Touchscreen Programmable Thermostat, NuHeat AC0056 Home Touchscreen Programmable Thermostat, NuHeat AC0057 Element  Non-Programmable Thermostat.

OJ Microline UWG4-4999 WIFI Touchscreen Programmable Thermostat by OJ Electronics, OJ Microline  UDG4-4999 Touchscreen Programmable Thermostat, OJ Microline UTN4-4999 Non-Programmable Thermostat.

Mapei
Mapeheat 2855301 WiFi Programmable Touchscreen Thermostat 94553-01, Mapei Mapeheat 2855201 Programmable Touchscreen Thermostat 94552-01, Mapei Mapeheat 2855401 Non-Programmable Thermostat 94554-01.

Ardex Flexbone UH 930 WiFi Touchscreen Programmable Thermostat, ARDEX Flexbone UH 931 Touchscreen Programmable Thermostat, ARDEX Flexbone UH 932 Digital Non-Programmable Thermostat, Ardex Flexbone UH 940 Power Module.

Easy Heat GTS1 FGS Programmable Thermostat.

Laticrete Strata Heat 0804-0404-TW Smart WiFi Programmable Touchscreen Thermostat, Laticrete 0804-0403-TW WiFi Programmable Touchscreen Thermostat.

SunTouch SunStat Connect Plus 500900-SB WiFi Programmable Touchscreen Thermostat, SunTouch SunStat CommandPlus 500950-SB WiFi Programmable Touchscreen Thermostat, SunTouch SunStat Command 500850-SB Touchscreen Programmable Thermostat, SunTouch SunStat Core 500825-SB Non-Programmable Thermostat 500825-SB, SunTouch SunStat 500980 R4 Relay 120/240V.

Honeywell Aube TH115-AF-GA Programmable Floor Heating Thermostat.

TRM-FH-Gold WiFi Programmable Touchscreen Thermostat UWG5-4999, TRM-FH Silver Programmable Touchscreen Thermostat, TRM-FH-Bronze Radiant Floor Heating Digital Non-programmable Thermostat.

Drexma
Smart WiFi Programmable Touchscreen Thermostat Powered by
MYSA IN-FLOOR V1-0, Drexma WiStat Programmable WiFi Touchscreen Thermostat, Drexma Relay/Power Module USG-4000.
