Model LS1019L

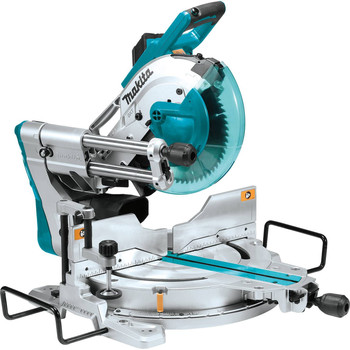

Makita 10 in. Dual-Bevel Sliding Compound Miter Saw with Laser
Includes
- 10 in. Dual-Bevel Sliding Compound Miter Saw with Laser - LS1019L
- 10 in. x 5/8 in. 60T Micro-Polished Miter Saw Blade
- Vertical Vise - 122854-6
- Dust Bag - 122852-0
- Triangular Rule - 762001-3
- #6 Hex Wrench - 781044-6
DETAILS & SPECIFICATIONS
Features
- 10 in. slide miter saw with the crown molding cutting capacity (6-5/8 in. nested) of a 12 in. miter saw
- Linear ball bearing system engineered to deliver "dead-on" accurate cuts
- Innovative direct drive gearbox and guard system is engineered for increased vertical cutting capacity (5-1/4 in.)
- Unique 2-Steel Rail Sliding System design offers single slide-glide operation; reducing saw's footprint and allowing operation flush against a wall
- Less weight (57.9 lbs.) and the most compact design in its class for easy jobsite portability
- Powerful 15 Amp direct drive motor requires less maintenance and delivers 3200 RPM
- Increased capacity for up to 6-5/8 in. crown molding (vertically nested), 5-1/4 in. baseboard (vertical), and 12 in. crosscuts at 90 Degrees
- Large-sized aluminum base improves stability of material for efficient cutting
- Soft start suppresses start-up reaction for smooth start-ups and longer gear life
- Miters 0 - 60 Degrees left and right; bevels 0 - 48 Degrees left and right
- Positive miter stops at: 0 Degrees, 15 Degrees, 22.5 Degrees, 31.6 Degrees, 45 Degrees, and 60 Degrees left or right
- Electronic speed control maintains constant speed under load for smoother, higher quality cutting
- Integrated upper and lower 4-3/4 in. tall fence system offers added rigidity for more precise miter and bevel cuts
- In-front bevel lock for convenient operation
- Built-in laser clearly indicates line-of-cut whether blade is turning or not; on-off switch and micro-adjustments for precise "left-of-blade" or "right-of-blade" cutting
Specifications
| Blade Diameter | 10 in |
| Cutting Capacity (45 Miter Left/0 Bevel) | 2-13/16 in x 8-1/2 in / 3-5/8 in x 7-3/4 in |
| Blade Speed (RPM) | 3200 |
| Power Source | Corded |
| Miter Angle (Left) | 60 Degrees |
| Positive Miter Detents | 6 |
| Cutting Capacity (0 Miter/0 Bevel) | 2-13/16 in x 12 in / 3-5/8 in x 11 in |
| Bluetooth Compatibility | No |
| Miter Angle (Right) | 60 Degrees |
| Miter Type | Compound |
| Fence Length | 4-3/4 in |
| Bevel Direction | Dual |
| Maximum Cutting Thickness (in.) | 12 in |
| Motor Type | Brushed |
| Cutting Capacity (45 Miter Left/45 Bevel Left) | 1-7/8 in x 8-1/2 in / 2-3/8 in x 7-3/4 in |
| Voltage | 120V |
| Amperage | 15 |
| Bevel Angle (Right) | 48 Degrees |
| UL Safety | Yes |
| Height | 26 in. |
| Cutting Capacity (45 Miter Right/45 Bevel Right) | 1-1/8 in x 8-1/2 in / 1-11/16 in x 7-3/4 in |
| No-Load Speed (RPM) | 3200 |
| Width | 25.375 in. |
| Cutting Capacity (45 Miter Left/45 Bevel Right) | 1-1/8 in x 8-1/2 in / 1-11/16 in x 7-3/4 in |
| Cutting Capacity (0 Miter/45 Bevel Right) | 1-1/8 in x 12 in / 1-11/16 in x 11 in |
| Bevel Angle (Left) | 48 Degrees |
| CSA Safety | Yes |
| Wifi compatibility | No |
| Cut Guidance System | Yes |
| Maximum Degree Miter Cuts - Left | 60 Degrees |
| Weight | 57.9 lbs. |
| Slide System | Yes |
| Cutting Capacity (0 Miter/45 Bevel Left) | 1-7/8 in x 12 in / 2-3/8 in x 11 in |
| Maximum Degree Miter Cuts - Right | 60 |
| Dust Collection Type | Dust Bag |
| Arbor Size | 5/8 in |
| Case Included | No |
| Length | 31.75 in. |
| Cutting Capacity (45 Miter Right/45 Bevel Left) | 1-7/8 in x 8-1/2 in / 2-3/8 in x 7-3/4 in |
| Charger Included | No |
| Cutting Capacity (45 Miter Right/0 Bevel) | 2-13/16 in x 8-1/2 in / 3-5/8 in x 7-3/4 in |
| ETL Safety | No |
| Keyless/keyed Blade Change | Keyed Change |
