Feature:

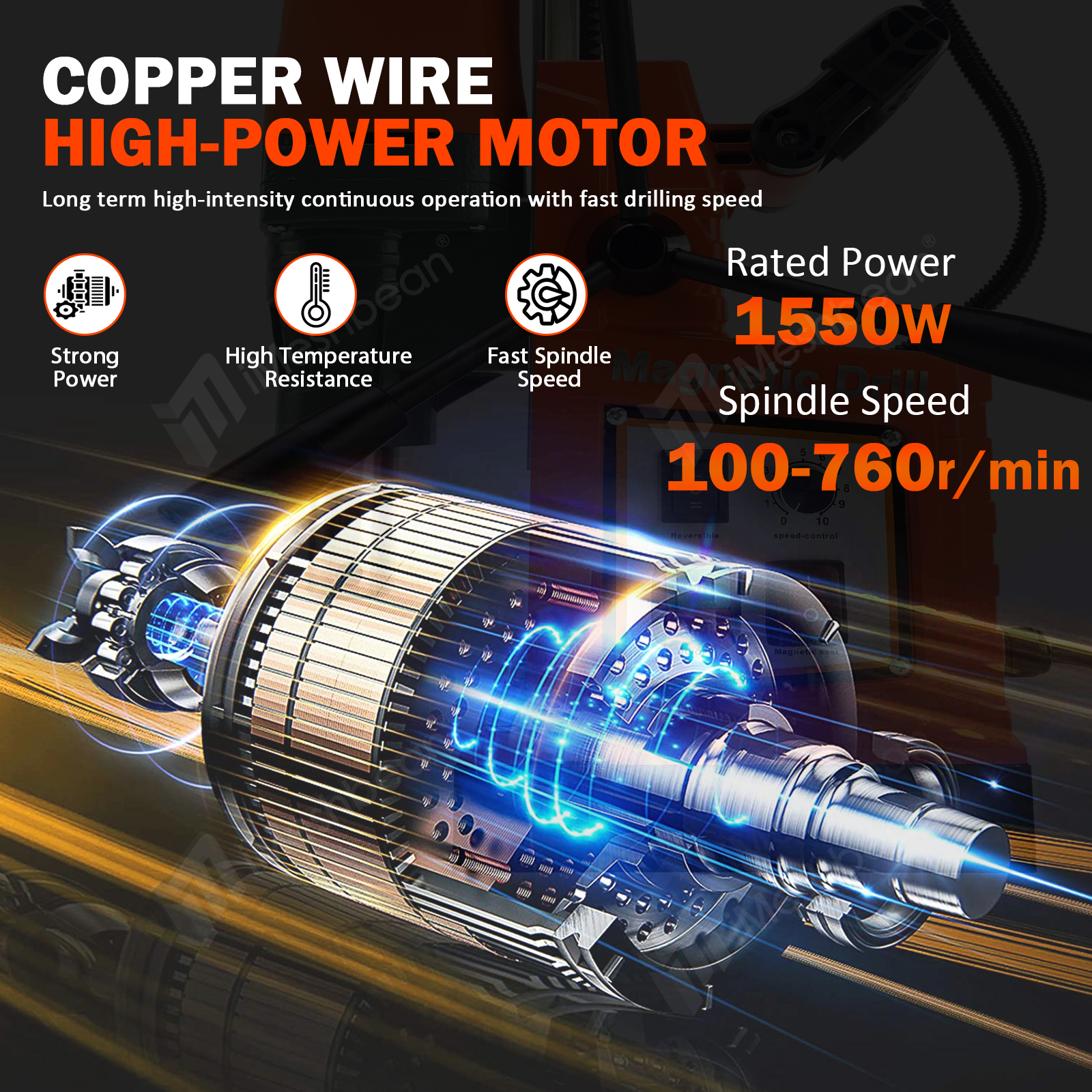

Strong Driving Force
- Excellent performance with stable rotational speed, fast drilling (760 RPM), high temperature resistance without burning, and long service life.

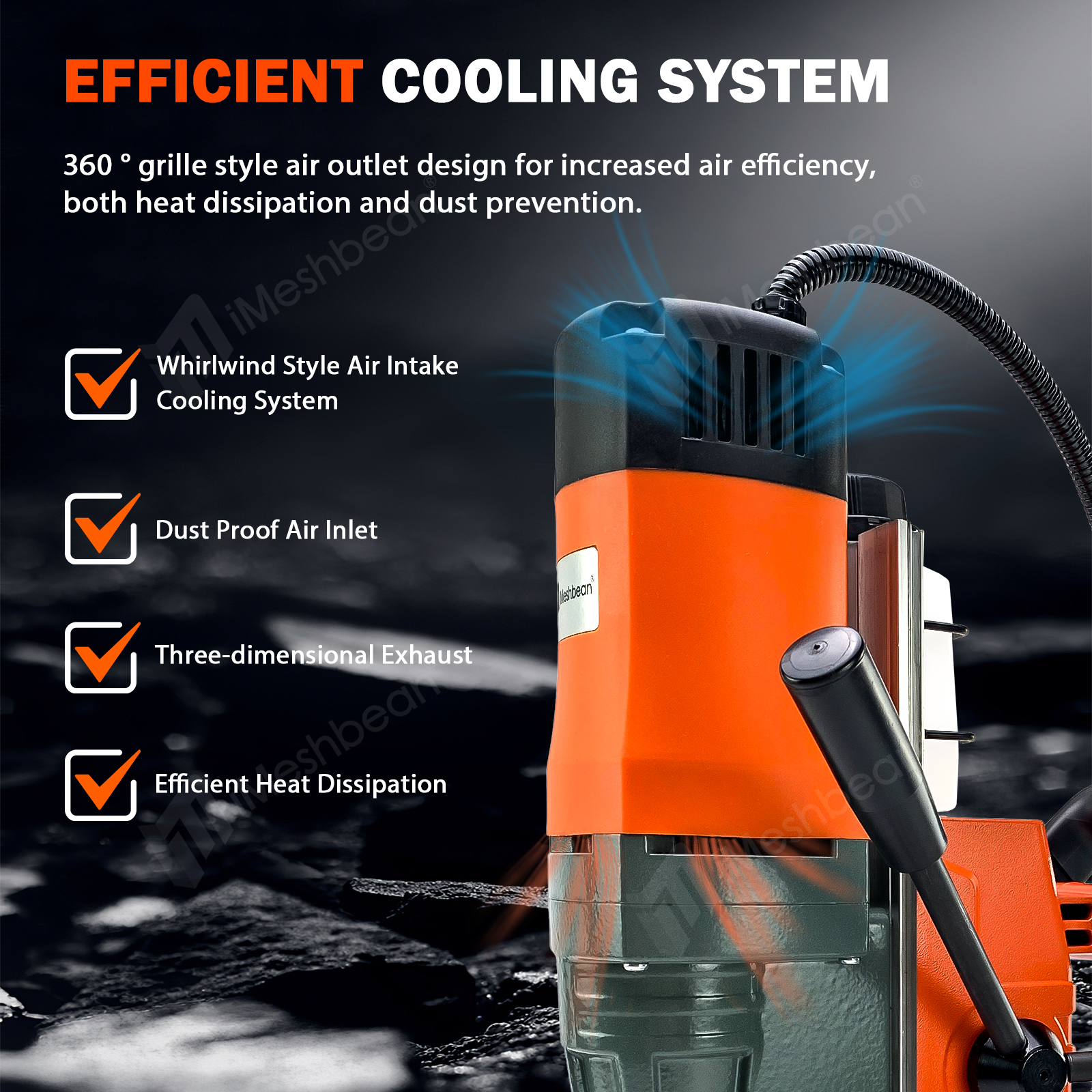

Effective Heat Dissipation
- 360 ° grille style air outlet design for increased air efficiency, both heat dissipation and dust prevention

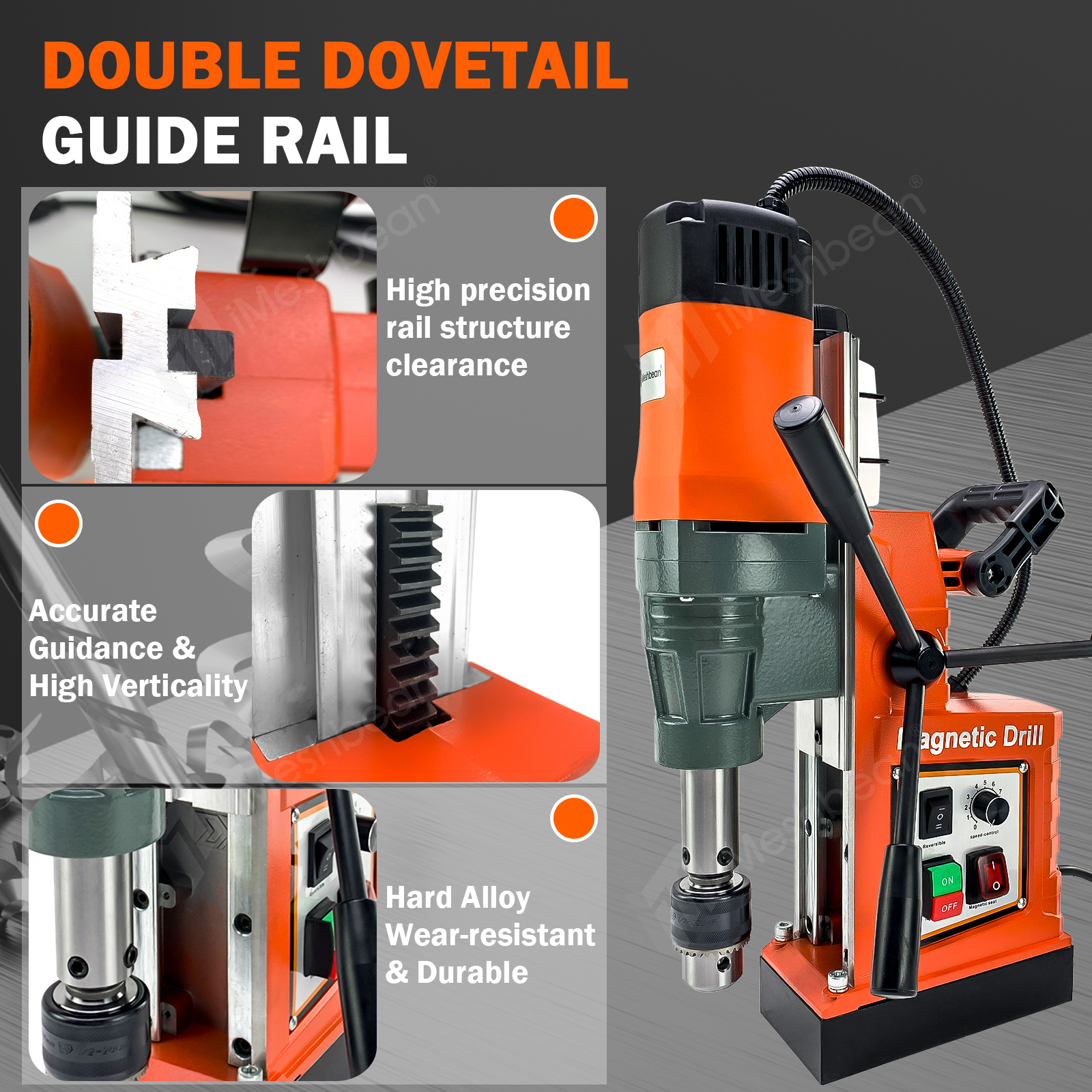

Two-way Dovatail Guide Rail
- It ensures the rigidity of the sliding part and can adjust the motor height as needed, with wear and high temperature resistance.

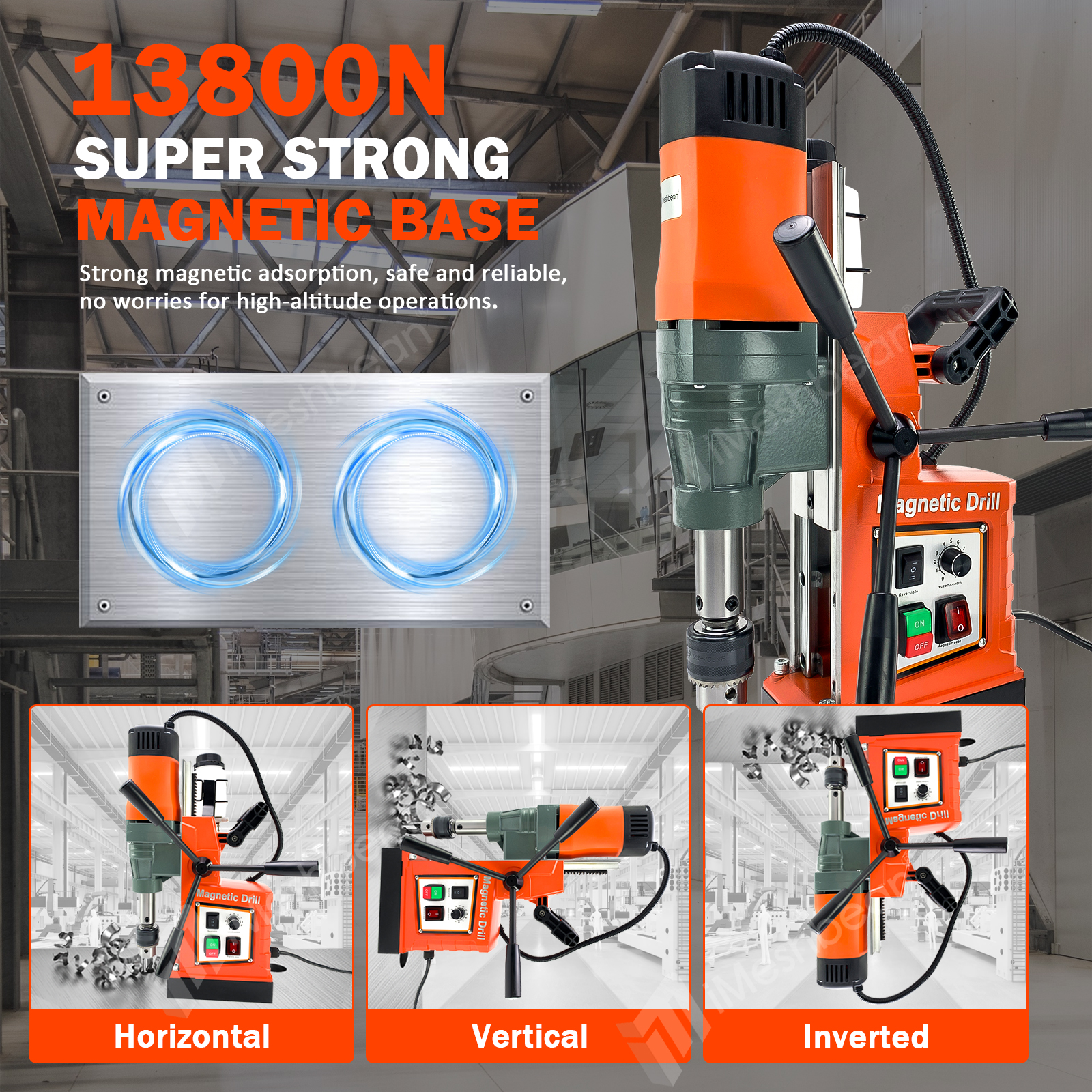

13800N Strong Magnetic Force
- Strong magnetic adsorption, safe & reliable, capable of reverse suction/side suction/vertical 90 ° adsorption during operation.

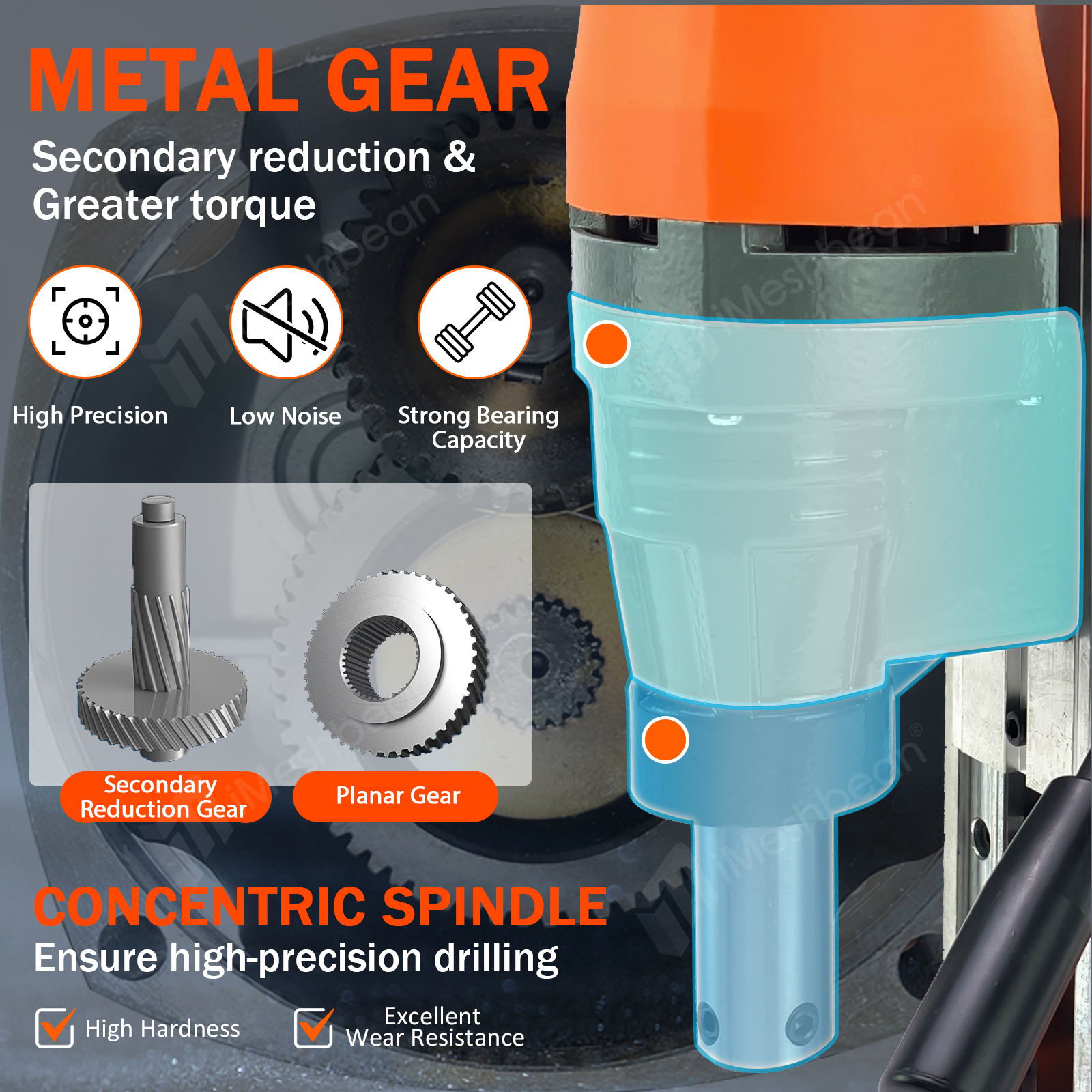

Precision Gears & Rotor Shafts
- Precision manufactured gears and shafts with stable performance, high transmission accuracy, and strong power.

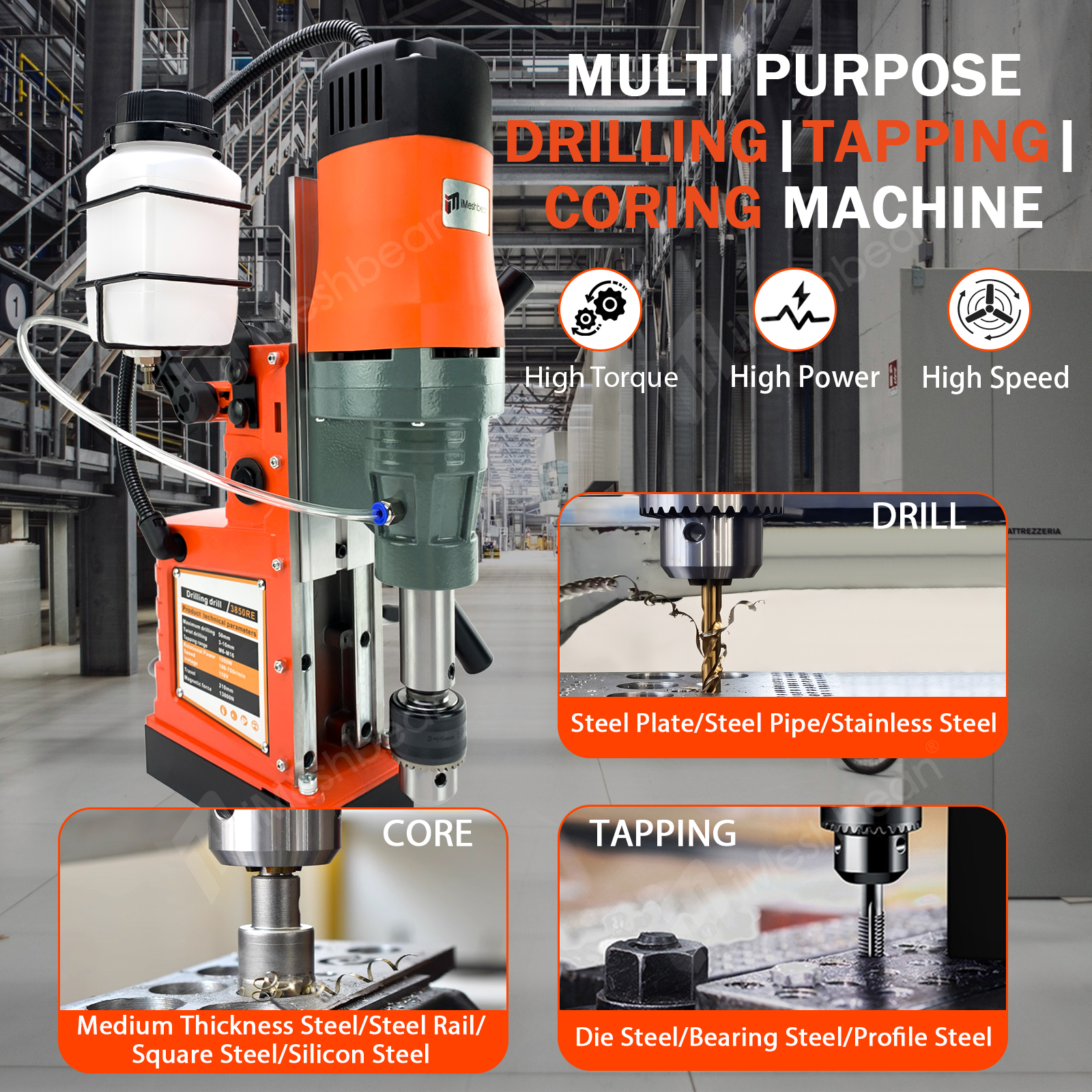

Multifunctional Magnetic Drill
- Multi purpose drilling (0.1-0.6"/ 3-16 mm) / tapping (M6-M16) / coring (2"/ 50 mm) machine.
| Specificaton: |
|---|
| Model: WF22516-3850RE 1550W |
| Power: 1550W |
| Voltage: 110V |
| Power Frequency: 60Hz |
| Amperage: 10 Amps |
| Power Source: Corded Electric (2m) |
| Material: Metal |
| Color: Orange & Grey Green |
| Special Features: Overload Protection, Alloy Guide Rail |
| Maximum Spindle Speed: 760 R/MIN |
| Max. Coring Drill Diameter: 2"/ 50 mm |
| Twist Drilling Range: 0.1-0.6"/ 3-16 mm |
| Tapping Range: M6-M16 |
| Spindle Stroke: 8.3" / 210 mm |
| Magnetic Force(Base): 3102 lbf / 13800 N |
| Magnetic Base Size: 7.87" x 3.94" x 2.17"/20 x 10 x 5.5 cm |
| Product Size(Full Installation): about 13" x 11.8" x 19.5"/ 33 x 30 x 49.5 cm (L*W*H) |
| Package size: 15.75" x 7.1" x 19.7" / 40 x 18 x 50 cm (L*W*H) |
| Item Weight: 38.58 lbs / 17.5 kg |
| Package Weight: 43 lbs / 19.5 kg |
| Package Content: |
|---|
| 1 x Magnetic Drill (WF22516-3850RE 1550W) |
| 1 x Drill Chuck |
| 1 x Drill Chuck Key |
| 1 x Drill Chuck Adapter |
| 3 x Hex Wrench |
| 2 x Carbon Brushes |
| 1 x Safe Strap |
| 1 x Coolant Tank & Stand & Hose |
| 3 x Hand Crank |
| 1 x Handles |
| 1 x Manual |
