M3-M16 Universal Touchscreen Tapping Machine for Metal/Plastic Material Tapping

Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide
$945.64
Speed
312rpm
Machine Type
Electric Tapping Machine
Color
White
Working area
Horizontal:43.3"(1.1m) Vertical:21.6"(0.55m)
MPN
44-056222DA
Chuck type
GT12
Maximum torque
256N.m
Brand
TECHTONGDA
Working angle
360° universal
Voltage
220 V
Model
M3-M16
Motor Power
600W(0.8HP)
Country/Region of Manufacture
Unknown
UPC
198462866958
condition
New
　

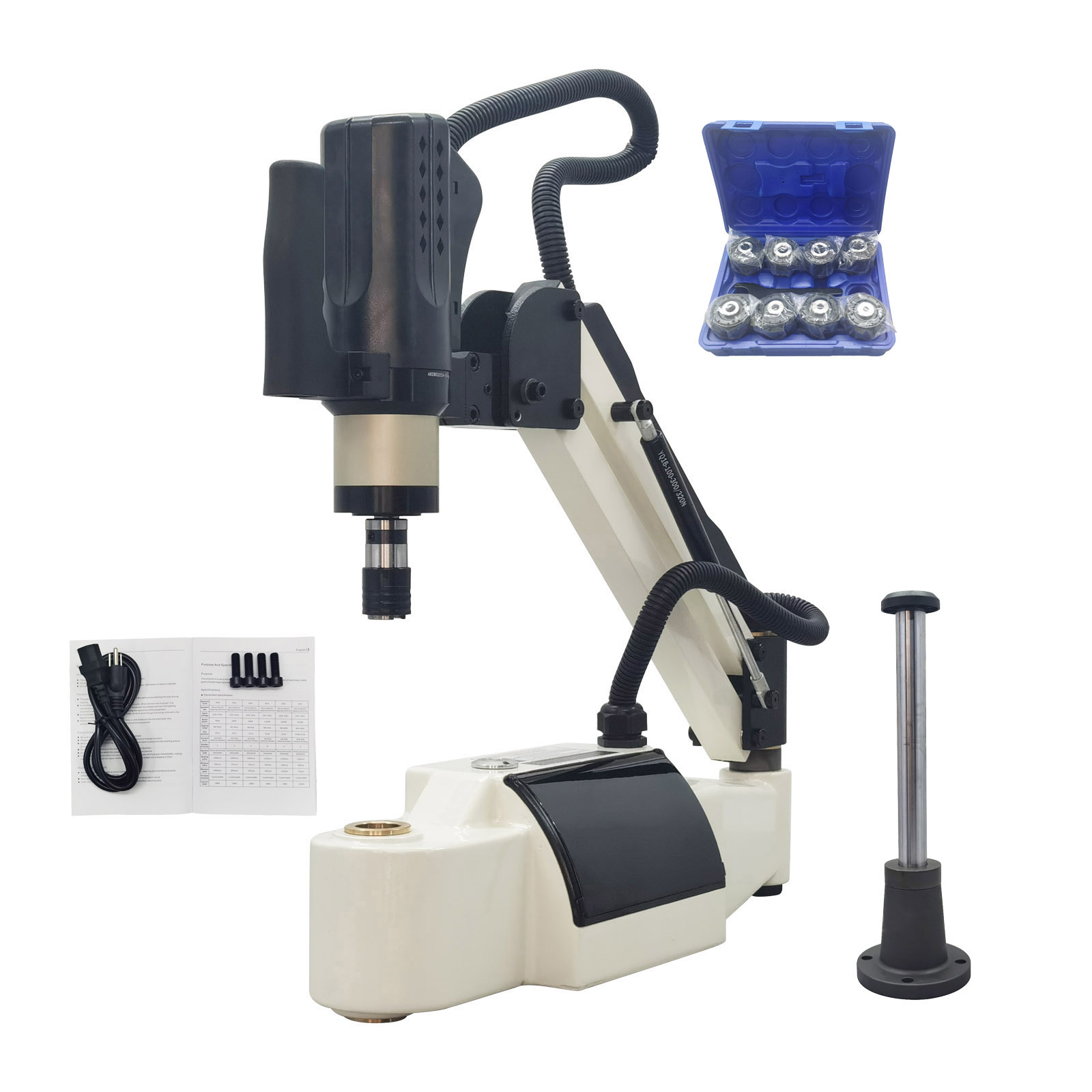

M3-M16 Universal 360° Electric Touch Tapping Machine 220V 600W

TECHTONGDA
​
         ITEM DESCRIPTION
  • There are three modes for you to choose: manual, automatic and deep hole machining.
  • The preset torque of the machine plus the double protection of the torque chuck can prevent the tap from breaking.
  • Newly upgraded 600W high power, can bring more torque.
  • The rotating parts are made of graphite copper sleeves and bearings, which are flexible in rotation, more wear-resistant, and have high tapping accuracy.
  • Wide range of processing materials, can process aluminum, copper, A3 steel, 45 steel, cast iron, pig iron, Q235, S136, mold steel, 718H,40Cr, stainless steel and other materials.
This product is based on servo motor as power electric tapping machine, widely used in all walks of life all kinds of large and small machine and all kinds of materials, parts of molds and wood tap wire processing, the product is well-made, quality first-class, was deeply loved by the masses of customers and praise, are you tapping processing of choice.
ITEM PARAMETER
Bearing scope of thread:
M3-M16
Voltage:
AC220V 50/60Hz
Motor Power:
600W(0.8HP)
Chuck type:
GT12
Working area:
Horizontal:43.3"(1.1m) Vertical:21.6"(0.55m)
Spindle speed:
1-312rpm
Working angle:
360° universal
Maximum torque:
256N.m
Color:
White
Packing size:
29.1"*28.3"*11.0"(74cm*72cm*28cm)
Net weight/Gross weight:
50.7LB(23kg)/70.5LB(32kg)

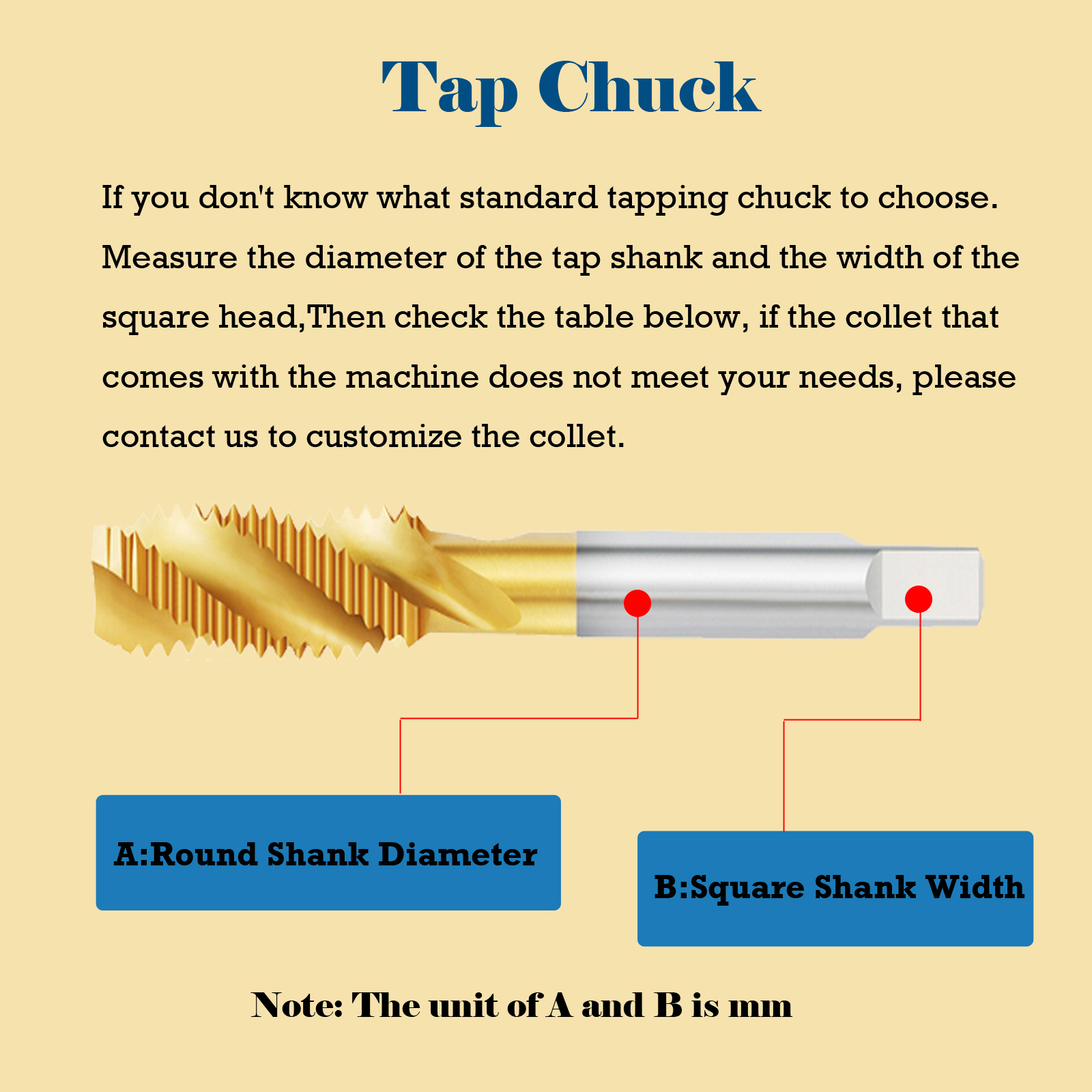

CHUCK SPECIFICATIONS
ISO(Metric)
AxB
JIS
AxB
DIN
AxB
INCH
AxB
M2
2.80x2.25
M2
3.0x2.5
M2
2.5x2.1
1/8
4.0x3.15
M3
3.15x2.5
M3
4.0x3.2
M3
3.5x2.7
5/32
5.0x4.0
M4
4.0x3.15
M4
5.0x4.0
M4
4.5x3.4
3/16
5.5x4.5
M5
5.1x4.0
M5
5.5x4.5
M5
6x4.9
1/4
6.0x4.5
M6
6.3x5.0
M6
6.0x4.5
M6
6x4.9
5/16
6.2x5.0
M8
6.3x5.0
M8
6.2x5.0
M8
8x6.2
3/8
7.0x5.5
M10
8.0x6.3
M10
7.0x5.5
M10
10x8
1/2
9.0x7.1
M12
9.0x7.1
M12
8.5x6.5
M12
9x7
9/16
11.2x9.0
M14
11.2x9.0
M14
10.5x8.5
M14
11x9
5/8
12.5x10.0
M16
12.5x10.0
M16
12.5x10.0
M16
12x9
3/4
14.0x11.2
M18
14.0x11.2
M18
14.0x11.0
