LiTime 51.2V 48V 100Ah Stacked Type LiFePO4 Battery Born for Home Energy Storage

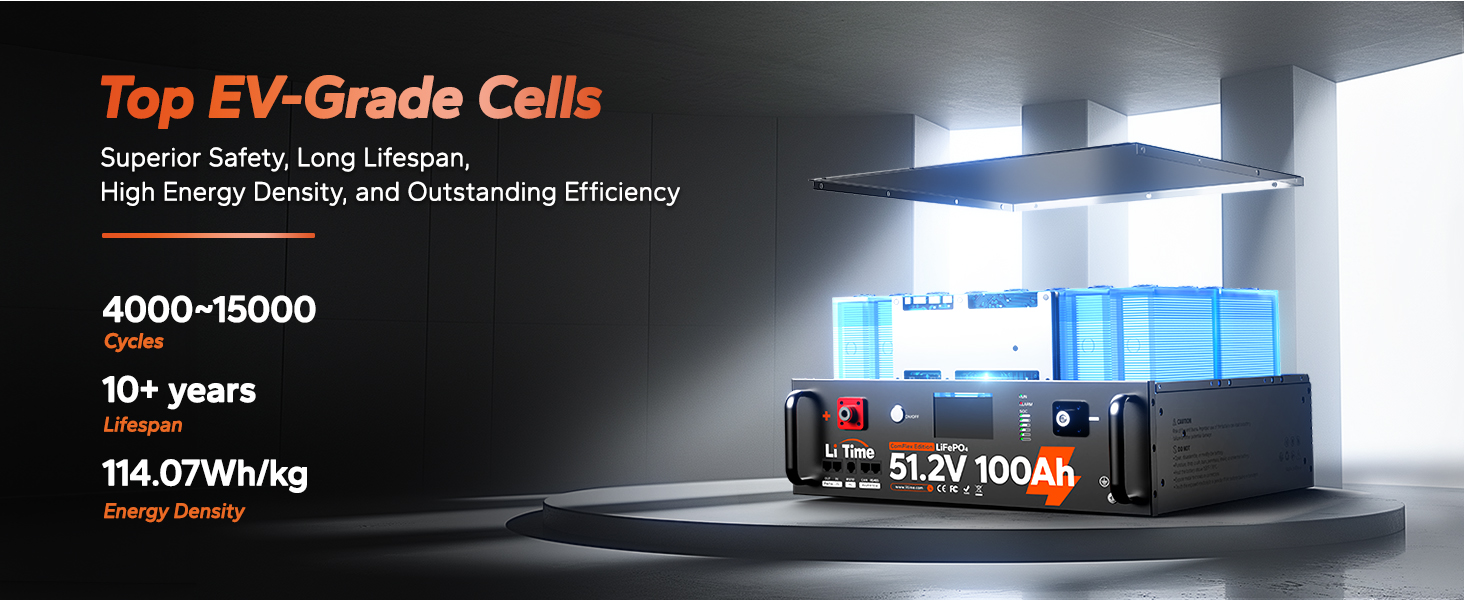

【LiTime's Revolutionary 48V(51.2V) 100Ah LiFePO4 Stacked Lithium Battery】Featuring premium EV-grade LiFePO4 cells and the latest BMS technology, it ensures both safety and longevity, boasting a lifespan of over a decade. But that's not all – we've taken it a step further with an intelligent touchscreen and LED indicators, granting you real-time viewing and control right at your fingertips. Experience a new level of convenience and performance with LiTime's innovative home energy storage battery. Don't miss your chance to upgrade to the ultimate home power solution. With industry-leading quality and our hassle-free warranty, this battery is the smartest investment for your home's future.

【Flexible & Solid, Installed with Confidence】The LiTime 48V(51.2V) 100Ah LiFePO4 stacked battery provides convenient and sturdy installation options. You have the flexibility of either using a 3U standard server rack cabinet for a plug-in installation or our customized integrated stacking components.

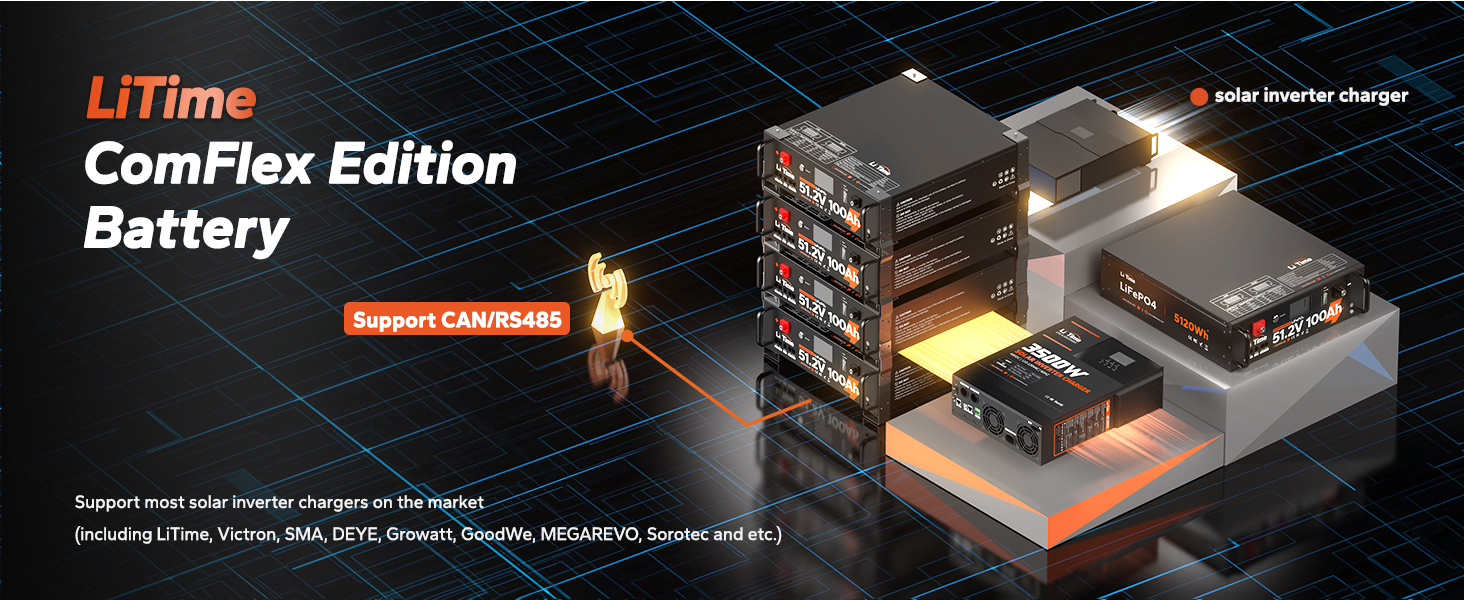

【Seamless Communication, Endless Possibilities】These 48V 100Ah ComFlex Edition LiFePO4 batteries have higher compatibility, which support CAN/RS485 and can communicate with popular all-in-one solar inverter chargers on the market, such as the Victron, SMA, DEYE, GoodWe and Growatt brands.

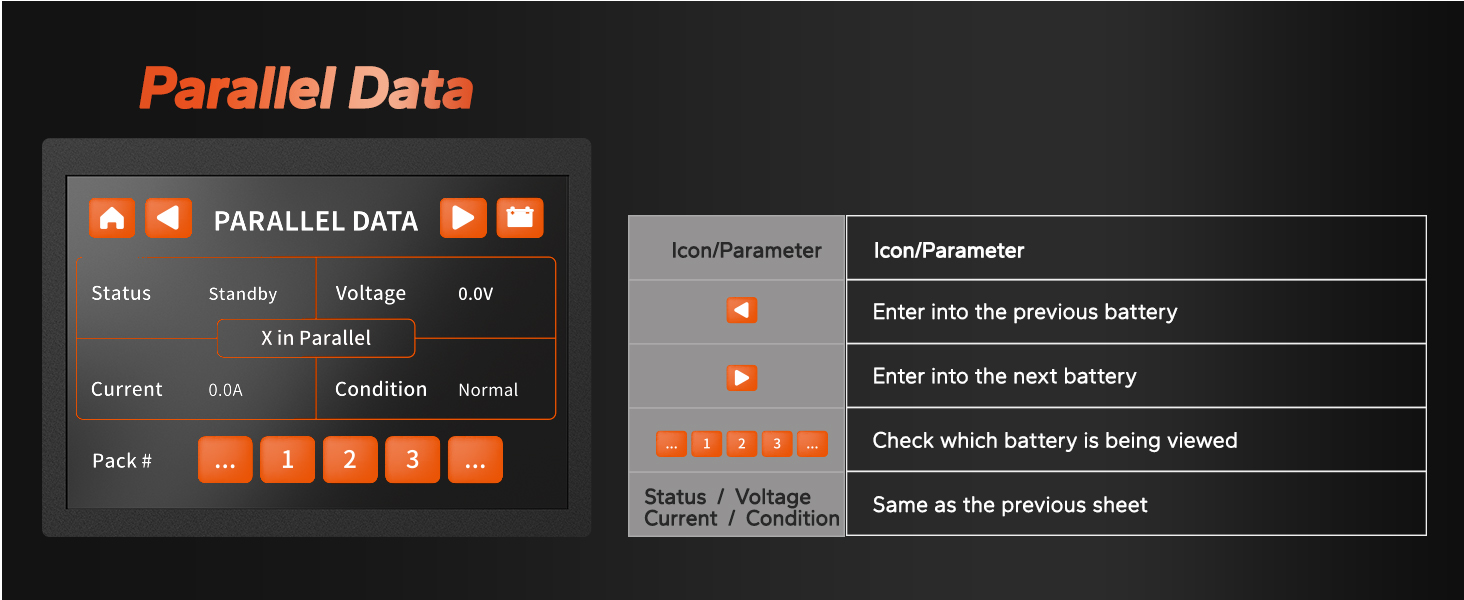

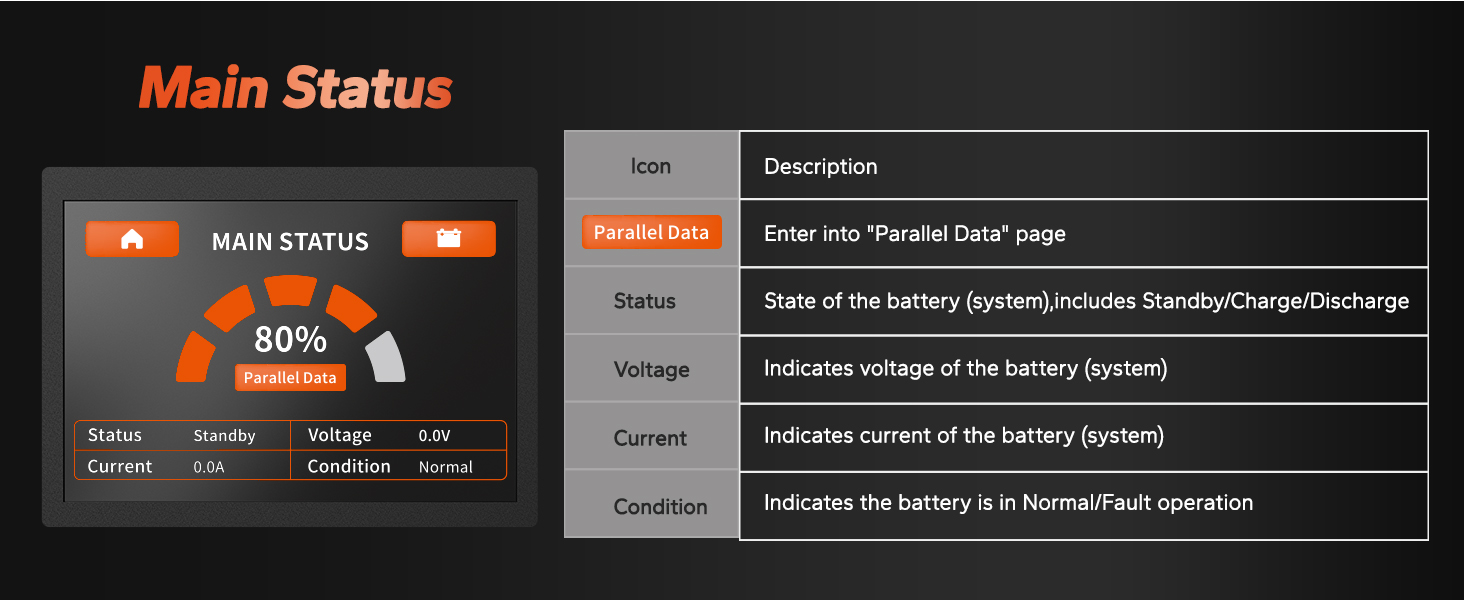

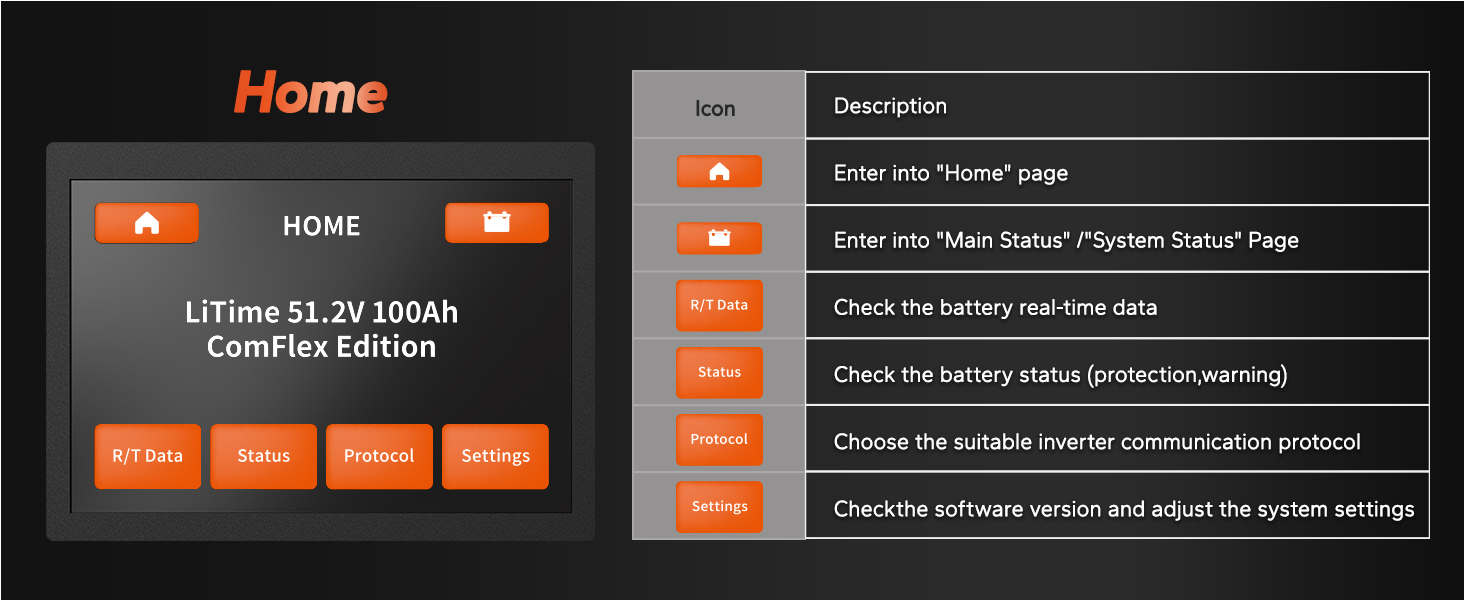

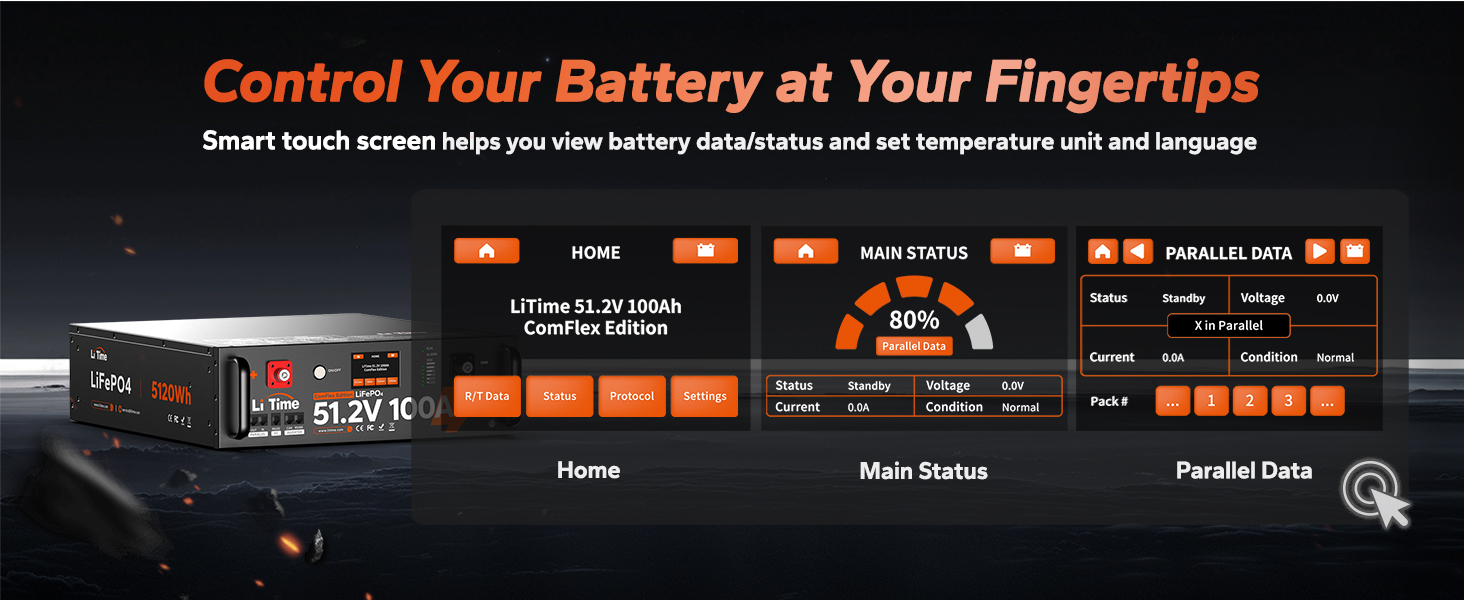

【Empowering Brilliance: Touchscreen Intelligence & LED Indication】The LiTime 48V 100Ah Stackable LiFePo4 Battery has realized a true intelligent upgrade with an all-new improved version. We've equipped the battery with a 3.5-inch smart touch screen, allowing you to view battery real-time data/status and single battery data, choose inverter protocol and adjust system settings. At the same time, the battery's front panel also features LED indicators that indicate the battery SOC, alarms, operating status and more, allowing you to stay informed of the battery status anytime.

【100% Protection with the Latest BMS】This 48V 100Ah battery comes equipped with a new generation 100A BMS that features 20+ protection and warning functions to safeguard the battery from impacts of overcharge, over-discharge, over-current, overheating, low temperature and short circuits. Meanwhile, LiTime BMS comes with pre-charge function, which can be adapted to all inverters on the market. Whether charging or discharging, it delivers an unparalleled user experience.

【SPCC Enclosure with Excellent Protection】The LiTime 48V 100Ah lithium-ion battery features an SPCC construction. The SPCC enclosure not only lends rugged durability but its integrated structure promotes heat dissipation for prolonged healthy operation. Be it home storage or off-grid cabin use, you can rely on this battery's robust quality to maintain optimal performance.

【Say Goodbye to Lead-Acid Batteries】Still searching for a lead-acid alternative that satisfies your needs? Our 48V 100Ah LiFePO4 battery will deliver the answer. The energy of one 48(51.2)V 100Ah lithium-ion stacked battery equals 8* 12V 100Ah lead-acid batteries - while saving 75% of the space and 80% of the weight. More importantly, our phosphate lithium-ion technology is non-toxic, contributing to environmental protection worldwide. It also has a 10-year lifespan of over 3.3x that of lead acid, effectively lowering your long-term replacement costs. No more concerns over lead acid leaks or short-term obsolescence.

【Max. 16 Batteries in Parallel to Eliminate Power Shortages】Each 48V(51.2V) 100Ah LiFePO4 stacked individual battery delivers 5.12 kWh of energy. 16 batteries in parallel can create a 51.2V 1600Ah system that unleashes a colossal 81.92 kWh of energy. With a truly gigantic energy capacity, this system easily supports any energy demands. Just install and forget about energy shortfalls.

【Versatile Applications for Home Backup and More】The LiTime battery energy storage system is designed for home storage. Featuring convenient and robust installation via a standard 3U server rack cabinet or customized integrated stacking components, it excels not only in residential setups but also for off-grid cabins.

【Professionally Tested and Certified】LiTime 48V 100Ah LiFePO4 stacked battery systems have undergone rigorous professional testing UL1973 and certification of , FCC, CE, RoHS, UN38.3 to ensure top quality and safety. Customers can feel confident that every battery must pass stringent performance and safety thresholds before delivering.




SPECS
BATTERY
Cell Type：LiFePO4
Warranty：5 years
Cycle Life：4000+
Nominal Voltage：51.2V
Rated Capacity：100Ah
Energy：5120 Wh
Max. Expansion (Parallel & Series)：16 Pcs in parallel
Certifications：FCC, CE, RoHS, UN38.3


BMS
BMS：100A
Max. Continuous Output Power：5120W
Max. Continuous Charge Current：100A
Max. Continuous Discharge Current：100A
Max. Discharge Current 1 Second：500A


CHARGE
Charge Method：CC/CV
Charge Voltage：57.6±0.8V
Recommend Charge Current：20A (0.2C)


TEMPERATURE
Charge Temperature：0°C to 50°C/32°F to 122°F
Discharge Temperature：-20°C to 60°C/-4°F to 140°F
Storage Temperature：-10°C to 50°C/14°F to 122°F
Low-Temperature Protection：Yes
Low-Temperature Charging Protection Auto Recovery：Yes


OTHERS
Weight Approx.：99lbs
Size：L17.40*W18.90*H5.24 inch
Housing Material：Steel Plate Cold Common (SPCC)




Packing List


48V 100Ah ComFlex Edition LiFePO4 Battery *1


Product Manual *1


User Guide *1


Please be noted: battery charger is not included.


This battery is not intended to be used to start any devices, please DO NOT use it as a starting battery.Do not use it to run Golf Cart，pls contact us if you need batteries for golf cart.
