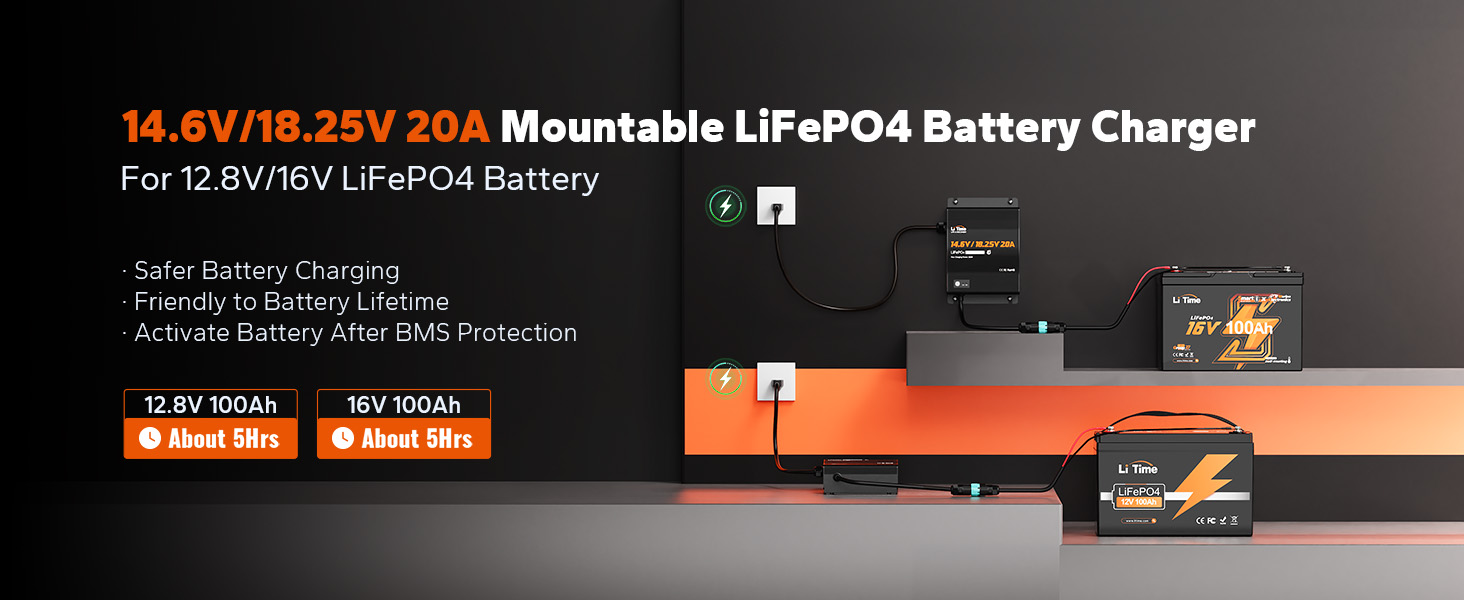

LiTime 14.6V+18.25V 20A Dual Bank Smart Battery Charger for LiFePO4 Mountable

Born for 12V/16V LiFePO4 Battery Charging

LiTime lithium battery charger delivers 14.6V/18.25V output voltage, which ensures the safer charging of 12V or 16V batteries. Supporting fast charging, it can fully charge LiTime 16V 30Ah in 1.5 hours, 16V 70Ah in 3.5 hours, and 16V 100Ah in 5 hours.

Smarter Charging Control, Enhanced Safety Performance

LiTime 12V/16V LiFePO4 battery charger utilizes a 3-stage charging process, gradually and consistently charging your battery. By intelligently regulating voltage and current, it can reach full charge, and is friendly to the battery without damage.

100% Waterproof & Safety Protection

LiTime 12V/16V lithium battery charger features IP65 waterproof rating & multiple protections. Upgraded to an IP65 connector with a waterproof cap, prevents water or moisture from damaging the electrical components even when disassembled. It's suitable for marine or wet environments.

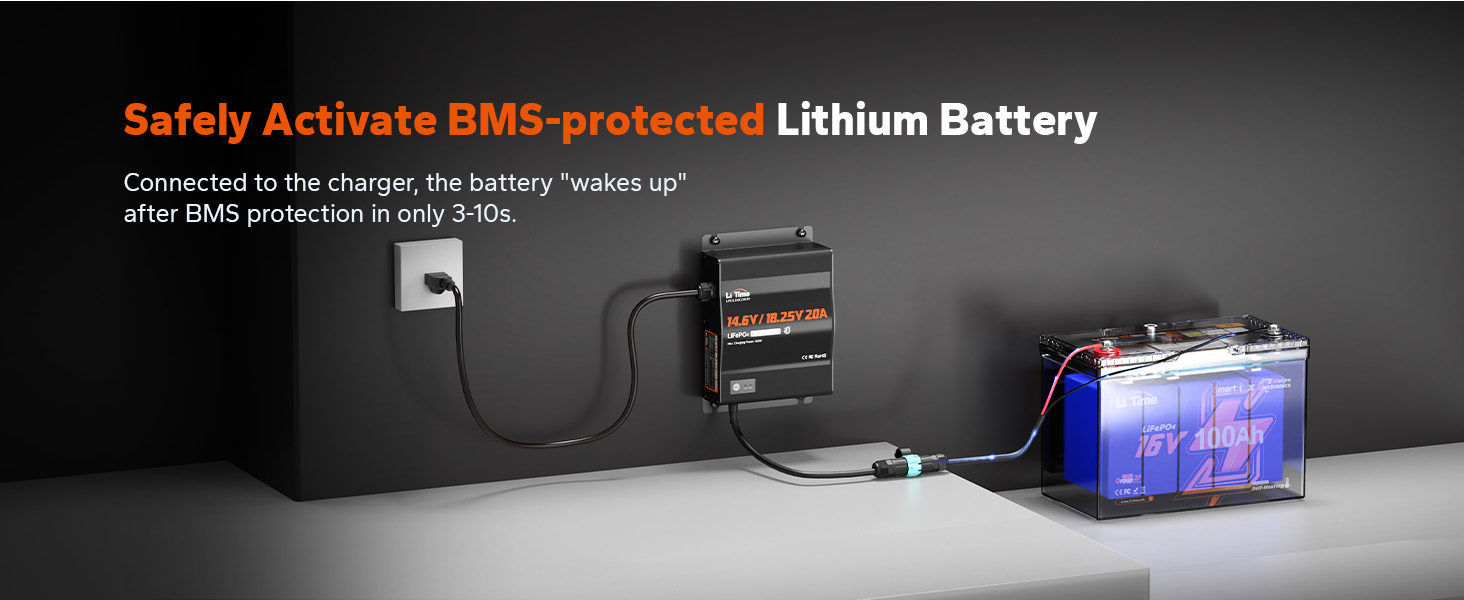

Effortless Activation for BMS-protected Battery

LiTime 12V/16V lithium battery charger intelligently "wakes up" lithium batteries that have entered BMS protection mode, restoring normal function within 3–10 seconds. No manual resets or extra steps—just connect and recharge with confidence.

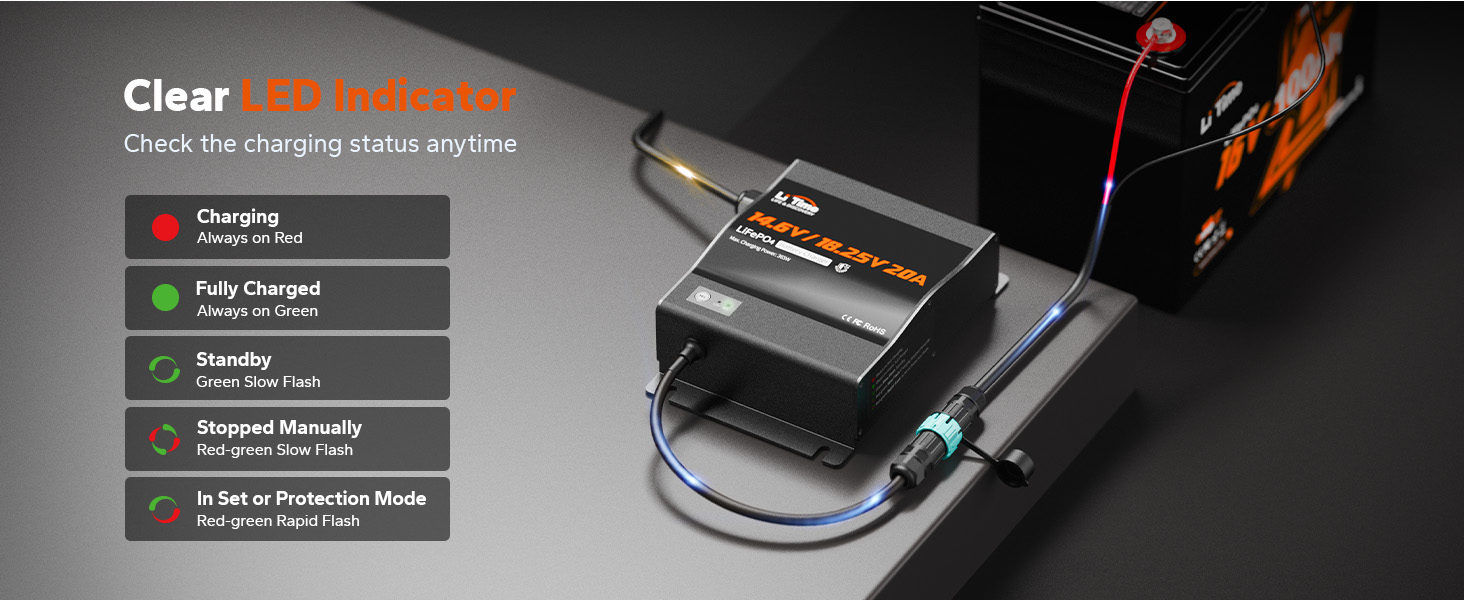

Stay Informed with Real-time LED Indicators

With user-friendly LED indicators, LiTime 12V/16V lithium ion battery charger provides real-time feedback of charging status. It lets you understand exactly when your battery is charging, fully charged, or on standby, eliminating the guesswork and improving using experience.

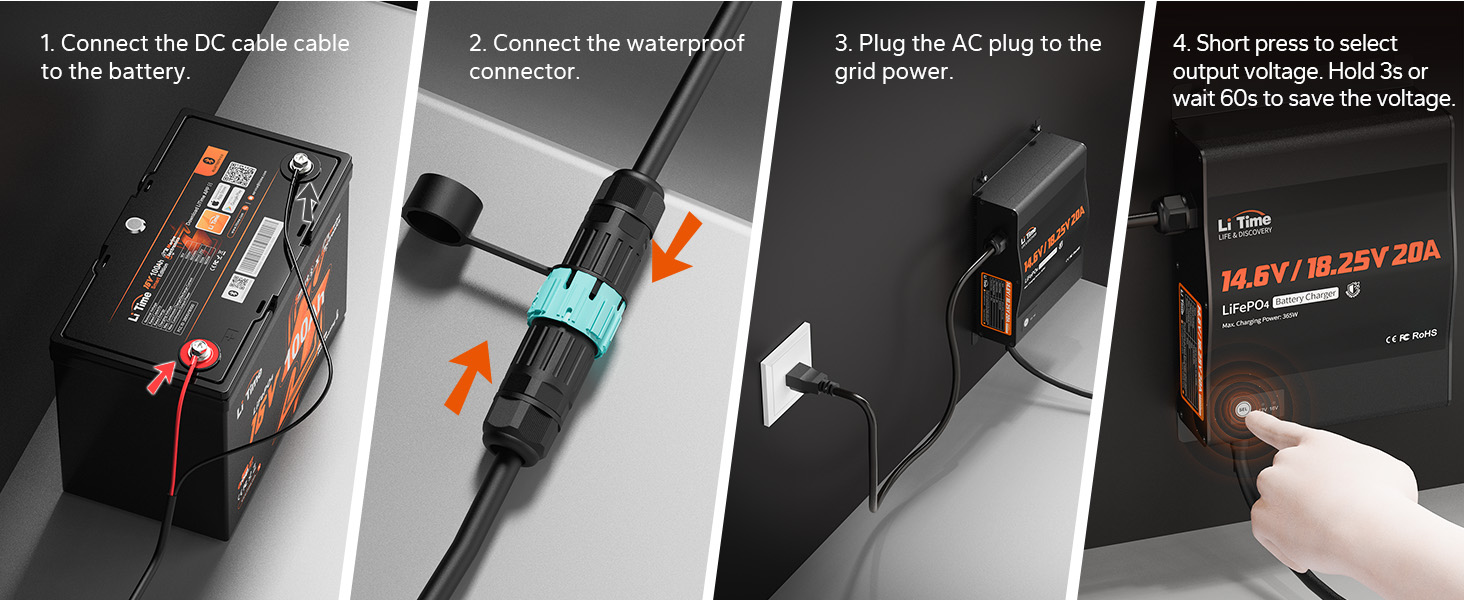

How to Charge Your Battery

Designed for easy operation, LiTime 12V/16V lithium battery charger has a button for voltage selection. Just press the button to switch between 12V and 16V outputs effortlessly.

Born for 12V & 16V LiFePO4 Battery: LiTime lithium battery charger seamlessly toggle between 12V (14.6V) and 16V (18.25V) outputs with just pressing one button.    Its wall-mounted design allows for easy installation and maximizes space efficiency.

20A Rapid Charging Performance: LiTime 12V/16V battery charger delivers a powerful 20A charging current for fast and efficient recharging, fully charging a 16V 70Ah battery in just 3.5 hours and a 16V 100Ah battery in 5 hours.

IP65 Waterproof & Marine-Ready: LiTime 12V/16V lithium battery charger features an upgraded IP65 connector and waterproof cap, it safeguards electrical components from water and moisture damage, even when disassembled.

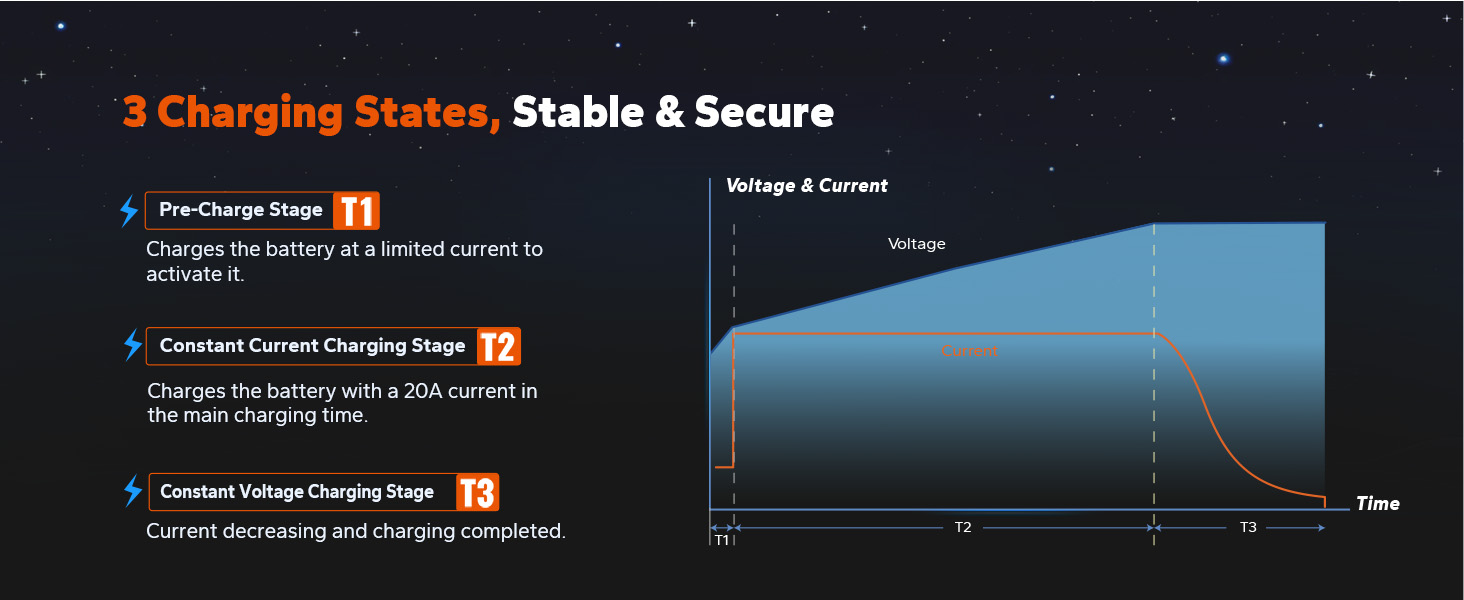

Smart 3-Stage Charging: LiTime 12V/16V lithium ion battery charger supports global AC input (100–240V, 50/60Hz) and 14.6V/18.25V DC output. Features smart 3-stage charging: Pre-charge, Constant Current (CC), and Constant Voltage (CV).

LED Status Indicators & Full Protections: Over-temperature, reverse polarity, short circuit, overcurrent, undervoltage, and overvoltage-ensuring safe, reliable use. Stay informed and manage your battery easily with intuitive visual alerts.

Quick Activation for BMS-Protected Batteries: Quickly activates BMS-protected batteries in sleep mode. Just plug in the LiTime 12V/16V charger, and your battery “wakes up” in 3–10 seconds-ideal for dormant lithium batteries.

SPECS
BASIC
Charger Type：LiFePO4
Output Voltage：14.6V /18.25V
Output Current：20A
Max Input Current：5A
Lithium Battery Activation：Yes
Input Voltage Range：100V to 240V AC; 47Hz to 63Hz
LED Indicator：Yes

PROTECTION
Over Temperature：Yes
Output Short-Circuit：Yes
Reverse Polarity Connection：Yes
Output Over-Voltage：Yes
Output Over-Current：Yes
Output Under-Voltage：Yes

TEMPERATURE
Operating：-20℃ to 40°C/-4°F to 104°F
Storage：-40℃ to 70℃/-40°F to 158°F

OTHERS
Size：L9.08*W6.18*H2.64 inches
Approx. Weight：Appr.4.41lbs/2kg
Warranty：2 Years
Certifications：FCC,CE,RoHS
Input Cable：78.7 inch
Output Cable：59.1 inch (Include 9.8 inch waterproof connector cable)

Package include:1*12V(14.6V)+16V(18.25V) 20A Dual Bank LiFePO4 Charger
