Specification: - LEDS：CREE
- Power: 30W
- LEDs quantity：5W*6
- Color temperature: 6500K-7000K
- Voltage：12V-30V DC
- Lumens：2000LM*2

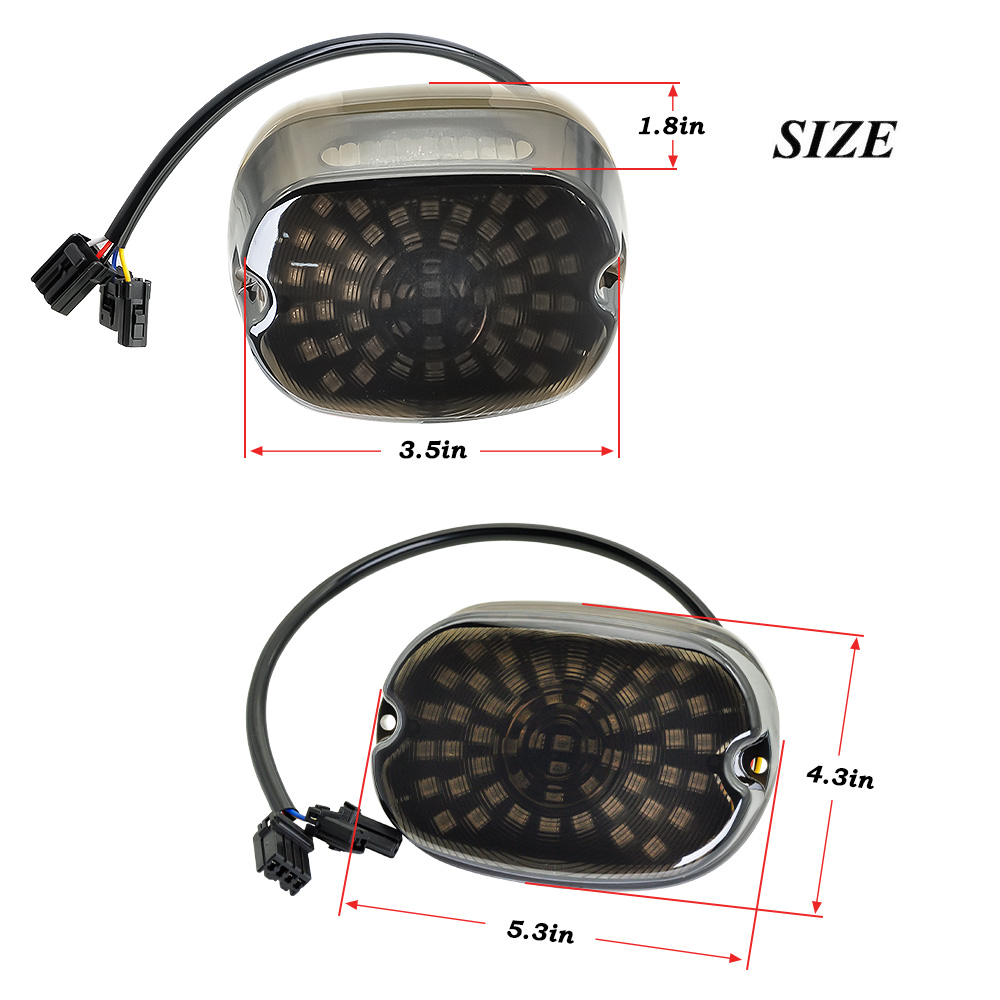

- Size：4"
- Bezel Color:Black
- Waterproof：IP-67
- Working temperature：-40+85°C
- Life time：50000+Hours
- Material: ABS Plastic
- LED Quantity: 60LEDs

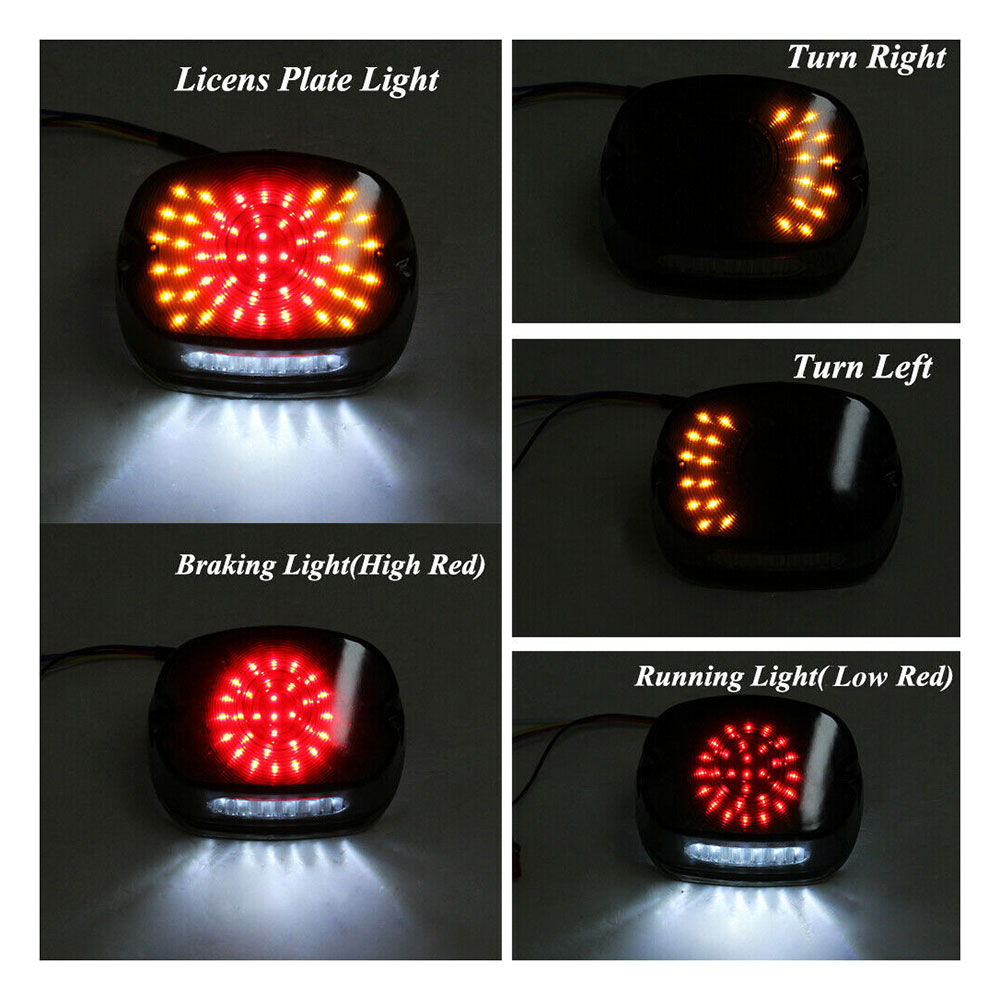

- Function(Lighting Color): Brake/ Running Light(Red),Turn Signal(Yellow, Left and Right), License Plate Light(White)
- Features
- All in One Led Tail Light(LED Tail Light with running light/brake light/Turn Signal Light)
- License Plate Light (Lights up nice and bright and includes a clear lens to illuminate your license plate on the incorporated plate bracket.)

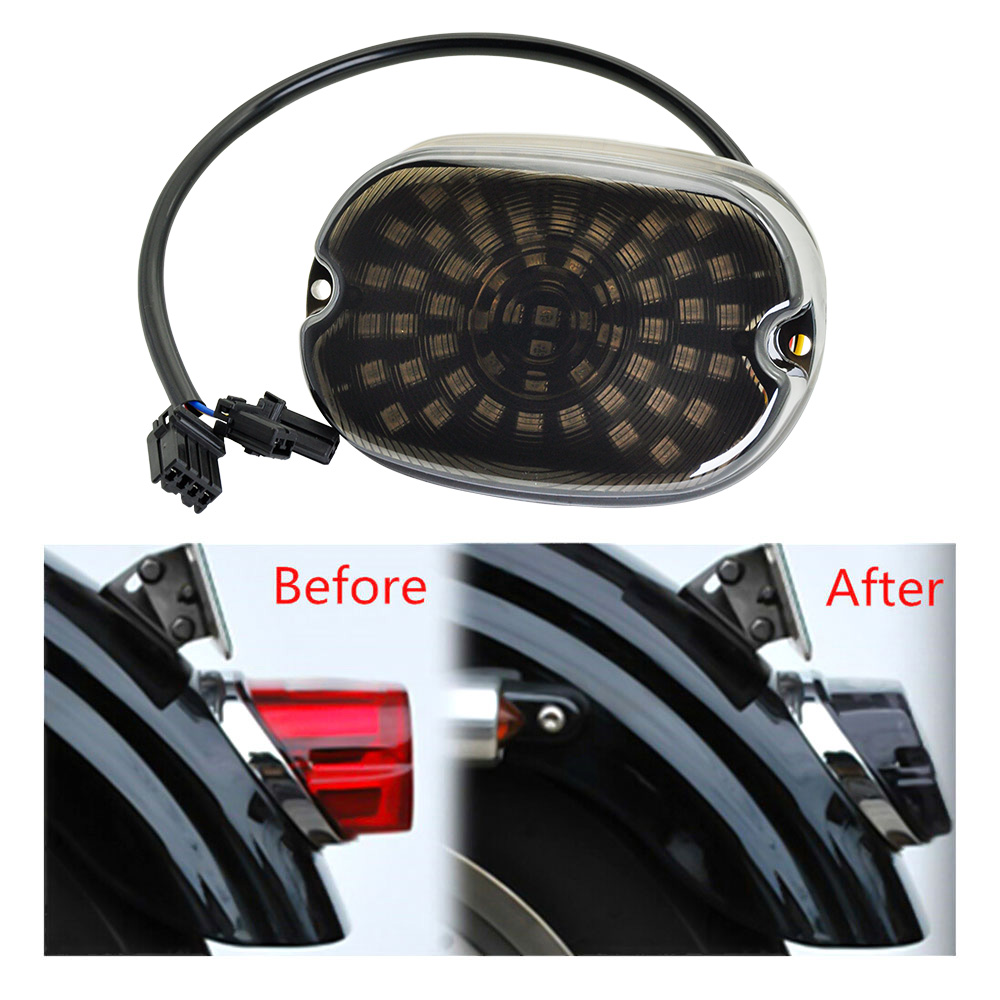

- Lay Down Style (Lay down style, which is angled to follow the curve of your stock fender for the customized look.)
- Wire Connection:
- Black Wire------Negative
- White Wire-----Running
- Red Wire-------Brake Light
- Yellow Wire----Turn Right
- Blue Wire-------Turn Left
----Upgraded the connector, according to wire diagram, insert the wire to corresponding hole, directly plug in which get easier to install, but each model harness is different so we leave the wire end(running&brake) out of the plug for you, then you can insert them in the right position according to your model. Integrated turn signal lights, blue wire(turn left) and yellow wire(turn right) for you to connect according to your needs. Note: The connector is not included. Application: - 1999-2006 Harley Sportster XL1200C Custom
- 2007-2010 Harley Sportster XL1200C Custom (EFI)
- 2000-2003 Harley Sportster XL 1200S sport
- 2004-2006 Harley Sportster XL883
- 2007-2008 Harley Sportster XL883(EFI)
- 2000-2006 Harley Sportster XL883C Custom
- 2011-2015 Harley Sportster XL883L Superlow
- 2002-2003 Harley Sportster XL883R
- 2005-2006 Harley Sportster XL883R
- 1999-2005 Harley Dyna Low Rider FXDL
- 2007-2008 Harley Dyna Street Bob FXDB
- 1999-2005 2007-2010 Harley Dyna Super Glide FXD
- 2012-2016 Harley Switchback FLD
- 2007-2013 Harley Electra Glide Classic FLHTC
- 2007-2016 Harley Softail Fat Boy FLSTF
- 2007-2008 Harley Touring Road Glide FLTR
- 2011-2013 Harley Touring Road Glide Ultra FLTRU
- 2007-2016 Harley Touring Road King FLHR
- * It can not be installed on models with exclusive tail light such as XL 1200X, XL883N or Dyna wide glide,2007 Harley Davidson Sportster XL1200L.

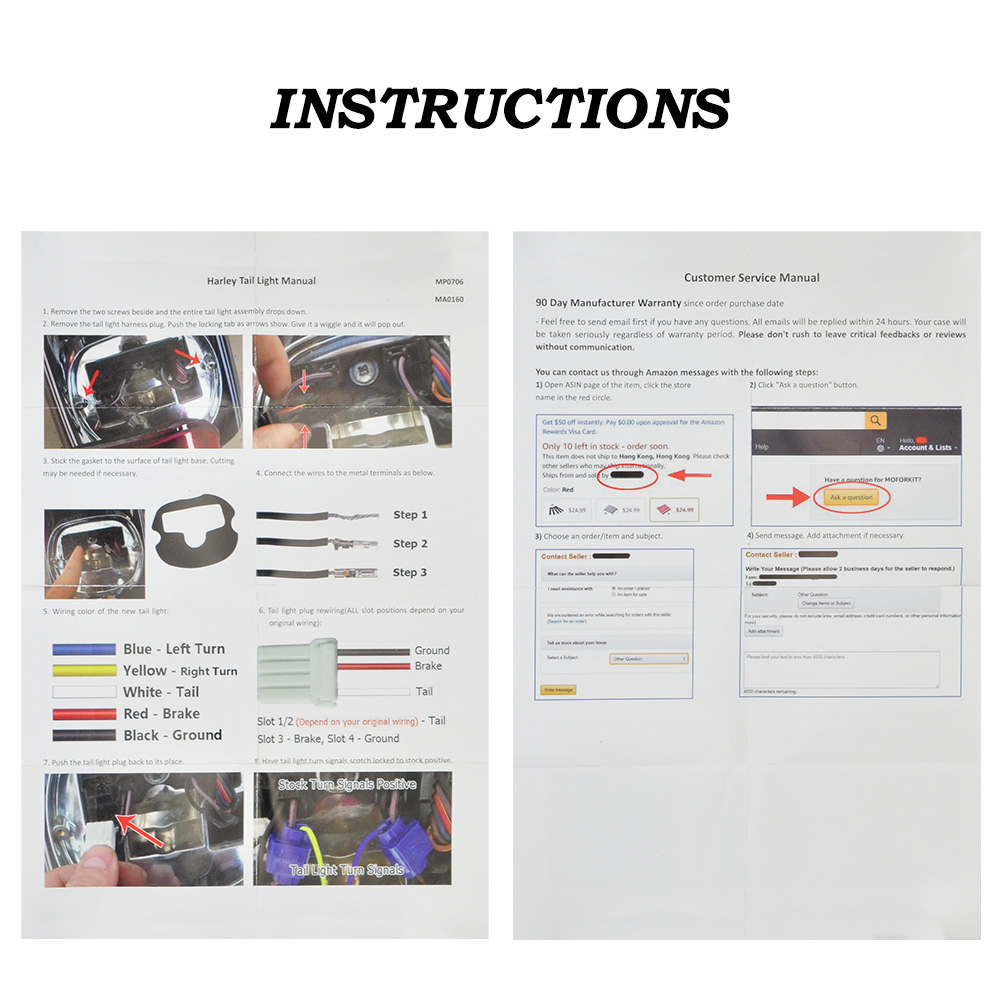

Connector: - Please confirm the red wire(brake function) and white wire(running function) position
- After confirm the position, then insert them in, and press the plug. Please double check red and white wire position before you insert them to the white plug of the taillight, because they can not be taken out from the plug once they are inserted into the white plug.
- Integrated turn signal lights, using the yellow wire(turn right) blue wire(turn left) from the tail light, they can be connected to your current turn signals to add LED turn signal functions.
- Note: Some old model it may need the resistor(package is not include) for turn signal if it is hyper flashing.

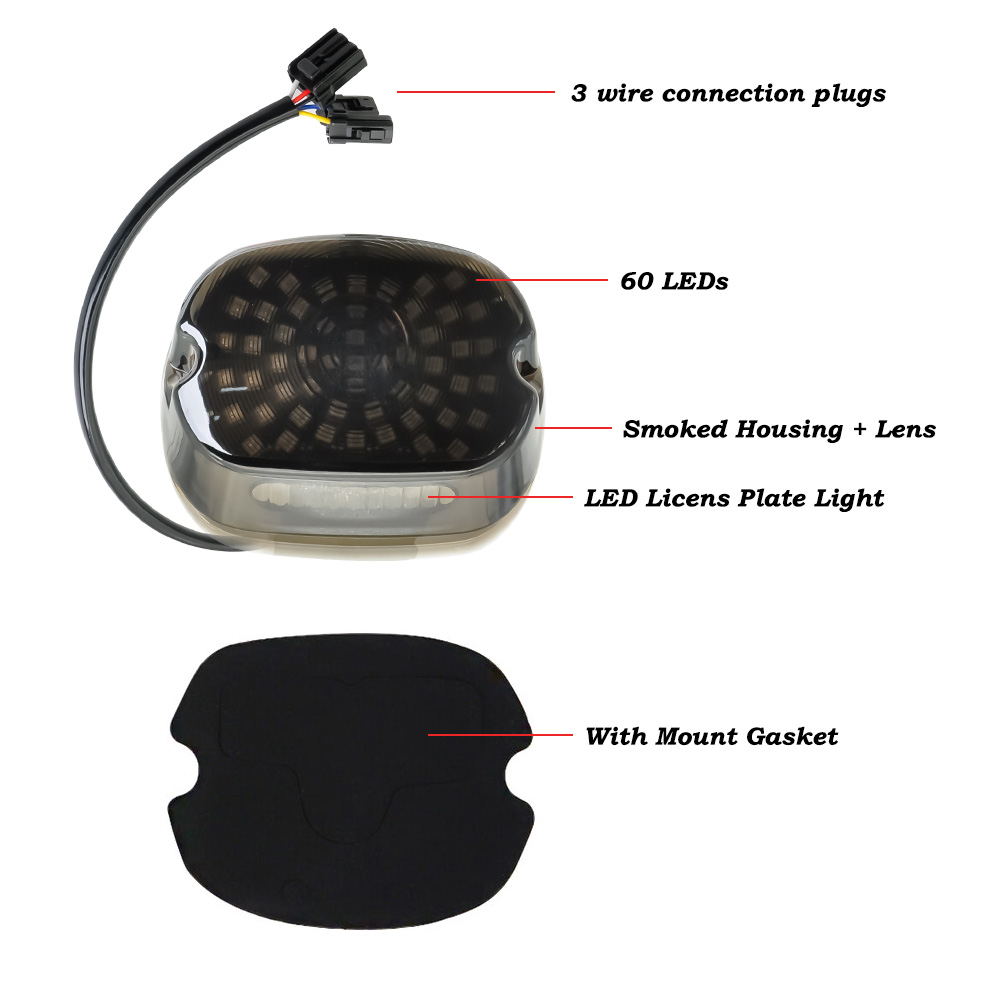

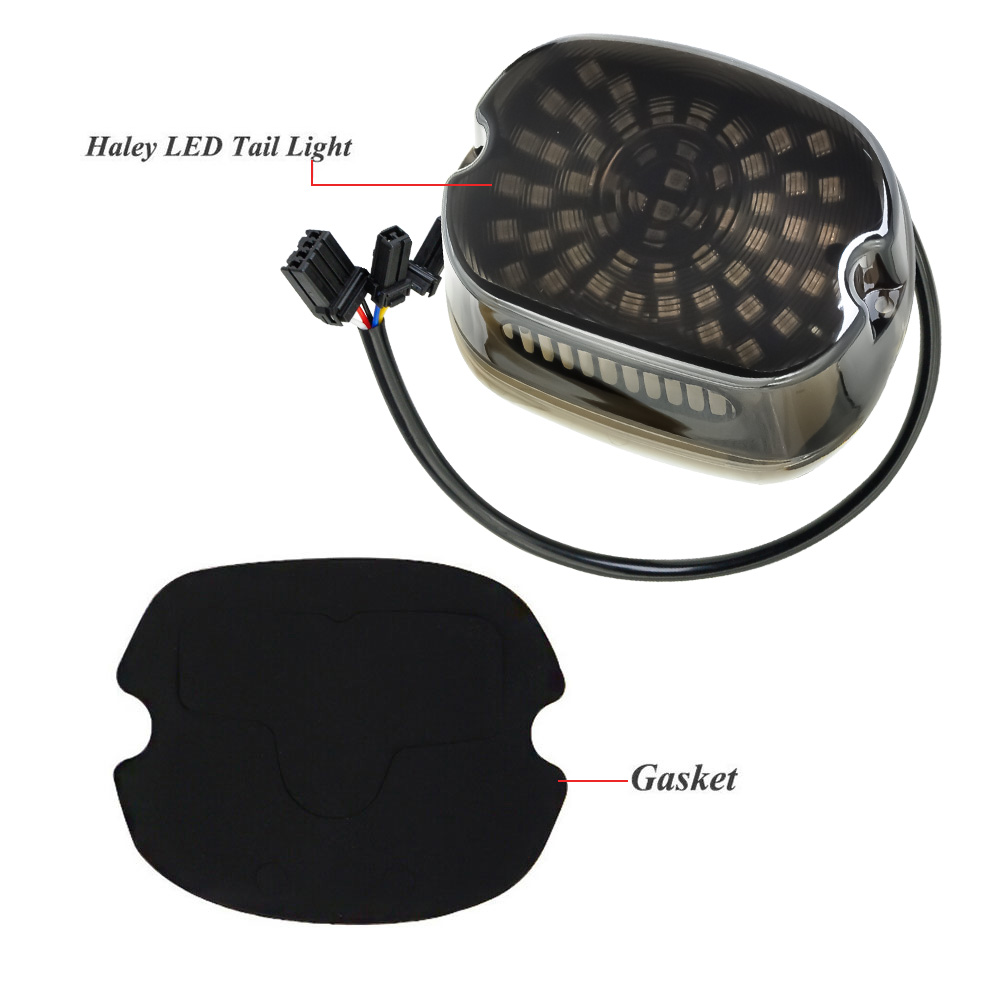

Package: - 1 Piece of Low Profile Harley Davidson Led Tail Light
- 1 Piece of Gasket (prevent water infiltration)
|
