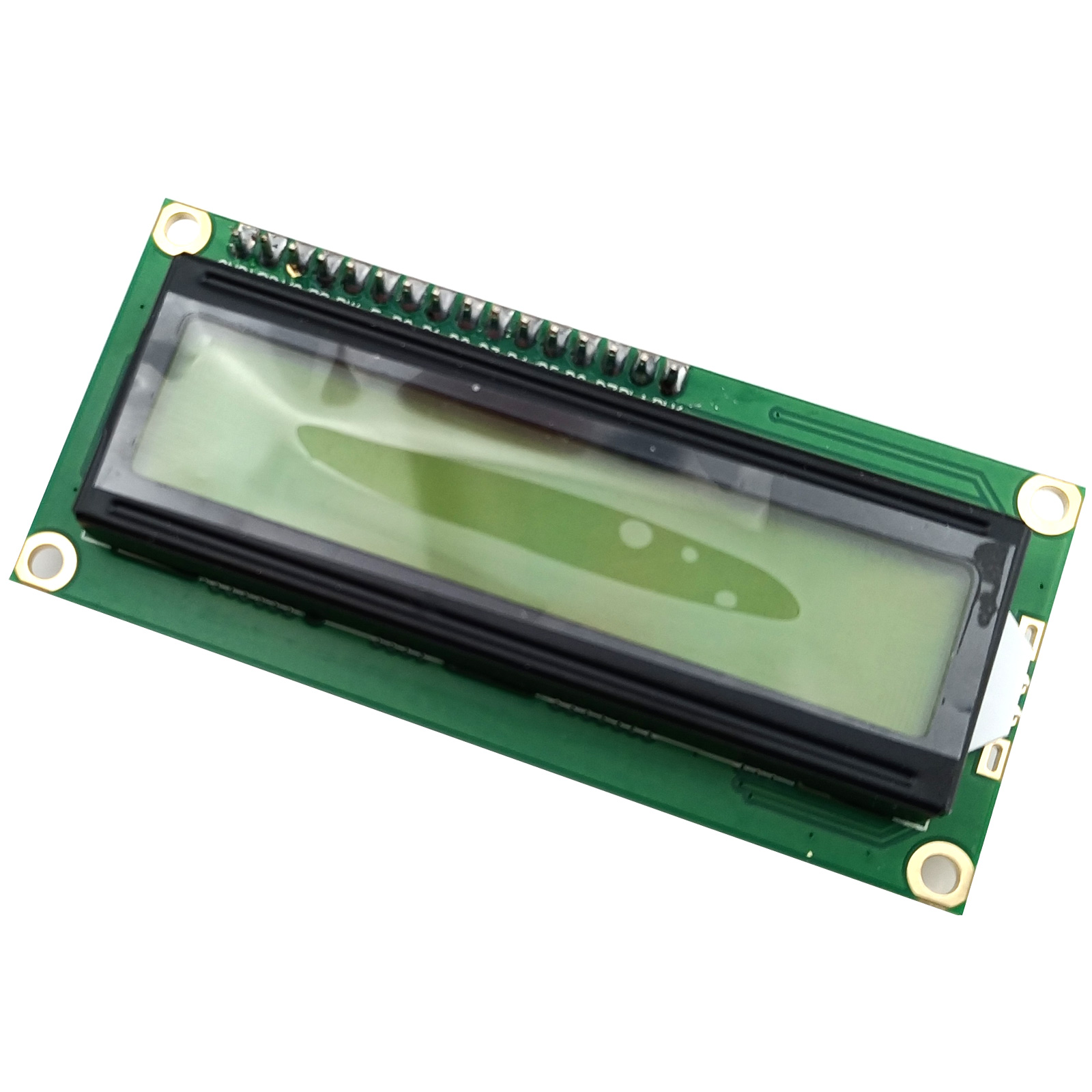

The display is great for projects with Arduino or Raspberry Pi. On the display, 16 characters per line are available, enough space to display information such as temperature, air pressure, etc.
Packing List (bulk pack):
- 1 x LCD module (with adapter installed)

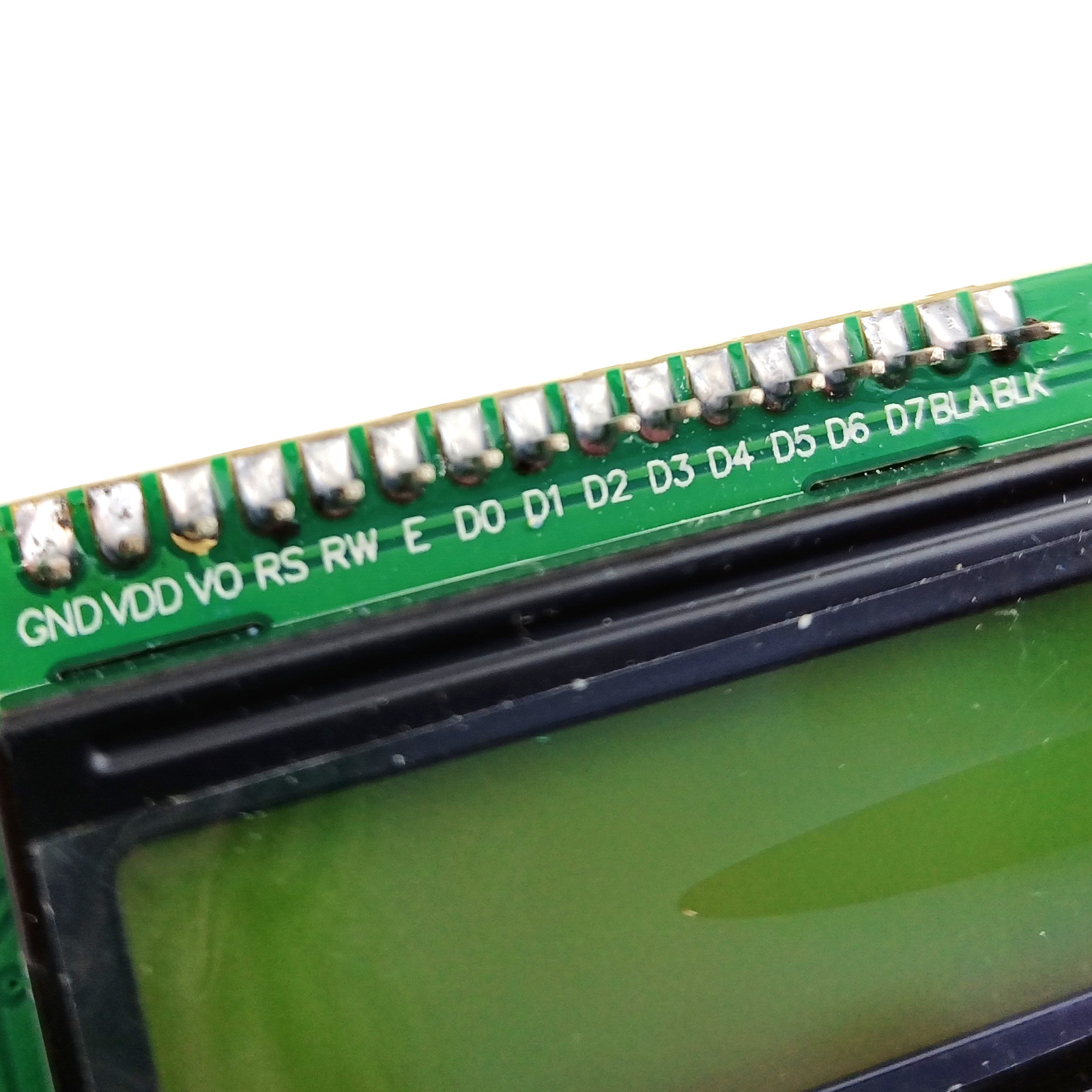

Pins Defination:
- 1 Pin: VSS ground power
- 2 Pin: VDD of 5V positive power
- 3 Pin: V0 LCD display contrast adjustment end connected to the positive power supply contrast
- weakest grounded power, highest contrast, the contrast is too high will produce "ghosting", by using a 10K potentiometer to adjust the contrast
- 4 Pin: RS register select the data register, select, high and low, select the instruction register
- 5 Pin: R / W for read and write signal line, a high read operation, write operation is low. When the RS and RW can write low instruction or display address when RS is high when the low RW can read busy signal when RS is high RW can write low data
- 6 Pin: E - the LCD module execute command
- 7 to 14 Pin: D0 ~ D7 8-bit bi-directional data line
- 15 Pin: backlight power supply positive
- 16 Pin: backlight negative supply
Specifications:
- Connection: 16 Pin Header
- Display Format: 16x2 Character
- Outline Dimension: 80mm x 36mm x 11.5mm
- Visual Area: 64.50-14.50mm
- Active Area: 55.45-10.85mm
- Character Size: 2.95-5.15mm
- Dot (Pixel) Size: 0.55-0.50mm
- Dot Pitch: 0.60-0.55mm
- IC or Equivalent: AIP31066, HD44780, KS0066, SPLC780, ST7066
- Interface: 6800 4-bit Parallel, 6800 8-bit Parallel
- Display Type: STN-LCD Green
- Backlight Current (Typ): 15mA
- Power Supply (Typ): 5V
- Supply Current for LCM (Max): 1500uA
- Operating Temp: -20C to 70C
- Storage Temperature: -30C to 80C
- Overall size: 8 x 3.6 x 1.2cm (3.15 x 1.42 x 0.47 inch)
