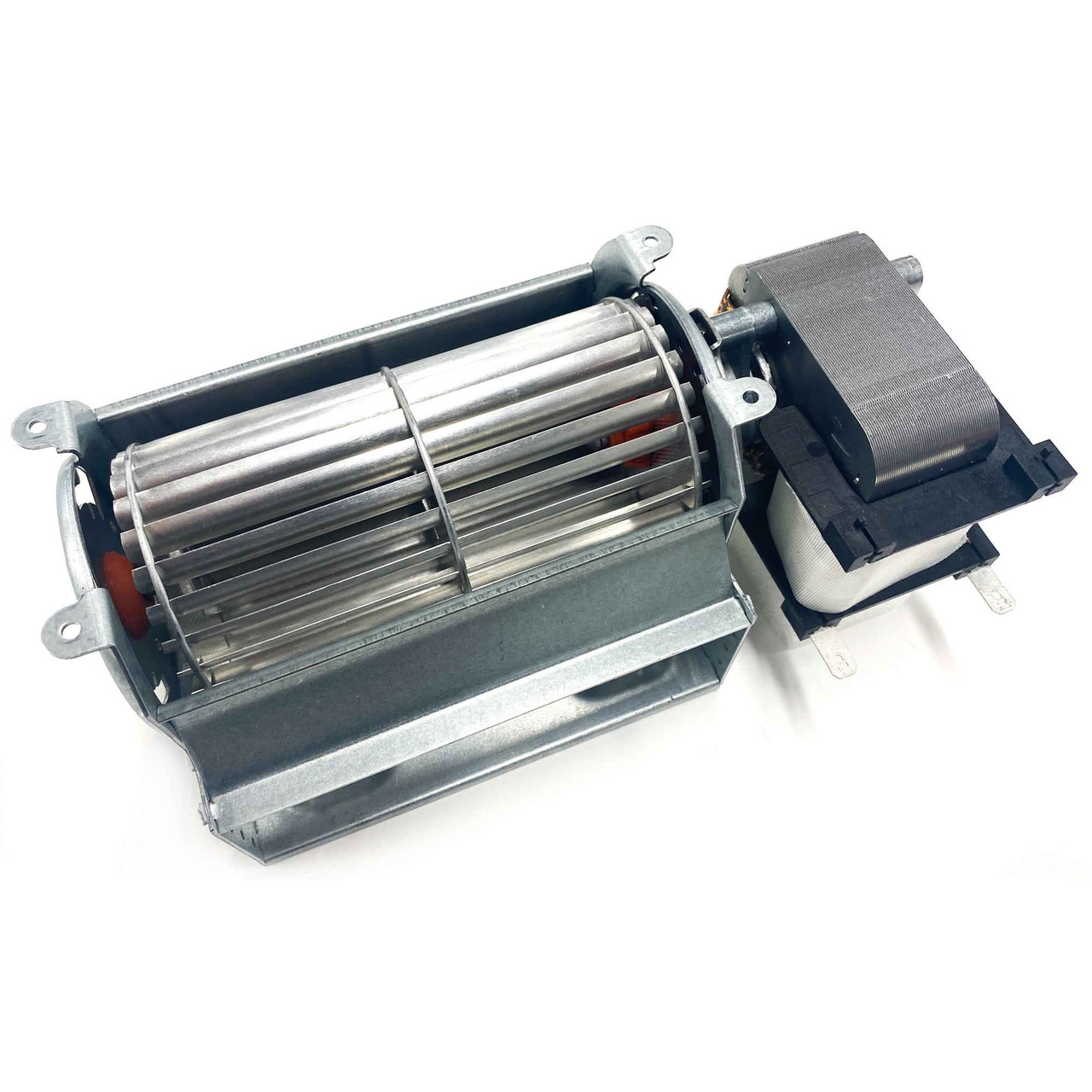

This is an aftermarket Jotul C550 Rockland tangential style right-side blower. 100% ball bearing, quiet, 100 CFM and replaces the original #156477 60 CFM crossflo blower. You'll need to keep your original mounting bracket and transfer the wiring harness to this blower, so please keep those as they'll be required for replacement.
The original style blower Jotul used was the crossflo or tangential (squirrel cage) blower you see above. C550 Rockland's with the original style blowers should use these replacements. Jotul eventually replaced these blowers with a centrifugal style blower, but the mounting plate was modified to accommodate this style of blower. You'll see that the black centrifugal style blowers have integrated mounting feet that slips over two threaded studs on your original mounting bracket. To help improve on the design further, we're using a fully capped bearing (ball) to prevent dust intrusion. We're also using a metal wheel to help eliminate the change of wheel melting and cracking.
Please note: power cords and wiring harnesses are NOT included with replacement blowers. Please review dimensions before purchasing.
If you're installing a blower for the first time, a blower kit may be required. Replacement blowers are intended to replace worn or defective blowers and do not include the components of a full blower kit. This blower may be used as a universal replacement blower, so please review dimensions before purchasing.
For more information on the benefits of ball bearing blowers, read our How Does a Fireplace Blower Work? article.
Product Details
Specifications
Dimensions
L x W x H
Air Discharge
Blower, Motor & Bearing
Type AC Shaded Pole
Rotation CW
Blade Type Metal
Housing Material Aluminum
Bearing Type Ball
Outboard Bearing Type Tangential (ball), Centrifugal (none)
Bearing Lubrication High Temp
Motor Insulation Class H (rated to 392°F)
Motor RPM 3000
Motor Connection Male spade terminals on pigtail wiring lead
Variable Speed Compatible Yes
Air Flow
CFM 100
Installation
Mounting Type Mounts to original base plate with screws
Electrical
Volts 120
Motor Frequency 60 Hz
Watts 92
Amperage 0.77
Power Cord Not included
Power Cord Length N/A
Power Cord Type N/A
Accessories
Cross Support Brace N/A
Noise Reduction Padding & Velcro Not required
Other
Packaging Materials Shipping box, bubble wrap, foam
Compatibility
Jotul C550 Rockland
Documents
Installation Instructions On Request
Benefits of Adding a Fireplace Blower
* Improves fireplace efficiency by as much as 80%
* Helps reduce costly energy bills
* Heats large rooms effectively
* Installs quickly and easily
* Affordable and efficient
Read More
Included With Purchase
* 100% ball bearing replacement blower
* 1 year warranty
Also Known As
* No other known aliases
