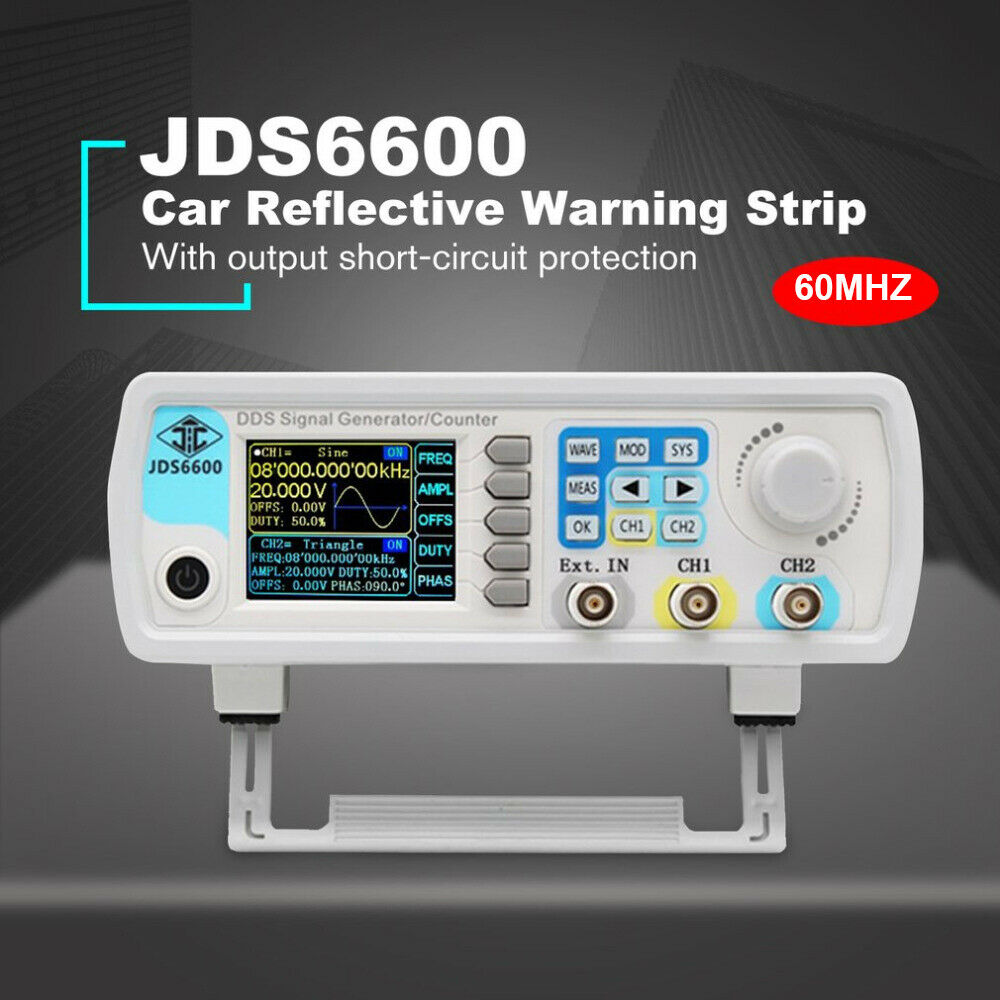

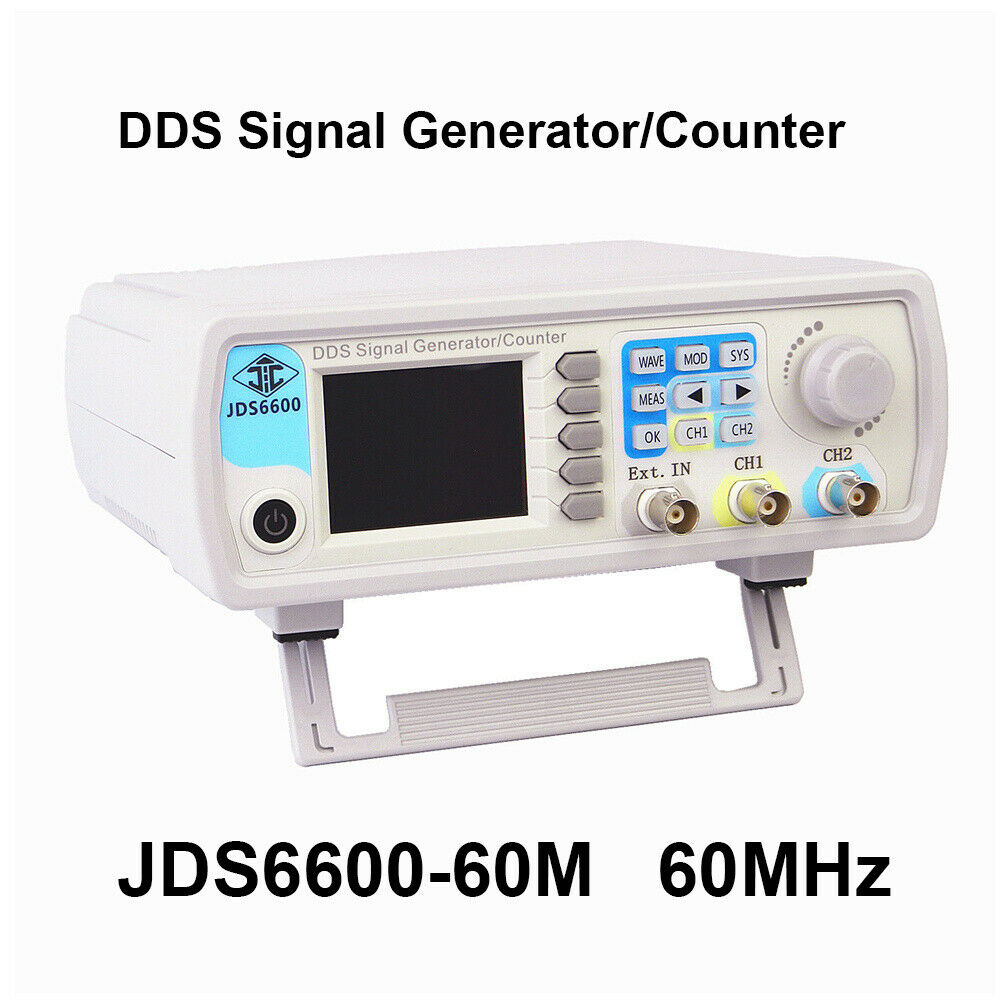

JDS6600 15-60MHz Dual Channel Arbitrary Waveform DDS Signal Generator Pulse New

Slide
$107.02
Model
15MHz US Plug
Brand
Unbranded
Country/Region of Manufacture
China
condition
New
Product Description
JDS6600 15-60MHz Dual Channel Arbitrary Waveform DDS Signal Generator Pulse New

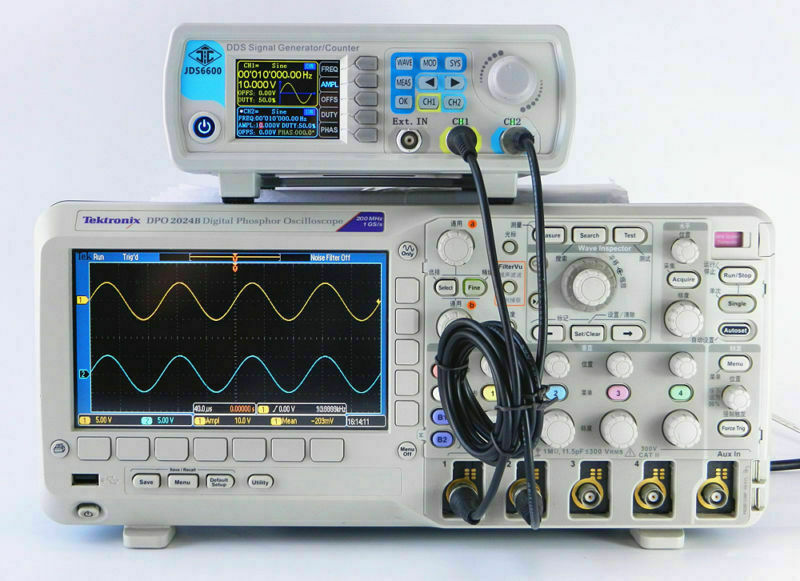

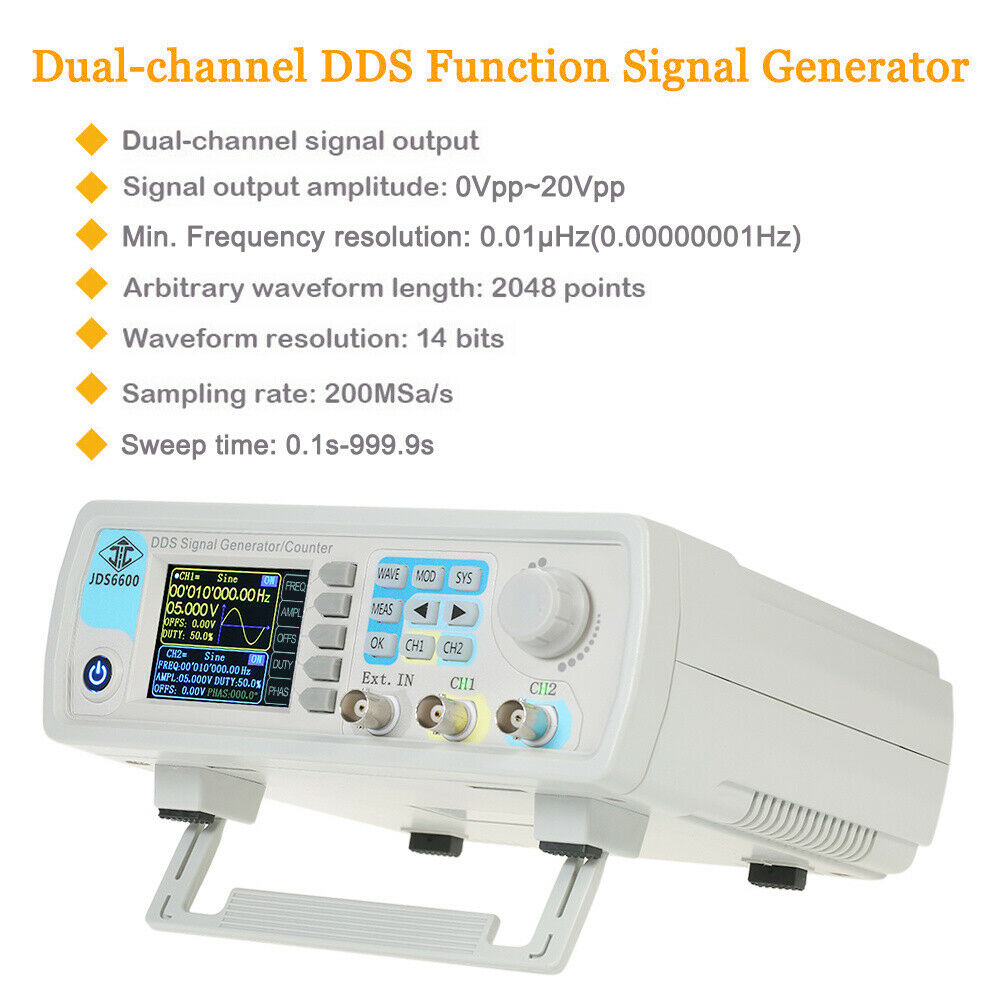

Features:

  • JDS6600 series function generator can generate multiple waveforms such as sine wave, square wave, triangle wave, pulse wave, and arbitrary wave.
  • The frequency range up to 60MHz, with duty cycle adjustment, sweep frequency, frequency signal frequency and counter function.

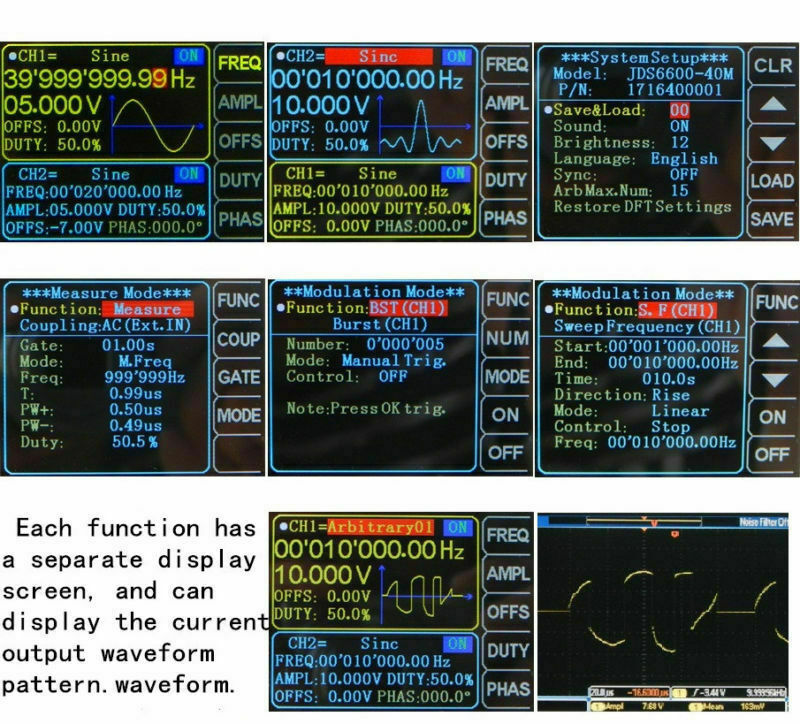

  • The output signal, amplitude, and frequency can be displayed simultaneously.
  • The series signal generator has excellent amplitude and frequency characteristics, the appearance of this instrument is exquisite and beautiful.
  • This instrument is widely used in factories, schools, research institutes and laboratories.


Specifications:

Model(Optional)

JDS6600-15M

JDS6600-30M

JDS6600-40M

JDS6600-50M

JDS6600-60M

Sine wave frequency range

0~15MHz

0~30MHz

0~40MHz

0~50MHz

0~60MHz

Square wave frequency range

0~15MHz

0-25MHz

0-25MHz

0-25MHz

0-25MHz

Triangle wave frequency range

Pulse wave frequency range

0~6MHz

0~6MHz

0~6MHz

0~6MHz

0~6MHz

TTL digital wave frequency range

Arbitrary frequency range

Pulse width adjustment range

100nS~4000S

50nS~4000S

40nS~4000S

30nS~4000S

25nS~4000S

Square wave rise time

≤25ns

≤15ns

≤10ns

≤10ns

≤10ns

Minimum frequency resolution

0.01uHz（0.00000001Hz）

Frequency accuracy

±20ppm

Frequency stability

±1ppm/3hours

±1ppm/3 hours

Waveform characteristics

Waveform type

Sine, Square, pulse (adjustable duty cycle, precise adjustment of pulse width and period), triangular wave, partial sine wave, CMOS wave, DC level (set DC amplitude by adjusting offset), half wave, full Wave, positive staircase wave, anti-ladder wave, noise wave, exponential rise, exponential drop, multi sonic wave, Symplectic pulse and Lorenz pulse and 60arbitrarywaveforms

Wave length

2048 points

Waveform

sampling rate

266MSa/s

Waveform vertical resolution

14-bits

Sine wave

Harmonic Suppression

≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz)

Total harmonic distortion

<0.8%(20Hz~20kHz,0dBm)

Square wave and pulse wave

Overshoot

≤5%

Pulse wave

Duty cycle adjustment range

0.1%~99.9%

Partial sine wave

Duty cycle adjustment range

0.1%~99.9%

Sawtooth wave

Linearity

≥98%(0.01Hz~10kHz)

Output characteristics

Sine wave amplitude range

Frequency ≤ 10MHz

10MHz ≤ Frequency ≤ 30MHz

30MHz ≤Frequency

2mVpp~20Vpp

2mVpp~10Vpp

2mVpp~5Vpp

Square wave, Triangle wave

amplitude range

Frequency ≤ 10MHz

10MHz ≤Frequency ≤25MHz

2mVpp~20Vpp

2mVpp~5Vpp

Amplitude

resolution

1mV

Amplitude

stability

±0.5%/5 hours

Flatness of

amplitude

±5%(<10MHz); ±10%(>10MHz)

Waveform output

Output

impedance

50Ω±10% (typical)

Protection

All signal outputs can work within 60 when the load is short-circuited.

DC offset

Offset

adjustment range

Output amplitude > 2V

0.2V <Output Range ≤ 2V

0<Output amplitude ≤0.2V

-9.99V~9.99V

-2.5V~2.5V

-0.25V~0.25V

Offset resolution

0.01 V

Phase characteristics

Phase

adjustment range

0~359.9o

Phase resolution

0.1o

TTL/CMOS output

Low level

<0.3V

High level

1V~10V

Level rise/fall time

≤20ns

External measurement function

Frequency meter   function

Frequency measurement range

1Hz~100MHz

Measurement accuracy

Gate time 0.01S~10s continuous adjustment

Counter function

Counting range

0-4294967295

Coupling method

DC and AC coupling methods

Counting method

Manually

Input signal voltage range

2Vpp~20Vpp

Pulse width measurement

0.01us resolution, maximum measurable 20s

Period measurement

0.01us resolution, maximum measurable 20s

Sweep function

Sweep channel

CH1 or CH2

Sweep type

Linear sweep, logarithmic sweep

Sweep time

0.1s~999.9s

Setting range

Any setting between the maximum output frequency of the corresponding model of the starting point (0.01Hz) and the end point

Sweep direction

Forward, reverse and round trip

Bursting function

Number of pulses

1-1048575

Burst mode

Manual burst, CH2 burst, external burst (AC), external burst (DC)

General specifications

Display

Display type

2.4 inch TFT color LCD display

Store and load

Quantity

100

Position

00 to 99 (00 memory location parameter is loaded by default as power on)

Arbitrary wave

Quantity

1 to 60 total 60 groups (15 groups by default as power on)

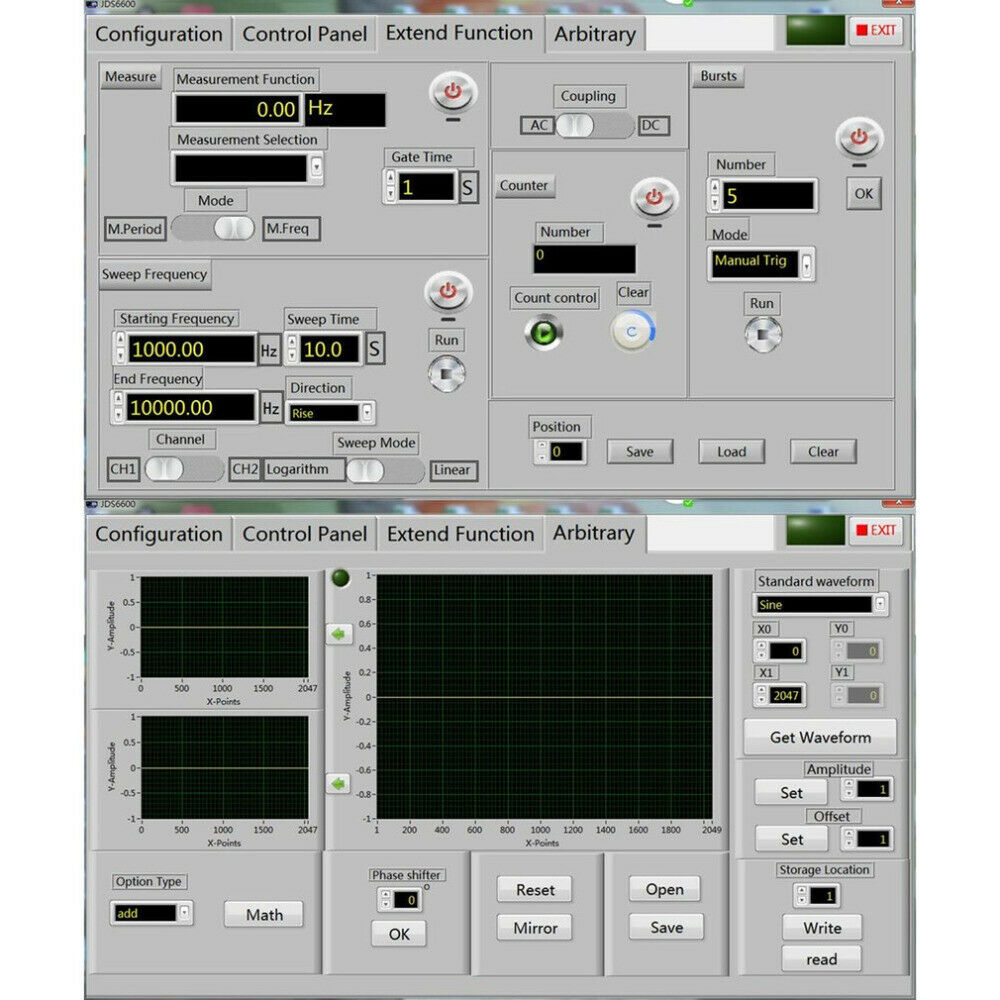

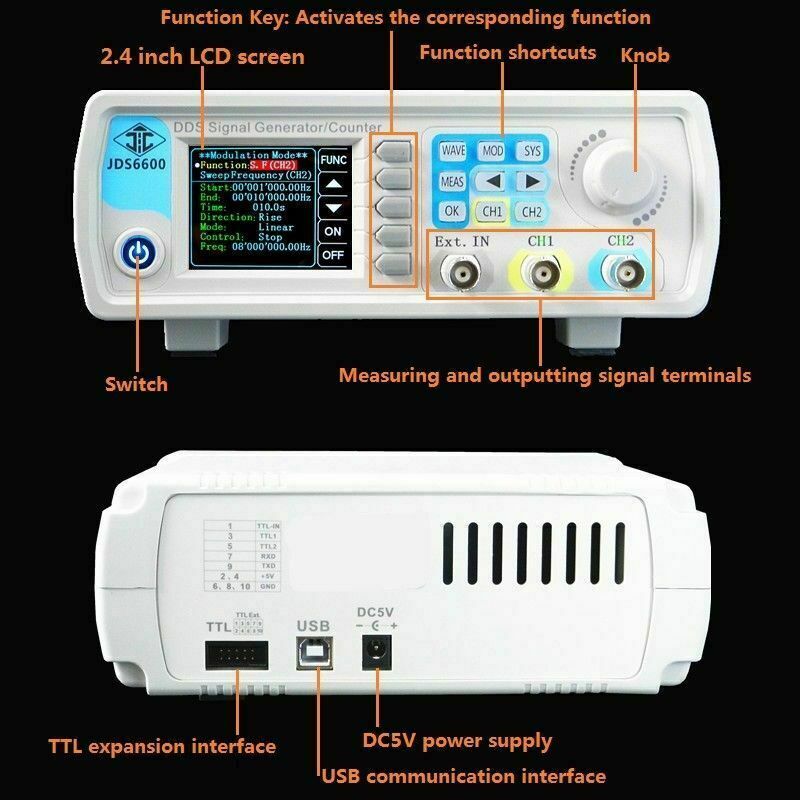

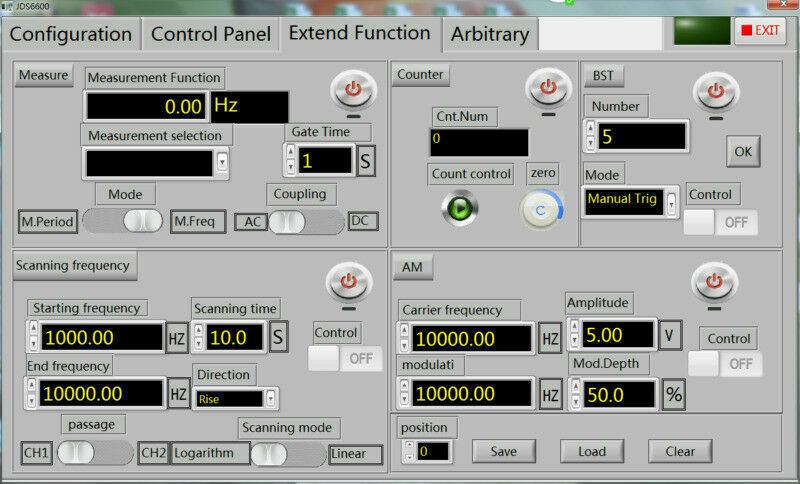

Interface

Interface mode

USB to serial interface

Extension interface

With TTL level mode serial interface for user secondary development

Communication speed

Adopt standard 115200bps

Protocol

Using the command line, the protocol is made public

Power supply

Voltage range

DC5V±0.5V

Manufacturing technology

Surface mount technology, large-scale integrated circuits, high reliability, long service life

Prompt tone

Users can turn on or off by setting program

Operating characteristics

All key operations, knob continuous adjustment

Environmental conditions

Temperature: 0~40℃ Humidity: <80%

Weight: 1087g(approx.)

Plug Type: US plug, EU plug (Optional)

Voltage: AC100-240V


Package Includes:

1 x JDS6600Dual-channel Signal Generator
1 x Power Adapter
1 x USB Cable
2 x Signal Connecting Cables
1 x English User Manual
1 x CD
1 x BNC Cable
