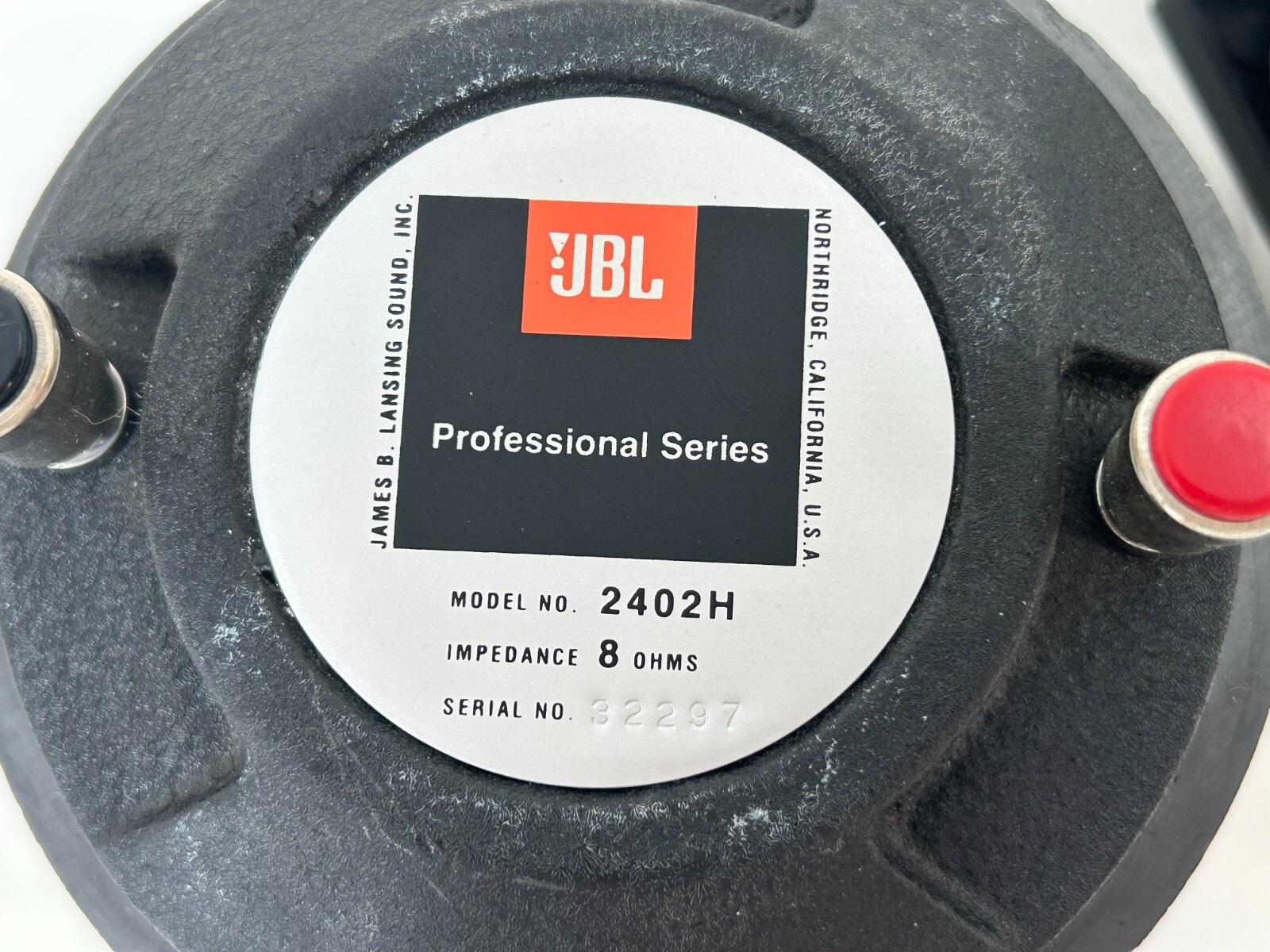

JBL 2402H Bullet Tweeters w/ Genuine JBL Diaphragms & Near Matched DCR's

________________________________________________________________________________________________

Details:

This listing includes one Clean Overall PAIR of JBL 2402H 8-OHM Bullet Tweeters, which both have Genuine 33752 stamped JBL Diaphragms.

These are in tested proper working order w/ Near Matched 7.0 & 7.2 DCR's.

Please review all attached photos; and be sure to ask any questions.

________________________________________________________

Specs:

The JBL 2402H is an ultra-high frequency transducer handles 40 watts continuous power
Tight pattern control
Incredible clarity and crispness
For all high quality high frequency applications

Impedance
8 Ohms
Frequency Response
2.5k Hz - 15kHz
Continuous Program Power
40 Watts
Dispersion 40° conical @ 10kHz
Minimum Cut-off Frequency
2.5k Hz
Sensitivity (SPL)
110dB (5kHz-20kHz)
Voice Coil Diameter
1.75" / 44mm
Voice Coil Material
Edgewound Aluminum Ribbon
Diaphragm Material Aluminum Alloy
Flux Density
1.75 Tesla
Magnetic Assembly Weight 1.9kg. / 4.125lbs.
Net Weight
2.3 kg. / 5 lbs.
MOUNTING INFORMATION
Overall Diameter 4.75" / 121 mm
Overall Depth 3.875" / 98mm
Baffle Cutout 3.125" / 79mm
