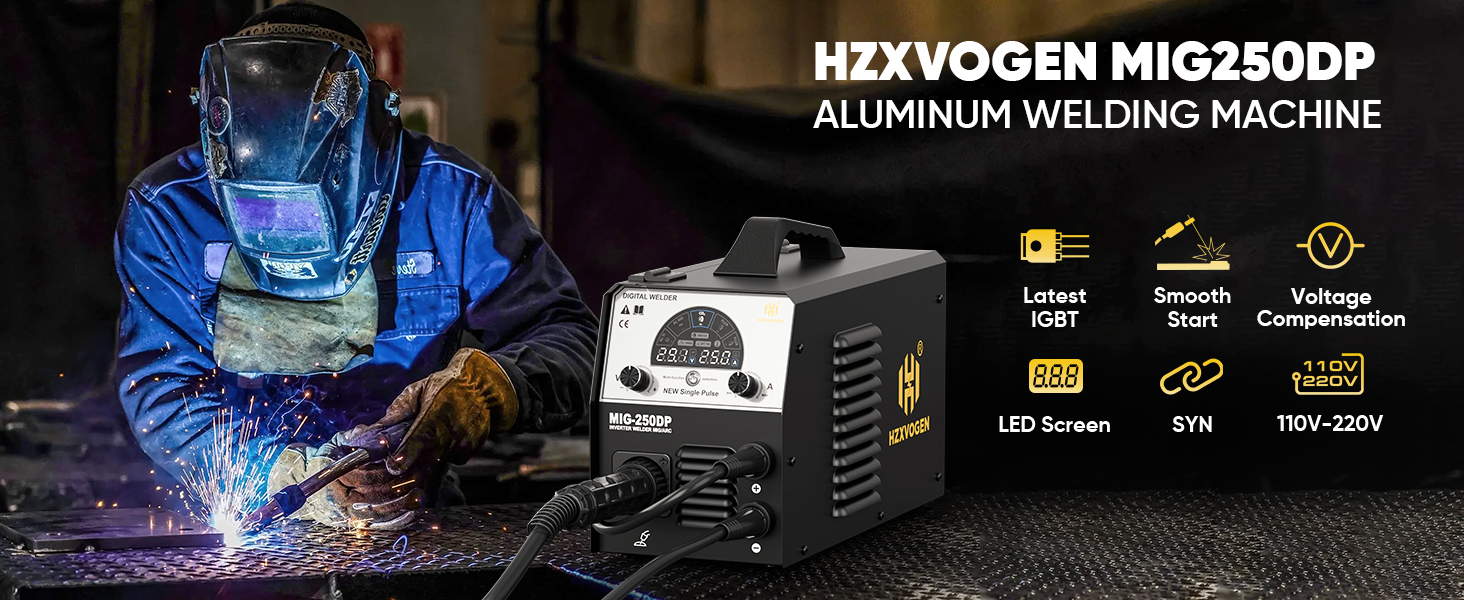

HZXVOGEN 250A 5IN1 Aluminum MIG Welder Pulse MIG MMA TIG Gas Gasless MIG Welder

HZXVOGEN 5in1 MIG Welder Aluminum MMA TIG Welder MIG Welder Machine W/TIG Torch

Feature:

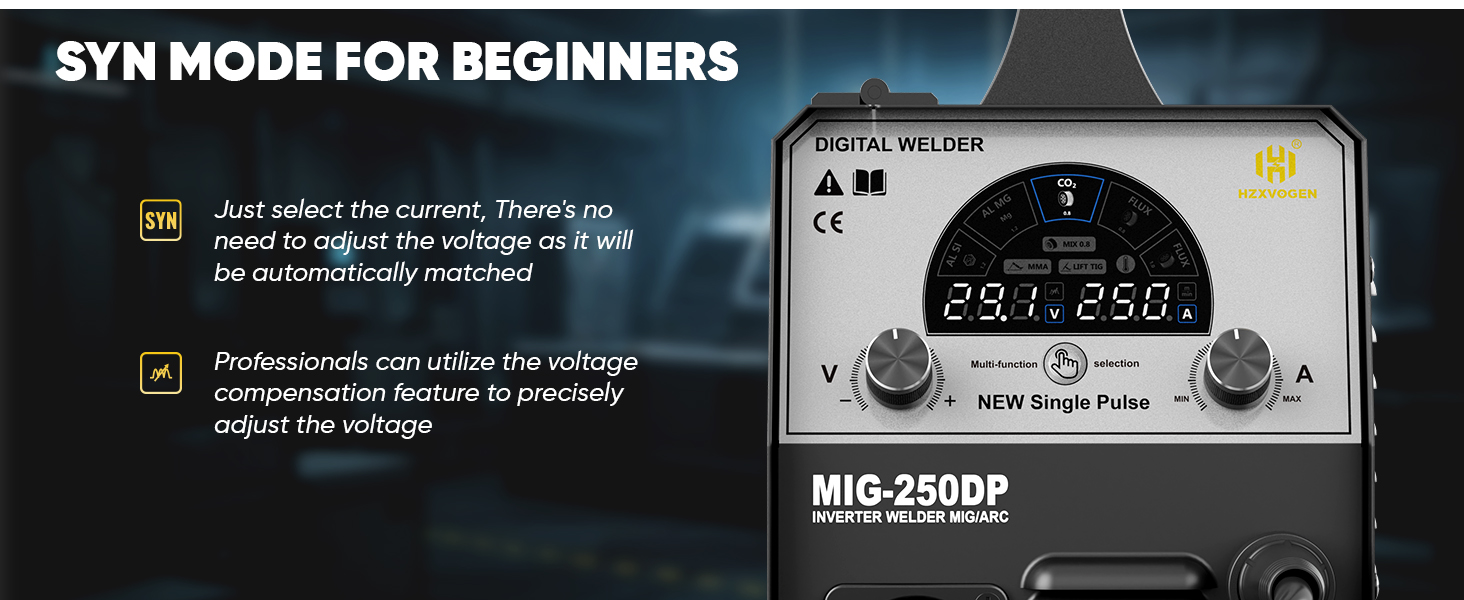

1. Adopting a fully digital control system to achieve precise control and stable arc length during welding, control the wire feeding speed, and achieve accurate and stable wire feeding.

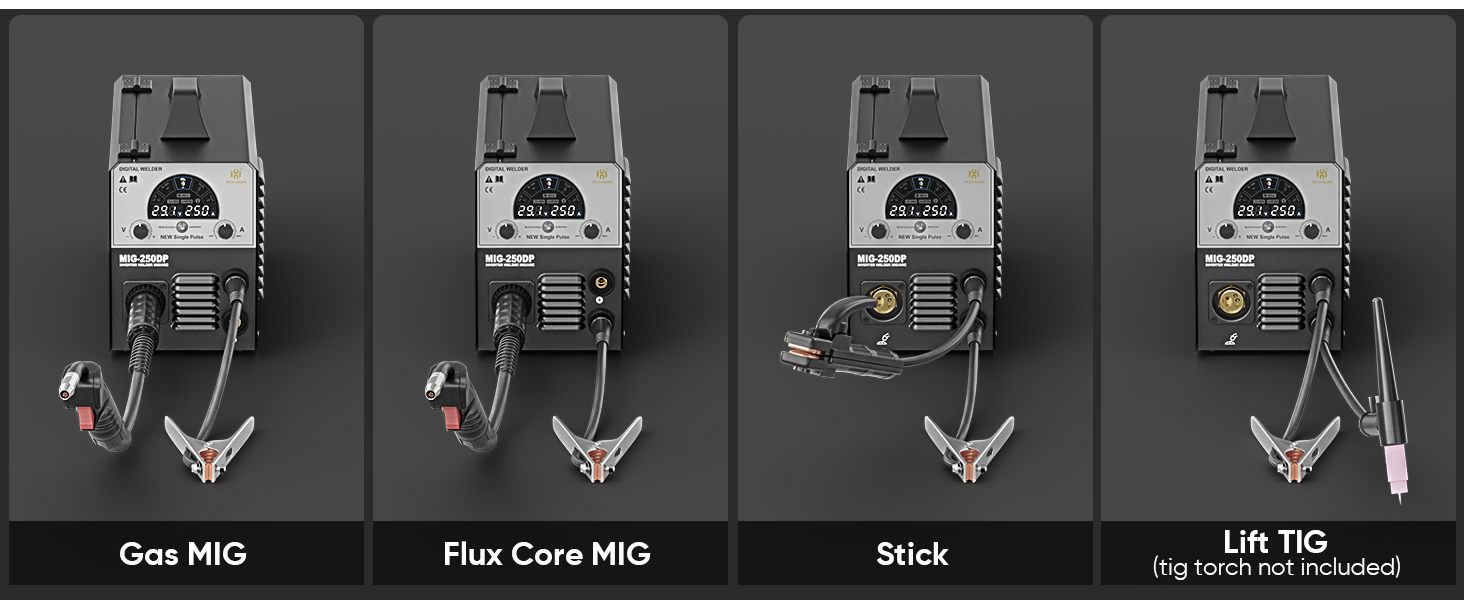

2. Gas-shielded arc welding, MMA welding and self-shielded arc welding are available for selection.
3. High duty cycle, long time welding. Closed loop feedback control, constant voltage output, mains voltage fluctuation is within -15%.
4. The welding voltage and circuit are adjustable, and the IGBT technology reflects the reliability of the welding machine.
5 Gas shielded arc welding adopts unique dynamic characteristics control circuit, stable arc, small spatter, good shape and high welding efficiency. Eliminate molten balls, high no-load, slow wire feeding, and improve the success rate of arc starting.
6. The inverter frequency is 35KHz, which greatly reduces the volume and weight of the welding machine.
7. The metal loss is greatly reduced, and the welding efficiency and energy saving effect are obviously improved.

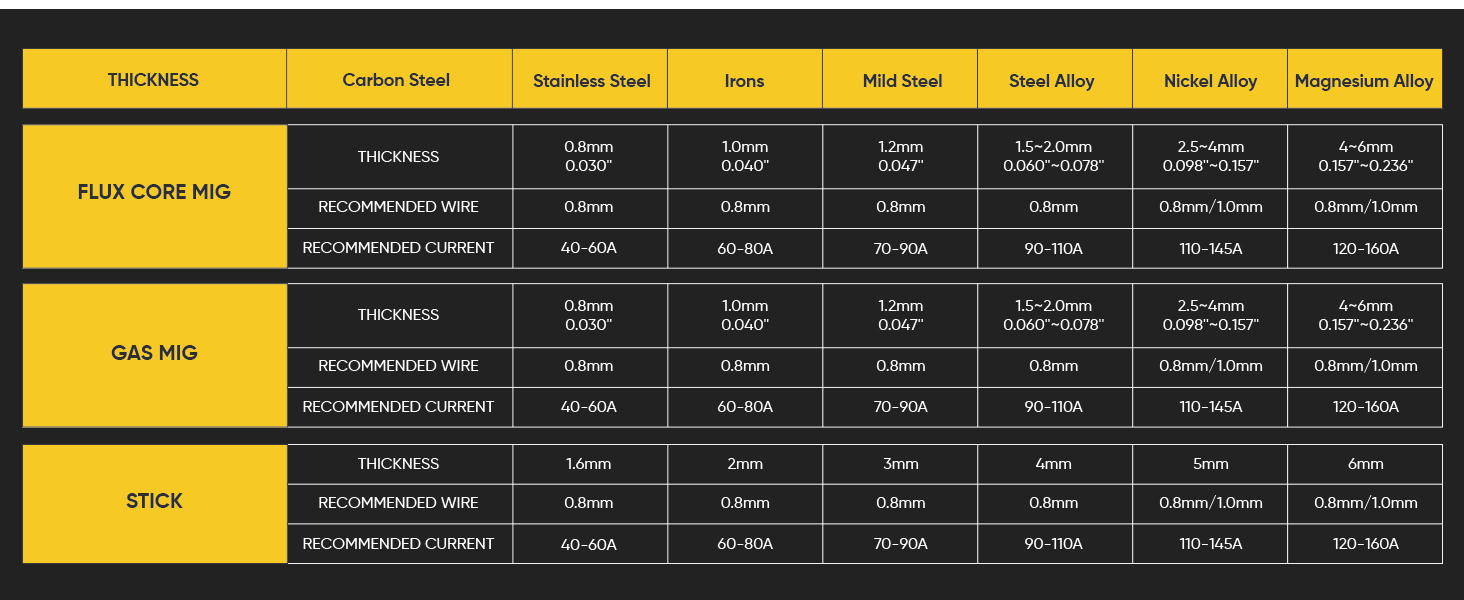

The generally required welding current is as follows:2.5: 70-100;-3.2: 110-160A;-4.0: 170-220A; 5.0: 230-280A

Specifications:

- Brand: HZXVOGEN
- Type: MIG-250 DP
- Input power voltage (V): 220V-240v
- Welding current adjust range (A): 10 ~ 250Amp
- Voltage adjustment range (V): (Gas shielded arc welding) 11～26

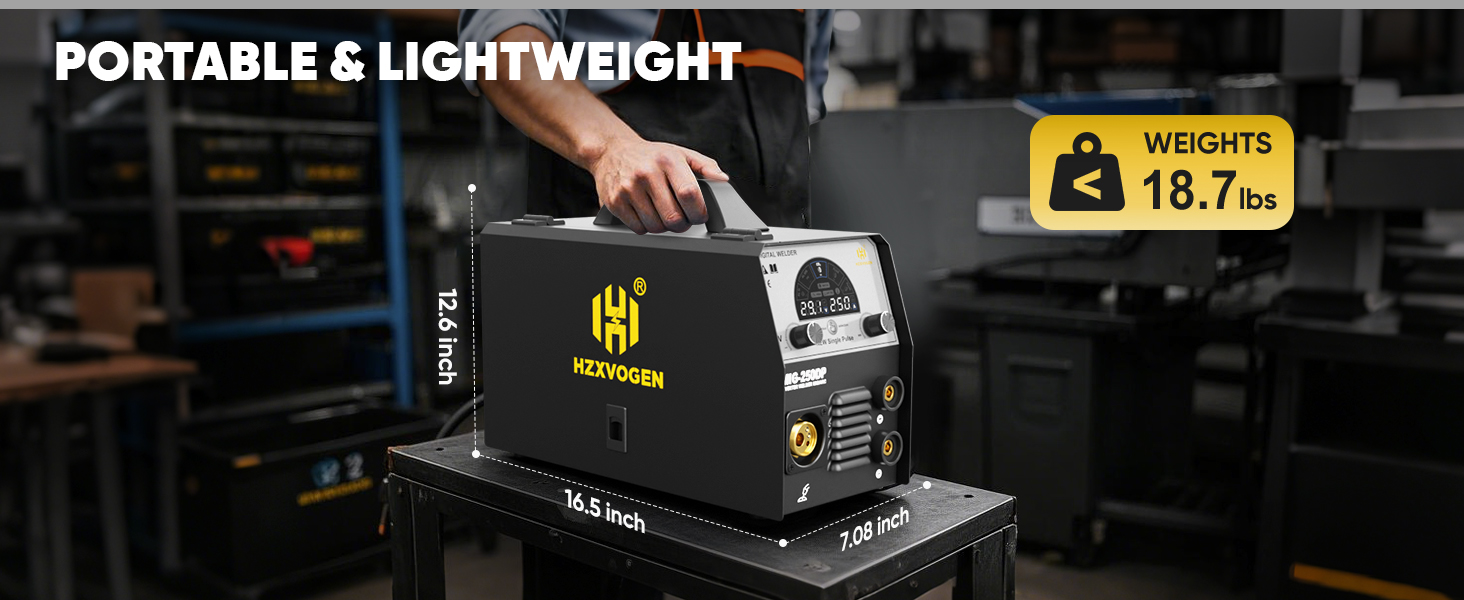

- Package Weight: 12.5KG (27.56LB)
- Package Size: 49.2*28.5*38cm(19.37*11.22*14.96in)
- Inverter technology: IGBT
- Rated input current (A): 32
- Rated power capacity(KVA): 7.1
- Recommended fuse capacity(A): 50

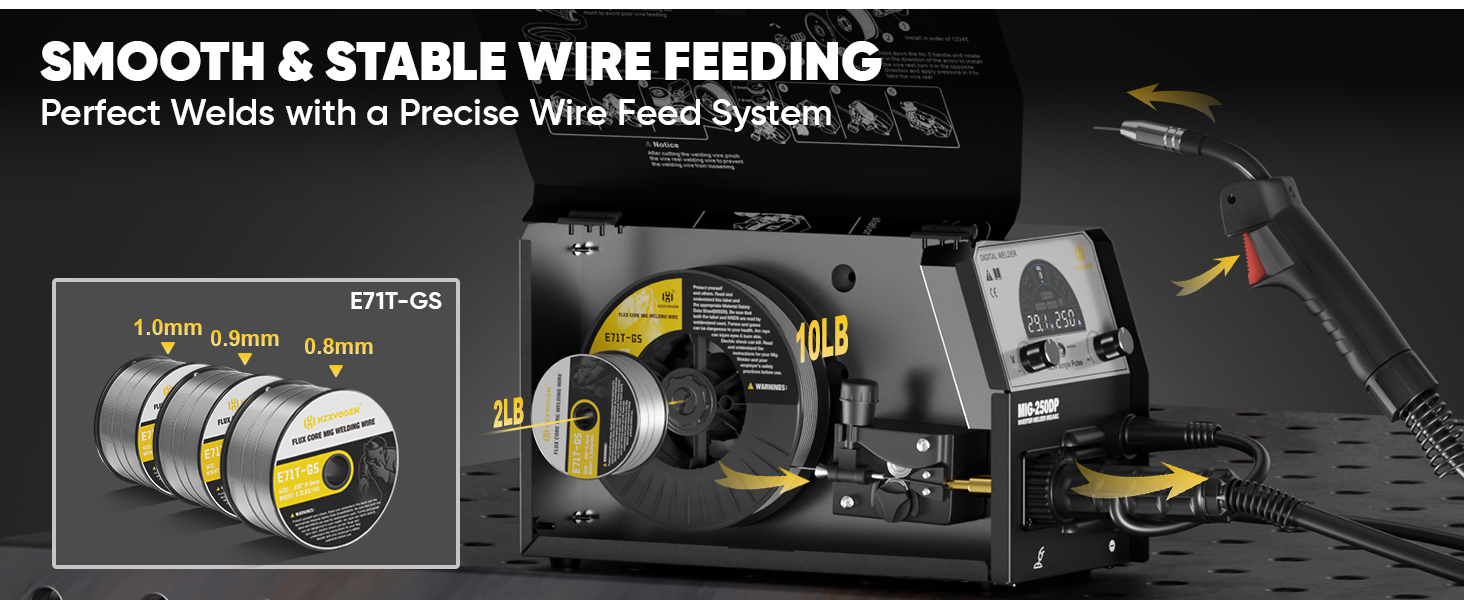

- Feeding speed adjustment range (m/min): 1.5～16
- Welding wire diameter (mm): 0.6/0.8/1.0
- Rated duty cycle: 60%
- Efficiency (% ):85
- Welding thickness: 1-8mm
- Welding materials: iron, stainless steel, aluminum, galvanized sheet, carbon steel and other metals.
- Usable electrode size: 2.5/3.2
