We offer you 12 Hydraulic Cylinder Jack, including 100T/220000LBS 0.86in Ultra-thin, 20T/44000LBS 4in Hollow, 20T/44000LBS 4in Stroke Single Acting, 20T/44000LBS 6in Stroke Single Acting, 20T/44000LBS 2in Hollow, 20T/44000LBS 2in Stroke Single Acting, 30T/66000LBS 4in Hollow, 30T/66000LBS 4in Stroke Single Acting, 30T/66000LBS 2in Hollow, 50T/110000lb 2in Stroke Single Acting Hydraulic Cylinder Jack,50T/110000lb 4in Stroke Single Acting Hydraulic Cylinder Jack, and 50T/110000lb 6in Stroke Single Acting Hydraulic Cylinder Jack.
Features & Details
-
Heavy Duty Jack: Made of heavy-duty metal construction, our hydraulic cylinder jack is durable and designed for long-lasting use. Paint spraying at the surface, to stop scratching and corrosion.
-
Large Lifting Capacity: Our ram hydraulic cylinder is designed to provide reliable support during operation. Not stuck when lifting.
-
Convenient Use: Quick connecting head with dust cover, stopping the jack's inside from dust, features the firm connection with no leakage. Compact structure for simple operation.
-
Smooth Surface: The hydraulic ram cylinder features a smooth surface with circle texture, to provide reliable support during working.
-
Wide Usage: This hydraulic jack cylinder has the advantages of small size, suitable for narrow space position. A great helper for riggers, fabricators, welders, and automotive body and frame shops in electric power, chemical industry, steel, Bridges, machinery, and other industries.
Key Features
Solid / Hollow Construction
Our hydraulic ram jack features durable metal construction with paint spraying, anti-corrosion, and against knocking; Stands up for a longer working period.

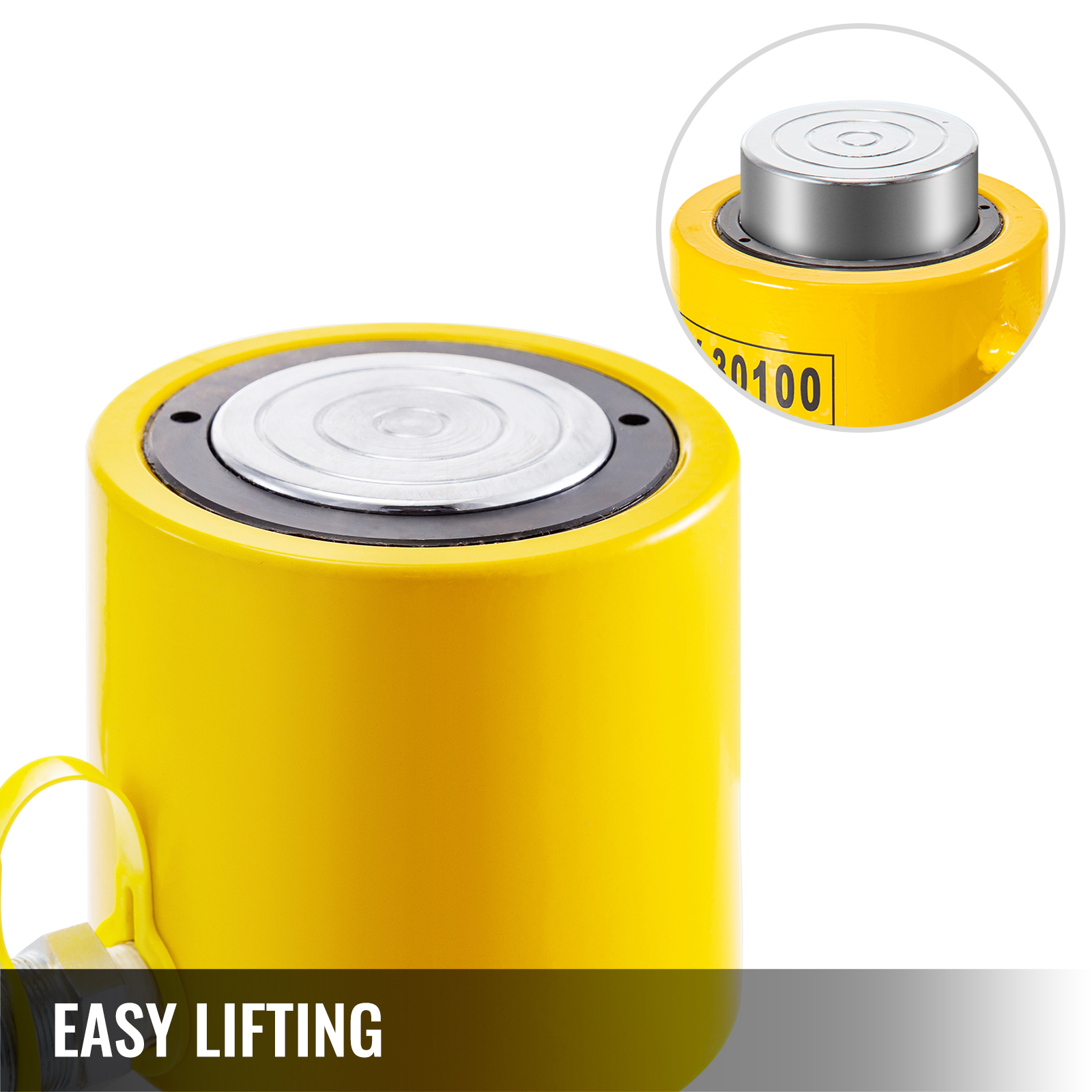

Easy Lifting
This ram hydraulic cylinder has a robust capacity. It won't get stuck when lifting.

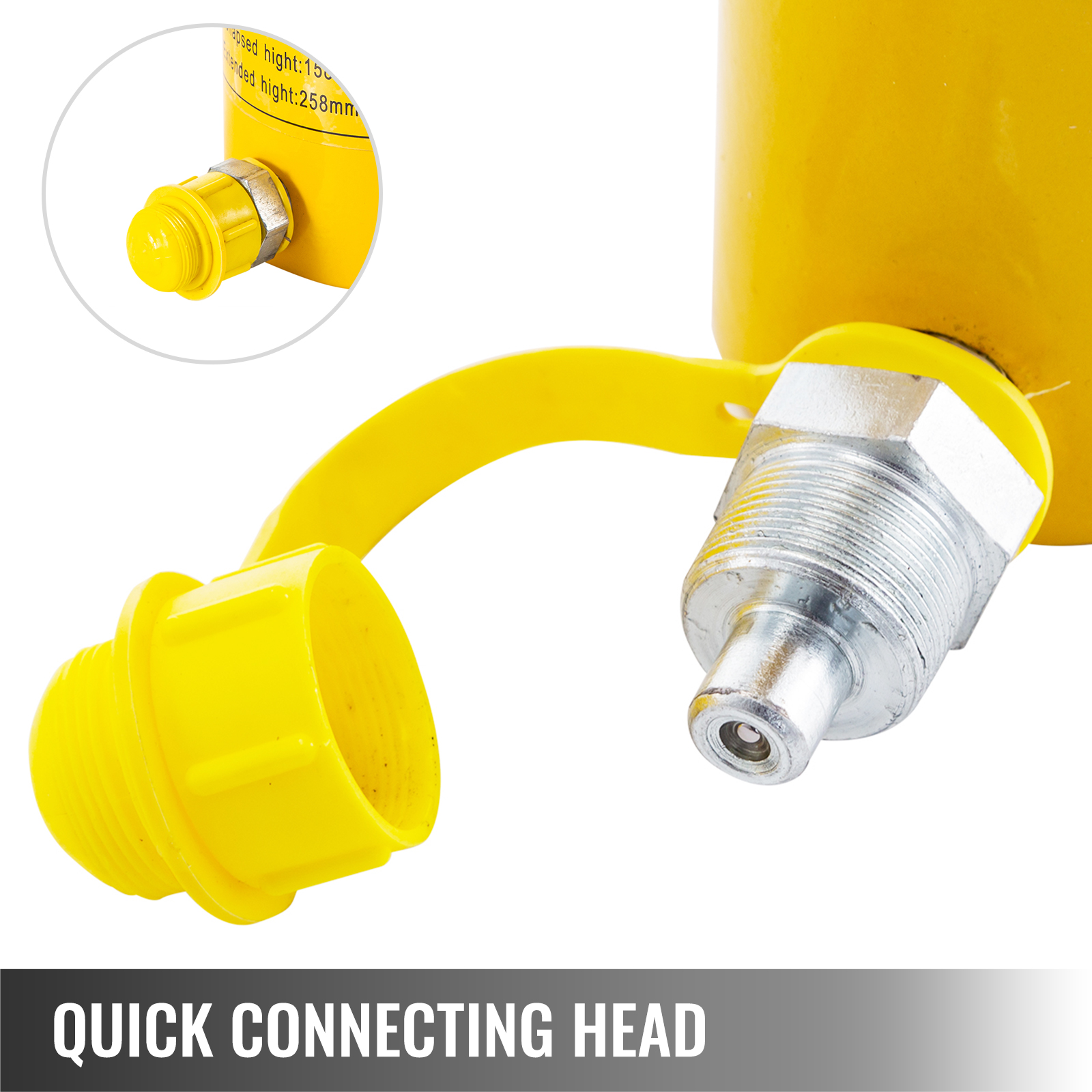

zg3/8" Connecting Head
Adopted zg 3/8" high-quality connecting head,19 Feet/inch quick connecting is ensured. Equipped with duct cover to keep it inside clean. It can be operated with a manual pump, foot pump, or electric pump.
Compact Structure
It has the advantages of smaller size and higher working capacity. Perfect for the narrow space position; Features the functions of portability, flexibility, big jacking force, etc.
Smooth Surface
Smooth surface with circle texture, firmly fixed, and will not burst hydraulic rams. (When the hydraulic jack is used, the bottom should be flat).
Versatile Usage Place
It is often used in power, chemical, steel, bridges, machinery, and other industries. And A great helper for riggers, fabricators, welders, and automotive body and frame shop.
Hydraulic Jack Cylinder
Heavy-Duty & Large Capacity & Compact
We offer you a high-quality hydraulic cylinder jack. Made of solid metal construction, it is heavy-duty and durable. Not stuck when lifting. Easy connecting head with dust cover, preventing the dust in. A great helper for riggers, fabricators, welders, and automotive body and frame shops in electric power, chemical industry, steel, bridges, machinery, and other industries.- Heavy-duty
- Large Lifting Capacity
- Convenient Use
- Wide Application
100T/220000LBS 0.86in Ultra-thin Hydraulic Cylinder Jack
- Capacity: 100T/220000LBS
- Max. stroke: 22mm/0.86in
- Total Height: 88mm/3.46in
- Outside Diameter: 200x170mm/7.87x6.7in
- Inner Diameter: 135mm/5.3in
- Active Area：143.06cm²/22 square inch
- Item Weight: 19kg/42lb
- Capacity: 20T/44000LBS
- Ram stroke: 100mm/4in
- Hole Diameter: 28mm/1.1in
- Total Height: 255mm/10in
- Outside Diameter: 98mm/3.8in
- Inner Diameter: 78mm/3in
- Diameter of Mainshaft: 53mm/2in
- Item Weight: 11kg/24lb
- Capacity: 20T/44000LBS
-
Ram stroke: 100mm/4in
- Total Height: 155mm/6.1in
- Outside Diameter: 85mm/3.3in
-
Inner Diameter: 65mm/2.5in
- Item Weight: 6.2kg/13lb
- Active Area: 33.16cm²/5 square inch
- Capacity: 20T/44000LBS
-
Ram stroke: 150mm/6in
- Total Height: 155mm/6.1in
- Outside Diameter: 85mm/3.3in
-
Inner Diameter: 65mm/2.5in
- Item Weight: 11kg/24lb
- Active Area: 33.16cm²/5 square inch
- Capacity: 20T/44000LBS
- Ram stroke: 50mm/2in
- Hole Diameter: 28mm/1.1in
- Total Height: 175mm/6.8in
- Outside Diameter: 98mm/3.8in
- Inner Diameter: 78mm/3in
- Diameter of Mainshaft: 53mm/2in
- Item Weight: 8kg/17lb
- Capacity: 20T/44000LBS
-
Ram stroke: 50mm/2in
- Total Height: 105mm/4.1in
- Outside Diameter: 85mm/3.3in
-
Inner Diameter: 65mm/2.5in
- Item Weight: 4.4kg/9.7lb
- Active Area: 33.16cm²/5 square inch
- Capacity: 30T/66000LBS
- Ram stroke: 100mm/4in
- Hole Diameter: 34mm/1.3in
- Total Height: 260mm/10in
- Outside Diameter: 120mm/4.7in
- Inner Diameter: 92mm/3.6in
- Diameter of Mainshaft: 65mm/1.4in
- Item Weight: 15.6kg/34lb
- Capacity: 30T/66000LBS
-
Ram stroke: 100mm/4in
- Total Height: 160mm/6.2in
- Outside Diameter: 105mm/4.1in
-
Inner Diameter: 80mm/3.1in
- Item Weight: 9.6kg/21lb
- Active Area: 50.24cm²/7.7 square inch
- Capacity: 30T/66000LBS
- Ram stroke: 50mm/2in
- Hole Diameter: 34mm/1.1in
- Total Height: 185mm/7.3in
- Outside Diameter: 120mm/4.7in
- Inner Diameter: 92mm/3.6in
- Diameter of Mainshaft: 65mm/2.5in
- Item Weight: 12.3kg/27lb
- Capacity: 50T/110000LBS
-
Ram stroke: 100mm/4in
- Total Height: 165mm/6.5in
- Outside Diameter: 120mm/4.7in
-
Inner Diameter: 100mm/4in
- Item Weight: 12.6kg/28lb
- Active Area: 50.24cm²/7.7 square inch
50T/110000lb 6in Stroke Single Acting Hydraulic Cylinder Jack
- Capacity: 50 T/110000 LBS
- Ram stroke: 150 mm/6 inch
- Total Height: 214 mm/8.4 inch
- Outside Diameter: 128 mm/5 inch
- Inner Diameter: 80 mm/3.1 inch
- Diameter of Main Shaft: 80 mm/3.1 inch
- Item Weight: 21.7 kg/47.8 lbs
50T/110000lb 2in Stroke Single Acting Hydraulic Cylinder Jack
- Capacity: 50 T/110000 LBS
- Ram stroke: 50 mm/2 inch
- Total Height: 112 mm/4.4 inch
- Outside Diameter: 128 mm/5 inch
- Inner Diameter: 80 mm/3.1 inch
- Diameter of Main Shaft: 80 mm/3.1 inch
- Item Weight: 9.8 kg/21.6 lbs
- 1 x 100T/220000LBS 0.86in Ultra-thin Hydraulic Cylinder Jack
-
1 x 20T/44000LBS 4in Hollow Hydraulic Cylinder Jack
-
1 x 20T/44000LBS 4in Stroke Single Acting Hydraulic Cylinder Jack
-
1 x 20T/44000LBS 6in Stroke Single Acting Hydraulic Cylinder Jack
-
1 x 20T/44000LBS 2in Hollow Hydraulic Cylinder Jack
-
1 x 20T/44000LBS 2in Stroke Single Acting Hydraulic Cylinder Jack
-
1 x 30T/66000LBS 4in Hollow Hydraulic Cylinder Jack
-
1 x 30T/66000LBS 4in Stroke Single Acting Hydraulic Cylinder Jack
-
1 x 30T/66000LBS 2in Hollow Hydraulic Cylinder Jack
- 1 x 50T/110000lb 2in Stroke Single Acting Hydraulic Cylinder Jack
- 1 x 50T/110000lb 4in Stroke Single Acting Hydraulic Cylinder Jack
- 1 x 50T/110000lb 6in Stroke Single Acting Hydraulic Cylinder Jack
