This Item Has A Current Calibration!

Huntron Tracker 2700 Electronic Component Tester Circuit Analyzer

Its low voltage ranges also make it ideal for testing passive devices such as high value capacitors while still in-circuit.

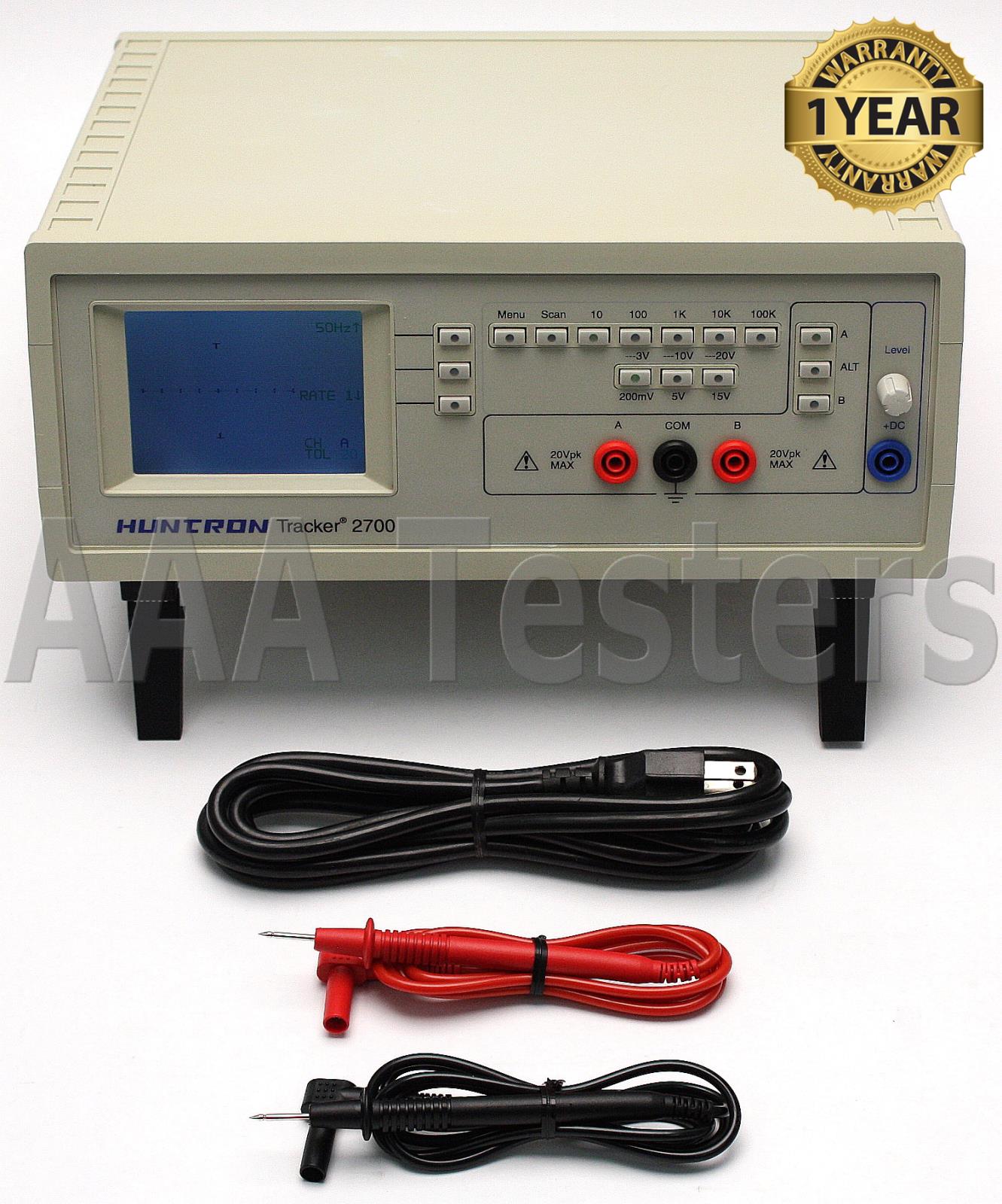

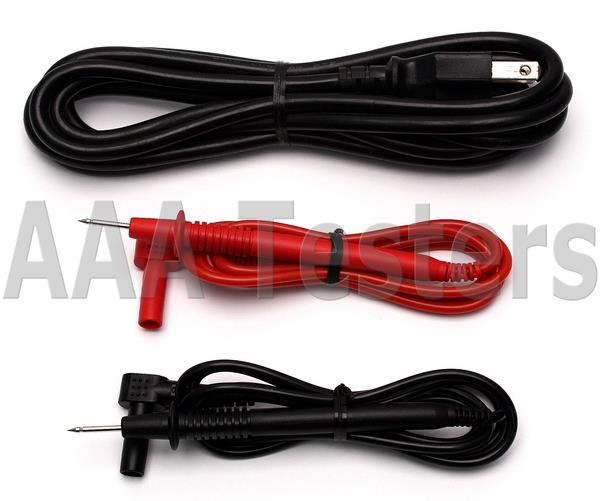

Includes Accessories As Listed Above!

Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

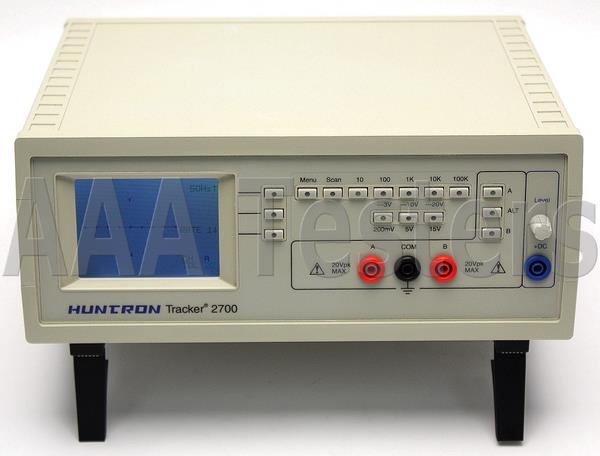

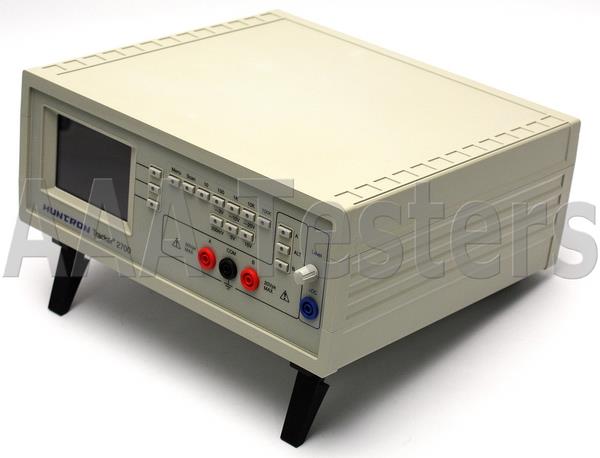

Huntron Tracker 2700

Trusted technology, new applications

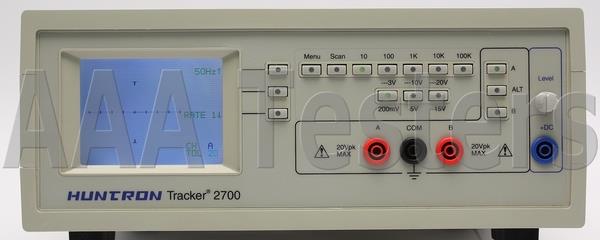

The Huntron® Tracker® 2700 extends the capabilities of power-off testing to troubleshoot low voltage logic circuitry. Its low voltage ranges also make it ideal for testing passive devices such as high value capacitors while still in-circuit. Source voltage, source resistance and test frequency are clearly defined on the front panel overlay. A variable 5 volt DC Voltage Generator allows the user to switch gate-fired devices such as SCRs and optical couplers so they can be tested in on and off states. The Huntron Tracker 2700 is an ideal addition to the service engineerʼs bench. Using a power-off test method known as Tracker Signature Analysis, it eliminates the risk of further circuit damage, which often occurs when power is applied.

The Tracker 2700 also incorporates Huntronʼs SigAssist™ feature which displays real-time numeric information relating directly to the displayed signature. Information such as breakdown voltage, resistance, capacitance, and power are displayed on the LCD to assist in signature interpretation.

Troubleshooting challenges
Modern complex switching power supplies with fail-safe protection circuits contain many passive components that are difficult to test in circuit due to parallel solid state devices. The 200mV range of the Tracker 2700 allows resistors, capacitors and inductors to be analyzed without turning on the parallel solid state devices. The passive devices are essentially tested “out of circuit”. Todayʼs electronic devices use 3 volt or lower logic circuits. The low test voltage ranges of the Tracker 2700 make it an ideal tool to troubleshoot these products. The Tracker 2700 has 21 selectable voltage/resistance ranges available in 5 frequencies resulting in a total 105 combinations of voltage, source resistance and test frequency.

Tracker Signature Analysis

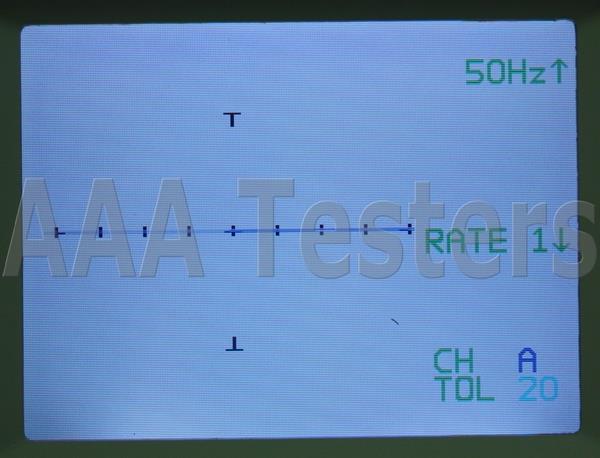

The Tracker works by applying a current-limited AC signal across two points of a component. The current flow causes a vertical deflection of the trace, while the applied voltage causes a horizontal deflection. Together they form a unique V/I signature that represents the overall health of the device under test. Analyzing the signature can quickly determine whether the component is good, bad, or marginal.

Features:

• Color LCD for display of signatures and menus
• Uses Huntronʼs proven Tracker Signature Analysis technology
• Huntron SigAssist™ is incorpo- rated into the display
• Troubleshoot low voltage logic circuitry without the possbility of exceeding manufacturers voltage specifications
• Perfect for benchtop or field repairs

Specifications:

For full Huntron Tracker 2700 product specifications, please click here: Huntron Tracker 2700
