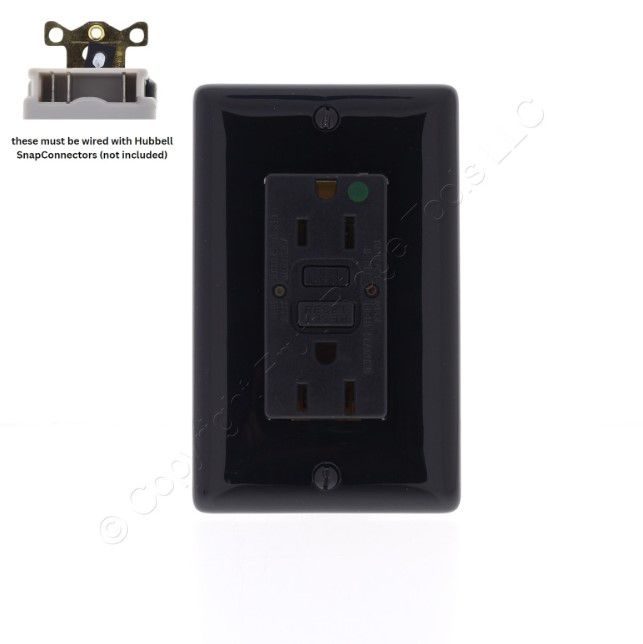

Hubbell GFRST82SNAPBK black SNAP-Connect Autoguard Self-Test GFCI receptacle. Please note that these do not have screw terminals; they must be wired with Hubbell SnapConnectors (purchased separately - part numbers listed below). SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. We do not have any SnapConnect terminals so you will need to buy them elsewhere if you do not already have some. Hospital Grade, NEMA 5-15R, 2-pole, 3-wire, grounding, requires SnapConnect right angle pigtailed terminal (purchased separately), rated 15A-125V at receptacle and 20A-125V feed-through. Hubbell AUTOGUARD GFCI receptacles continually test and monitor for "people protection capability" automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Hospital grade devices are top of the line in their category, designed for high-abuse environments such as those found in healthcare facilities. Each is individually packaged; packaging may differ from photo. Features include:

• Outlet requires SnapConnect right angle pigtailed terminal (purchased separately) to be installed
• Hubbell AUTOGUARD GFCI receptacles continually test and monitor for "people protection capability" automatically
• Clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status
• For added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur
• TEST and RESET functions work together so that a tripped GFCI cannot be reset if GFCI circuit no longer provides ground fault protection
• RESET button is blocked if GFCI protection has been compromised, eliminating the possibility of end-users incorrectly assuming that a reset GFCI is providing ground fault protection when it actually is not
• Protection against line and load reversal - no power to the face or downstream receptacles if device is miswired
• Thermoplastic nylon housing - this high impact and ultraviolet resistant construction provides resilience in harsh environments
• Clear visual indication of GFR Status - LED indicating lights: green LED (power to the device); red LED (trip condition/ground fault condition); flashing red LED (end of life)
• Matching standard size thermoplastic wallplate included

As was mentioned several times above, these receptacles require SnapConnect pigtail terminals which are purchased separately to be installed. Here is a list of compatible Hubbell SnapConnect pigtail terminals. We do not have any of the SnapConnect terminals so you will need to buy them elsewhere:

• SNAP1RA: Solid Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
• SNAP2RA: Stranded Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
• SNAP1RNA (Assembled in USA): Solid Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
• SNAP2RNA (Assembled in USA): Stranded Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
• SNAP1RAM2: Solid wire; Clear right angle terminal with 6" leads #12 AWG THHN/ THWN-2; Polycarbonate housing material with WAGO terminals
• SNAP2RAM2: Stranded wire; Clear right angle terminal with 6" leads #12 AWG THHN/ THWN-2; Polycarbonate housing material with WAGO terminals
• SNAP1RNAM2 (Assembled in USA): Solid wire; Clear right angle terminal with 6" leads #12 AWG THHN/ THWN-2; Polycarbonate housing material with WAGO terminals
• SNAP2RNAM2 (Assembled in USA): Stranded wire; Clear right angle terminal with 6" leads #12 AWG THHN/ THWN-2; Polycarbonate housing material with WAGO terminals
