HITBOX Gasless/Gas MIG Weld Aluminum Welder 110V 220V Lift TIG MMA 200Amp LCD Welding Machine
Why you select HITBOX HIM250 DPP?
This is why:

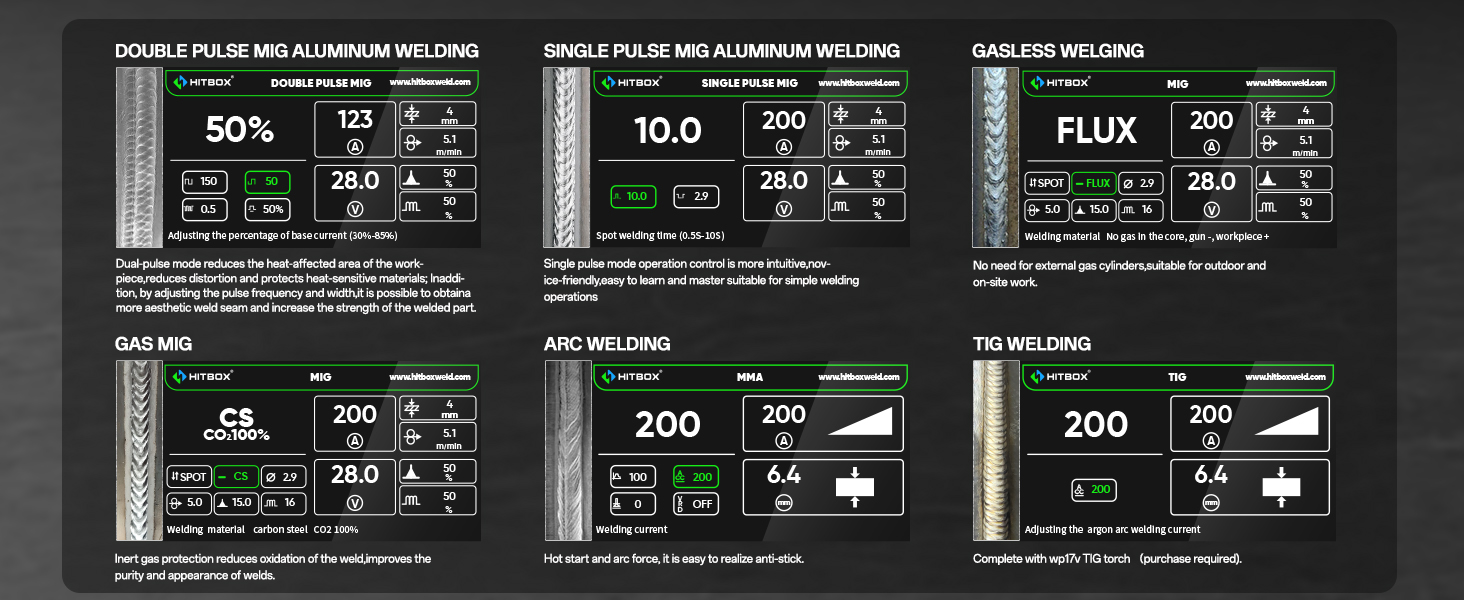

1. Non-noise Professional MIG Welder: HITBOX 4 in1 synergic sontrol welder equipped with a digital LCD display and clearly guides every step of the welding process, making welding easy and efficient. You only need to set the welding mode, material, wires/electrodes/tungsten size, and plate thickness. Recommend suitable current adjustment. | voltage | current | Welding mode | Wire diameter | Metal type and thickness | 2T/4T spot welding mode .Noise free - Rescue your ears from the noisy
2. Aluminum Anti-Stick Welder: HITBOX HIM250 DPP 200Amp welding machine could weld aluminum, iron, carbon steel, stainless steel, etc. Applies to pipe installments, mold repairs, petrochemicals, architectural decorations, car repairs, bicycles, handicrafts, and general manufacturing. Even beginners can complete any task efficiently and easily with this machine.Note: Welding aluminum needs to replace graphite conduit liner！(included)
3. MIG/MAG Welder: With high-quality wire feeder to ensure smooth and stable wire feeding. When using MIG/MAG/Flux-core welding. MIX GAS /CO2 gas welding suits 0.6 / 0.8 / 1.0mm solid wires.It is great to welding 0.7-8mm metal plates. FCAW-S: Means gasless mig welding. It uses 0.6-1.0mm flux wire and suitable for welding 1-6.4mm plates. 2T/4T fuction keeps hands from welding fatigue. Its welding molten is beautifully formed, more stable arc is, smaller spatter, no stick.
4. LIFT TIG /ARC Welder: Tig welding is suitable for 1.6 mm and 2.4 mm tungsten. it can be welded with a thickness of 1.0 to 6.4mm.Tip: Can be used with WP-26V tig torch. Arc welding melts 2.5 / 3.2 / 4.0mm electrodes. It can weld 1.6-8.0mm plate.Extending the power cord by 160 feet can also resist cable attenuation and still allow the machine to work normally. It is very suitable for operations on construction sites, house maintenance, docks, and even agricultural sites.
5. 2 Year Warranty And Great After Sale Service: HITBOX offers a good warranty. We have professional technical team, If you meet any problem when using this machine, please feel freely to contact us.
Product Features:

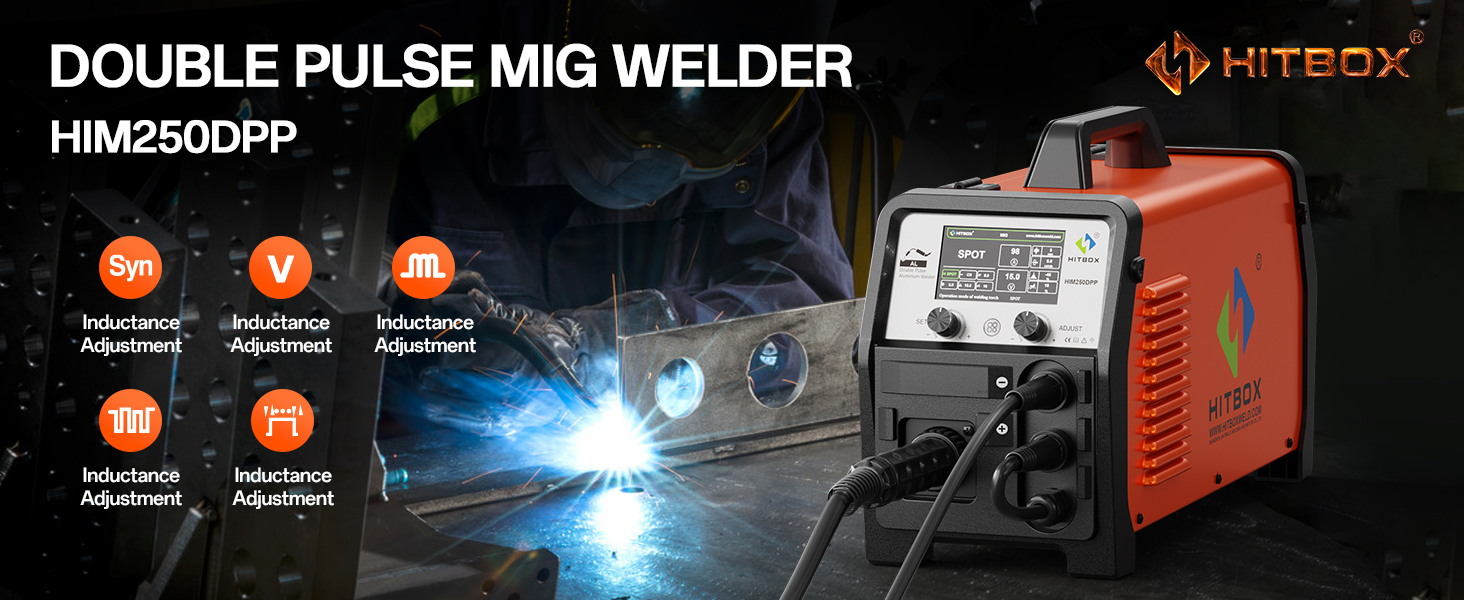

HITBOX HIM250 DPP 200amp 110V/220V Aluminum MIG welding machine
* 5 in 1 welders: MIG gasless welder、MIG MIX gas welder、MIG CO2 gas welder、TIG welder（Lift）、ARC welder.
* 5 in 1 welders: MIG gasless welder、MIG MIX gas welder、MIG CO2 gas welder、TIG welder（Lift）、ARC welder.

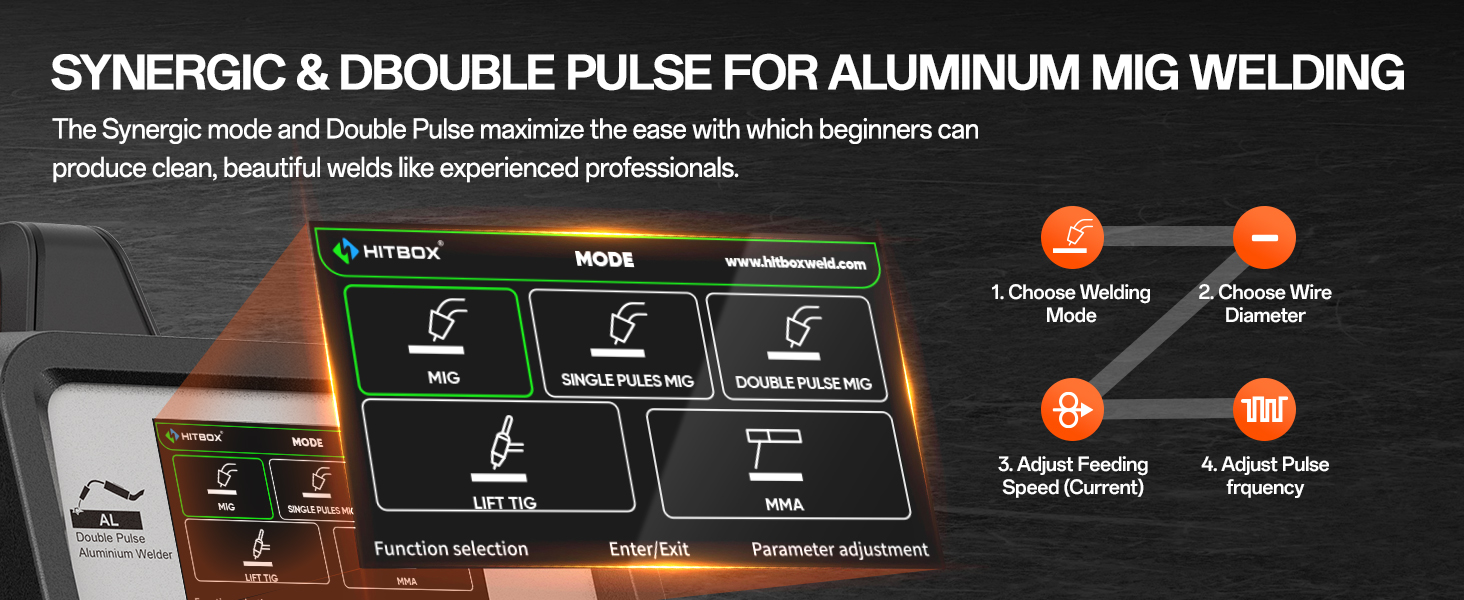

* 2 ways to use: Synergy MIG-Set welding parameters: semi-automatic welding-Intelligent recommended welding parameters.
* MAN-MIG：adjust parameters by yourself that professional welders like.
* HD digital LCD display: Clearly show each of your welding parameters, Make welding easier.
* Output current: 0-200Amp adjustable current, MMA: 170A、 TIG：200A、MIG：200A.
* Weldable metal wide range: Iron, carbon steel, stainless steel, aluminum silicon（Al&Si）, aluminum magnesium（Al&Mg）, copper silicon, copper magnesium and other metals.
Product Details:
- Brand:HITBOX
- Model:HIM250 DPP
- Inverter technology: IGBT
- Rated input voltage (V)-110V/220V
- Frequency (HZ)-50/60
- Rated input power (KW)-MIG: 5.7; TOG: 4.37; MMA: 6.3
- Rated input current (A)-MIG: 36.0; TIG: 28.1; MMA: 40.5
- Rated input apparent power (KVA)-MIG: 7.8; TIG: 6.21; MMA: 8.9
- Welding current adjust range (A)-10 ~ 200
- Welding voltage adjust range (V)-10 ~ 26
- Duty cycle (40℃ 10min)-25%, 200A; 60%, 150A; 100% 130A
- No load voltage (V)-50V (adjustable)
- Power factor-MIG: 0.73; TIG: 0.70; MMA: 0.71
- Efficiency(%)-≥80%
- Protection class-IP23
- Insulation class-F
- Cooling:AF
- Wire diameter(m): Fe: 0.6/0.8/1.0; Ss: 0.8/1.0; AI: 0.9/1.0; Flux: - 0.9/1.0/1.2
- Electrode Type:6013;7018;7014 etc
- Wire diameter: 0.6/0.8/1.0mm(1kg/5kg)
- Welding thickness: 1-12mm
- Electrode Diameter(mm): Ø2.5, Ø3.2,Ø4.0
- Welding materials: Iron, stainless steel, aluminum, galvanized sheet, carbon steel, copper and other metals
- Model:HIM250 DPP
- Inverter technology: IGBT
- Rated input voltage (V)-110V/220V
- Frequency (HZ)-50/60
- Rated input power (KW)-MIG: 5.7; TOG: 4.37; MMA: 6.3
- Rated input current (A)-MIG: 36.0; TIG: 28.1; MMA: 40.5
- Rated input apparent power (KVA)-MIG: 7.8; TIG: 6.21; MMA: 8.9
- Welding current adjust range (A)-10 ~ 200
- Welding voltage adjust range (V)-10 ~ 26
- Duty cycle (40℃ 10min)-25%, 200A; 60%, 150A; 100% 130A
- No load voltage (V)-50V (adjustable)
- Power factor-MIG: 0.73; TIG: 0.70; MMA: 0.71
- Efficiency(%)-≥80%
- Protection class-IP23
- Insulation class-F
- Cooling:AF
- Wire diameter(m): Fe: 0.6/0.8/1.0; Ss: 0.8/1.0; AI: 0.9/1.0; Flux: - 0.9/1.0/1.2
- Electrode Type:6013;7018;7014 etc
- Wire diameter: 0.6/0.8/1.0mm(1kg/5kg)
- Welding thickness: 1-12mm
- Electrode Diameter(mm): Ø2.5, Ø3.2,Ø4.0
- Welding materials: Iron, stainless steel, aluminum, galvanized sheet, carbon steel, copper and other metals
Operating Parameters:
- MIG FUNCTION：MIX GAS can use 0.6/ 0.8/ 1.0/ 1.2mm flux wire. it can weld 0.7 ~ 6.4mm thickness. 2. GAS (CO2) can use 0.8/ 1.0mm wire. Can weld 0.9 ~ 6.4mm thickness
- TIG FUNCTION：Can use 1.6mm and 2.4mm tungsten. Can weld 0.7 ~ 6.4mm thickness.
- MMA FUNCTION：Current 10 ~ 170 amp. Can weld 2.5/ 3.2 mm electrode. can weld 1.6 ~3.4mm thickness.
- TIG FUNCTION：Can use 1.6mm and 2.4mm tungsten. Can weld 0.7 ~ 6.4mm thickness.
- MMA FUNCTION：Current 10 ~ 170 amp. Can weld 2.5/ 3.2 mm electrode. can weld 1.6 ~3.4mm thickness.
Package Included:
1X HITBOX double pulse HIM250 DPP mig welder
1X Mig torch
1X Earth clamp(70.86inch)
1X Electrode holder(70.86inch)
1 X 1.0mm/1.2mm U shape drive roller
1X Mig torch
1X Earth clamp(70.86inch)
1X Electrode holder(70.86inch)
1 X 1.0mm/1.2mm U shape drive roller
1 X 0.8mm/1.0mm V shape drive roller
1X Gas tube
2X Hose clamps
1X Welding brush
1X User's manual
1X Graphite wire feed tube:when welding aluminum, please do use it with the mig gun.
1X 220V to 110V convert plug
1X Gas tube
2X Hose clamps
1X Welding brush
1X User's manual
1X Graphite wire feed tube:when welding aluminum, please do use it with the mig gun.
1X 220V to 110V convert plug
(Not include tig torch, if you need tig torth,please contact us)
About Welding Wires
Roll of gas shielded welding wire AlMg5 ER5356 0,8 mm 0.5 kg
This is a roll of gas shielded welding wire AlMg5 in level spooled quality.
Product Advantage:
Technical data:
wire diameter 0,5 mm
coil diameter 50 mm
weight 0.5 kg
Applications:
Welding wire AlMg5 is suitable for welding aluminum and various aluminum alloys.
For shipbuilding, construction, railroad and vehicle construction, as well as in the construction industry and for machine parts in the food industry
Common MIG - welding rod for aluminum sheets, aluminum flat material and aluminum pipes anodizable, because of best color uniformity
Bright aluminum alloy welding wire for MIG welding of aluminum alloy.
Especially suitable for anodic post-treatment anodizing
Aluminum base materials AlMg1 (3.3315), AlMg3 (3.3535), AlMg5 (3.3555) as well as AlMgSi1 (3.2315)
Package included:
1 roll 0.8mm 0.5kg welding AlMg5 wire
