Product features:
*The drill angle can be adjusted up to 50 degrees
*Adjust the pipe clamps on two shafts, the diameter is between 19 and 76mm
*Sturdy structure with frame thickness of 1-1/4 inches
*Accurately adjust the vertical height of the mandrel
*Use a hand drill with 1/2’’ linker for operation, drill requires M12 or M15 linker
*Heavy 1/4’’ thick steel frame suitable for all CNC machining
*2-axis adjustable pipe clamp, which can offset the notch by 1/2’’ vertical and 1’’ polished stainless steel shaft
*Easy to install: use bolts to fix or fix it on the workbench, or simply fix it on the workbench, use a vise to clamp it in the vise
*Use a cheap bimetal hole saw
*Requires ordinary 1/2 inch hand drill
Specifications:
Model: PNM1-1/2 inches
Capacity: from 3/4’’ to 3’’OD
Angle: Angle up to 50 degrees
Net weight/Gross weight: 9.6/10.5kg
Color:As picture
Material:iron
Package included:

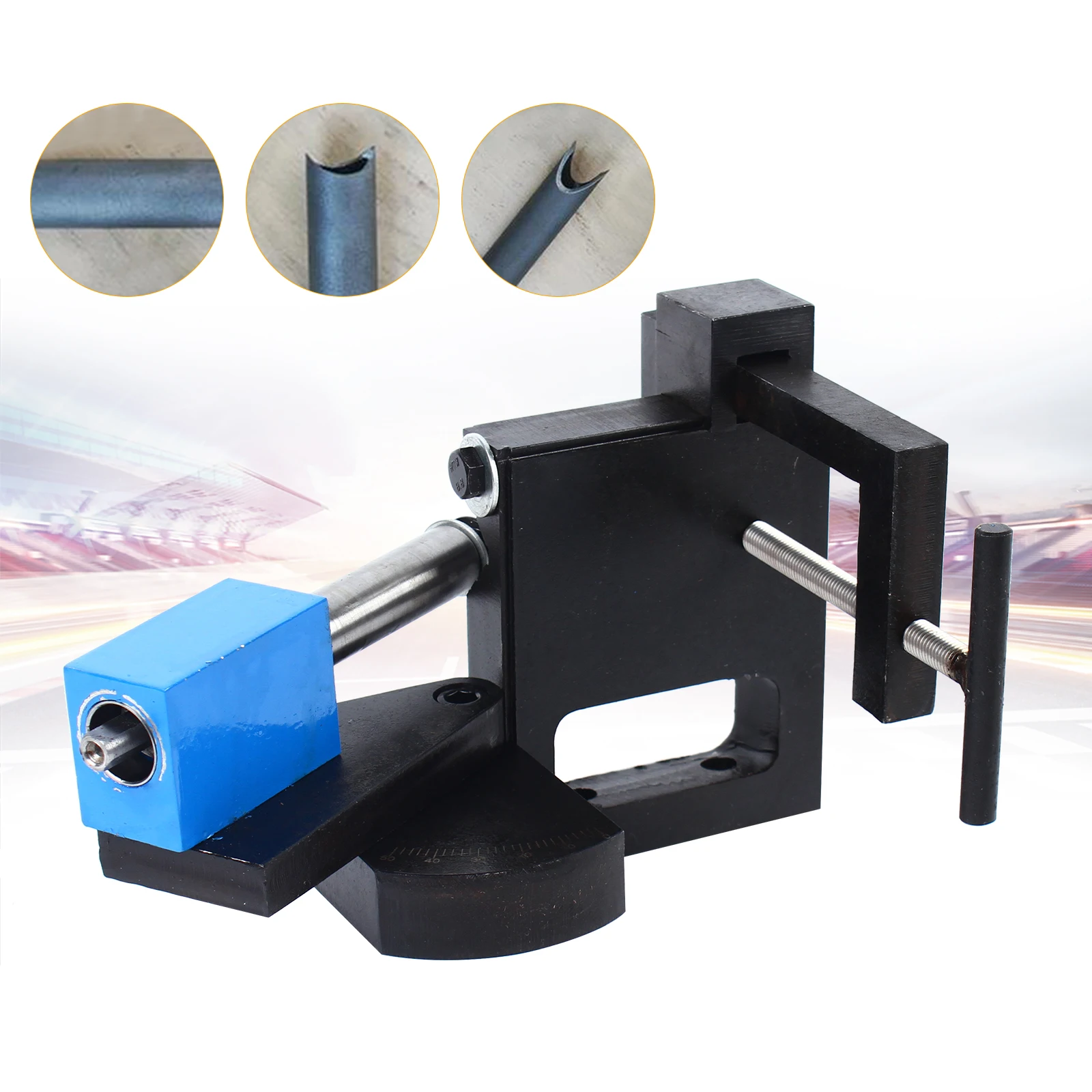

1 * Pipe & Tube Notcher
