Harris HXT 450 Deluxe Ironworker Outfit for CGA 540/510 - 4401368
This outfit has Harris' 3-tube cutting attachment design and thread. The fuel regulator cylinder connection is CGA 510. This outfit can cut up to 6 in., braze up to 6 in. copper tube, weld up to 1 in. plate and heat up to 118,000 BTU/Hr.
FEATURES
- Extra Heavy Duty 3-tube design outfit to be used with oxygen and acetylene gases.
- Regulator oxygen and acetylene model 450 with easy-to-read dual scale 2.5 in. gauges, brass T-screw handle, stainless steel diaphragms and tamper-proof, self-reseating safety relief valve and Harris' distinguished internal encapsulated seat filter. Oxygen regulator that delivers up to 125 psi and acetylene regulator delivers up to 15 psi.
- Torch handle model 43-2 that features stainless-steel thread for attachments and is equipped with external replaceable FlashGuard® check valves. This handle is the ideal choice for heavy heating applications.
- Cutting attachment model 73-3 features brazed triangular stainless-steel tubes, fold-forward cutting lever, ease-on cutting valve and solid brass head.
- Consumables included: 6290-1AC cutting tip, E-43 mixer, 23A90-5 welding tip, J-63-3 rosebud heating tip.
- Accessories included: Shade 5 safety glasses (ANSI Z87.1 CE Weld), Handheld ignitor, 1/4 in. x 20 ft. twin R-grade hose and Harris black and red insulated tool kit bag.
- Model E-43 equal or positive pressure mixing system resists damage due to flashback
- Kit includes Model 62901AC cutting tip, Model 23A905 welding/brazing tip and Model J-63-3 heating tip
- Accessories include Shade 5 safety glasses (ANSI Z87.1 CE Weld), Handheld ignitor, 1/4 in. x 20 ft. twin R-grade hose and Harris black and red insulated tool kit bag
- Cuts up to 5 in. (127.0mm) plate with optional tip(s);Welds up to 1/2 in. (12.7mm) plate with optional tip(s);Heats up to 118,000 BTU/HR with included tip;Optional tips sold separately.
DETAILS
Model 450 Deluxe Ironworker® outfit contains quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases. The outfit can cut up 6 in. (152.4mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 6 in. (152.4) diameter copper tube and is supplied with a size tip for brazing copper up to 1 ½ in. (38.1mm) tube. The kit is capable of welding up to 1 in. (25.4mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate. The kit is capable of heating up to 118,000 BTU/Hr. with supplied rosebud tip.

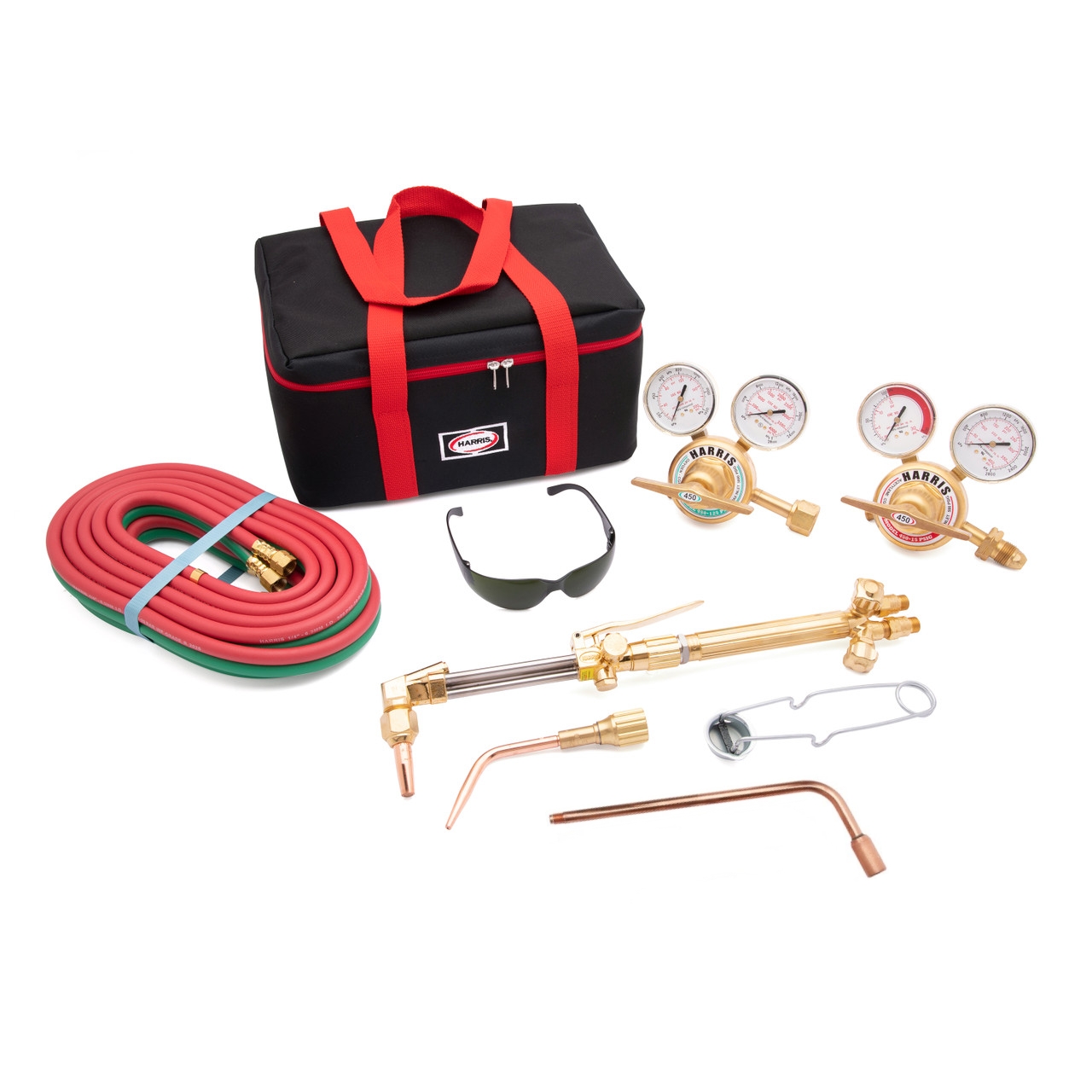

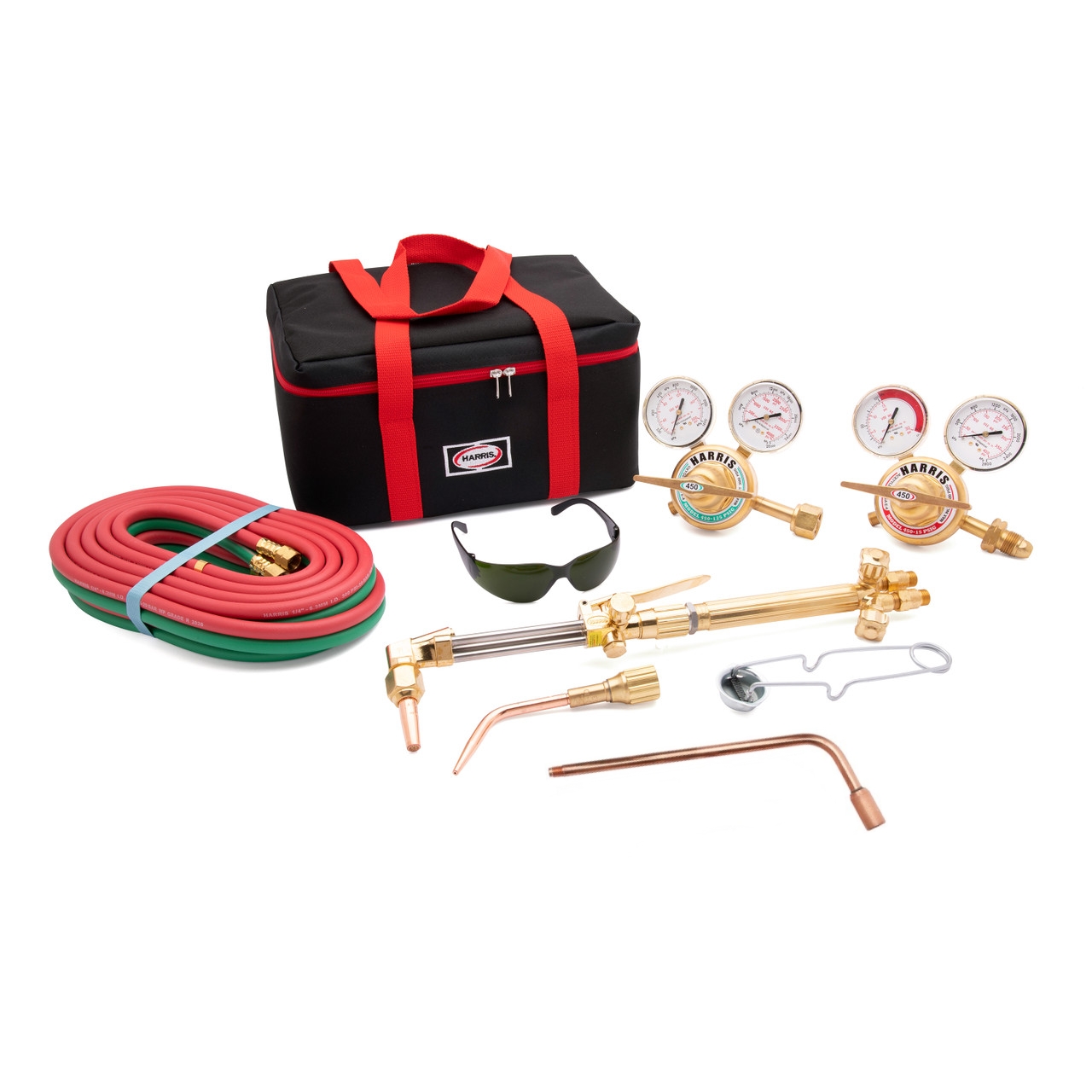

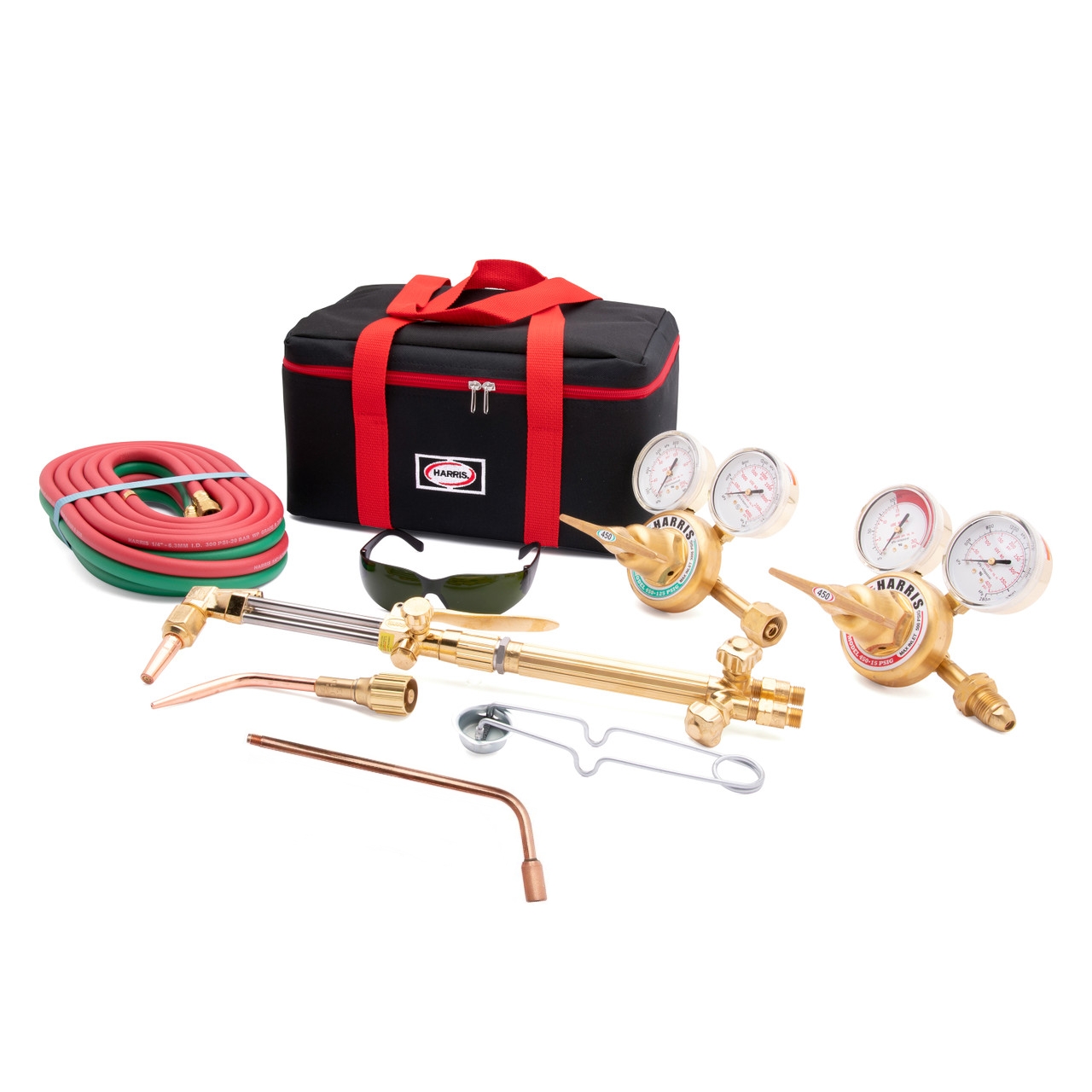

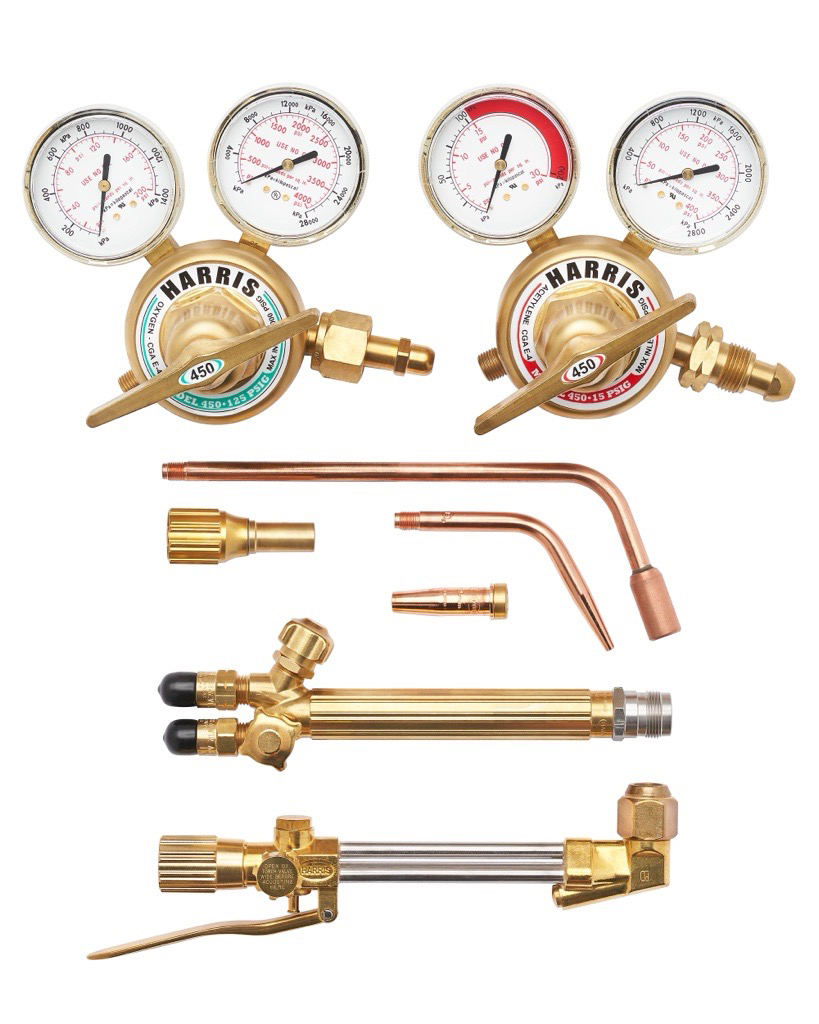

WHAT'S INCLUDED
- Model 450-15-510 Fuel Gas Regulator - 3002494
- Model 450-125-540 Oxygen Regulator - 3002497
- Model 43-2 Torch Handle - 1401150
- Model 73-3 Cutting Attachment - 1300340
- Model E-43 Mixer Assembly - 9100312
- Model 6290-1AC Cutting Tip - 1502172
- Model 23A90-5 Welding Tip - 1600890
- Model J-63-3 Heating Tip - 1800730
- 1/4 in. x 20 ft. Twin B & B R-grade Oxy-Acetylene Hose - 4300591
- Safety Glasses Shade 5 - 4303629
- Handheld Ignitor - 9004486
- Harris Insulated Tool Kit Bag - 8855094
- Trilingual Kit Manual - 9505643
- Tip Chart - 9500593
