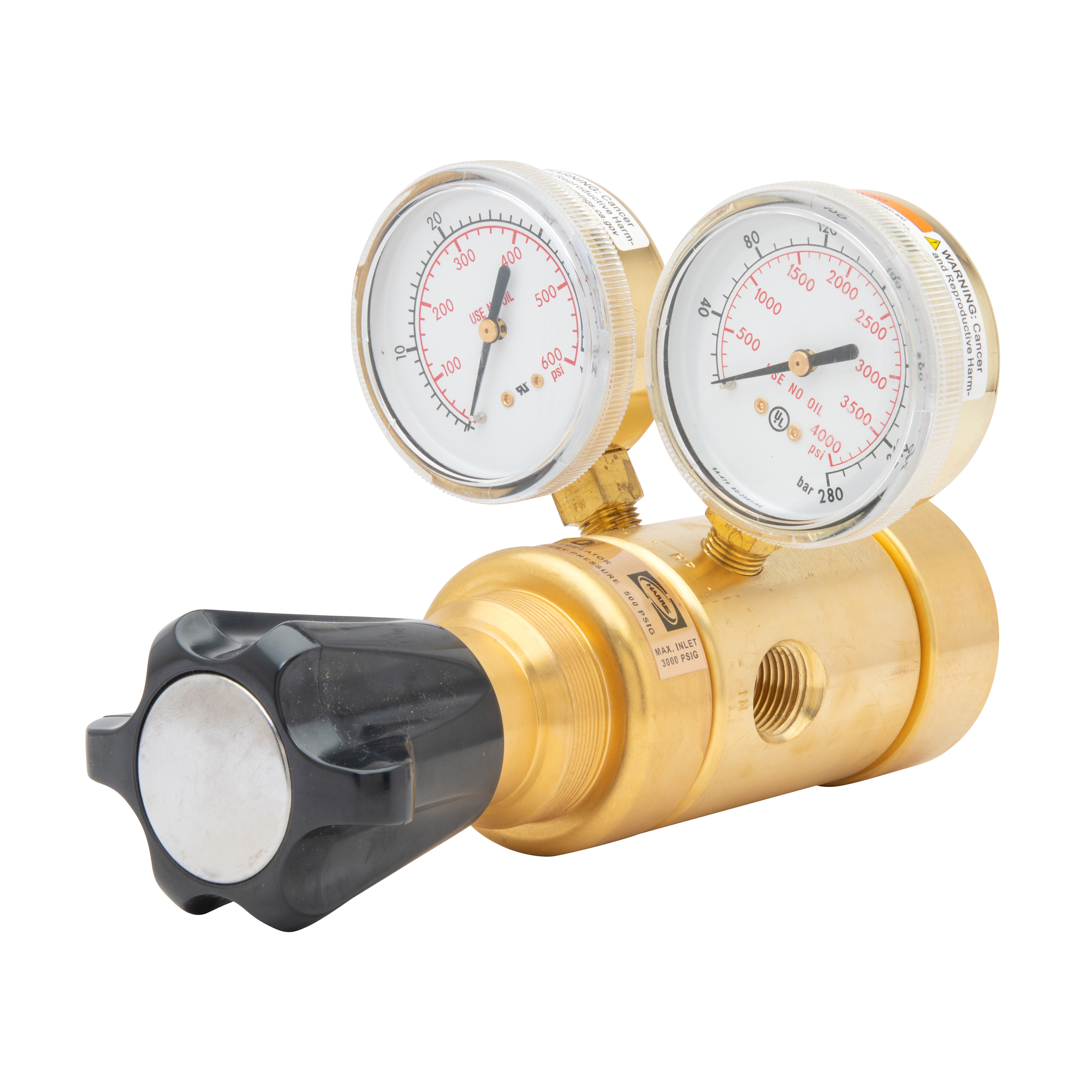

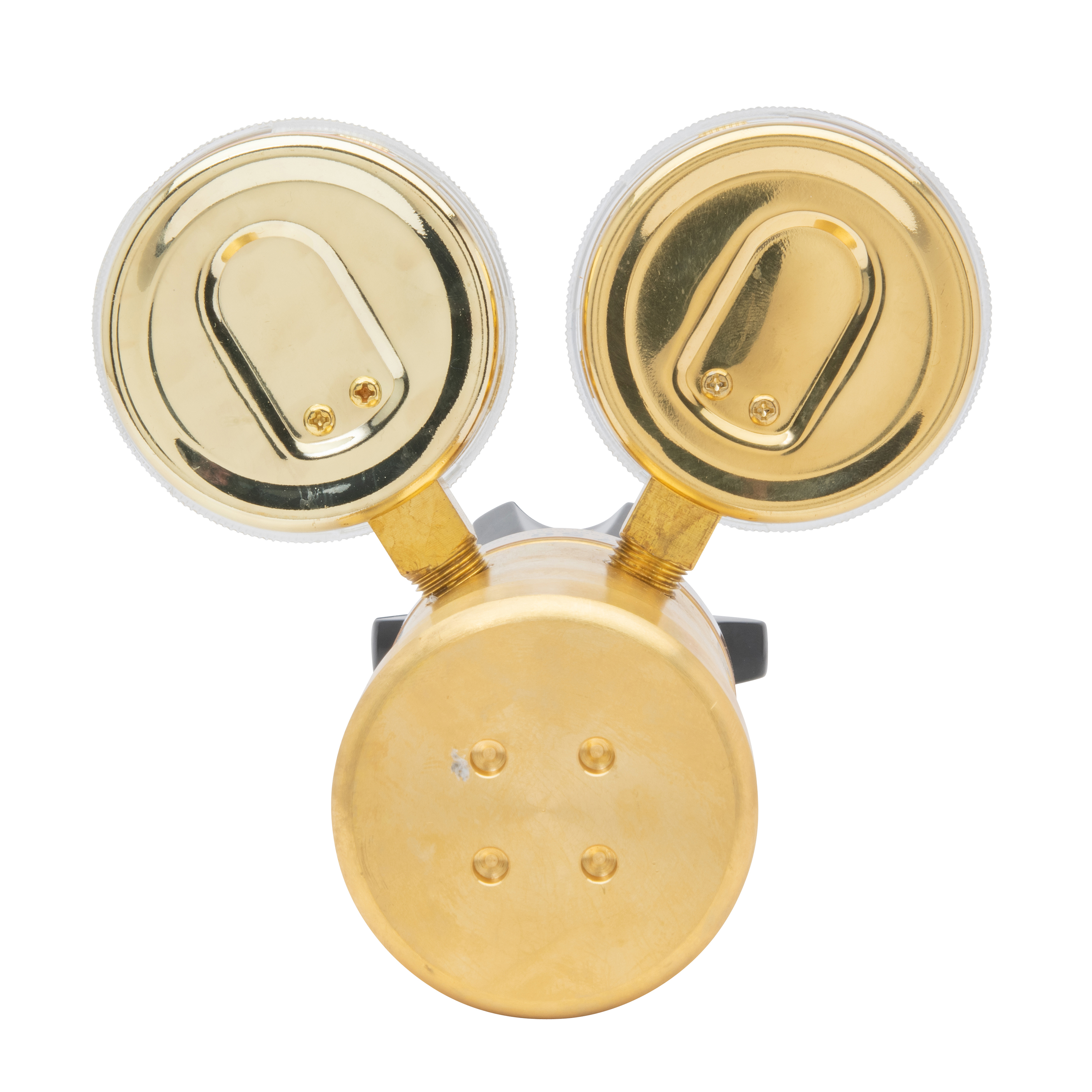

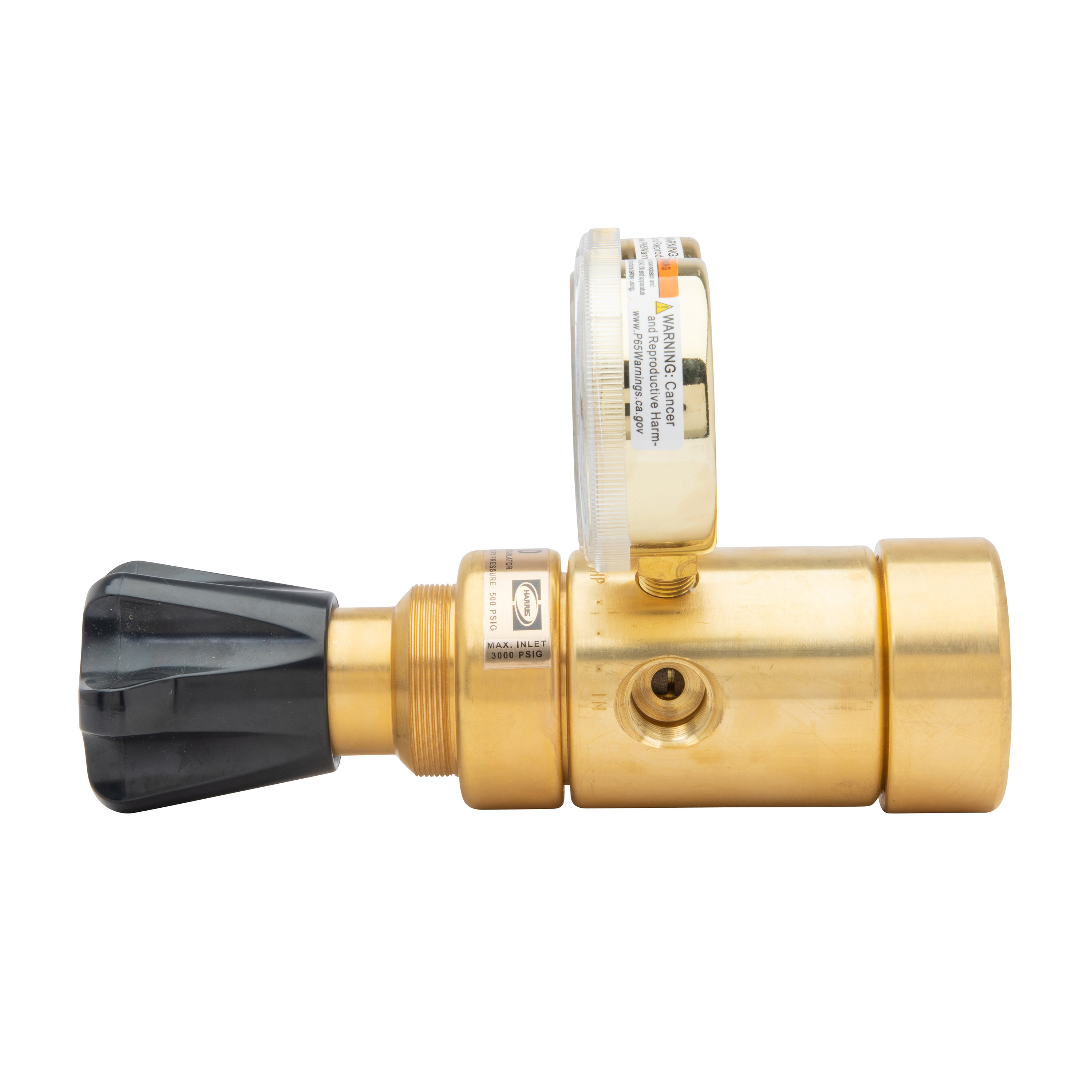

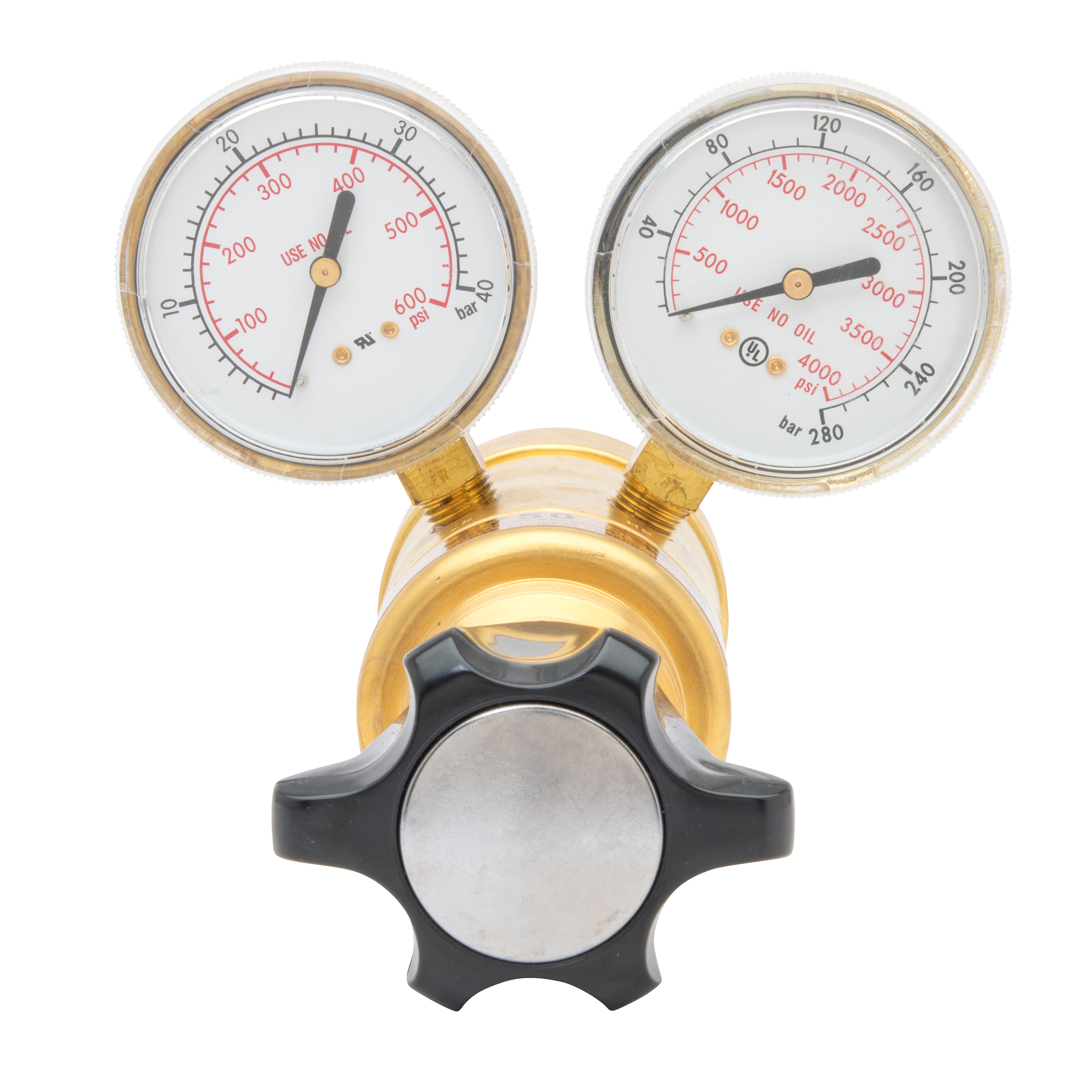

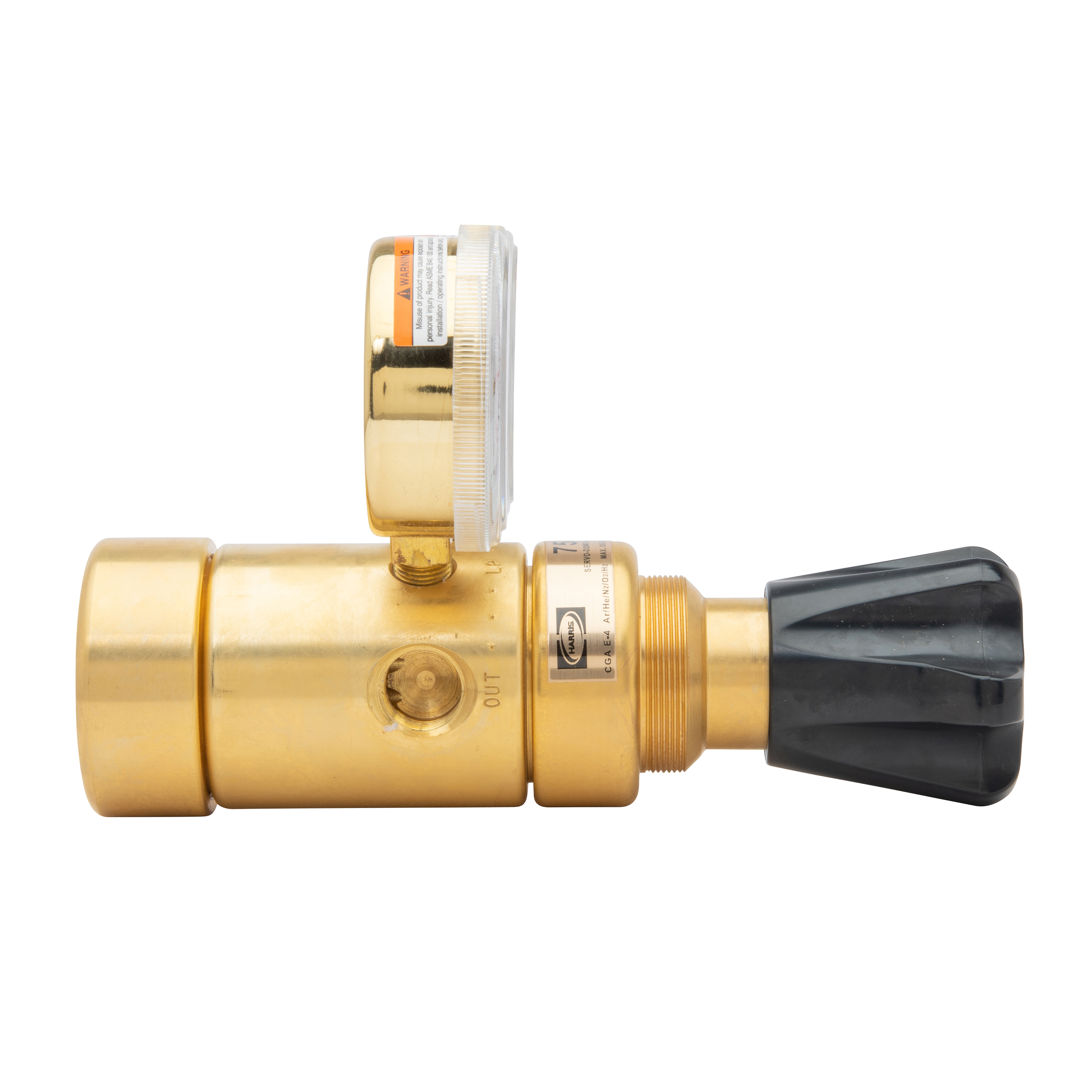

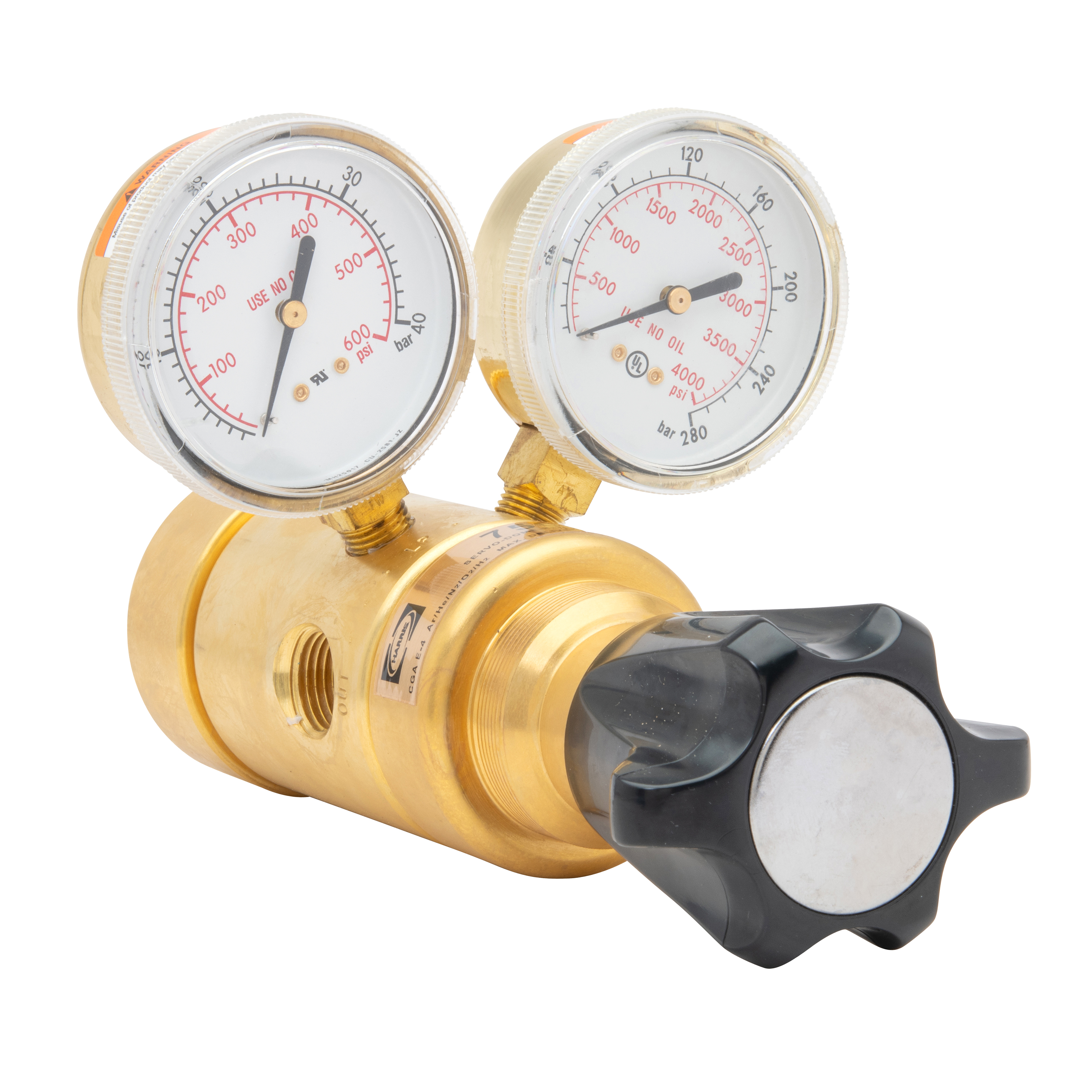

Harris HP750-500-3000 Single-Stage Servo-Dome Non Corrosive Gas Regulator
Model HP750-250 constant pressure, high flow dome loaded regulator for use with non-corrosive gas
Model HP750 series is a high pressure, high flow regulator system. The key to the performance of this regulator is the servo-dome load technology where the pilot light and dome regulator are integrated into one body with no external tubing. The servo-dome load features allow the regulator to supply high flow rates with straight line pressure regulation. Typical applications include high flow laser assist gases, pressure transfer, blanketing and high flow manifolds and lasers. This model features brass barstck body, bonnet and dual scale gauges, a one-piece encapsulated seat design with 10 micron filtration and PTFE Teflon® seat and tamper proof, self-reseating internal safety valve.
Features
- Servo-dome load technology allows regulator to supply high flow rates with straight line pressure regulation
- Automatically adjusts the regulator as the cylinder pressure declines providing steady outlet pressure and flow rate without user adjustment
- Ergonomic Noryl plastic knob for easy grip and precise adjustment
- Brass barstock body and bonnet for longer service life
- Neoprene diaphragm for better pressure control
- 2.5" Brass dual scale (psi/bar) easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
- Tamper-proof, self-reseating internal safety valve
- Conforms to CGA E-4 standard for gas pressure regulators
Specifications
Equipment
| Adjusting Knob | Noryl plastic |
| Body | Brass barstock |
| Bonnet | Brass barstock |
| Capacity | High flow Constant pressure |
| Certification | CGA E-4 |
| Cv | 0.55 |
| Delivery Pressure Gauge (PSIG) | 600 |
| Delivery Pressure Range (PSIG) | 0 - 500 |
| Diaphragm | Teflon®-coated nylon reinforced neoprene |
| Equipped With | Tamper proof, self-reseating internal high pressure safety valve |
| Filter | Nickel-plated sintered bronze - 10 micron |
| Gas / Gas Service | Non-Corrosive |
| Gauges | 2.5 in. brass dual scale (psi/bar) |
| Inlet Connection | 1/2 in. NPT (F) |
| Maximum Inlet Pressure (PSIG) | 3000 |
| Nozzle | Brass |
| Outlet Connection | 1/2 in. NPT (F) |
| Pressure Regulation PSIG/100 PSIG | 0.5 |
| Recommended Items/Accessories | Bushing - 1/2 in. NPT (M) x 1/4 NPT (F) - PN 9005806 Panel Mount Kit - PN 9100887 Adaptor - 1/2 in. NPT (M) x 1/4 in. NPT (F) - PN 9005806 Cylinder Adaptor Kits: CGA 540 - PN 9103615 CGA 580 - PN 9103616 |
| Seal | PTFE Teflon® |
| Seat | PTFE Teflon® |
| Supply Pressure Gauge (PSIG) | 4000 |
Warranty
| Warranty | 1 Year |
