Handheld Controller Programmer OEM Dealer Level for Curtis 1313-4331 1313-4401

Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide
$329.99
Warranty
2 Year
Size
189 x 100 x 37(mm)
Manufacturer Part Number
1313-4331
Compatible Model
1313-4331, 1313-4431, 1313-4401, 1313-3301, 1313-2201, 1313-1101
Package Included
Handheld Programmer,4-Pin Molex Cable,DB-9 Cable,USB Cable,Case
Brand
Mr. Yang
Unit Type
Unit
Compatible Make
Bad Boy Buggies, Club Car, Columbia, Cushman, E-Z-GO, Harley-Davidson, Tomberlin, Yamaha, Curtis
Compatibility
Fits for All Curtis Controller
Unit Quantity
1 Set
Compatible Year
2024, 2023, 2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009, 2008, 2007, 2006, 2005, 2004, 2003, 2002, 2001, 2000, 1999
Fit Models
Curtis Programmable Controller
Package Size
270 x 180 x 150(mm)
Part Type
Handheld Programmer
condition
New
Handheld Controller Programmer OEM Dealer Level for Curtis 1313-4331 1313-4401

Product Description

Model numbers (four access levels):
      1313-4401 OEM programmer
      1313-3301 Dealer programmer
      1313-2201 Service programmer
      1313-1101 User programmer
  • Latest Upgrade 1313K-4401
  • The 1313 handheld programmer is used to configure motor control systems. With the programmer, you can adjust and save parameter settings, monitor real-time data, and perform diagnostics and troubleshooting.
  • The 1313 handheld programmer is a powerful and intuitive programming and diagnostic tool. It enables parameter files to be created and edited online or offline, transferred to another controller for cloning, or saved onto a PC or SD card.

FEATURES:
  • Large high resolution color display shows multiple parameters simultaneously for quick adjustment.
  • Backlight for easy viewing in low-light environments.
  • Cloning feature and 64 Mb internal memory allows multiple parameter files to be stored in the Handheld Programmer making it easy to transfer settings to other vehicles.
  • Advanced troubleshooting capabilities for all vehicles that use programmable motor controllers or control systems.

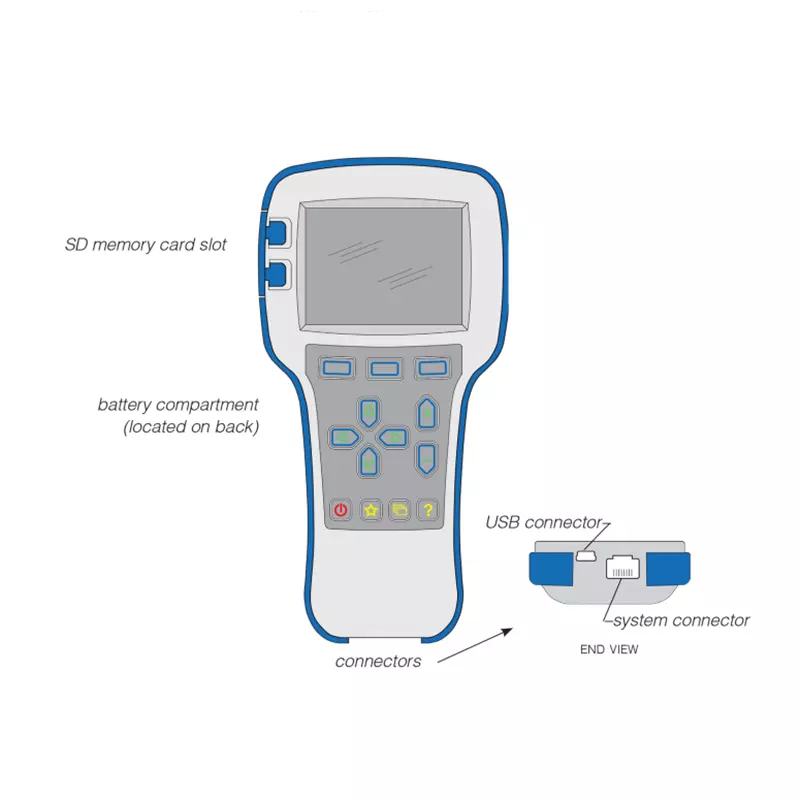

  • AA Battery compartment allows programs to be edited without having to be connected to a system.M
  • ultiple language support includes English, German, Spanish, French, and Italian.
  • Monitoring function allows real-time viewing of controller activity.
  • Icon based graphical user interface allows for quick and intuitive menu navigation.
  • Dedicated buttons for “help” and “favorites” provide for direct access to commonly used features.
  • Soft Keys (located under the LCD) change function as indicated by screen text to provide quick access to the most commonly used functions.
  • Comprehensive help text offers solutions and information at the touch of a button.

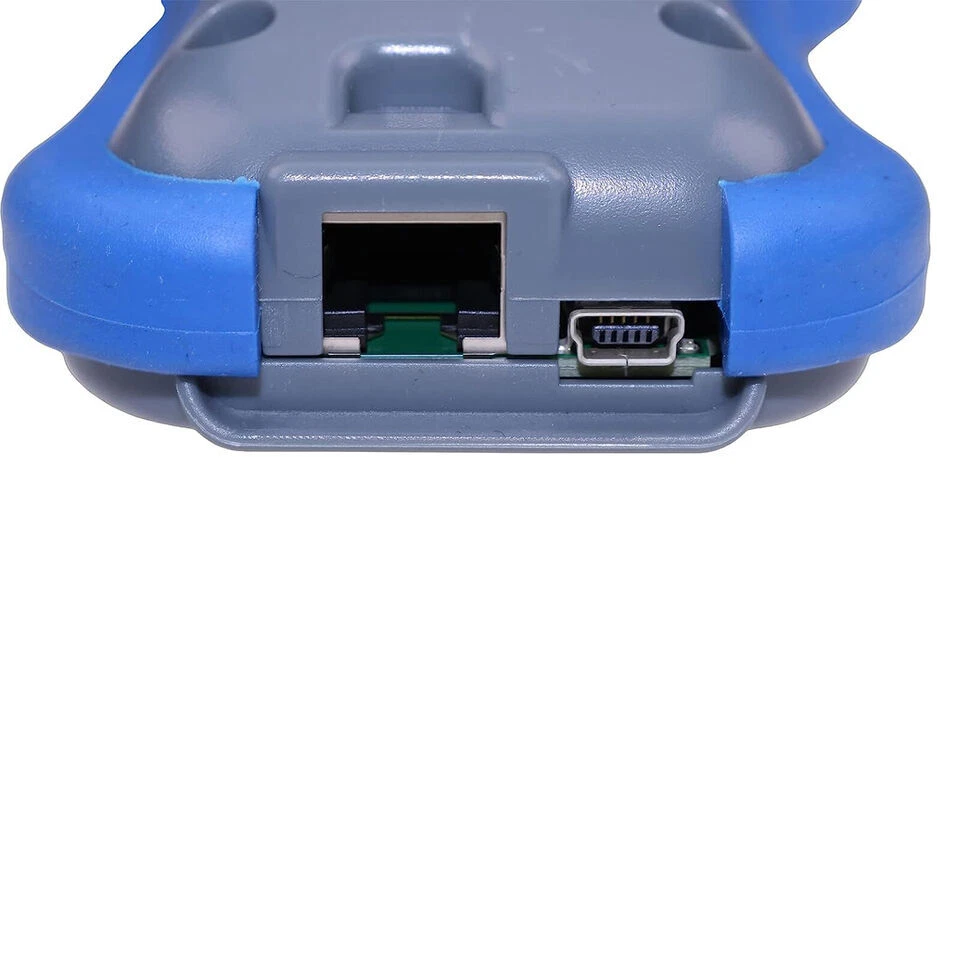

  • Easily upgradeable via USB to ensure compatibility with future products and features.

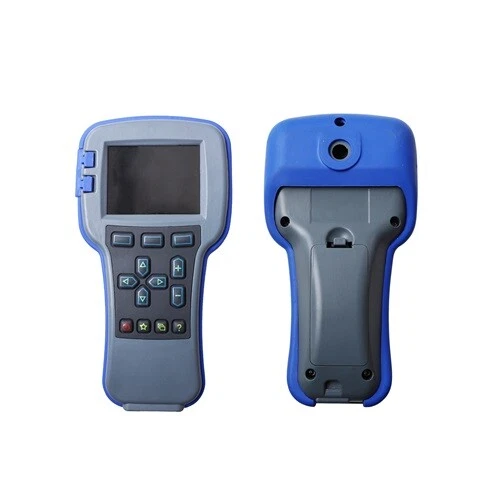

  • The Model 1313 programmer is easily portable, with a tough rubber protective perimeter strip.
  • Programming kit comes complete with handheld programmer, Molex cable, zippered case, quick start guide.

SPECIFICATIONS:
  • Model: 1313-4401
  • Access level: OEM programmer
  • Operating ambient temp. range: -20°C to 50°C (-4°F to 122°F)
  • Storage ambient temperature range: -40°C to 85°C (-40°F to 185°F)
  • Package environmental rating: IP53 (with programmer cable plugged in and SD-card cover closed)
  • Weight: 0.27 kg (0.6 lb)

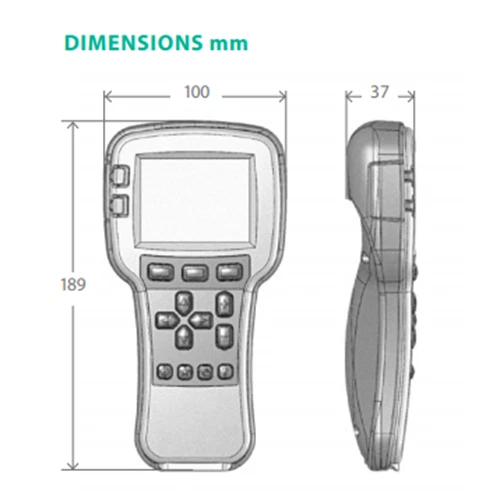

  • Dimensions (L×W×H): 190 × 100 × 36 mm (7.5" × 3.9" × 1.4")
  • Regulatory compliance: RoHS.

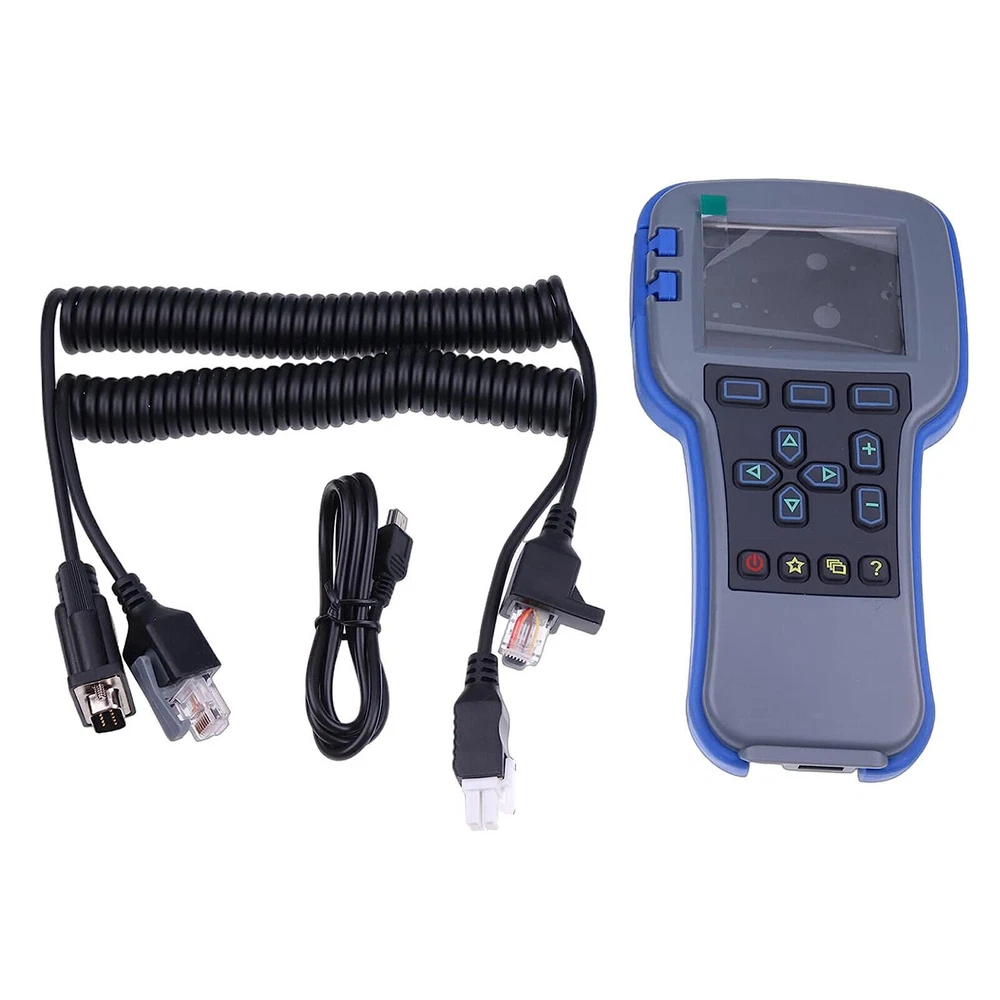

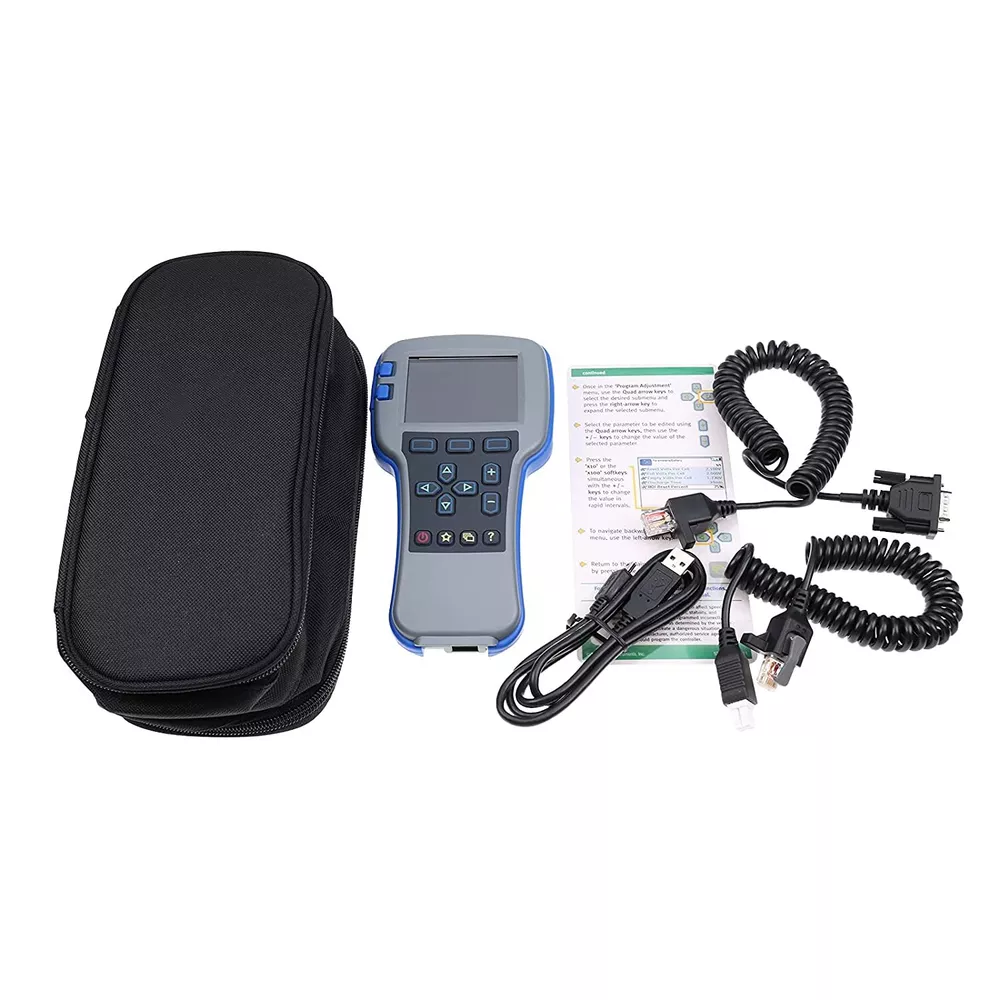

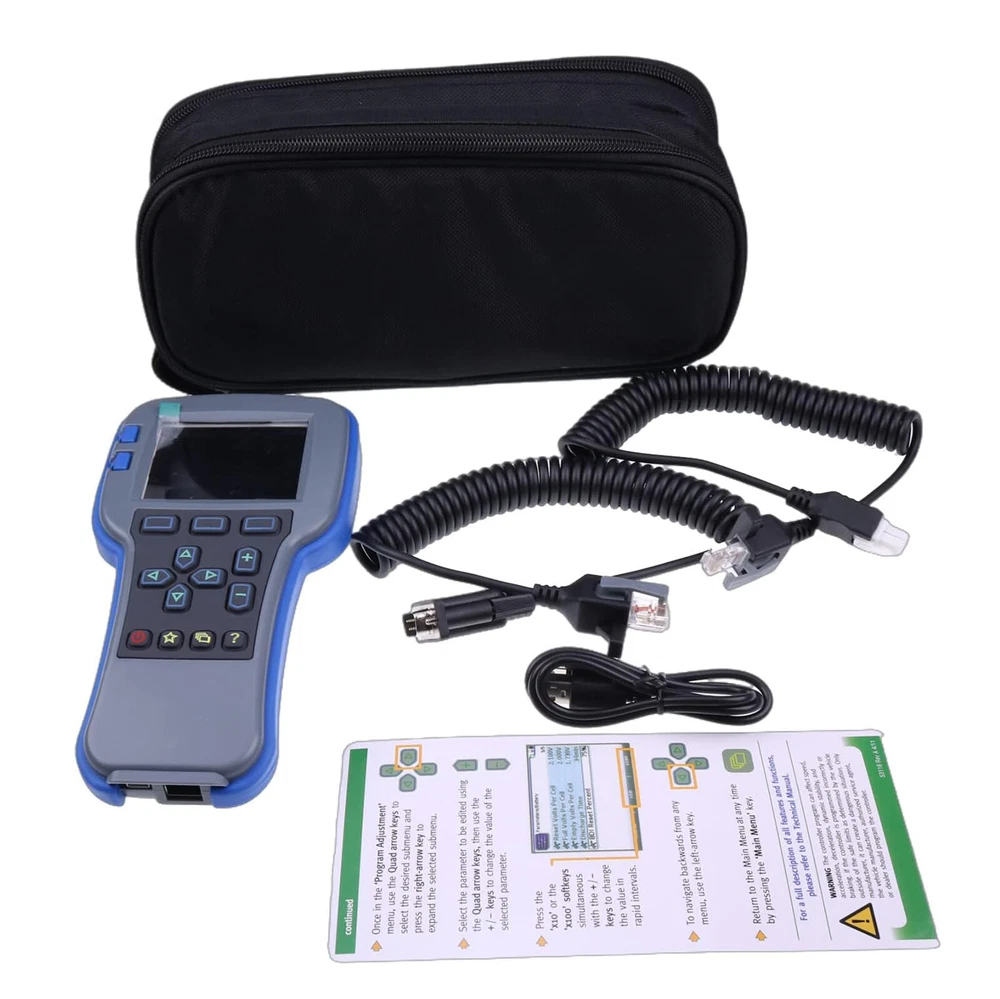

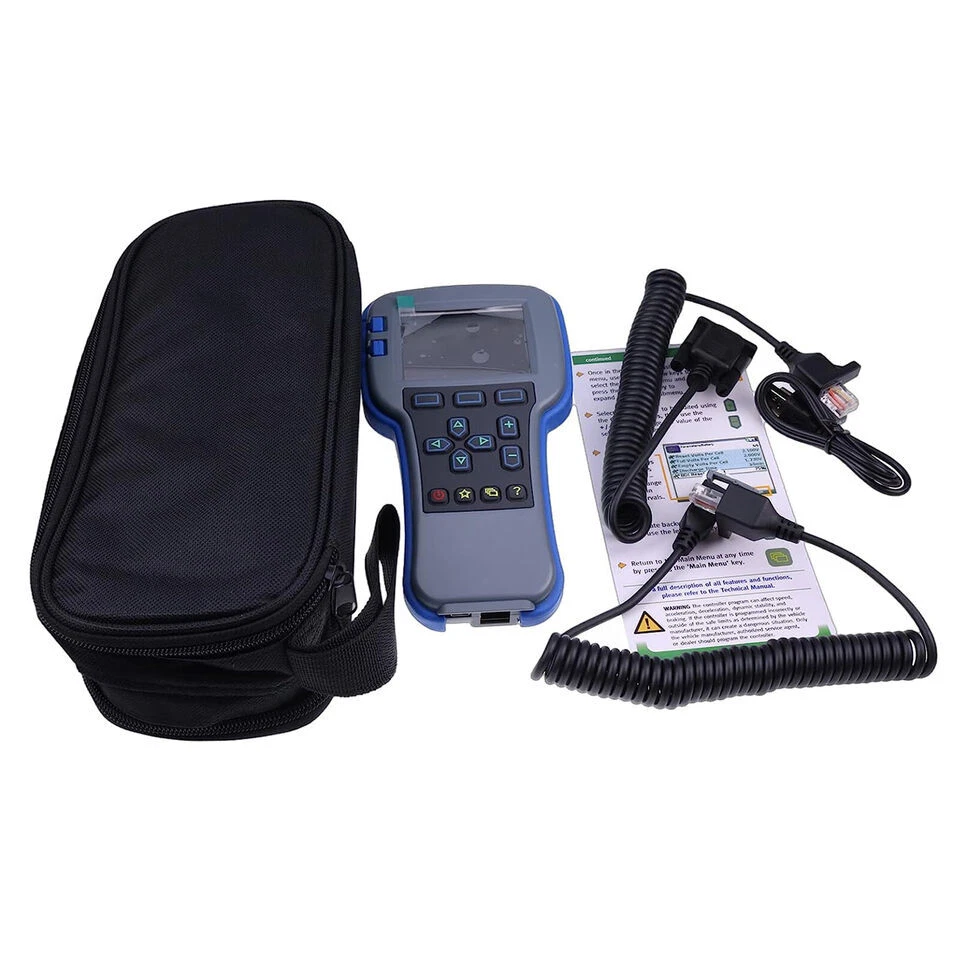

Package Included:
1 x handheld programmer

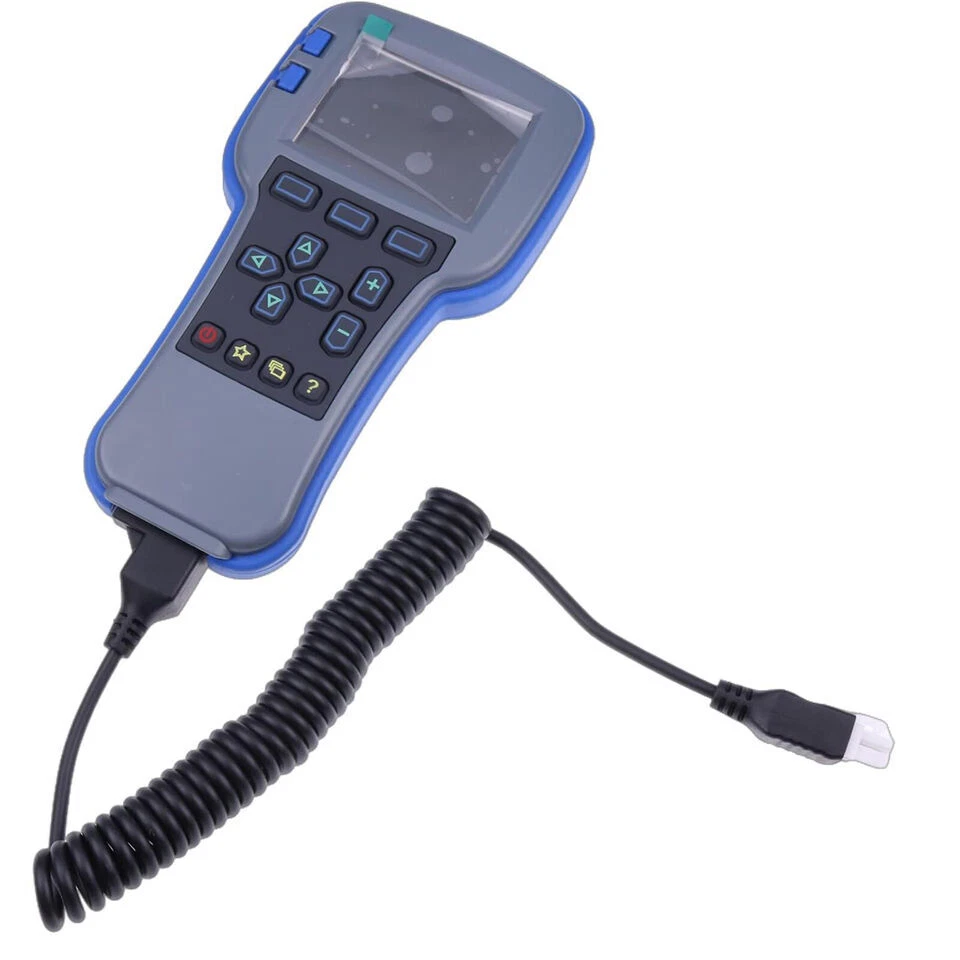

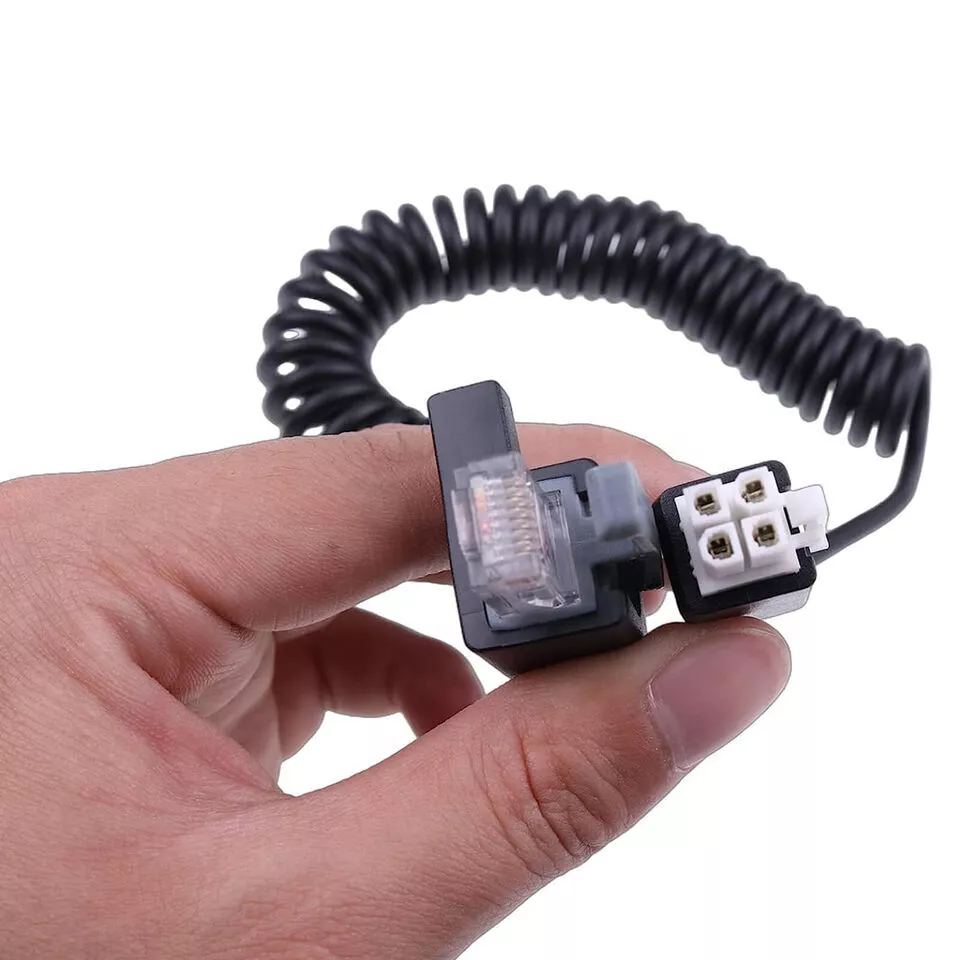

1 x 4-pin Molex cable
1 x DB-9 cable
1 x USB cable
1 x case
1 x quick start guide
