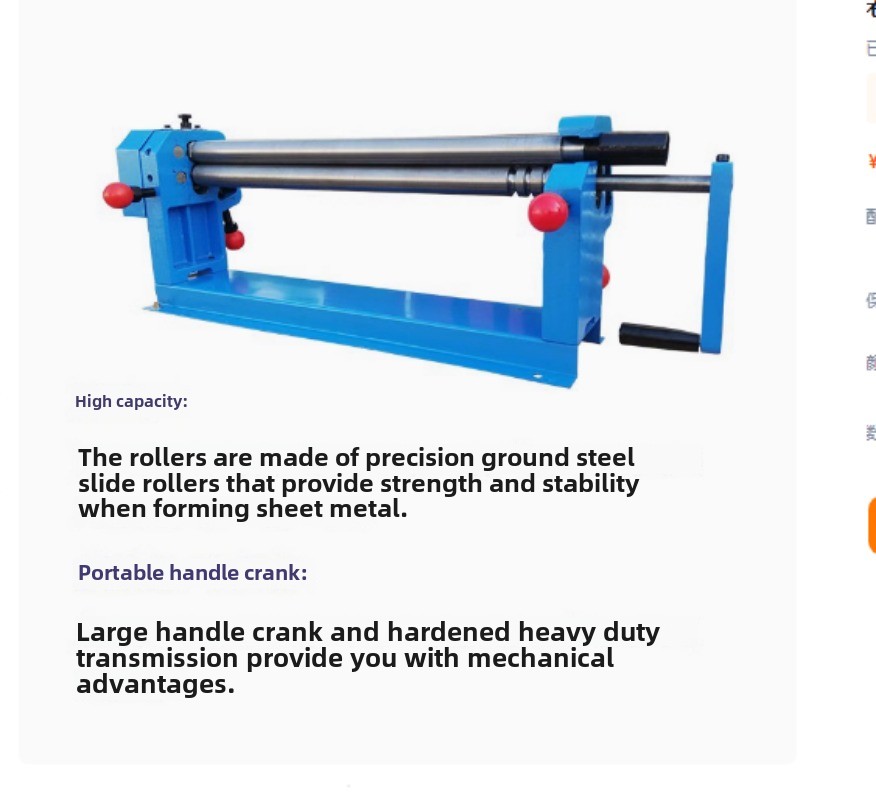

610MM Slide Roller Machine
Easily mounted on a sturdy workbench, the Slide Roller provides strength and stability for sheet metal forming. The rolls feature adjustable knobs that allow the operator to adjust the spacing between the rolls to control the radius at each end and to accommodate different thicknesses of sheet metal.
The sliding roll is made of precision ground steel and can be easily mounted on a sturdy table to provide strength and stability for sheet metal forming. It is manually operated and can be used for metal forming of sheet metal up to 610 mm wide x 1.2 mm thick.
Easy manual operation
The large handle crank and hardened, heavy-duty gears give you the mechanical advantage of being able to roll mild steel up to 16 gauge. Easily mounted to the workbench.
Two Removable Rolls
The upper shaft of our slide roll machine can be easily pulled out to remove the finished workpiece. Two removable rolls with wire slots. 3 wire slots. Minimum roll diameter: 1.5 inches.
Adjustable roll radius
Rolls have adjustable knobs that allow the operator to adjust the spacing between the rolls to control the end radius and accommodate different thicknesses of sheet metal. Precision adjustment screws for upper and lower front rolls.

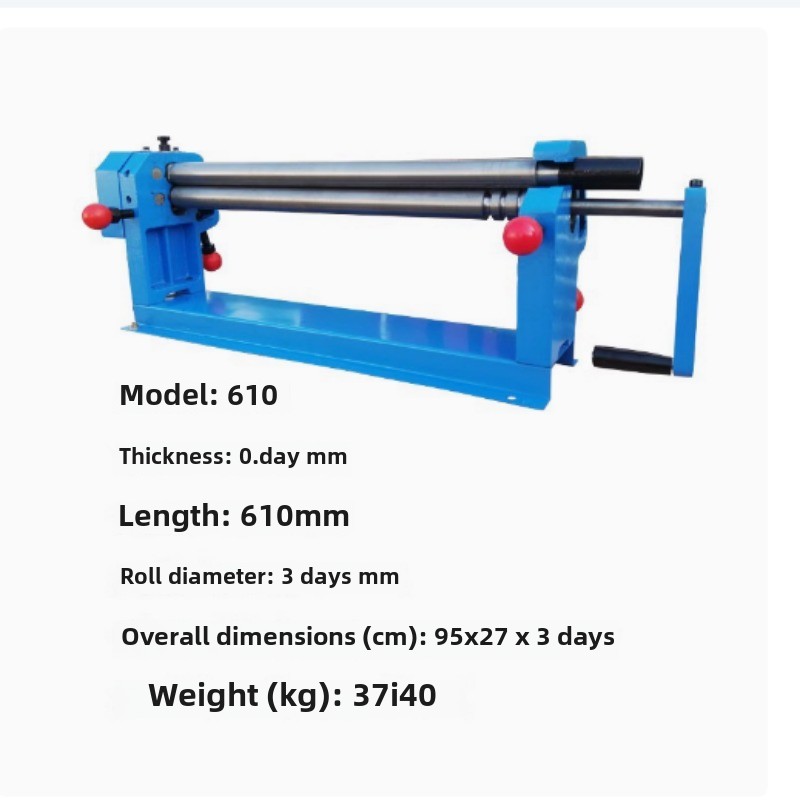

Maximum width: 610 mm
The 610 mm Sliding Roller creates constant radius bends i n up to 16 gauge sheet metal. This sliding roll machine is the best choice for roll forming of sheet metal up to 610 mm.
