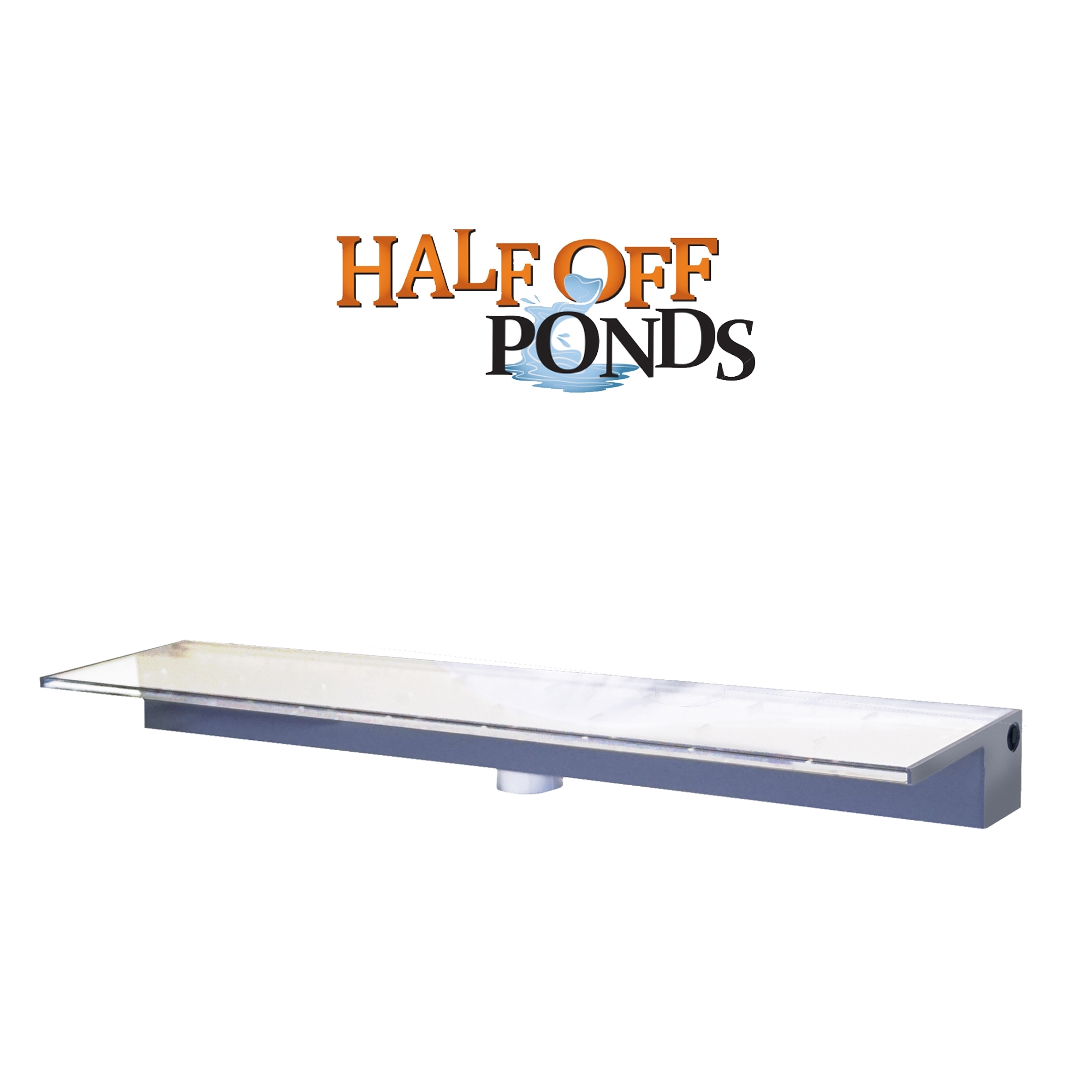

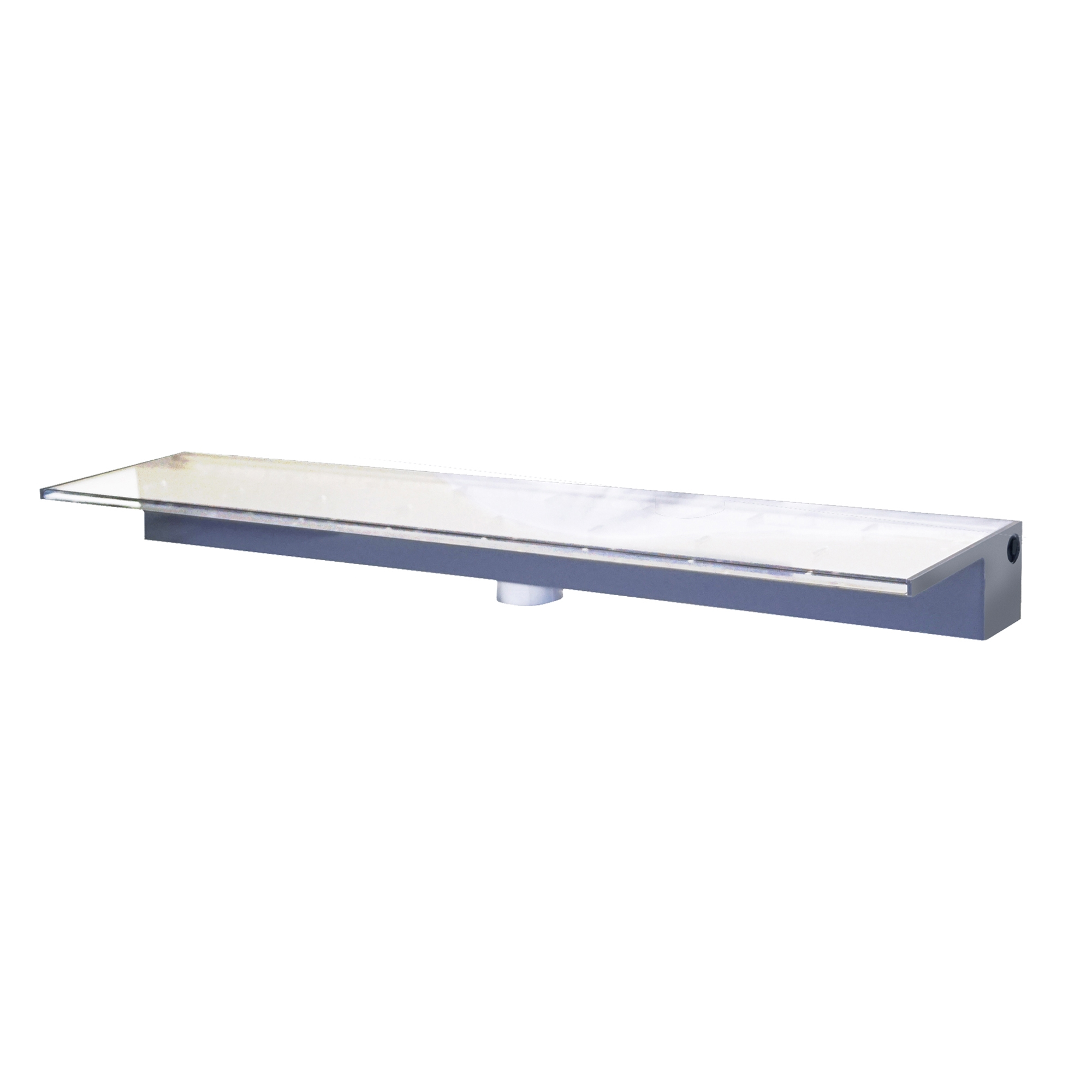

Half Off Ponds Sheer Elegance 36" Acrylic Spillway - SE36
- Strong Acrylic construction for ease of use in multiple installation types.
- Perfect for wet walls, formal falls, privacy walls, patio fountains, and indoor waterfall applications
- Upgrade to color-changing lighted version and be able to power lights on and off, control brightness, color selection and color changing speed.

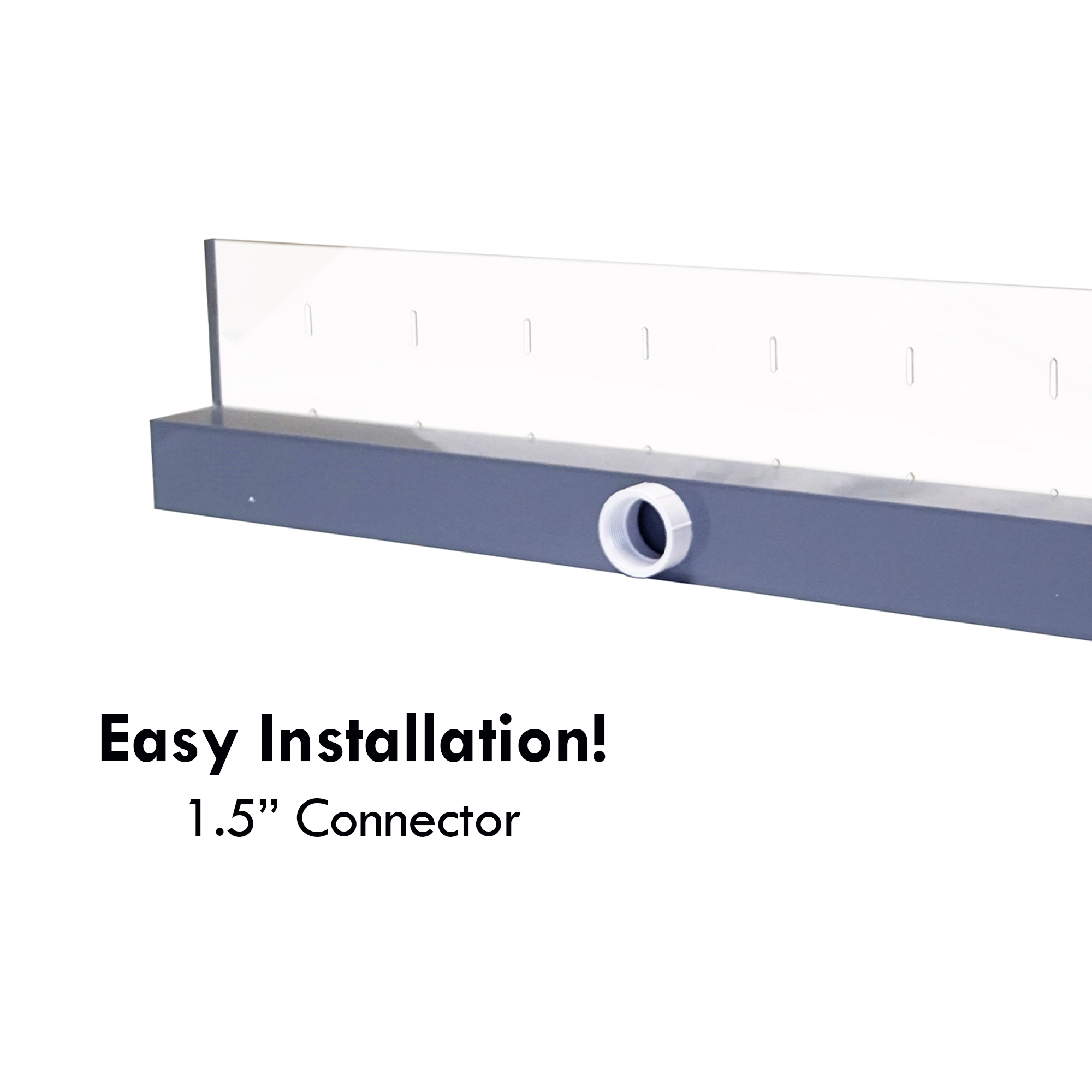

- Water inlet is 1.5" Female Thread Located In Center on spillway box bottom
- Backed by a 1-Year Manufacturer's Warranty!
- Recommended Height: 30" max

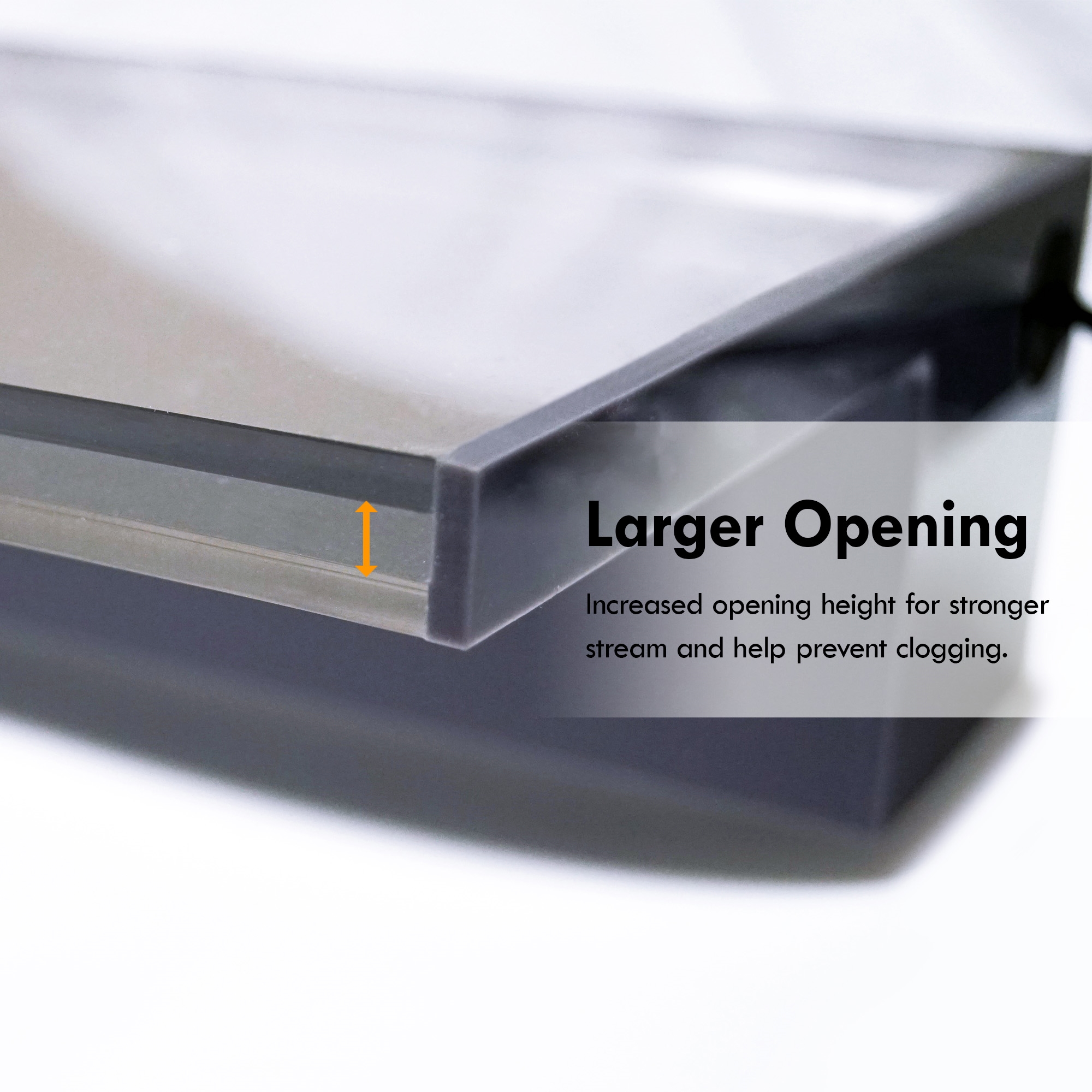

The spillway is constructed from 2 sheets of clear acrylic spaced approximately 3/16" apart. This tight outlet produces a beautiful sheer water effect. Special note: Sheer Elegance Lighted Spillways are typically used in wet walls and formal falls applications where debris is at a minimum.
They are generally not used in fish ponds where water-borne debris such as fish waste and algae may clog the spillway. Additional filtration will be required when Sheer Elegance lighted spillways are used in Koi ponds, water gardens or pondless waterfalls.
The additional required filtration can be easily achieved by using a pre-filter such as an external pressure filter. Please feel free to call or email us with questions regarding your application; we're happy to help!
Half Off Ponds Sheer Elegance 36" Acrylic Spillway - SE36
- Strong Acrylic construction for ease of use in multiple installation types.
- Perfect for wet walls, formal falls, privacy walls, patio fountains, and indoor waterfall applications
- Upgrade to color-changing lighted version and be able to power lights on and off, control brightness, color selection and color changing speed.
- Water inlet is 1.5" Female Thread Located In Center on spillway box bottom. We recommend 1000 GPH per foot of spillway length for proper flow
- Backed by a 1-Year Manufacturer's Warranty!
FAQs & Calculations to Help Select the Correct Kit
1. How Many Gallons of Water does My Water Feature Hold?
Rectangular Ponds
Length x Width x Average Depth x 7.48 = Gallons
Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Oval Ponds
Length x Width x Average Depth x 0.8 x 7.48 = Gallons
Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Round Ponds
Length x Width x Average Depth x 7.48 =Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Streams
Length x Width x Average Depth x 0.25 x 7.48 = GALLONS =Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
2. How Big of a Pump Do I Need??
Minimum pump size is determined by pond type, water volume, head height and friction loss. The minimum pump size recommendations are:
Water Garden, Few Small Goldfish
Circulate total pond water valoume every 2 hours.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Fish Pond, Several Small Fish
Circulate total pond water valoume every 1 hour.
Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.
Koi Pond, Several Large Fish
Circulate total pond water valoume every 3/4 hours.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Calculating Head Height
Dynamic head pressure is found by taking the vertical height of your waterfall; the distance between where your pump is (typically in the skimmer) and where your waterfall is, and adding the static head pressure (pipe and fittings) 1’ for every 10’ of tubing and 1’ for every elbow or “T” fitting.
Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure
Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.
Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure
Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.
3. What Size Tubing Do I Need?
| Tubing Size | Efficiency GPH | Minimum GPH | Maximum GPH |
|---|---|---|---|
0.5” |
< 300 |
60 |
420 |
0.75” |
< 720 |
300 |
900 |
1” |
< 1,200 |
700 |
1,500 |
1.25” |
< 1,600 |
900 |
3,200 |
1.5” |
< 2,600 |
2,000 |
4,400 |
2” |
< 4,800 |
3,000 |
6,800 |
3” |
< 9,000 |
6,000 |
14,000 |
4” |
< 21,000 |
14,000 |
28,000 |
6” |
< 42,000 |
33,000 |
60,000 |
