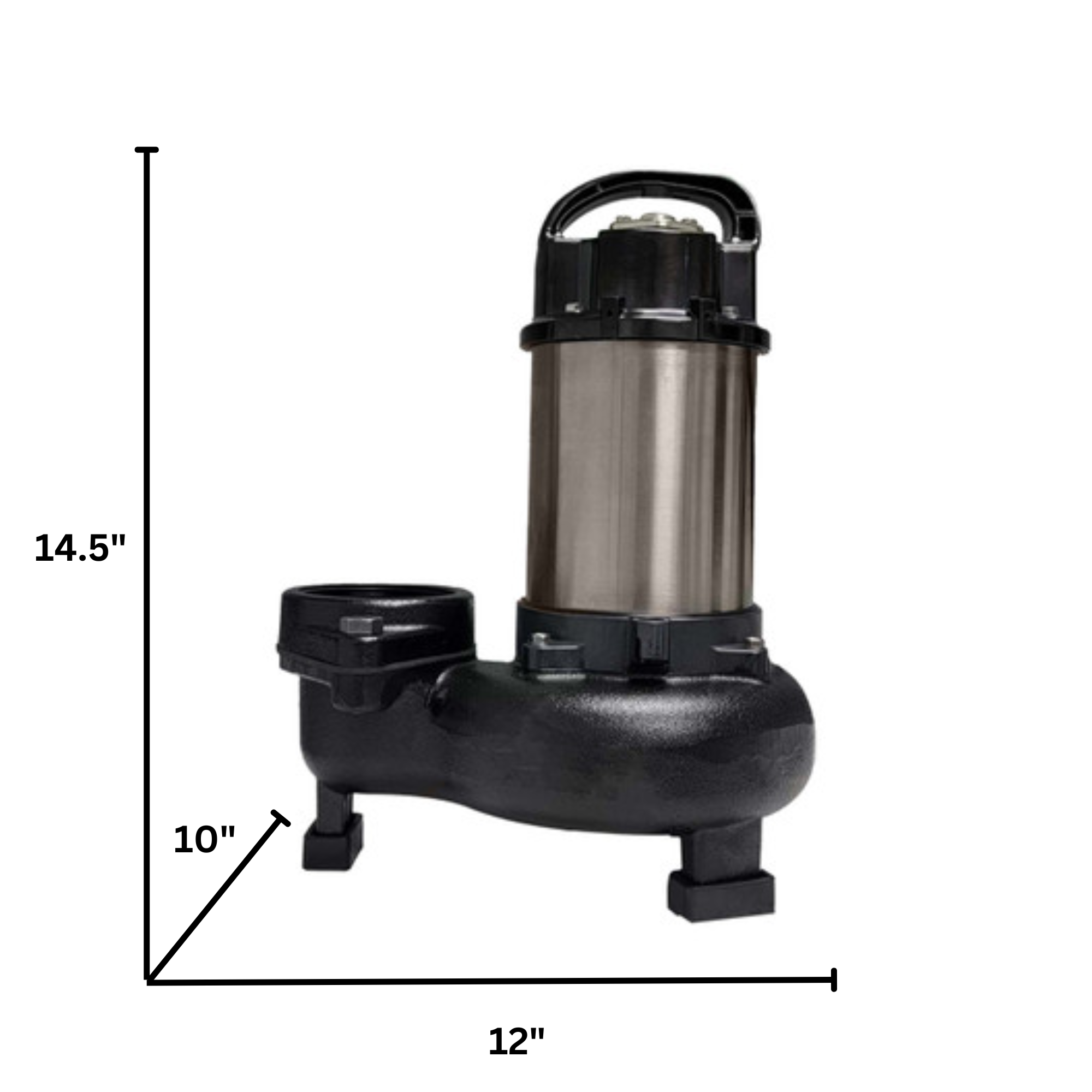

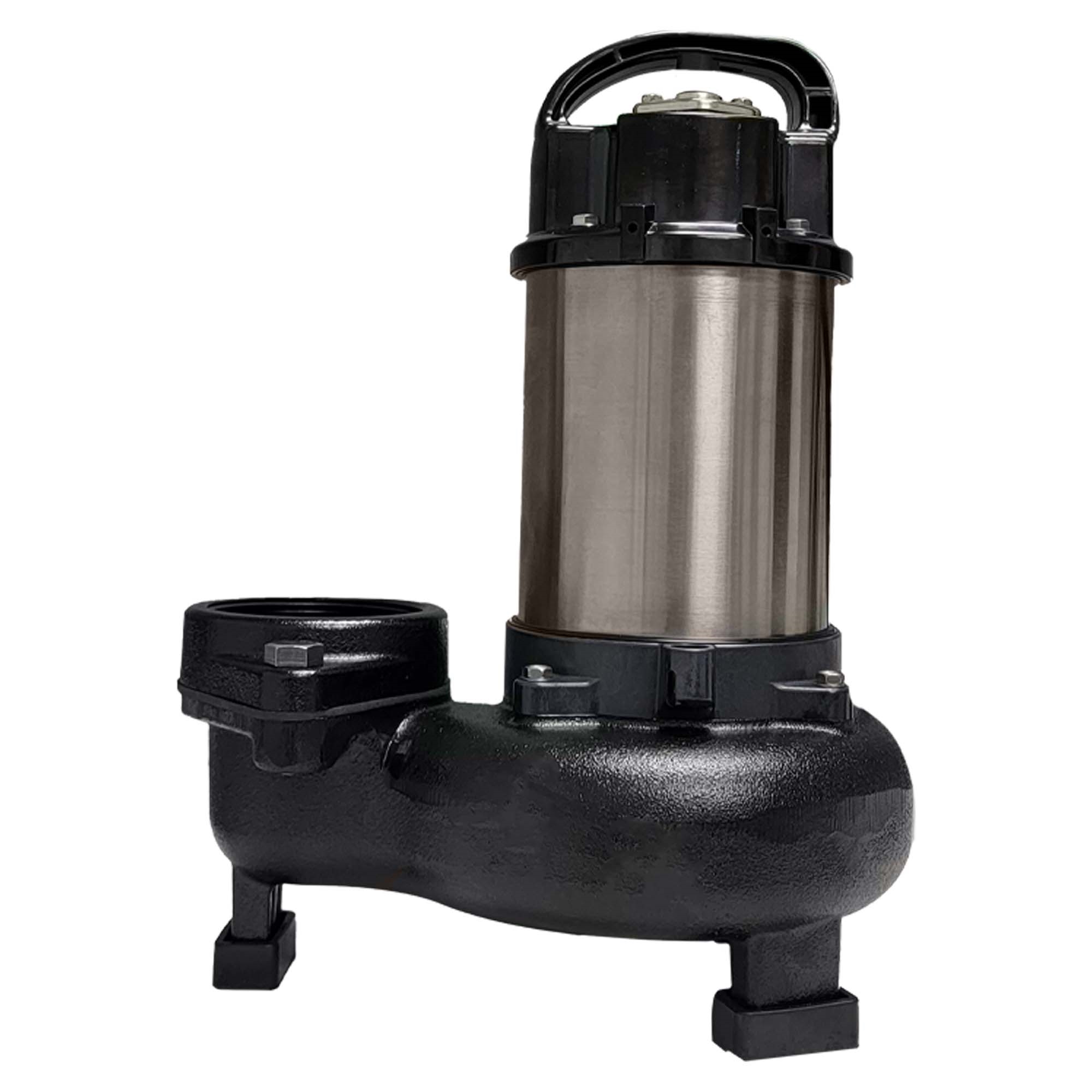

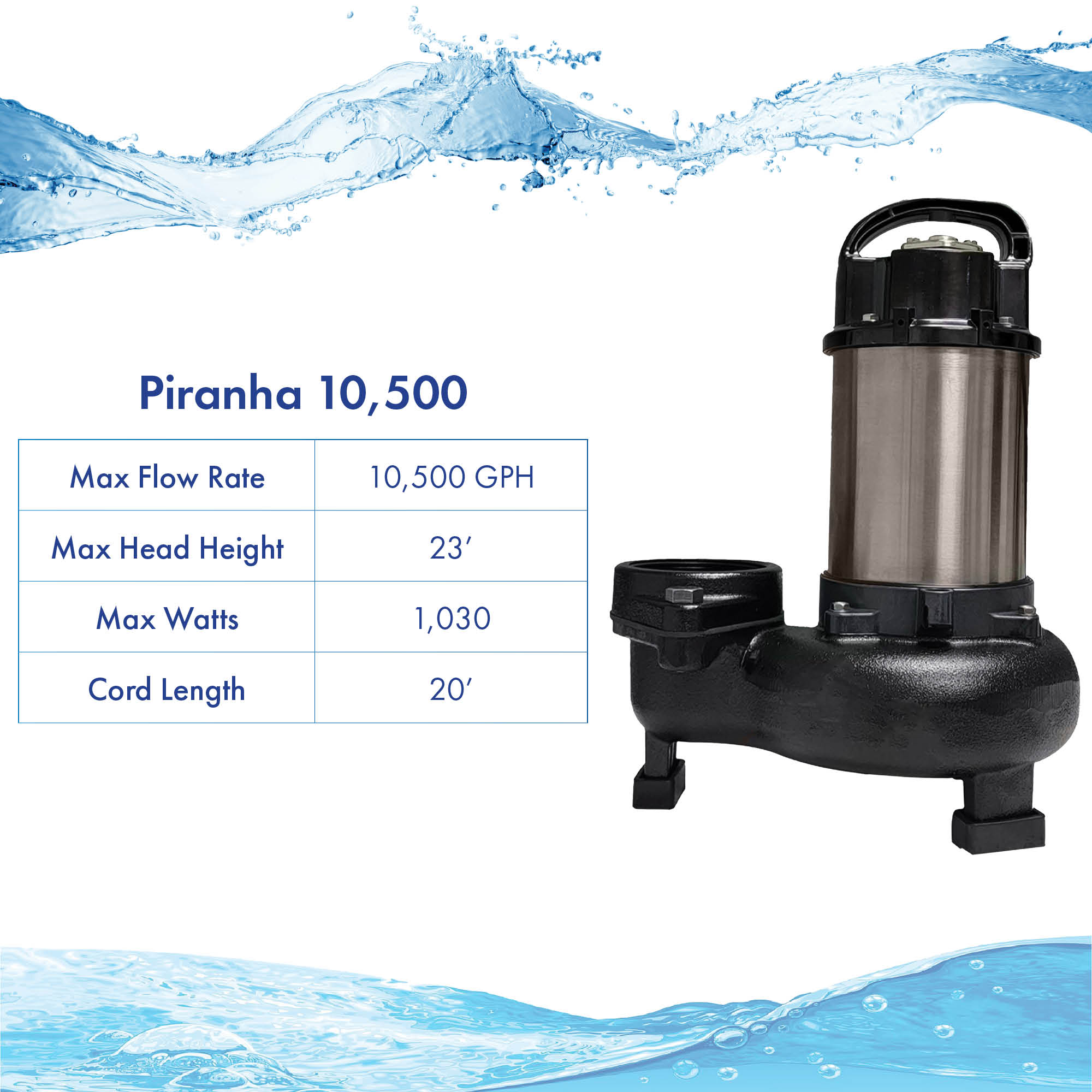

Half Off Ponds Piranha Pump - 10,500 GPH Pond and Waterfall Pump - PN-10500

$622.25
Type
Submersible Pump
Brand
HALF OFF PONDS
Water Type
Pond, All Water Types
Features
Easy Installation, Safe for Fish, Submersible
Item Height
15 in
Item Width
8 in
Mounting
Freestanding
Material
Stainless Steel
Assembly Required
No
Item Weight
32 lb
MPN
PN-10500
Power Source
Electric, Corded
Number in Pack
1
Suitable For
Ponds, Aquarium, Koi Ponds
Maximum Flow Rate
10,500 GPH @ 0 ft. Head
Color
Stainless Steel
Voltage
120 v
Maximum Head Lift
23 ft
Power
1030 w
Country/Region of Manufacture
China
Labels & Certifications
CE-Approved, TÜV-Certified
Manufacturer Warranty
2-Year Manufacturer's Warranty
OEM Equivalent Part Number
PN-10500
Item Type
Pond Pump
Product Type
Pond Pump
Cord Length
20 ft
Watts
1030
Pump Size
Piranha Pump
Hertz
60
Max Head Height
23 ft.
Volts
120
Output Diameter
3 in
Part Number
PN-10500
Recommended Hose Size
3 in
Max Flow Rate
10,500 GPH @ 0 ft. Head
Optimal Operating Range
5,000 GPH - 10,000 GPH
Pump Flow Rate
10500 GPH
Subject Area
Product Includes:<br> 10500 GPH Submersible Pump
UPC
658848584055
condition
New
<div style="color: rgb(0, 0, 0); font-family: "TW Cen MT"; font-size: medium; text-align: center; padding: 20px;"><div style="text-align: left;"><span style="font-family: "TW Cen MT"; font-size: 18px;">Why choose The Half Off Ponds Piranha Pump Series? The Piranha Pump Series is truly a best-of-breed submersible pump for water gardens, fish ponds and pondless water features.The high flow, high head energy efficient direct-drive technology is combined with superior stainless steel and reinforced fiberglass construction.<br /><br />The upright design, with a space-saving footprint, makes this pump ideal for skimmer and pondless waterfall installations. The intake screen prevents clogging, while the vortex impeller passes solids up to 1.25 inch. The direct drive motor provides years of life while providing the power needed to create heavy water flow.<br /><br />Manufactured with high-quality seals for long and efficient pump life. These pumps are excellent for fast flowing waterfalls and for features that have significant heights to overcome without losing volume.<br /><br />The Piranha Series is engineered for 24-hour continuous use and are equipped with an overload sensor that prevents a burnout. Contains mineral oil; completely safe for fish, wildlife and aquatic plants. Backed by a 2-year manufacturer's warranty!</span></div></div><div class="column3" style="color: rgb(0, 0, 0); font-family: "TW Cen MT"; font-size: medium; text-align: center;"><span style="font-family: "TW Cen MT";"><br /><div class="column1"><h3 style="text-align: center;"><span style="font-family: "TW Cen MT"; font-size: 22px; margin: 20px; padding: 40px;">Half Off Ponds Piranha Pump - 10,500 GPH Pond and Waterfall Pump - PN-10500</span></h3><ul> <li style="text-align: left;"><span style="font-family: "TW Cen MT";">High flow, high head energy efficient direct drive technology is combined with superior stainless steel and reinforced fiberglass construction.</span></li> <li style="text-align: left;"><span style="font-family: "TW Cen MT";">Upright design with space-saving footprint makes this pump ideal for skimmer and pondless waterfall installations with an intake-screen that prevents clogging.</span></li> <li style="text-align: left;"><span style="font-family: "TW Cen MT";">Direct drive motor provides years of life while providing the power needed to create heavy water flow. High quality seals for long and efficient pump life.</span></li> <li style="text-align: left;"><span style="font-family: "TW Cen MT";">Engineered for 24-hour continuous use, while a heat-overload sensor prevents a burnout, with a vortex impeller that passes solids up to 1.25"</span></li> <li style="text-align: left;"><span style="font-family: "TW Cen MT";">Contains no oil; completely safe for fish, wildlife and aquatic plants. Backed by a 2-year manufacturer's warranty!<br /></span></li></ul></div></span></div>
Half Off Ponds Piranha Pump - 10,500 GPH Pond and Waterfall Pump - PN-10500

Why choose The Half Off Ponds Piranha Pump Series? The Piranha Pump Series is truly a best-of-breed submersible pump for water gardens, fish ponds and pondless water features.The high flow, high head energy efficient direct-drive technology is combined with superior stainless steel and reinforced fiberglass construction.

The upright design, with a space-saving footprint, makes this pump ideal for skimmer and pondless waterfall installations. The intake screen prevents clogging, while the vortex impeller passes solids up to 1.25 inch. The direct drive motor provides years of life while providing the power needed to create heavy water flow.

Manufactured with high-quality seals for long and efficient pump life. These pumps are excellent for fast flowing waterfalls and for features that have significant heights to overcome without losing volume.

The Piranha Series is engineered for 24-hour continuous use and are equipped with an overload sensor that prevents a burnout. Contains mineral oil; completely safe for fish, wildlife and aquatic plants. Backed by a 2-year manufacturer's warranty!

Half Off Ponds Piranha Pump - 10,500 GPH Pond and Waterfall Pump - PN-10500

  • High flow, high head energy efficient direct drive technology is combined with superior stainless steel and reinforced fiberglass construction.
  • Upright design with space-saving footprint makes this pump ideal for skimmer and pondless waterfall installations with an intake-screen that prevents clogging.
  • Direct drive motor provides years of life while providing the power needed to create heavy water flow. High quality seals for long and efficient pump life.
  • Engineered for 24-hour continuous use, while a heat-overload sensor prevents a burnout, with a vortex impeller that passes solids up to 1.25"
  • Contains no oil; completely safe for fish, wildlife and aquatic plants. Backed by a 2-year manufacturer's warranty!

Half Off Ponds Piranha Pump - 10,500 GPH Pond and Waterfall Pump - PN-10500


  • Power & Efficiency - High flow, high head energy efficient direct drive technology is combined with superior stainless steel and reinforced fiberglass construction.
  •
  • Smart Design for Small Spaces - Upright design with space-saving footprint makes this pump ideal for skimmer and pondless waterfall installations with an intake-screen that prevents clogging.
  •
  • Durable Quality - Direct drive motor provides years of life while providing the power needed to create heavy water flow. High quality seals for long and efficient pump life.
  •
  • Top Performance - Engineered for 24-hour continuous use, while a heat-overload sensor prevents a burnout, with a vortex impeller that passes solids up to 1.25"
  •
  • A Pump You Can Trust - Contains no oil; completely safe for fish, wildlife and aquatic plants. **Backed by a 2-year manufacturer's warranty!** With 100% U.S. Based Support and Service! Consumables not under warranty. For use in freshwater applications only. Not for use in chlorinated or salt water applications


FAQs & Calculations to Help Select the Correct Kit

1. How Many Gallons of Water does My Water Feature Hold?

Rectangular Ponds

Length x Width x Average Depth x 7.48 = Gallons

Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...

15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons

Oval Ponds

Length x Width x Average Depth x 0.8 x 7.48 = Gallons

Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...

15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons

Round Ponds

Length x Width x Average Depth x 7.48 =Gallons

Example: 15’ long, 10’ wide and 1.5’ Deep Pond

15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons


Streams

Length x Width x Average Depth x 0.25 x 7.48 = GALLONS =Gallons

Example: 15’ long, 10’ wide and 1.5’ Deep Pond

15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons

2. How Big of a Pump Do I Need??
Minimum pump size is determined by pond type, water volume, head height and friction loss. The minimum pump size recommendations are:

Water Garden, Few Small Goldfish

Circulate total pond water valoume every 2 hours.

Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.

Fish Pond, Several Small Fish

Circulate total pond water valoume every 1 hour.

Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.


Koi Pond, Several Large Fish

Circulate total pond water valoume every 3/4 hours.

Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.

Calculating Head Height

Dynamic head pressure is found by taking the vertical height of your waterfall; the distance between where your pump is (typically in the skimmer) and where your waterfall is, and adding the static head pressure (pipe and fittings) 1’ for every 10’ of tubing and 1’ for every elbow or “T” fitting.

Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure

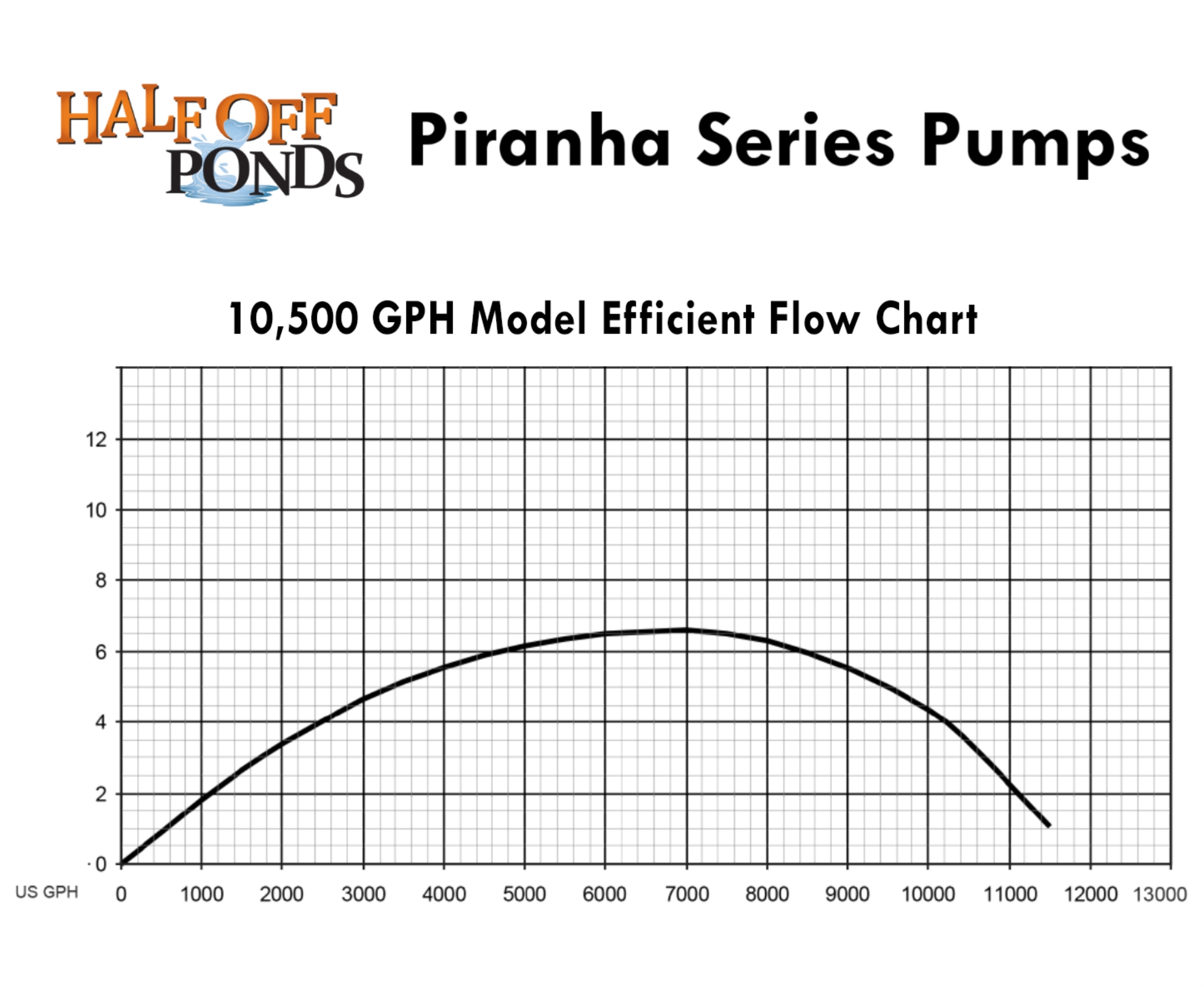

Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.

3. What Size Tubing Do I Need?
Tubing Size Efficiency GPH Minimum GPH Maximum GPH

0.5”

< 300

60

420

0.75”

< 720

300

900

1”

< 1,200

700

1,500

1.25”

< 1,600

900

3,200

1.5”

< 2,600

2,000

4,400

2”

< 4,800

3,000

6,800

3”

< 9,000

6,000

14,000

4”

< 21,000

14,000

28,000

6”

< 42,000

33,000

60,000
