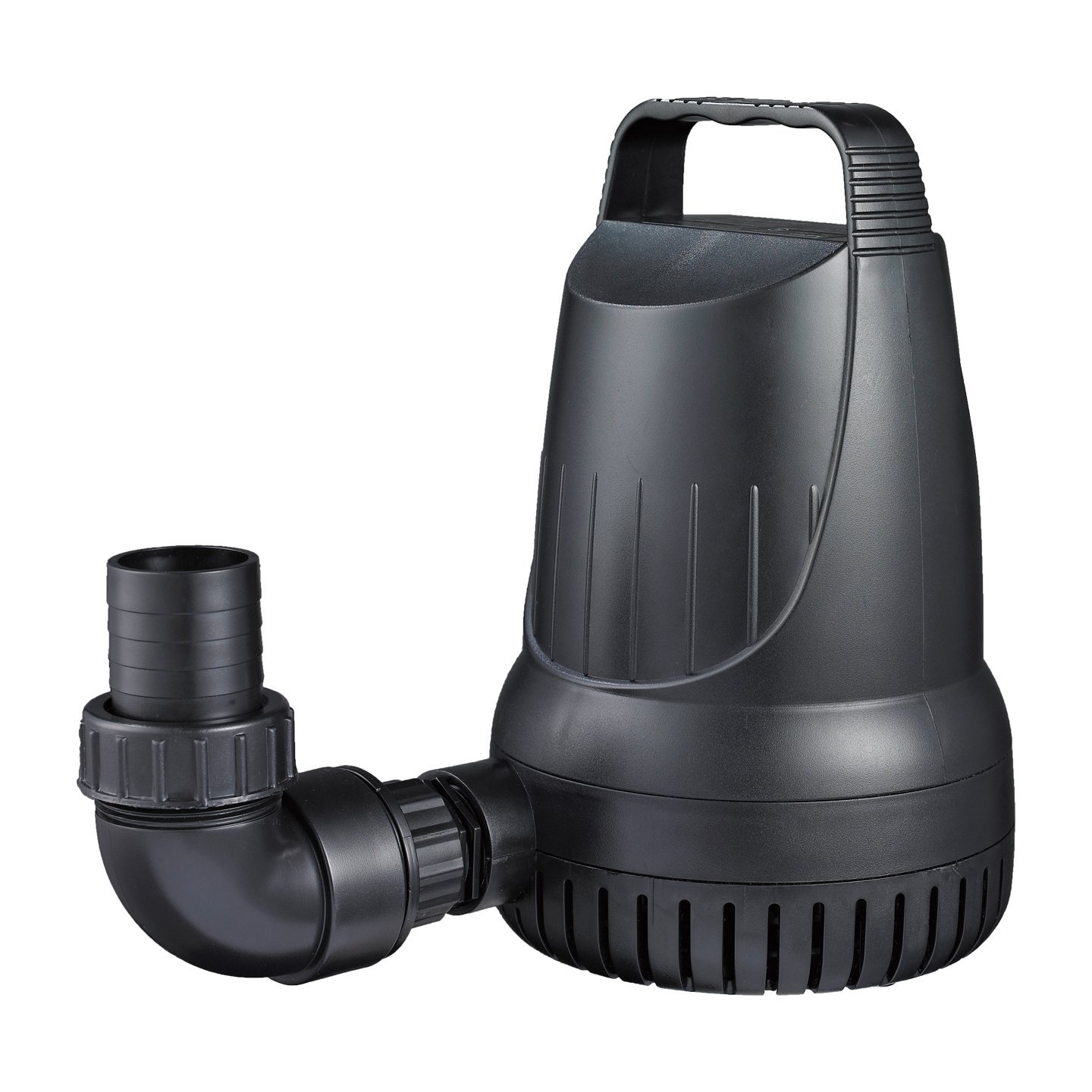

Half Off Ponds Manta Series MA-2100 - 2,100 GPH Waterfall Pump
Manta 2100 GPH Pond Pump MA2100
Extremely Energy Efficient Magnetic Drive Pump - 2,100 GPH
The unique design of the Half Off Ponds Manta magnetic drive series makes it an ideal choice for fountains, waterfalls and smaller ponds. An energy efficient electromagnet is sealed in an epoxy-filled housing. The drive shaft and permanent magnet are recessed in the motor housing. The result? Near-silent operation and extremely low operating cost. These pumps are ideal for cleanouts and drainage due to their low suction point. The upright design with space-saving footprint makes this pump ideal for skimmer and pond free waterfall installations. Intake screen prevents clogging while passing solids up to .25 inch. Asynchronous drive motor can be controlled with variable speed controller (not included) that permits you to increase or decrease pump flow as needed. Vortex impeller passes solids to .25. Engineered for 24-hour continuous use; overload sensor prevents burnout. Contains no oil; completely safe for fish, wildlife and aquatic plants. 2-year manufacturer’s warranty.
MA2100 Magnetic Waterfall Pump
- Extremely energy efficient magnetic drive technology is an ideal choice for fountains, waterfalls and most ponds
- Upright design with space-saving footprint makes this pump ideal for skimmer and pondless waterfall installations. Intake screen prevents clogging while passing solids up to .25 inch
- Asynchronous drive motor can be controlled with variable speed controller (not included) that permits you to increase or decrease pump flow as needed
- Vortex impeller passes solids to .25. Engineered for 24-hour continuous use; overload sensor prevents burnout
- Contains no oil; completely safe for fish, wildlife and aquatic plants. 2-year manufacturer’s warranty
Submersible pumps not for use in pools or in chlorinated water. This will damage the pump and void the warranty!
MA Series Pumps
|
|
MA1200 | MA2100 | MA3300 | MA4100 |
| Max Pump Flow | 1,200 GPH | 2,100 GPH | 3,300 GPH | 4,100 GPH |
| Max Head Height | 11' | 13' | 17' | 19' |
| Discharge Outlet | 1.5" | 1.5" | 1.5" | 1.5" |
| Pipe Diameter | 1.5" | 1.5" | 1.5" | 1.5" |
| Volts/Watts | 120/84 | 120/144 | 120/300 | 120/360 |

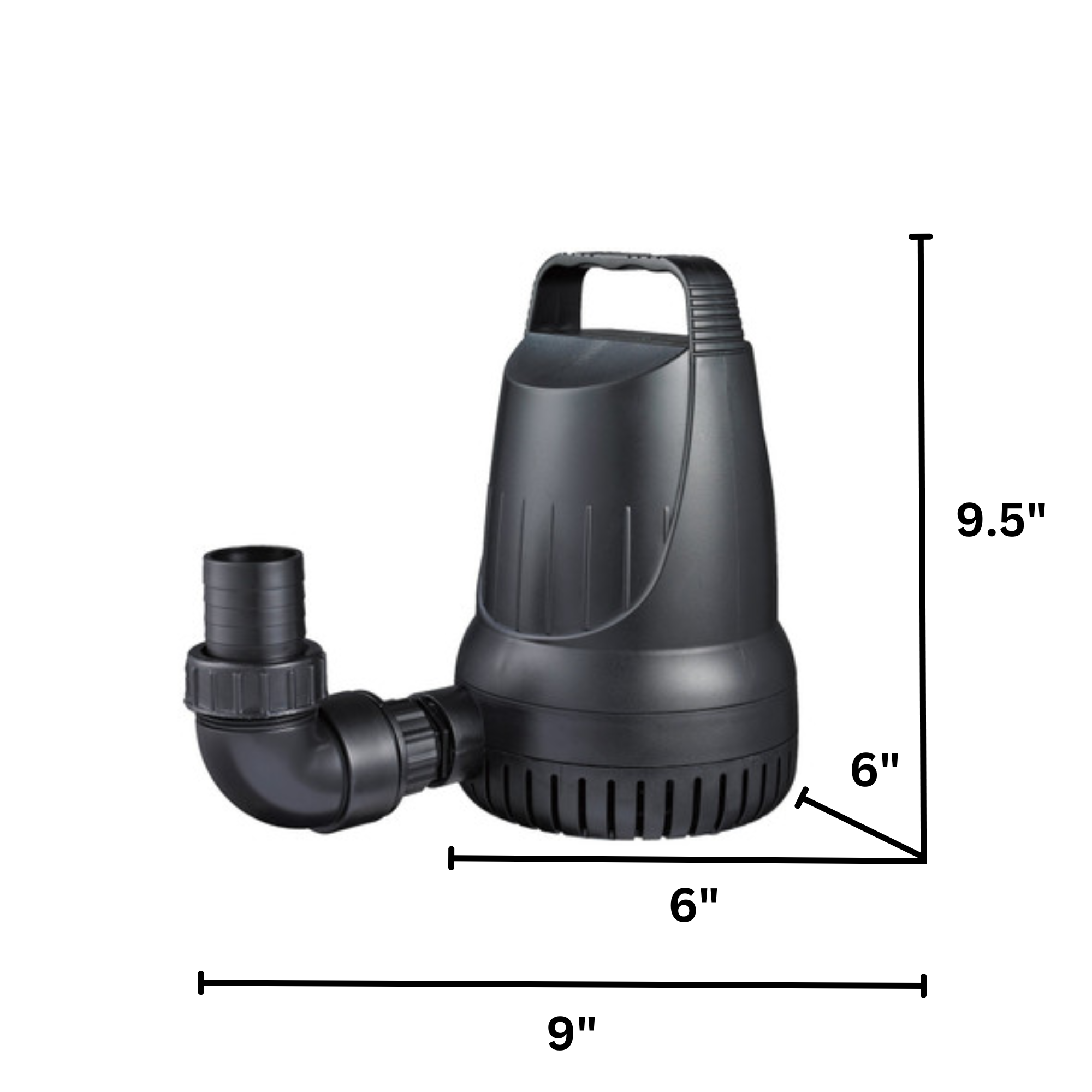

| Dimensions | 9.5"x6"x6" | 9.5"x6"x6" | 9.5"x6"x6" | 9.5"x6"x6" |
| Weight | 8 lbs | 9 lbs | 12 lbs | 15 lbs |
| Cord Length | 25' | 25' | 25' | 25' |
Half Off Ponds Manta Series MA-2100 - 2,100 GPH Waterfall Pump

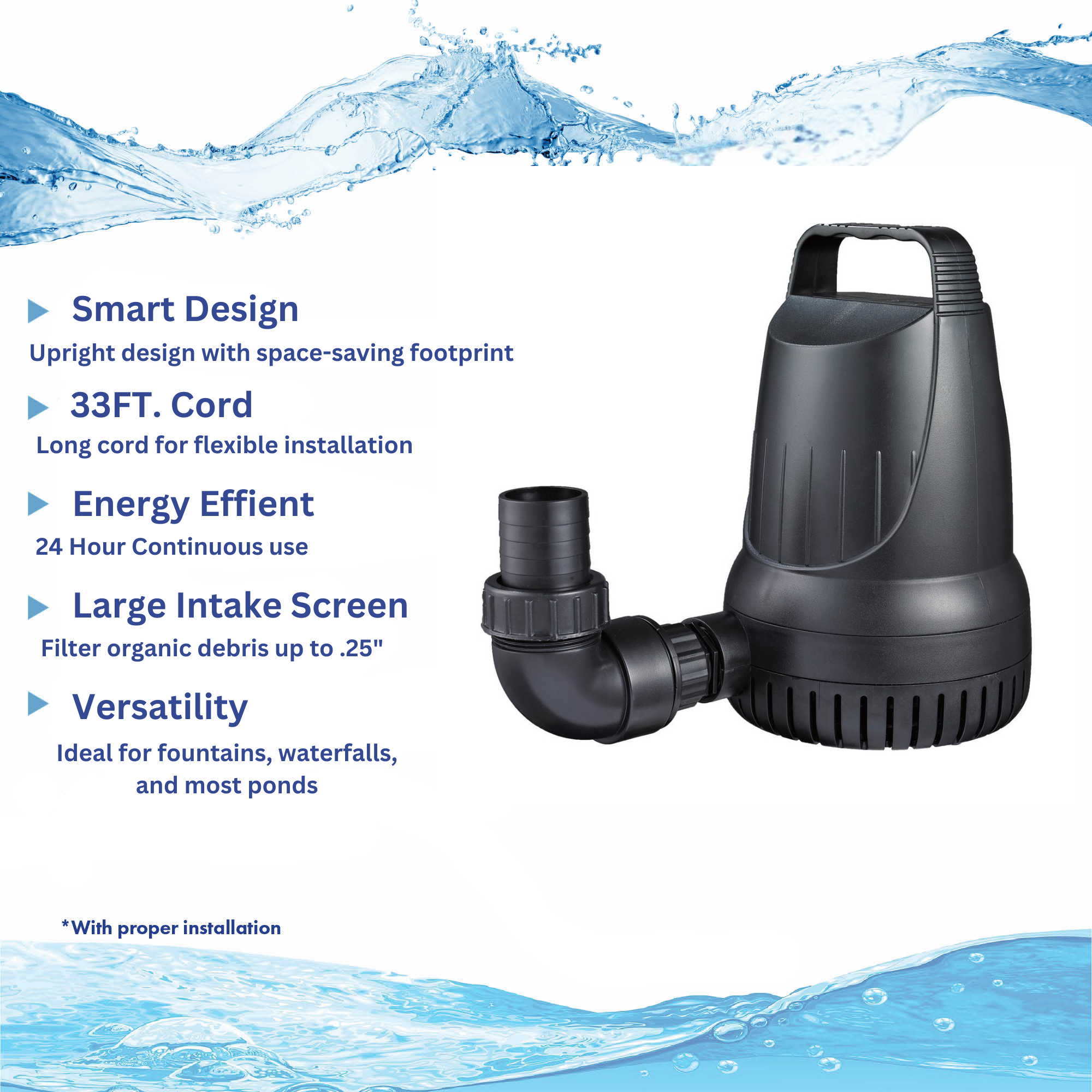

- Power & Efficiency - Extremely energy efficient magnetic drive technology is an ideal choice for fountains, waterfalls and most ponds.
- Smart Design - Upright design with space-saving footprint makes this pump ideal for skimmer and pond-less waterfall installations. Intake screen prevents clogging while passing solids up to .25 inch.
- Top Performance - Asynchronous drive motor can be controlled with variable speed controller (not included) that permits you to increase or decrease pump flow as needed.
- Flexibility for Your Pond - Vortex impeller passes solids to .25". Engineered for 24-hour continuous use; overload sensor prevents burnout.
- A Pump You Can Trust - Contains no oil; completely safe for fish, wildlife, and aquatic plants. **Backed by a 2-Year manufacturer's warranty!** With 100% U.S. Based Support and Service! Consumables not under warranty. For use in freshwater applications only. Not for use in chlorinated or salt water applications. 2.45 Amps, 0.2 HP, 18' Max Head, 120 Volts, 144 Watts, 60 Hertz
FAQs & Calculations to Help Select the Correct Kit
1. How Many Gallons of Water does My Water Feature Hold?
Rectangular Ponds
Length x Width x Average Depth x 7.48 = Gallons
Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Oval Ponds
Length x Width x Average Depth x 0.8 x 7.48 = Gallons
Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Round Ponds
Length x Width x Average Depth x 7.48 =Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Streams
Length x Width x Average Depth x 0.25 x 7.48 = GALLONS =Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
2. How Big of a Pump Do I Need??
Minimum pump size is determined by pond type, water volume, head height and friction loss. The minimum pump size recommendations are:
Water Garden, Few Small Goldfish
Circulate total pond water valoume every 2 hours.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Fish Pond, Several Small Fish
Circulate total pond water valoume every 1 hour.
Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.
Koi Pond, Several Large Fish
Circulate total pond water valoume every 3/4 hours.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Calculating Head Height
Dynamic head pressure is found by taking the vertical height of your waterfall; the distance between where your pump is (typically in the skimmer) and where your waterfall is, and adding the static head pressure (pipe and fittings) 1’ for every 10’ of tubing and 1’ for every elbow or “T” fitting.
Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure

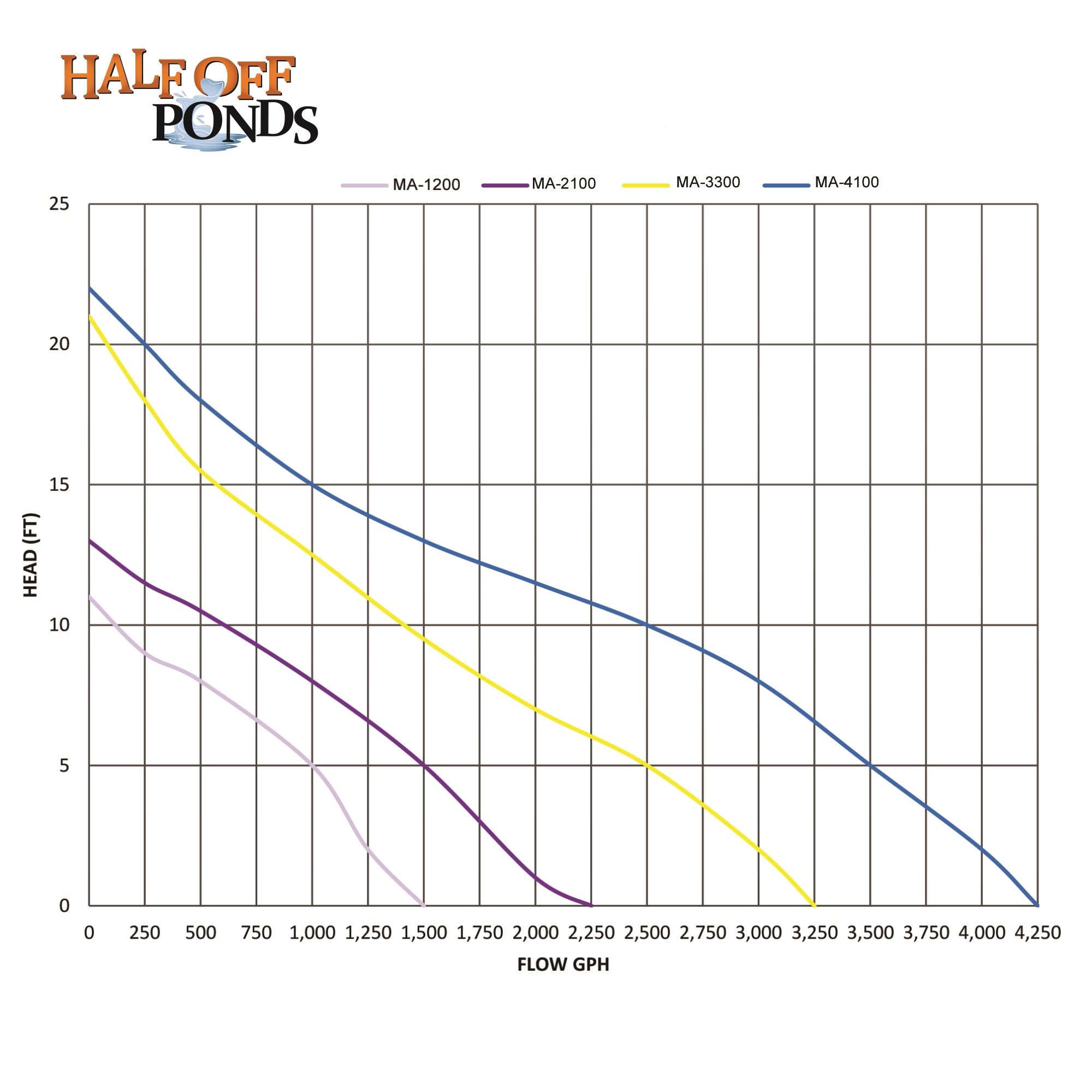

Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.
Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure
Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.
3. What Size Tubing Do I Need?
| Tubing Size | Efficiency GPH | Minimum GPH | Maximum GPH |
|---|---|---|---|
0.5” |
< 300 |
60 |
420 |
0.75” |
< 720 |
300 |
900 |
1” |
< 1,200 |
700 |
1,500 |
1.25” |
< 1,600 |
900 |
3,200 |
1.5” |
< 2,600 |
2,000 |
4,400 |
2” |
< 4,800 |
3,000 |
6,800 |
3” |
< 9,000 |
6,000 |
14,000 |
4” |
< 21,000 |
14,000 |
28,000 |
6” |
< 42,000 |
33,000 |
60,000 |
