Half Off Ponds CleanSweep 1400-Watt Pond, Water Garden and Pool Vacuum CS1400

Slide Slide Slide Slide Slide Slide
$193.33
Brand
HALF OFF PONDS
Model
PCS1400
Item Diameter
16 in
Item Height
25 in
Item Width
16 in
MPN
CS1400
Item Weight
25 lb
Type
Pond Vacuum
Power
1400 w
Part Number
PCS1400
Product Type
Pond Vacuum
Subject Area
Product Includes:<br> (3) Nozzles
Watts
1400
UPC
701160104873
condition
New

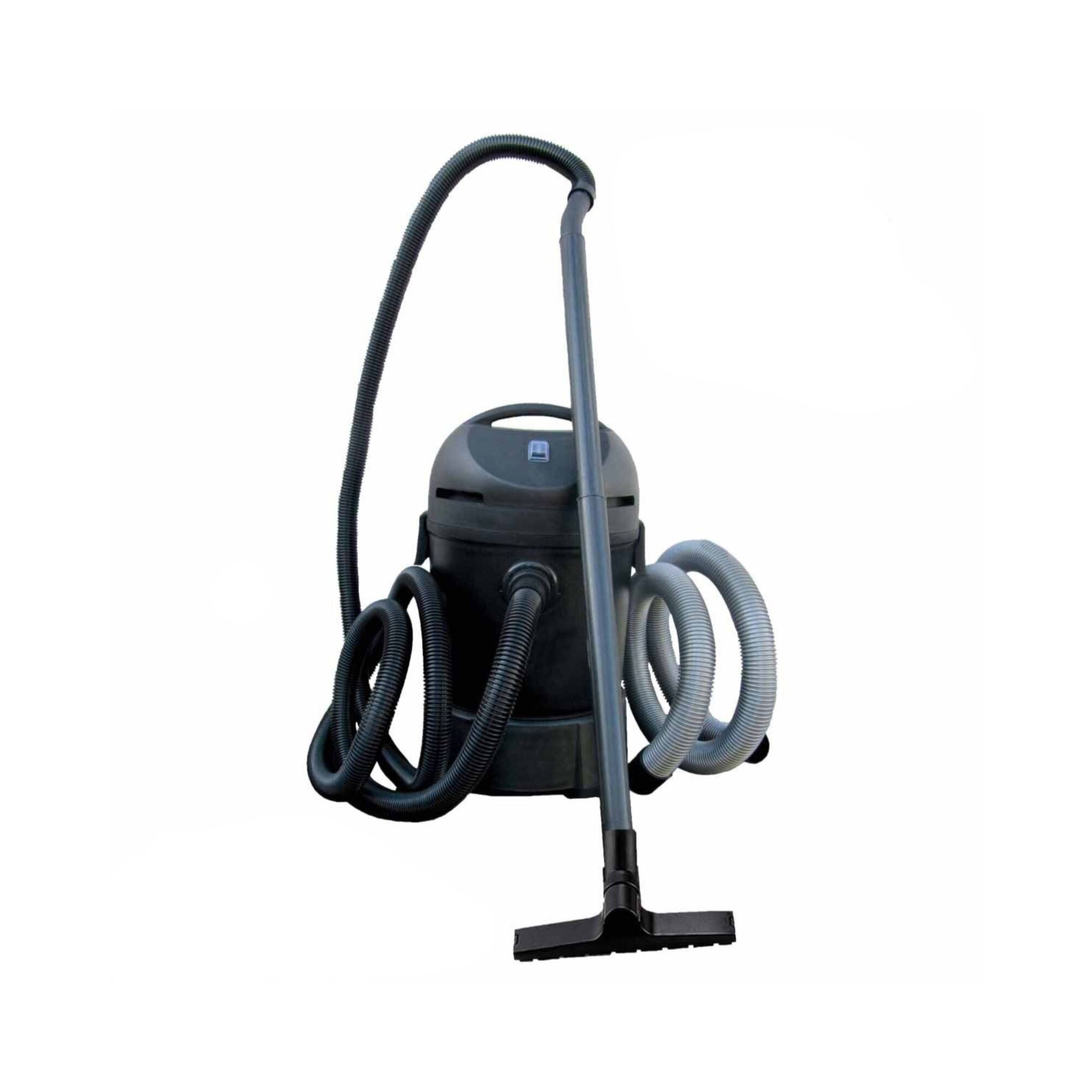

Half Off Ponds CleanSweep 1400 Muck and Debris Pond Vacuum The CleanSweep Muck and Debris Pond and Pool Vacuum is the fast, effective and convenient way to remove muck, debris and decaying organic matter from water gardens, fish ponds and swimming pools. The compact design of the unit, with easy grip handle, is easy to lift and maneuver. The powerful 1400-watt motor operates on a continuous intermittent cycle and produces a powerful vacuum. With its 6-foot maximum suction depth, this vacuum can dislodge and extract the toughest layers of settled sludge or decaying organic matter on the pond bottom. The continuous intermittent cycle means that once the vacuum fills the holding chamber, the motor shuts off so the chamber can drain; after the chamber drains, the vacuum motor restarts and stays running on this intermittent cycle continuously until the job is done. Pond water, laden with decaying organic matter, makes excellent organic fertilizer for plants and shrubs. Simply attach the debris collection bag to the outfeed hose to capture the solids and allow nutrient rich pond water to flow into plantings. The debris collection bag attaches to the discharge end of the outfeed hose. The CleanSweep 1400 Muck and Debris Pond and Pool Vacuum comes with the following:, 13-Foot Intake Suction Hose (4) Extension Tubes (3) Vacuum Nozzles 6.5-Foot Outfeed Hose 2-Year Manufacturer's Warranty
Half Off Ponds CleanSweep 1400-Watt Pond, Water Garden and Pool Vacuum CS1400

Half Off Ponds CleanSweep 1400 Muck and Debris Pond Vacuum The CleanSweep Muck and Debris Pond and Pool Vacuum is the fast, effective and convenient way to remove muck, debris and decaying organic matter from water gardens, fish ponds and swimming pools. The compact design of the unit, with easy grip handle, is easy to lift and maneuver. The powerful 1400-watt motor operates on a continuous intermittent cycle and produces a powerful vacuum. With its 6-foot maximum suction depth, this vacuum can dislodge and extract the toughest layers of settled sludge or decaying organic matter on the pond bottom. The continuous intermittent cycle means that once the vacuum fills the holding chamber, the motor shuts off so the chamber can drain; after the chamber drains, the vacuum motor restarts and stays running on this intermittent cycle continuously until the job is done. Pond water, laden with decaying organic matter, makes excellent organic fertilizer for plants and shrubs. Simply attach the debris collection bag to the outfeed hose to capture the solids and allow nutrient rich pond water to flow into plantings. The debris collection bag attaches to the discharge end of the outfeed hose. The CleanSweep 1400 Muck and Debris Pond and Pool Vacuum comes with the following:, 13-Foot Intake Suction Hose (4) Extension Tubes (3) Vacuum Nozzles 6.5-Foot Outfeed Hose 2-Year Manufacturer's Warranty

Half Off Ponds CleanSweep 1400-Watt Pond, Water Garden and Pool Vacuum CS1400


  • Fast, effective and convenient way to remove muck, debris and decaying organic matter from water gardens, fish ponds and swimming pools
    •
  • Powerful 1400-watt motor, with its recommended 3-foot maximum suction depth, can dislodge and extract the toughest layers of settled sludge or decaying organic matter on the pond bottom with 12 foot grounded power cord.
    •

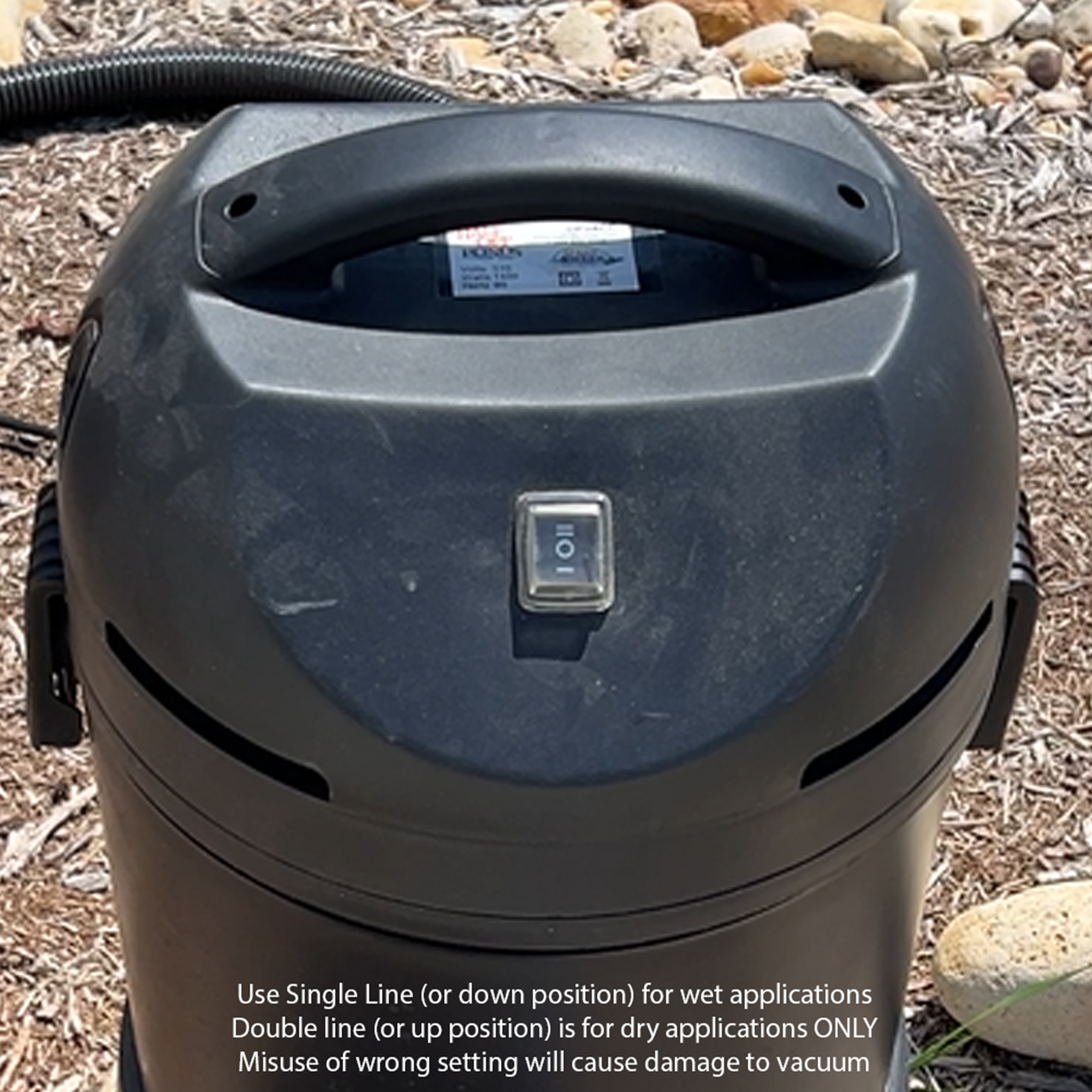

  • This unit operates on a continuous INTERMITTENT cycle. This means, once the vacuum fills the chamber the MOTOR SHUTS-OFF. Once the chamber drains, the MOTOR RESTARTS. Continue this process until the job is done
    •

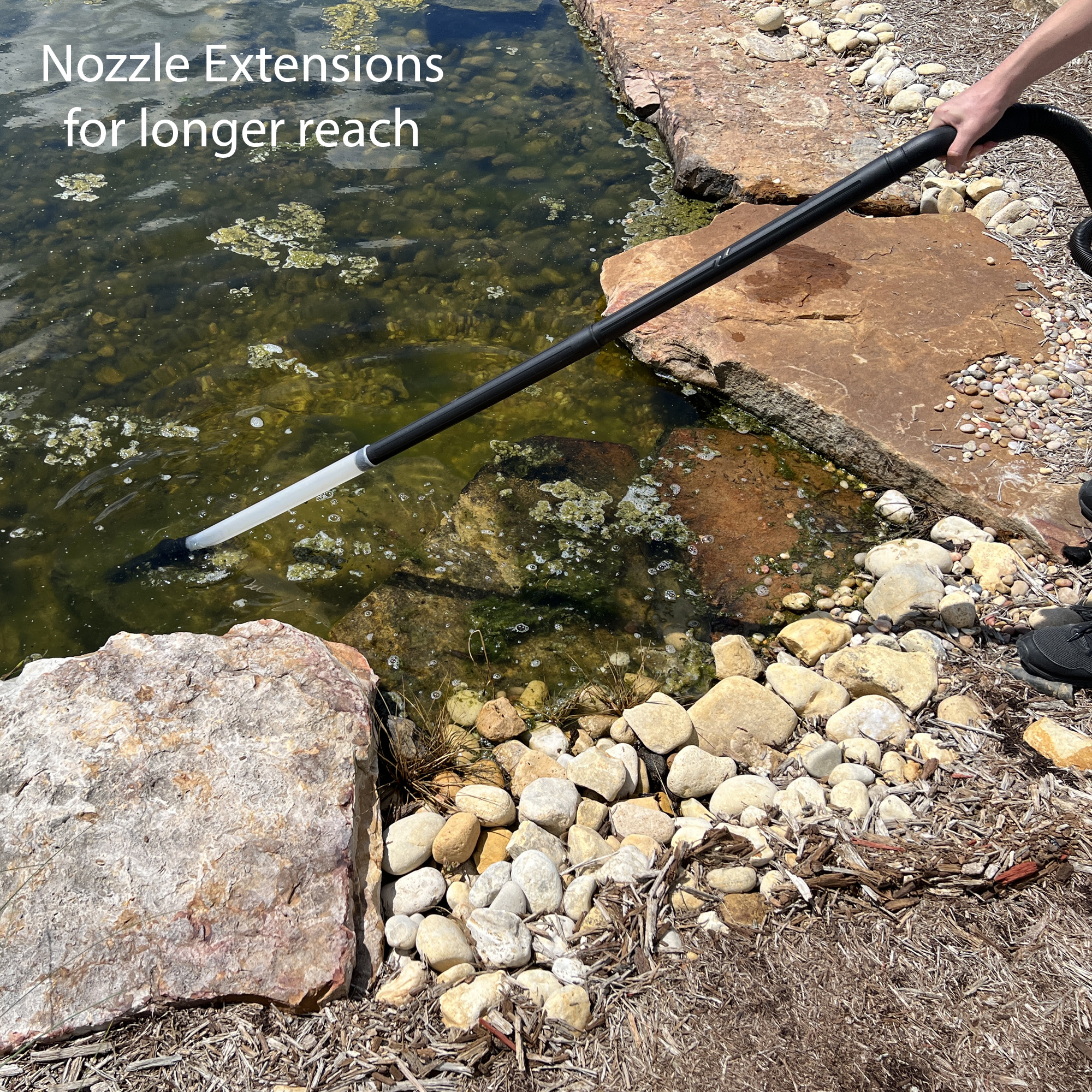

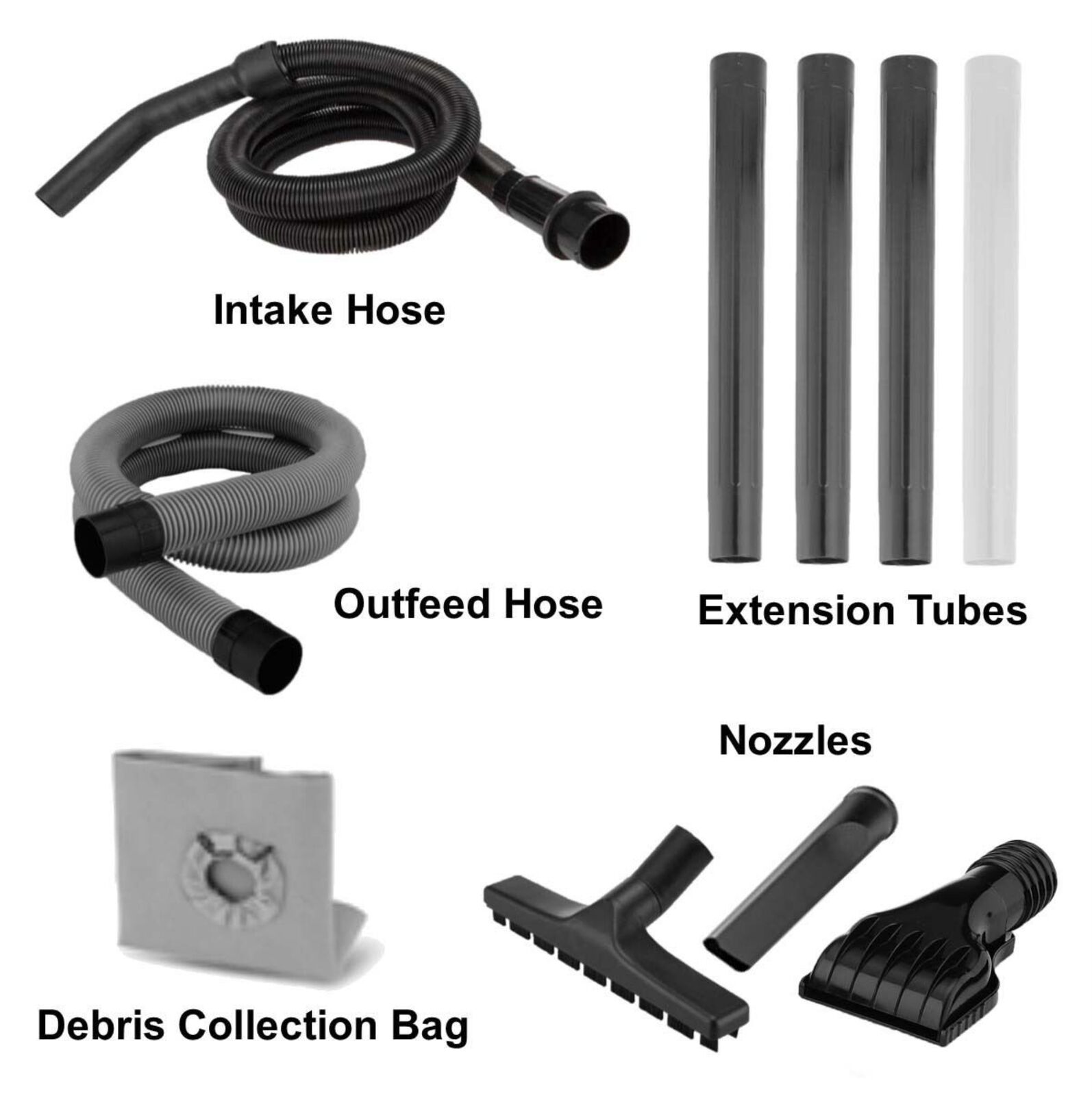

  • Includes 13 foot intake hose, 4 extension tubes, 3 vacuum nozzles, 6.5 foot outfeed hose, optional debris collection bag that attaches to outfeed hose (which slows the draining process of the chamber during the intermittent cycle). Use of this vacuum is for recommended depths ONLY, and NOT intended for deep water features.
    •
  • A Pump You Can Trust - 2-year manufacturer's warranty. Fully U.S. Based Service and Support. Service calls ring direct to our team in St. Louis Missouri.

FAQs & Calculations to Help Select the Correct Kit

1. How Many Gallons of Water does My Water Feature Hold?

Rectangular Ponds

Length x Width x Average Depth x 7.48 = Gallons

Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...

15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons

Oval Ponds

Length x Width x Average Depth x 0.8 x 7.48 = Gallons

Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...

15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons

Round Ponds

Length x Width x Average Depth x 7.48 =Gallons

Example: 15’ long, 10’ wide and 1.5’ Deep Pond

15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons


Streams

Length x Width x Average Depth x 0.25 x 7.48 = GALLONS =Gallons

Example: 15’ long, 10’ wide and 1.5’ Deep Pond

15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons

2. How Big of a Pump Do I Need??
Minimum pump size is determined by pond type, water volume, head height and friction loss. The minimum pump size recommendations are:

Water Garden, Few Small Goldfish

Circulate total pond water valoume every 2 hours.

Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.

Fish Pond, Several Small Fish

Circulate total pond water valoume every 1 hour.

Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.


Koi Pond, Several Large Fish

Circulate total pond water valoume every 3/4 hours.

Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.

Calculating Head Height

Dynamic head pressure is found by taking the vertical height of your waterfall; the distance between where your pump is (typically in the skimmer) and where your waterfall is, and adding the static head pressure (pipe and fittings) 1’ for every 10’ of tubing and 1’ for every elbow or “T” fitting.

Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure

Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.

3. What Size Tubing Do I Need?
Tubing Size Efficiency GPH Minimum GPH Maximum GPH

0.5”
< 300
60
420

0.75”
< 720
300
900

1”
< 1,200
700
1,500

1.25”
< 1,600
900
3,200

1.5”
< 2,600
2,000
4,400

2”
< 4,800
3,000
6,800

3”
< 9,000
6,000
14,000

4”
< 21,000
14,000
28,000

6”
< 42,000
33,000
60,000
