Half Off Ponds APRPS3-CAB 6.7 CFM System, Cabinet, Fan, (3) 10" EPDM Diffusers
Half Off Ponds Pro Aeration System with 6.7 CFM Rocking Piston Compressor with Ground Cabinet, Cooling Fan, 300' of 3/8" Weighted Tubing (3) Double-10" EPDM Diffusers
The Half Off Ponds Aeration Compressors are high flow, high capacity air compressors ideally suited for lake and pond bottom aeration. Half Off Ponds Air Compressors operate on a 120-volt, 7.5-amp motor with a 6-foot double insulated power cord and are most efficient in 25-foot water depths, with a maximum operating depth of 40 feet.
Air filter with replaceable, debris-trapping element delivers clean, pure air. These reliable, low maintenance units are designed for continuous or intermittent operation.
Sealed connecting rod and bearing lubrication, oil-free air compressing chamber and shock-absorbing vibration-isolating mounts assure years of trouble-free operation on the 6.7 CFM Half Off Ponds Aeration Compressor.

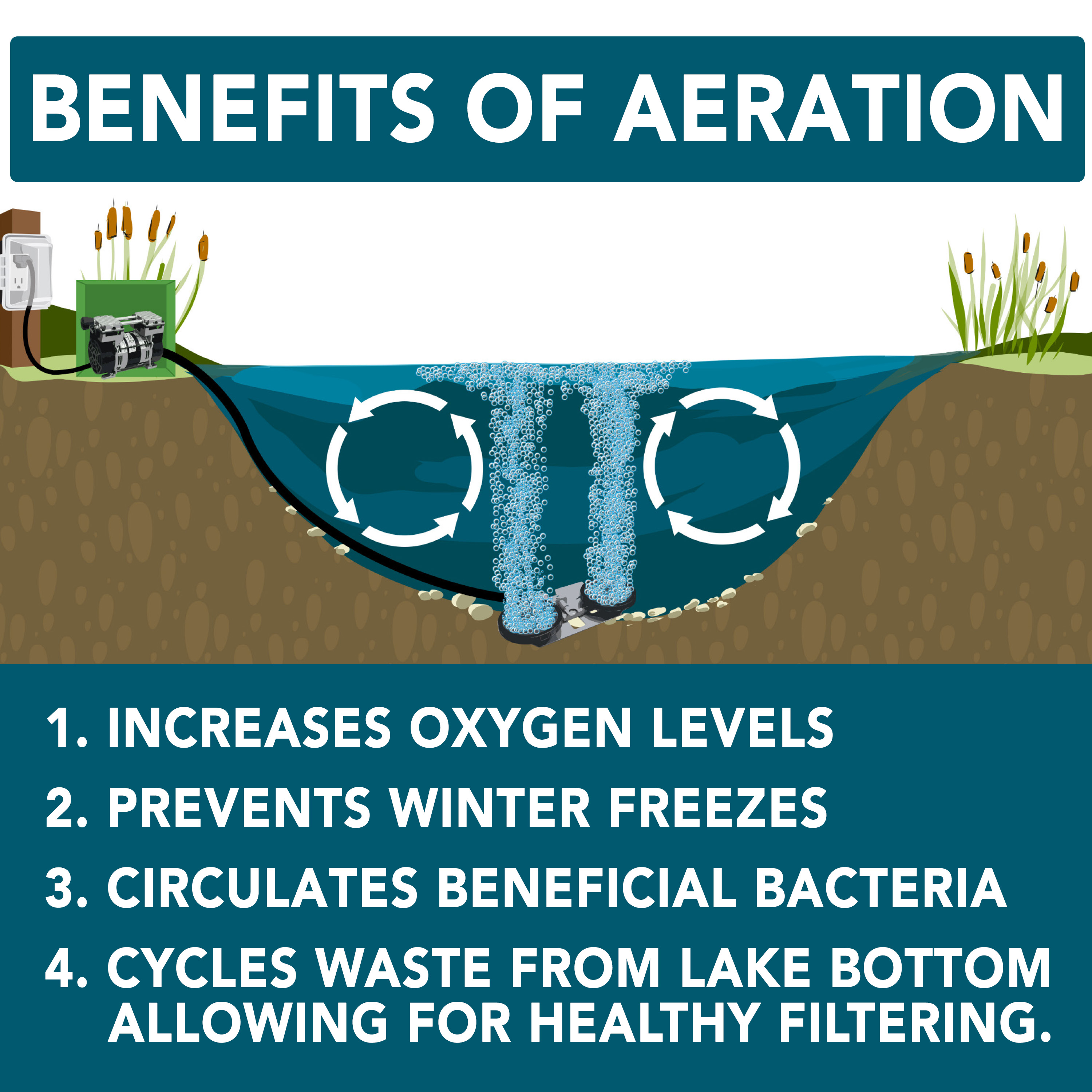

The Half Off Ponds Aeration Compressor is used to help break down fish waste allowing toxic gasses to harmlessly escape as well as help prevent the pond surface from freezing over in the winter months.
Hand-selected components are durable, reliable, and low-maintenance. The Half Off Ponds Pro Deep Water Subsurface Air & Aeration Kit delivers oxygen to create and maintain a healthy environment.

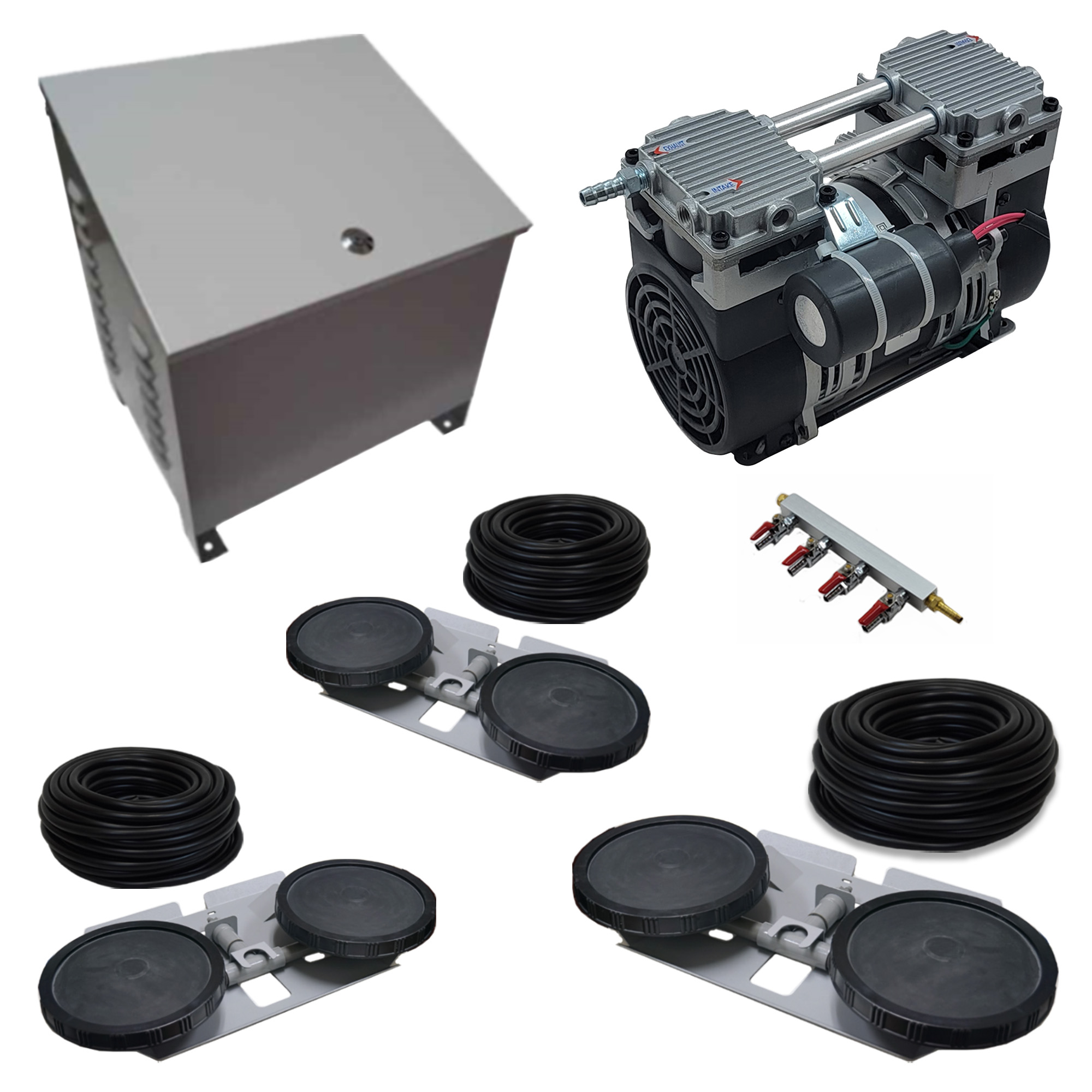

APRPS3-CAB - Half Off Ponds Pro Deep Water Subsurface Air & Aeration Kit Includes:- (1) Half Off Ponds PA-RP80P - 6.7 CFM Subsurface Rocking Piston Aeration Compressor
- 300' of 3/8" self-sinking Half Off Ponds Weighted Black Vinyl Tubing
- Weather Resistant Ground Enclosure Base Cabinet with Cooling Fan and Lock and Key
- (3) Double-10" EPDM Self-Sinking Diffuser Disc Assemblies
- All Necessary Plumbing Fixtures
Half Off Ponds APRPS3-CAB 6.7 CFM System, Cabinet, Fan, (3) 10" EPDM Diffusers
- Built to Last - Complete system designed with our best components for circulation and increased oxygen content for a healthy pond environment. Operating temperature range of -5 to 175 Degrees Fahrenheit with a overheat protection at 290 Degrees Fahrenheit
- Everything You Need in One Kit - Includes: (1) 1HP Subsurface Compressor, Weather Resistant Enclosure Base Cabinet, (3) Double-10" EPDM Weighted Diffusers, 300' of 3/8" Weighted Black Vinyl Tubing, and All Necessary Fittings & Hardware.
- Maximum Power - PA-RP80P: Volts - 120; Amps - 7.5; Hertz - 60; CFM @ 5 PSI - 6.7. Pump has aluminium allow body for maximum durability and copper motor for energy efficiency.

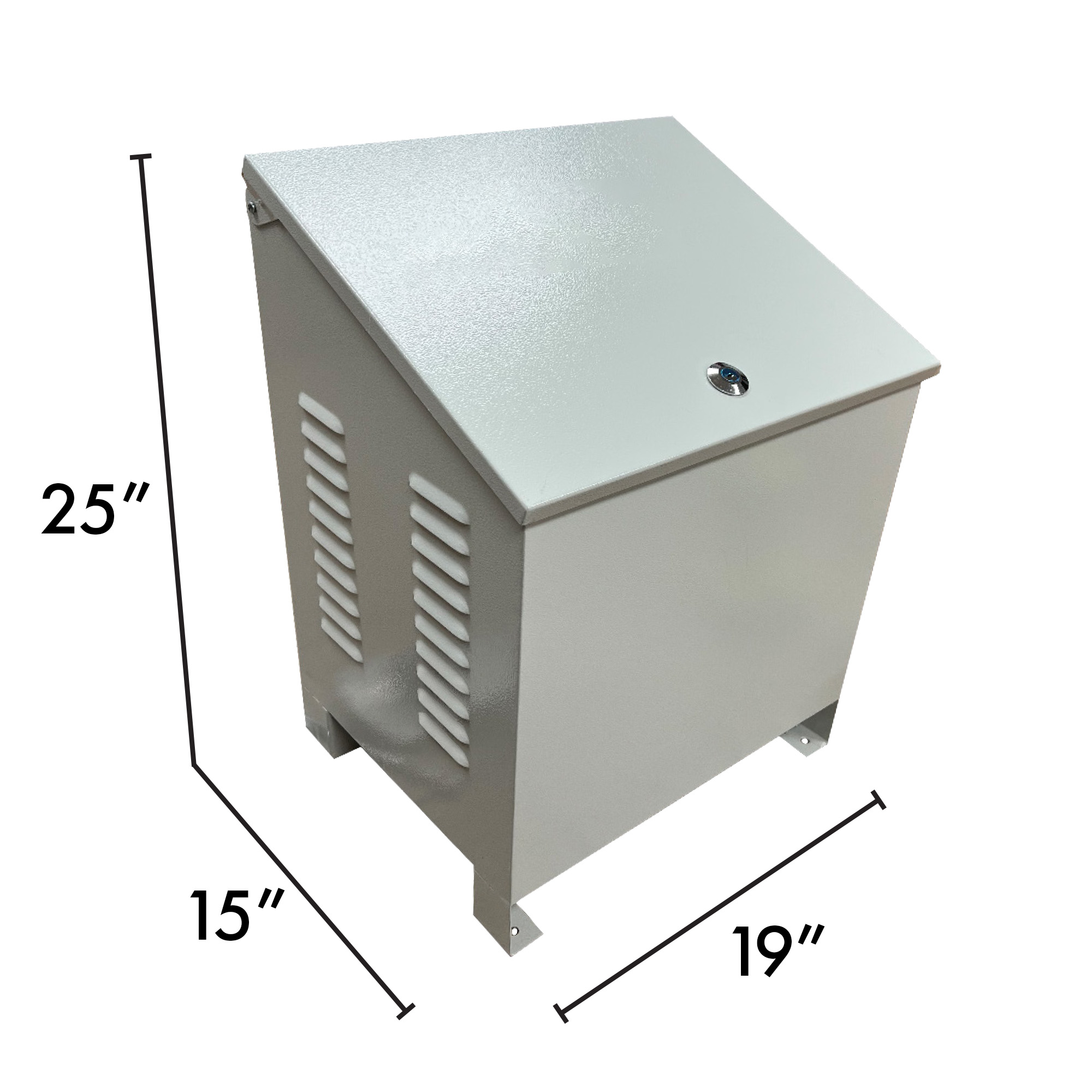

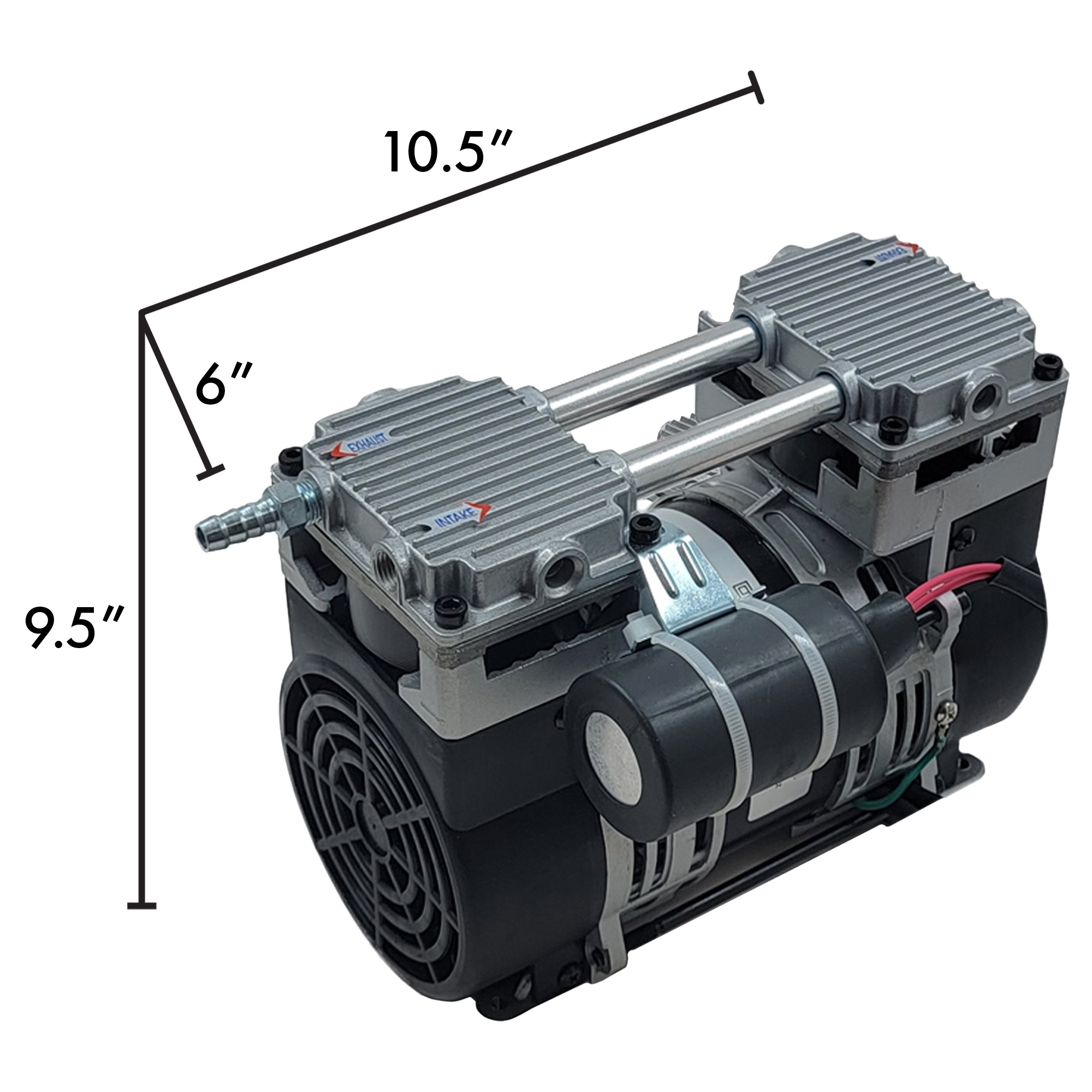

- Top Performance - Dimensions: 1HP Rocking Piston Compressor (Length x Width x Height) - 10.5" x 6" x 9.5"; Multipurpose Enclosure (Width x Height x Depth) - 19" x 25" x 15"
- A Product You Can Trust - Ships via Ground Package and Backed by a 2-Year Manufacturer's Warranty
FAQs & Calculations to Help Select the Correct Kit
1. How Many Gallons of Water does My Water Feature Hold?
Rectangular Ponds
Length x Width x Average Depth x 7.48 = Gallons
Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Oval Ponds
Length x Width x Average Depth x 0.8 x 7.48 = Gallons
Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Round Ponds
Length x Width x Average Depth x 7.48 =Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Streams
Length x Width x Average Depth x 0.25 x 7.48 = GALLONS =Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
2. How Big of a Pump Do I Need??
Minimum pump size is determined by pond type, water volume, head height and friction loss. The minimum pump size recommendations are:
Water Garden, Few Small Goldfish
Circulate total pond water valoume every 2 hours.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Fish Pond, Several Small Fish
Circulate total pond water valoume every 1 hour.
Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.
Koi Pond, Several Large Fish
Circulate total pond water valoume every 3/4 hours.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Calculating Head Height
Dynamic head pressure is found by taking the vertical height of your waterfall; the distance between where your pump is (typically in the skimmer) and where your waterfall is, and adding the static head pressure (pipe and fittings) 1’ for every 10’ of tubing and 1’ for every elbow or “T” fitting.
Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure
Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.
Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure
Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.
3. What Size Tubing Do I Need?
| Tubing Size | Efficiency GPH | Minimum GPH | Maximum GPH |
|---|---|---|---|
0.5” |
< 300 |
60 |
420 |
0.75” |
< 720 |
300 |
900 |
1” |
< 1,200 |
700 |
1,500 |
1.25” |
< 1,600 |
900 |
3,200 |
1.5” |
< 2,600 |
2,000 |
4,400 |
2” |
< 4,800 |
3,000 |
6,800 |
3” |
< 9,000 |
6,000 |
14,000 |
4” |
< 21,000 |
14,000 |
28,000 |
6” |
< 42,000 |
33,000 |
60,000 |
