Aqua Pulse 3,000 GPH Hybrid Drive Submersible Energy Efficient Pond Pump with 30 ft Cord
Aqua Pulse Koi Pond Pump AP3000
Aqua Pulse 3000 GPH Hybrid Drive Submersible Pump – Up To 3000GPH Max Flow
AP3000 Hybrid Waterfall Pump
- High flow, energy efficient hybrid drive technology combines the high flow characteristics of a direct drive pump with the energy saving efficiency of a mag drive pump
- Asynchronous drive motor can be controlled with variable speed controller (not included) that permits you to increase or decrease pump flow as needed
- Vortex impeller passes solids to .25â€Â. Engineered for 24-hour continuous use; overload sensor prevents burnout
- Contains no oil; completely safe for fish, wildlife and aquatic plants
- 2-year manufacturer’s warranty
Submersible pumps not for use in pools or in chlorinated water. This will damage the pump and void the warranty!
Our Half Off Ponds Aqua Pulse Pump Series is truly a best of breed submersible pump for water gardens, fish ponds and pondless water features. The high flow, energy efficient hybrid drive technology combines the high flow characteristics of a direct drive pump with the energy saving efficiency of a mag drive pump. Its asynchronous drive motor can be controlled with variable speed controller (not included) that permits you to increase or decrease pump flow as needed. Crank it up for a raging waterfall; back it off for a soothing, gentle flow. The vortex impeller passes solids to .25â€Â. The Aqua Pulse series is engineered for 24-hour continuous use; overload sensor prevents burnout. Contains no oil; completely safe for fish, wildlife and aquatic plants. 2-year manufacturer’s warranty.
AP Series Pumps
| AP3000 | AP4000 | AP5200 | AP6100 | AP8000 | AP10000 | |
| Max Pump Flow | 3,000 GPH | 4,000 GPH | 5,200 GPH | 6,100 GPH | 8,000 GPH | 10,000 GPH |
| Max Head Height | 19' | 21' | 21' | 24' | 26' | 31' |
| Discharge Outlet | 1.5" | 2" | 2" | 2" | 2" | 3" |
| Intake Outlet | 1.5" | 2" | 2" | 2" | 2" | 3" |
| Pipe Diameter | 1.5" | 2" | 2" | 2" | 3" | 3" |
| Volts/Watts | 120/192 | 120/276 | 120/294 | 120/354 | 120/540 | 120/720 |

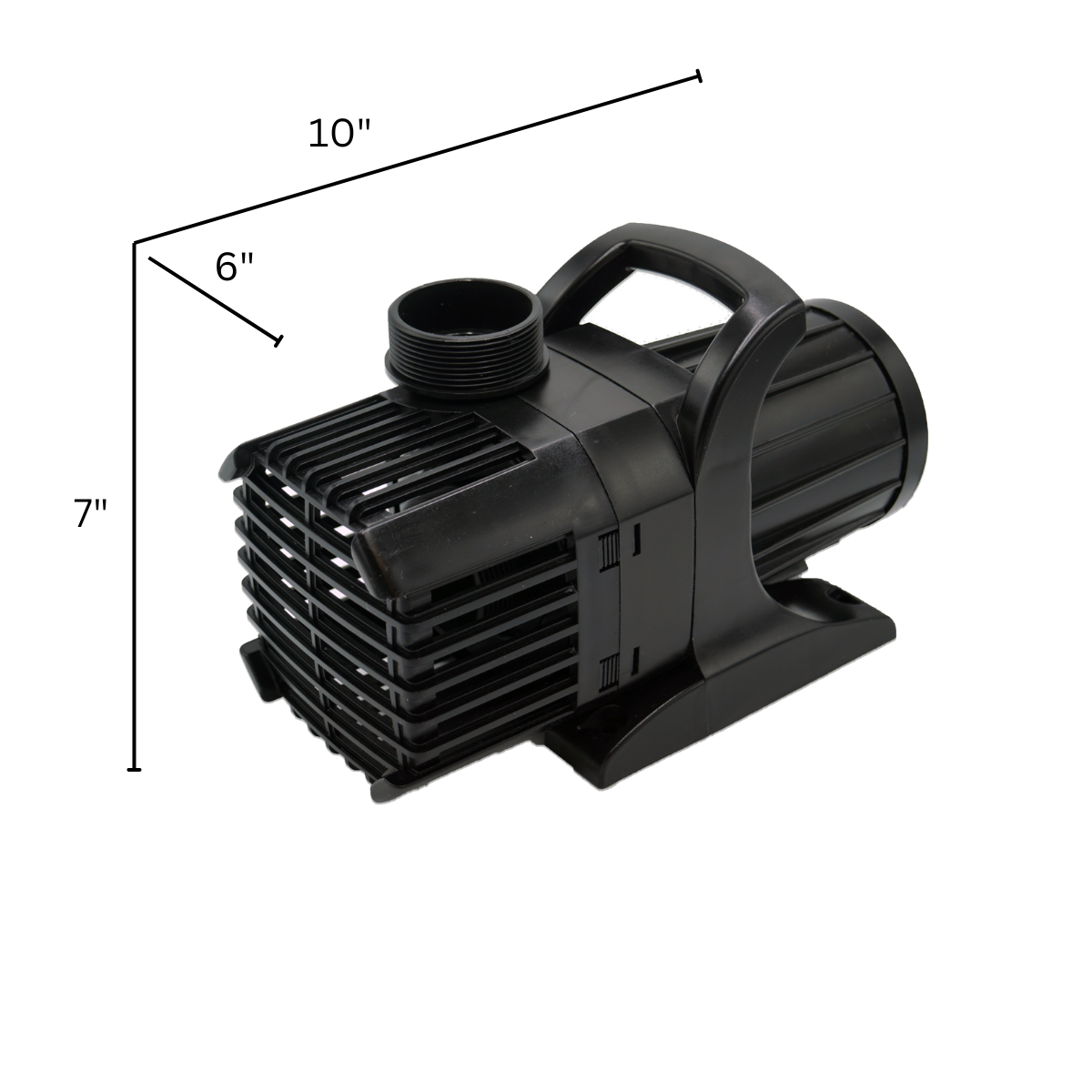

| Dimensions | 8"x6"x6" | 9"x7"x7" | 9"x7"x7" | 9"x7"x7" | 11"x8"x8" | 12"x9"x9" |
| Weight | 12 lbs | 18 lbs | 18 lbs | 20 lbs | 23 lbs | 29 lbs |
| Cord Length | 30' | 30' | 30' | 30' | 30' | 30' |
Half Off Ponds Aqua Pulse AP-3000 Submersible Pump
Max Flow Rate: 3,000 GPH @ 0 ft. Head
Operating Range: 750 GPH - 1,250 GPH
Max Head Height: 19 ft.
Optimal Head Height: 5 ft. - 15 ft.
Amps/Volts/Watts: 1.6/120/192
Cord Length: 30 ft.
Output Diameter: 1 1/2 in. MIPT
Recommended Hose Size: 1 1/2 in.
Warranty: 2-Year Manufacturer Defect
Max Flow Rate: 3,000 GPH @ 0 ft. Head
Operating Range: 750 GPH - 1,250 GPH
Max Head Height: 19 ft.
Optimal Head Height: 5 ft. - 15 ft.
Amps/Volts/Watts: 1.6/120/192
Cord Length: 30 ft.
Output Diameter: 1 1/2 in. MIPT
Recommended Hose Size: 1 1/2 in.
Warranty: 2-Year Manufacturer Defect
Aqua Pulse 3,000 GPH Hybrid Drive Submersible Energy Efficient Pond Pump with 30 ft Cord
- Powerful & Energy Efficient Performance: Combines the high-flow output of a direct drive pump with the energy-saving efficiency of a mag drive system. This submersible pond pump is engineered for 24/7 continuous use and features a built-in heat-overload sensor to prevent burnout—ideal for koi ponds, waterfalls, and large outdoor water features.

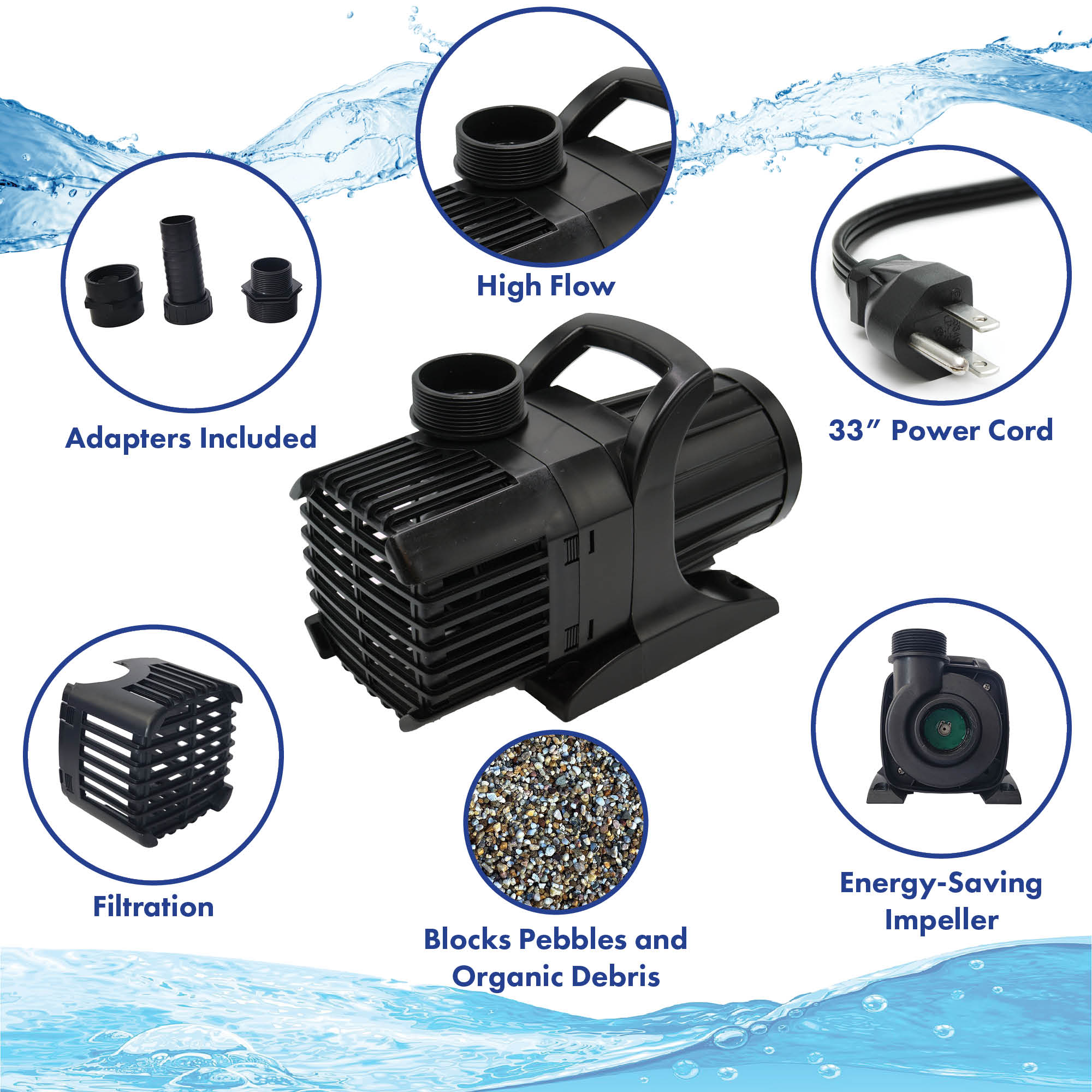

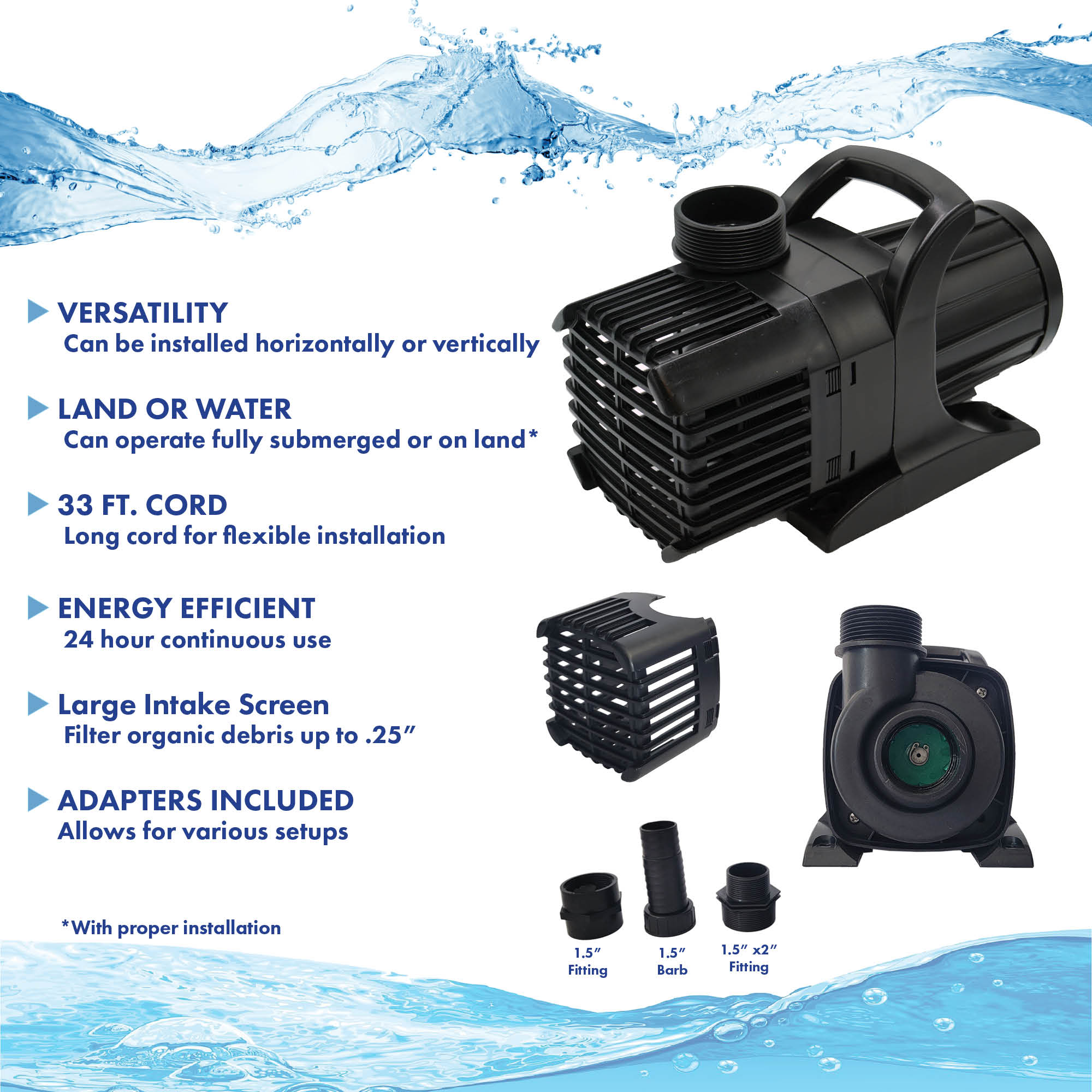

- Compact, Skimmer-Friendly Design: The space-saving housing supports horizontal or vertical installation, making this submersible water pump ideal for tight spaces in skimmers or pondless waterfall setups. A built-in intake screen helps prevent clogging and keeps your water feature flowing smoothly.
- Durable, Clog-Resistant Performance: Built to last with a return rate of less than 1%, this submersible pond pump passes solids up to 0.25 inches. A specialized intake screen helps prevent clogs, keeping your fountain, pond, or waterfall running reliably.
- Industry-Leading Flow & Versatility: Features a deep-vein, replaceable impeller that delivers maximum water flow at greater head heights. This energy-efficient pond pump is designed for both submersible and in-line use, making it ideal for waterfalls, koi ponds, and larger water features.
- Reliable & Safe for Aquatic Life: Backed by a 2-year manufacturer’s warranty with U.S.-based support and service. This oil-free submersible pump is safe for fish, aquatic plants, and wildlife. Designed for freshwater use only—do not use in chlorinated or saltwater systems. Specs: 1.6 amps, 0.26 HP, 31 ft max head, 120 volts, 192 watts, 60 Hz.
FAQs & Calculations to Help Select the Correct Kit
1. How Many Gallons of Water does My Water Feature Hold?
Rectangular Ponds
Length x Width x Average Depth x 7.48 = Gallons
Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Oval Ponds
Length x Width x Average Depth x 0.8 x 7.48 = Gallons
Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Round Ponds
Length x Width x Average Depth x 7.48 =Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Streams
Length x Width x Average Depth x 0.25 x 7.48 = GALLONS =Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
2. How Big of a Pump Do I Need??
Minimum pump size is determined by pond type, water volume, head height and friction loss. The minimum pump size recommendations are:
Water Garden, Few Small Goldfish
Circulate total pond water valoume every 2 hours.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Fish Pond, Several Small Fish
Circulate total pond water valoume every 1 hour.
Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.
Koi Pond, Several Large Fish
Circulate total pond water valoume every 3/4 hours.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Calculating Head Height
Dynamic head pressure is found by taking the vertical height of your waterfall; the distance between where your pump is (typically in the skimmer) and where your waterfall is, and adding the static head pressure (pipe and fittings) 1’ for every 10’ of tubing and 1’ for every elbow or “T” fitting.
Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure
Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.
Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure
Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.
3. What Size Tubing Do I Need?
| Tubing Size | Efficiency GPH | Minimum GPH | Maximum GPH |
|---|---|---|---|
0.5” |
< 300 |
60 |
420 |
0.75” |
< 720 |
300 |
900 |
1” |
< 1,200 |
700 |
1,500 |
1.25” |
< 1,600 |
900 |
3,200 |
1.5” |
< 2,600 |
2,000 |
4,400 |
2” |
< 4,800 |
3,000 |
6,800 |
3” |
< 9,000 |
6,000 |
14,000 |
4” |
< 21,000 |
14,000 |
28,000 |
6” |
< 42,000 |
33,000 |
60,000 |
