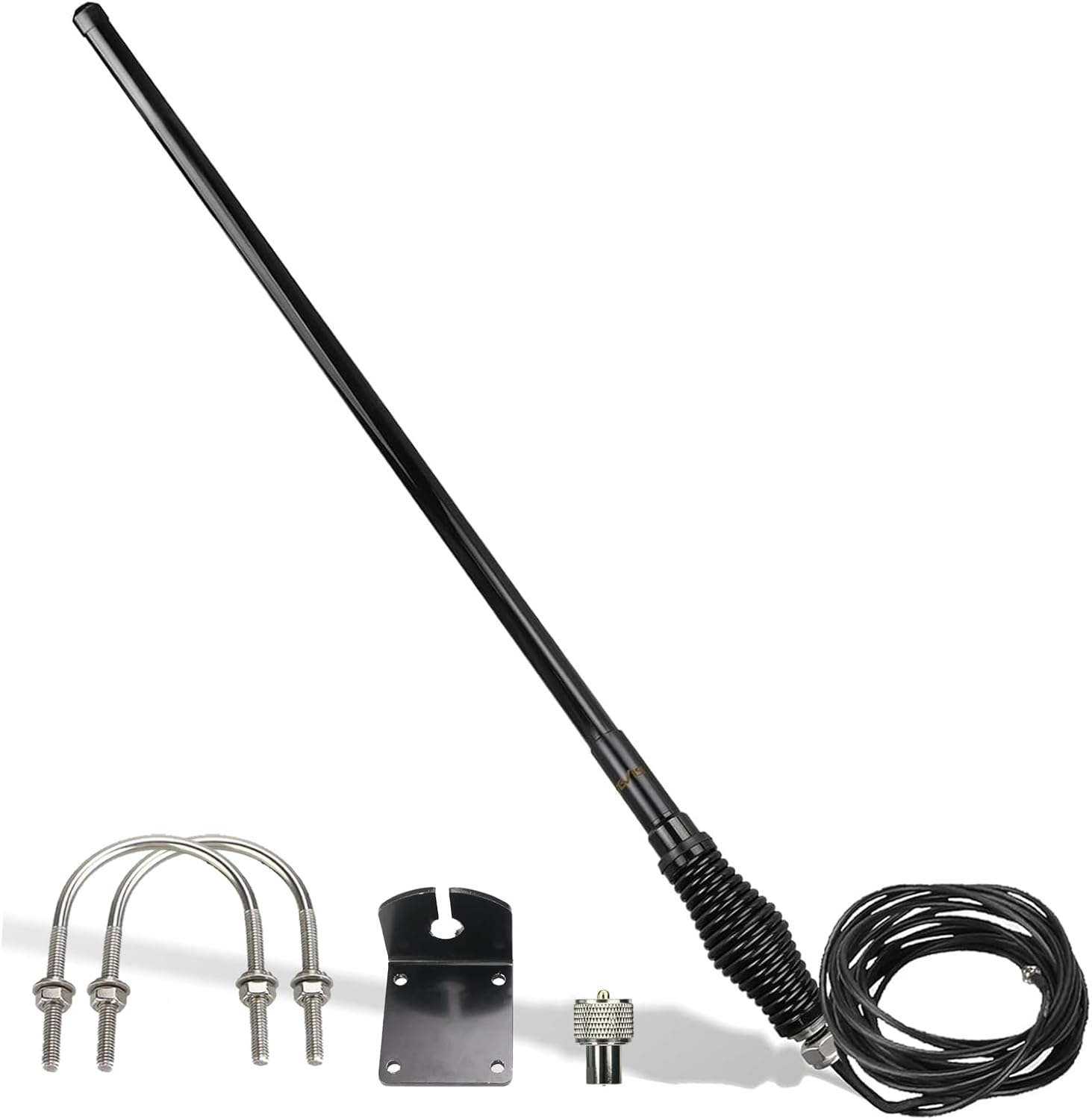

GMRS Mobile Antenna, Heavy Duty Fiberglass GMRS Antenna, 6.5Db 462-467Mhz, Spring Base with 16Ft RG-58U Coaxial Cable, Compatible with Midland GMRS Radio RT97 Ra86(1Pack)
- Retevis MR300 gmrs antenna is efficient for extending the communication distance; Length 48.2 inch; Frequency: GMRS (462-467MHz); VSWR ≤1.5; Input impedance 50Ω; Gain 6.5dB; Polarization vertical; Power 50 W; Weight 1.2 kg (2.6 lbs)
- Spring base; the spring base has great flexibility; it allows the gmrs car antenna to flex out of the way when the car is vibrating during a drive; it is efficient to reduce the damage to the gmrs radio antenna
- Easy to install; 16ft /5m RG-58U coaxial cable with black bracket and U-bolt; Use bolts instead of screws to fix the gmrs mobile antenna; Even if the car is shaken; the antenna can still remain stable for use
- Durable to use; the gmrs mobile antenna is made of fiberglass material; the mobile gmrs antenna is corrosion proof from rainwater and supports long-term use
- Strong compatibility; this gmrs antenna compatible with Midland MXT575 MXT500 MXT275VP4 MXT400 Retevis RT97 RA86 RA25 RA87 RB86 GMRS Mobile Radio; Repeater;Transceiver
- Many usage scenarios; the gmrs antenna can be used widely; you can use the gmrs mobile radio antenna on various occasions; such as off-road camping and so on
- Note: If you want to test the SWR of the MR300 GMRS Antenna; you need to pay attention to the following: the network analyzer test needs to be calibrated with 50 ohms; and do not use a handheld analyzer for testing
Product Description
Durable to Use
The antenna is made of the fiberglass material, which prevents corrosion from rainwater. The antenna can be used for a long time in complex environments.
Strong Flexibility
The spring base is highly flexible to allow the antenna to bend to reduce damage caused by impacts while driving.
Stable Installation
Fix the antenna with the bolt rather than the screws, the antenna is more stable to keep it away from falling while driving.
The black antenna makes it easy to attach the antenna to your car.
Compatible with Mobile Radios
The antenna is compatible with multiple mobile radios and greatly meets the needs of different groups.
The antenna can work with the Retevis RA25, RB86, RA86 and other GMRS radios.
Applicable to multiple scenarios
Suitable for using in multiple scenarios such as off-road, camping, UTV, RV, etc. Enhance the communication effect.
| Model: | MR300 |
| Frequency: | Tuned for GMRS (462-467MHz) |
| Wave: | 2 x 5/8 |
| Gain: | 6.5 dBi |
| V.S.W.R: | ≦1.5 |
| Coaxial cable: | RG-58U |
| Cable Length: | Approximately 5 meter/16 ft |
| Impedance: | 50Ω |
| Polarization: | Vertical |
| Maximum Power Input-watts: | 50W |
| Lighting Protection: | Direct Ground |
| Radome Material: | Fiberglass |
| Height: | 1225±5 mm (48.2 inches) |
| Weight: | 1.2 kg (2.6 lbs) |
| Includes: | FME to SL16.J (UHF/PL259 Male) adapter, black bracket & U-Bolt |
| Designed for: | Retevis RA25, RB86, RA86 and other GMRS mobile two way radios |
Item Specification
-
Item model number FC9246A Frequency Range 462-467 MHz Color Black Country of Origin China Water Resistance Level Water Resistant Compatible Devices function(f) {var _np=(window.P._namespace("DetailPageProductOverviewTemplatesJava"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) { P.when('A').execute(function(A){ A.on('a:truncate:po-attribute-truncate-8:updated', function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = document.getElementById('po-attribute-see-more-id-8'); if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) }); })); Midland MXT575, MXT500, MXT275VP4, MXT400, RT97, RA86, RA25, RA87, RB86, GMRS Mobile Two Way Radio and Gmrs Repeater See more Style GMRS Item Weight 3.14 pounds Tuner Technology UHF Number of Channels 22 Connectivity Protocol GMRS Special Feature function(f) {var _np=(window.P._namespace("DetailPageProductOverviewTemplatesJava"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) { P.when('A').execute(function(A){ A.on('a:truncate:po-attribute-truncate-3:updated', function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = document.getElementById('po-attribute-see-more-id-3'); if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) }); })); Length 48.2 inch; Frequency: GMRS (462-467MHz); VSWR ≤1.5; impedance 50Ω; Gain 6.5dB; Polarization vertical; Power 50 W See more Package Dimensions 44.5 x 3.3 x 3.3 inches Included Components function(f) {var _np=(window.P._namespace("DetailPageProductOverviewTemplatesJava"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) { P.when('A').execute(function(A){ A.on('a:truncate:po-attribute-truncate-7:updated', function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = document.getElementById('po-attribute-see-more-id-7'); if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) }); })); 1 X MR300 Antenna, 1 X Black Bracket, 1 X Spring Base with 5 Meter coaxial Cable, 2 X U-Bolt, 1 X FME to SL16.J See more
- Product Dimensions: 3.3 inches x 44.5 inches x 3.3 inches. Weight: 3.14 lb
