Garden Hose Filter for Pressure Washer Inlet Water, Inline Filter for Sediment

Features:

Garden Inline Water Pressure Wash Hose Filter for cleaner and clearer water

With 1pc 40 mesh screen cartridge(white), 1pc 100 mesh screen cartridge(Black), 3pcs filter gaskets with screens and 2pcs rubber gaskets.

For outdoor gardening use and protect your pressure washer pump.

Easy to install

Specification:

100% BrandNew

Material: Plastic + Metel

Color: As pictures shown

Size: 13.7*13*7.2cm / 5.4*5.1*2.8in

Filter Screen Cartridge Size (Diam.*L): 4.2*9.3cm / 1.7*3.7in

It has 3/4 inch GHT male and female thread. Max working for garden hose is 80 PSI.

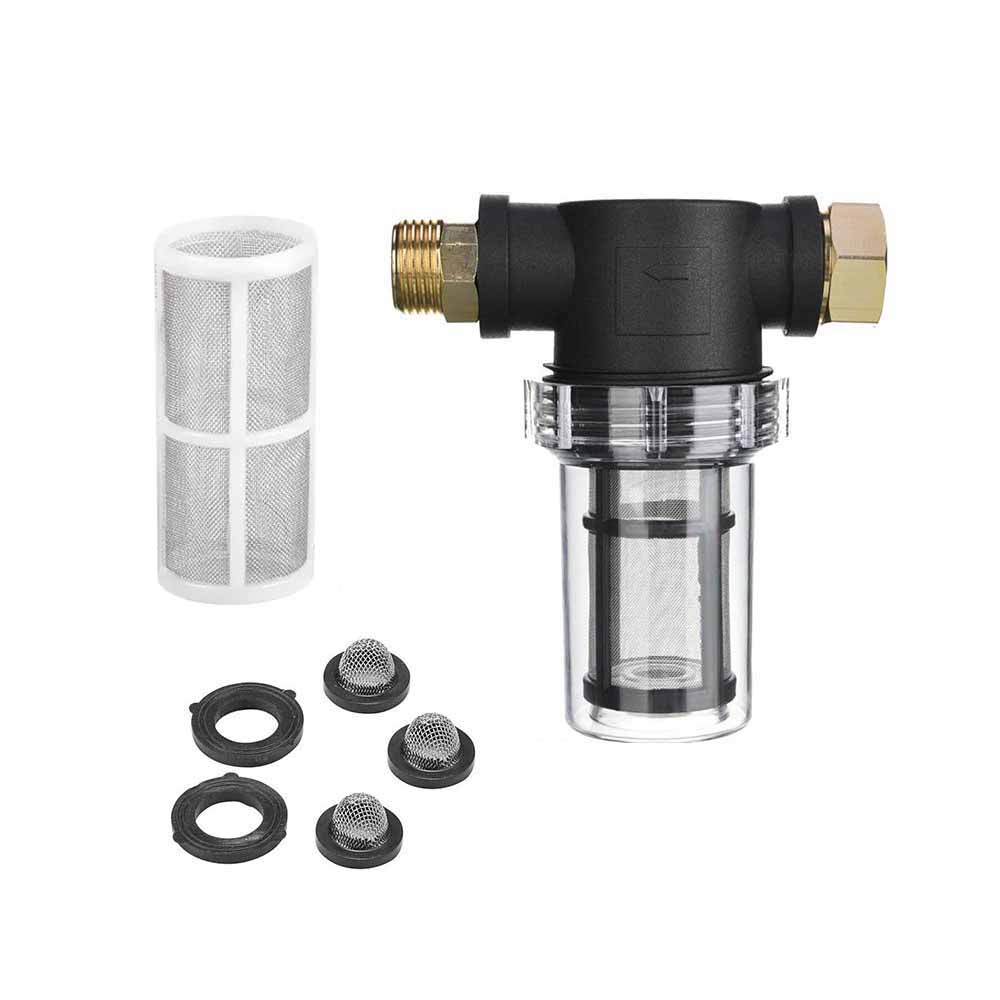

Package Included:

1 X Hose Filter

1 X 40 Mesh Screen

1 X 100 Mesh Screen

2 X Rubber Gaskets

Some installation methods are for reference only!!

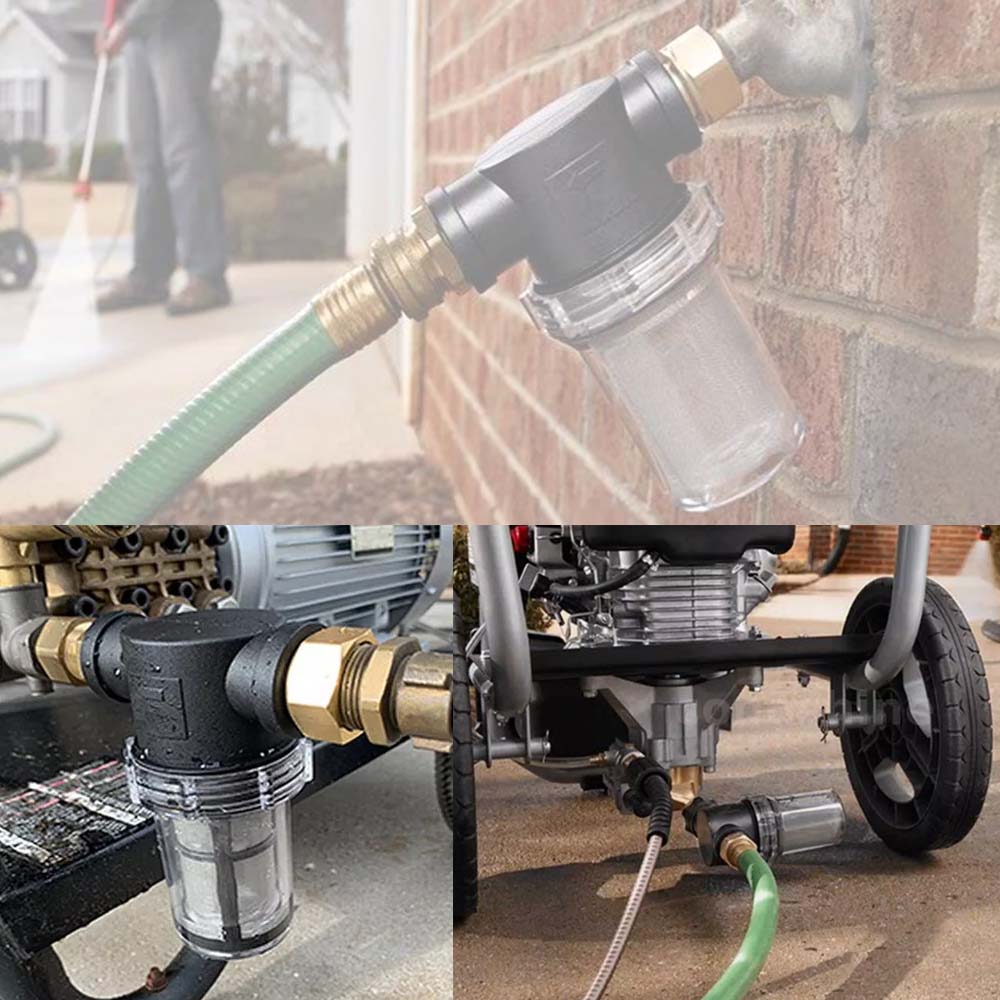

How to install about this:

1. Check the Mesh Screen and Clear Container are well assembled.

2. Connect the 3/4’’ male connector and 3/4’’ female connector to the garden hose or the inlet water of pressure washer pump.
If leakage at connection, please use Teflon Tape at the male thread. Hope you can understanding this.

3. Start pressure washer or garden hose.

How to Replace Mesh Screen

1. Unscrew Clear Container and take out old Mesh Screen.

2. Put new Mesh Screen into the Clear Container and fix it.

3. Screw the Clear Container into the Black Body of the filter.

4. If you connect new Mesh Screen to the Black Body first and then connect Clear Container to Black Body,
there will be a gap at the connection of Clear Container and Black Body. It will lead to leakage, Hope you can understanding this.
