Front CV Axle Pair for Arctic Cat 400 500 650 4x4 2005 ATV

Slide Slide Slide Slide Slide Slide
$144.99
Brand
ATV Parts Connection
Placement on Vehicle
Front, Left, Right
Items Included
2 axles
Manufacturer Part Number
AC-110/AC-210
OE/OEM Part Number
0502-547, 1502-539, 0502-542
Manufacturer Warranty
1 year factory defect limited warranty
Universal Fitment
No
Vintage Part
No
Interchange Part Number
0502-547, 1502-539, 0502-542
Product Type
CV joint drive axles
Item Type
powersports-axles
OEM Part Number
0502-547, 1502-539, 0502-542
Inboard Spline Count
21 (both)
Outboard Spline Count
27 (both)
Compressed Overall Length (mm)
Left- 551.5, Right- 550
Fits
ATV
Surface Finish
Painted, Metallic
Compatible Make
Arctic Cat
Compatible Model
400 / 500 / 650
Other Part #
AC-110/AC-210
Genuine OEM
No
Features
OE type, made to OEM spec
What's In The Box
2 axles
condition
New
This is a pair of new Front CV axles for an Arctic Cat ATV.They fit the following 4x4 models: 2005 ... 400 FIS MT/AT 2005 ... 500 FIS MT/AT and TBX 500 2005 ... 650 H1/V2 Front Left & Right *Not intended for use in lifted vehicles Product features:
  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: Left- 551.5 mm, Right- 550 mm
Artic Cat can-am Honda Kawasaki Polaris Suzuki Textron Off Road Yamaha
Responsive image

Front CV Axle Pair for Arctic Cat 400 500 650 4x4 2005 ATV

AMERICA'S CONNECTION FOR ATV PARTS

Product Details

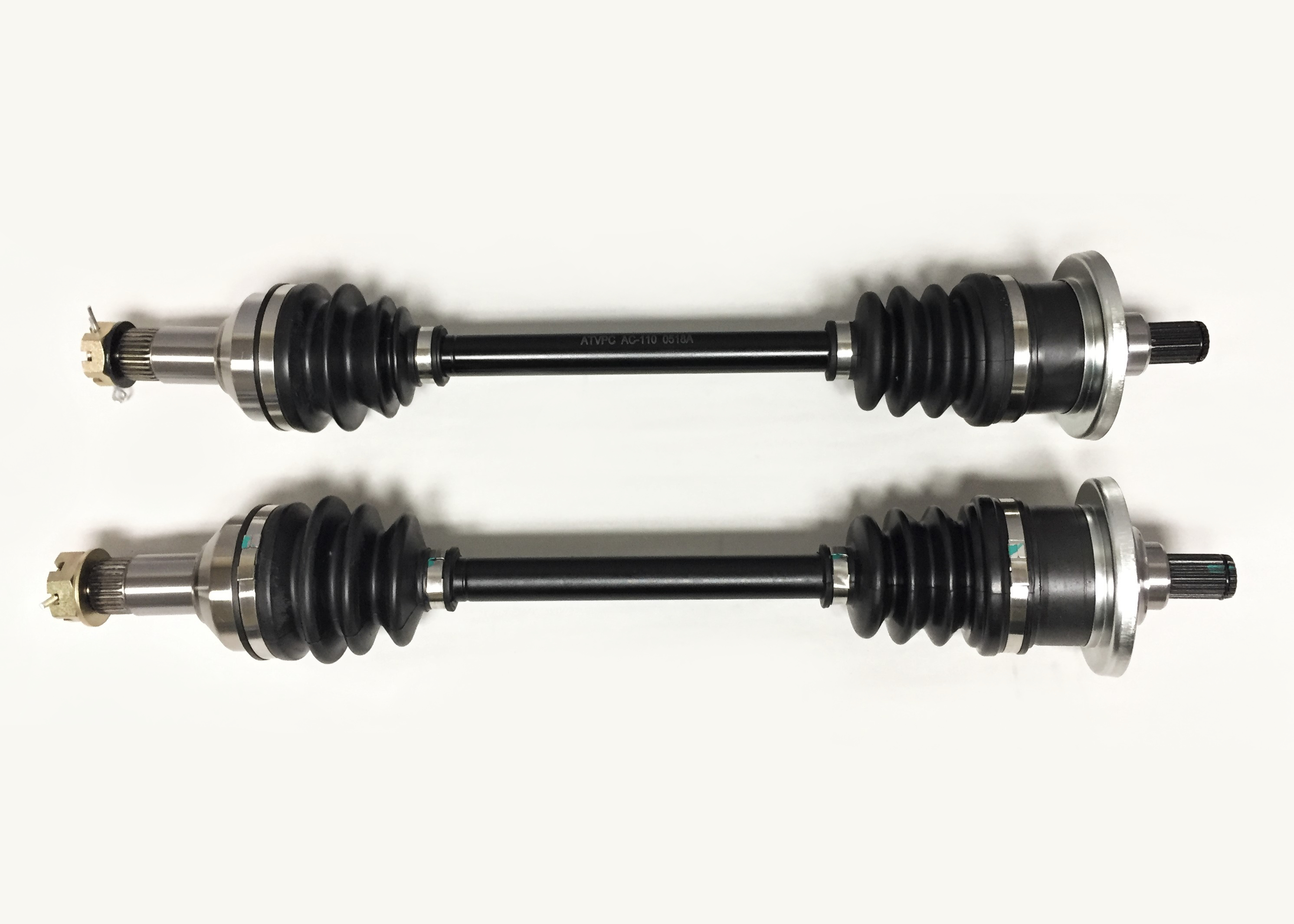

This is a pair of new Front CV axles for an Arctic Cat ATV.

They fit the following 4x4 models:

2005 ... 400 FIS MT/AT

2005 ... 500 FIS MT/AT and TBX 500

2005 ... 650 H1/V2

Front Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 21 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: Left- 551.5 mm, Right- 550 mm

We are experts in the field of ATV & UTV drive line products. Unlike others, we have the expertise to insure that our buyers get the correct parts and help with installation or troubleshooting.
