Forged H-Beam Connecting Rods for Honda Acura K24 K24A1 K24A2 K24A4 K24A8 2.4L

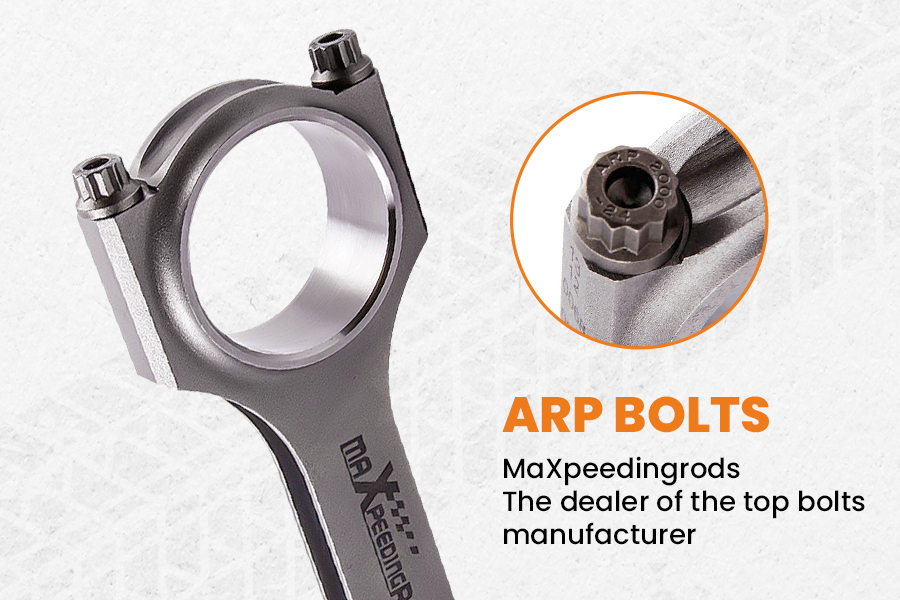

ARP Bolts

The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

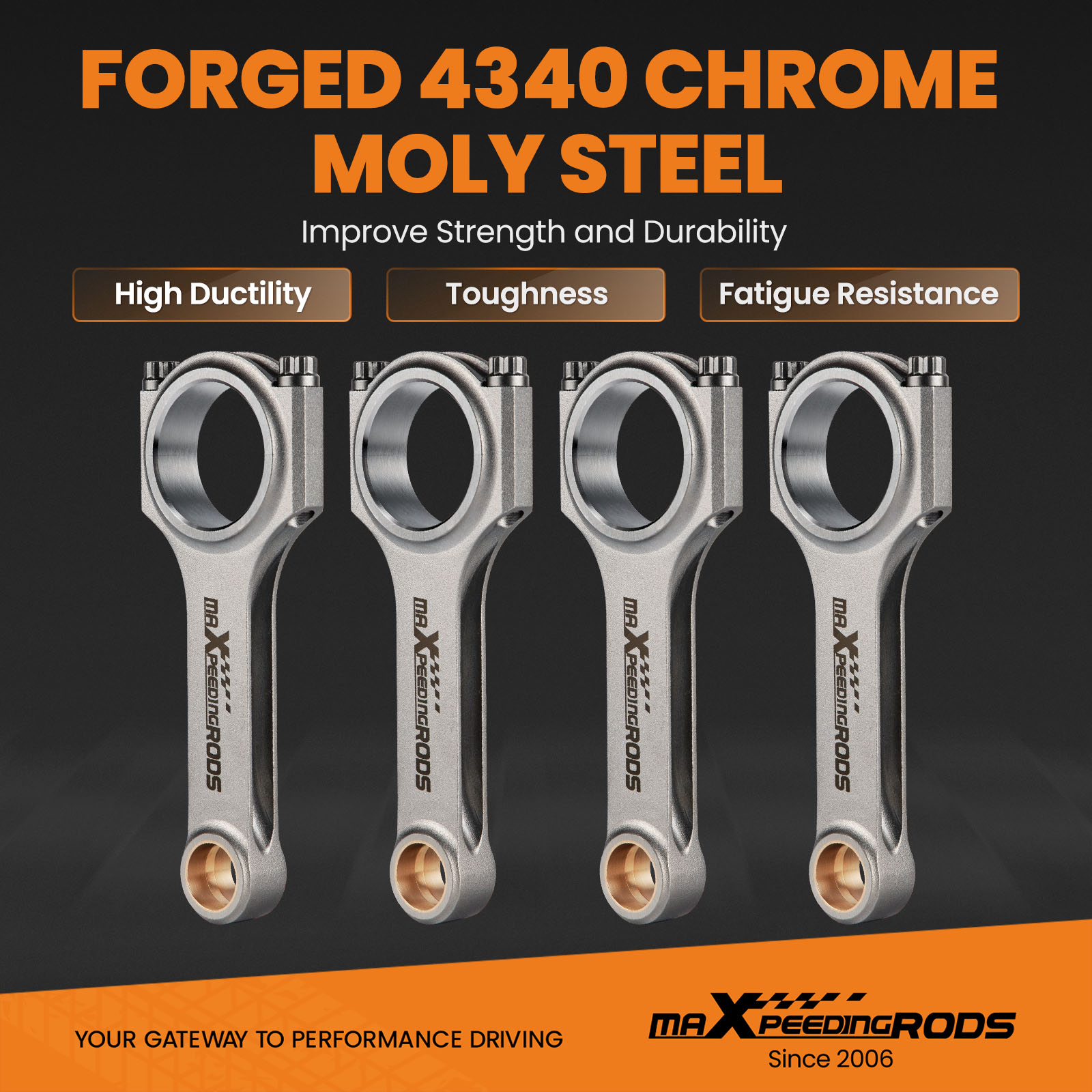

Forged 4340 Steel

Forged 4340 Chrome Moly Steel improves strength and durability, dedicated for Racing.

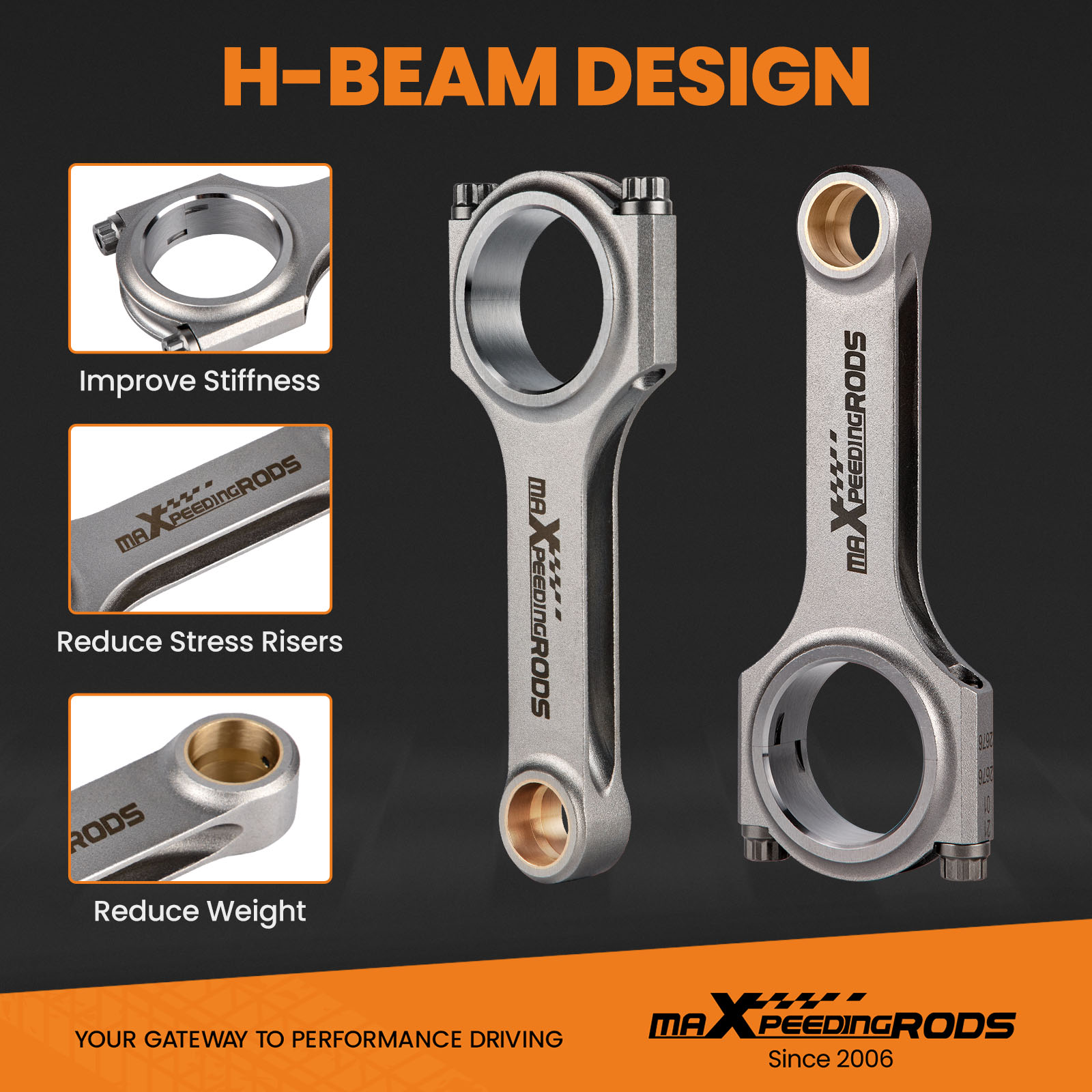

H-Beam Design

H-Beam helps improve stiffness, reduce stress risers and weight.

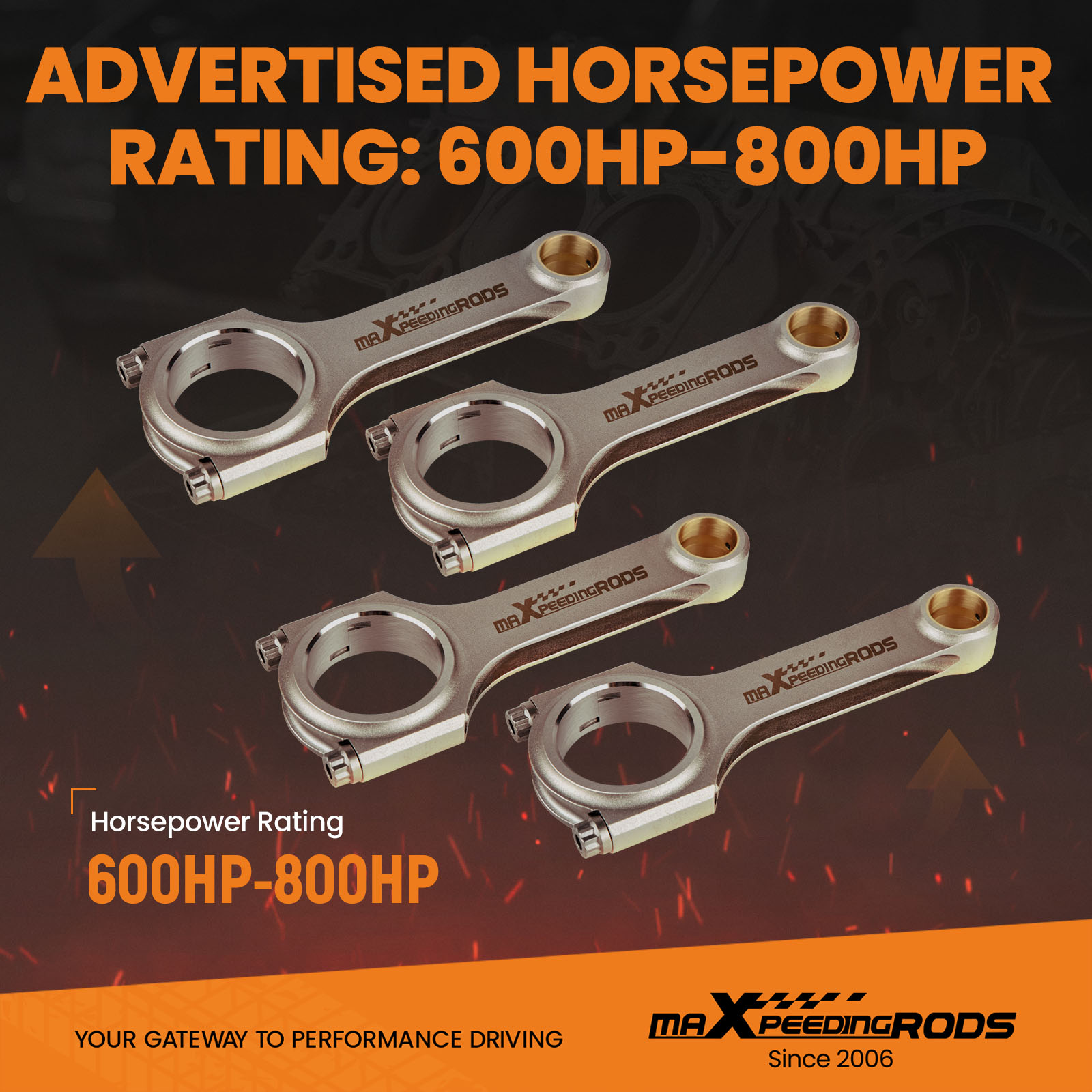

Horsepower Rating

Advertised horsepower rating: 600HP-800HP.

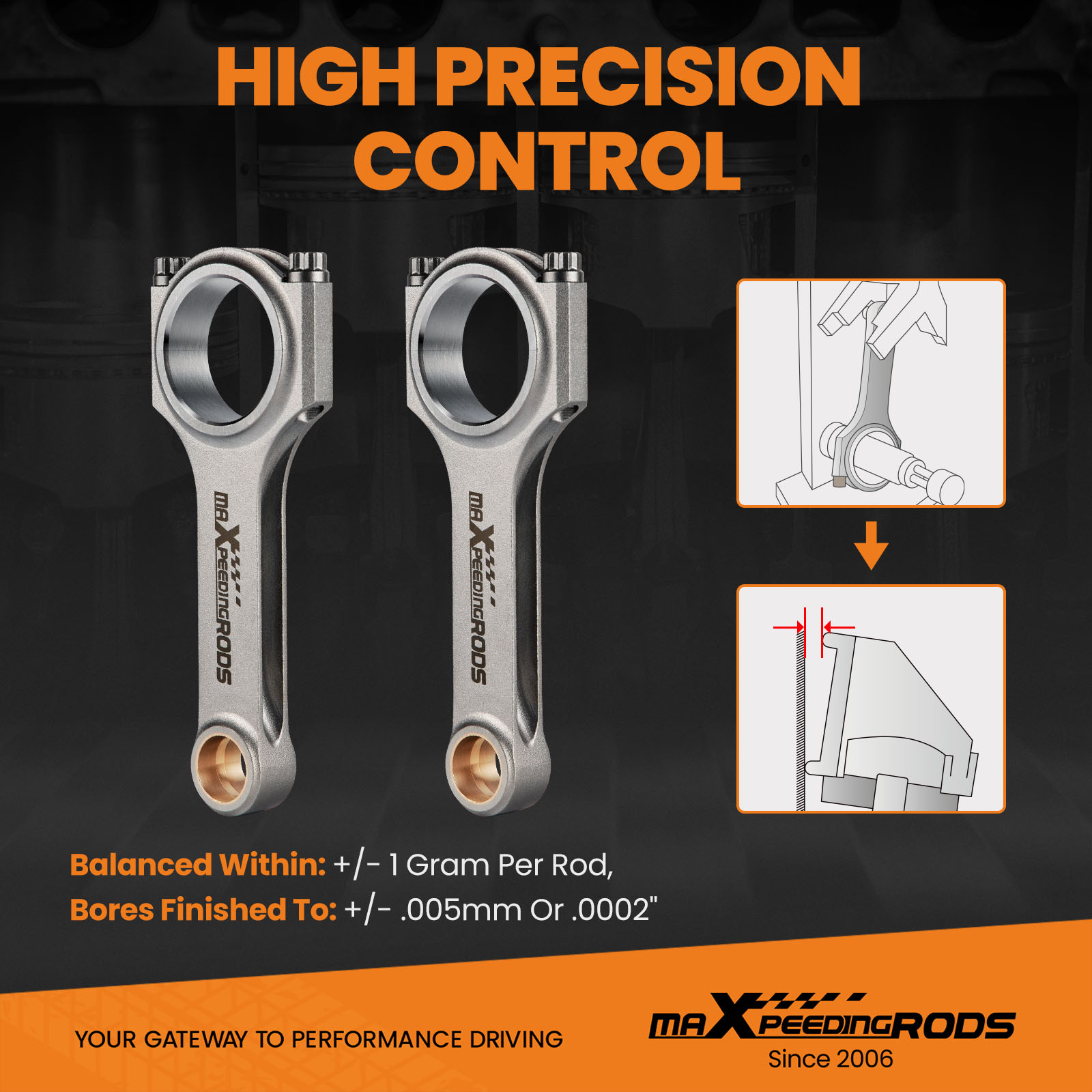

High Precision Control

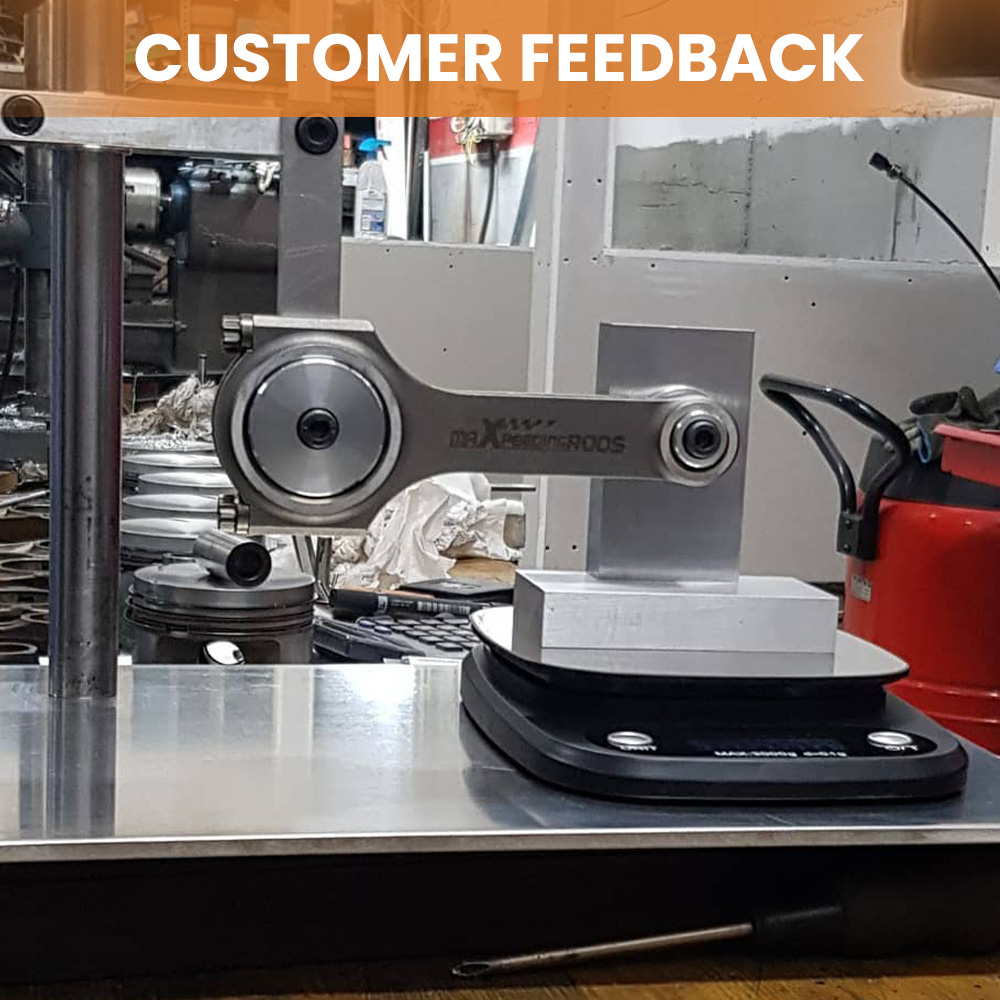

Balanced within:+/- 1 gram per rod,

Bores finished to:+/- .005mm or .0002".

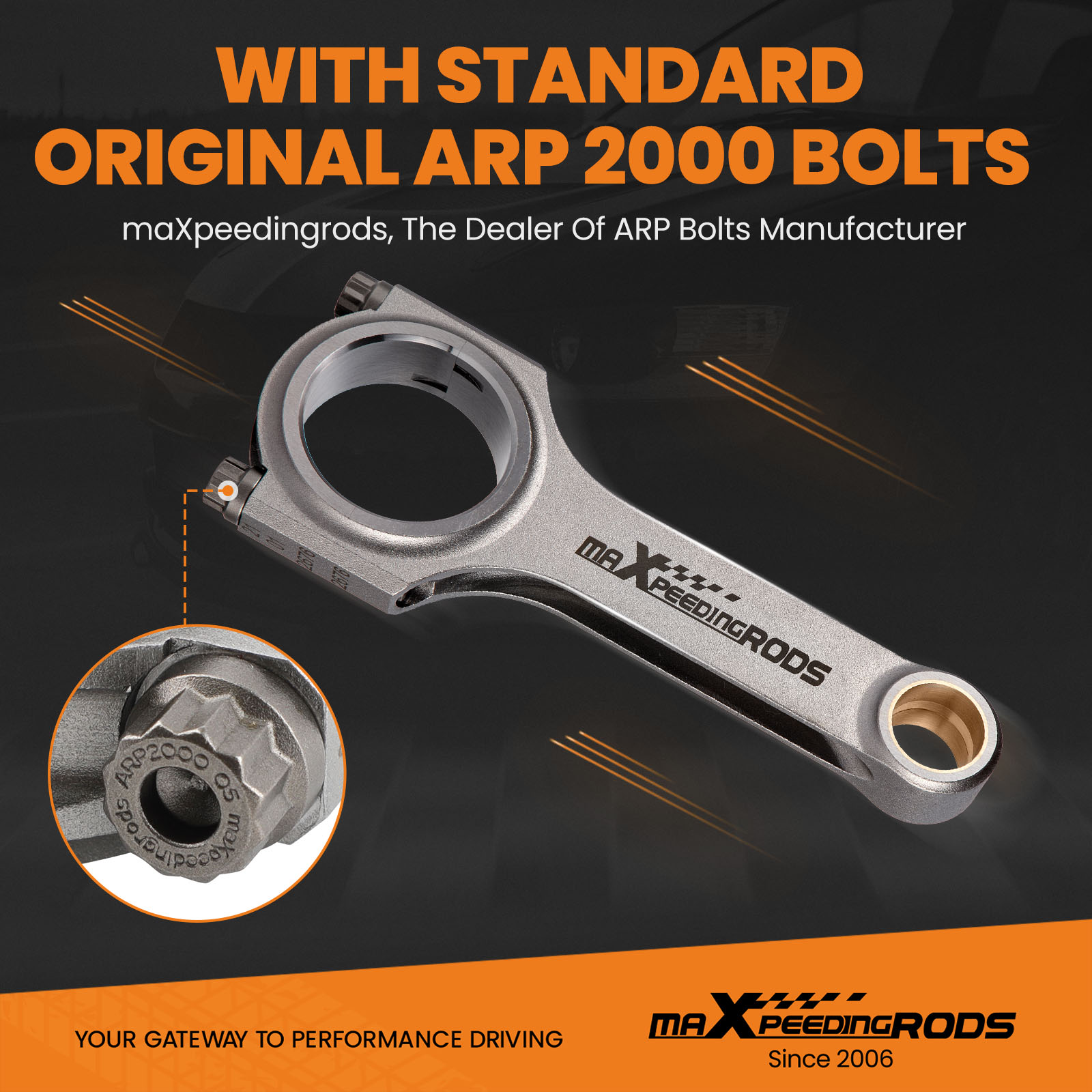

ARP 2000 Bolts

With Standard Original ARP 2000 Bolts.

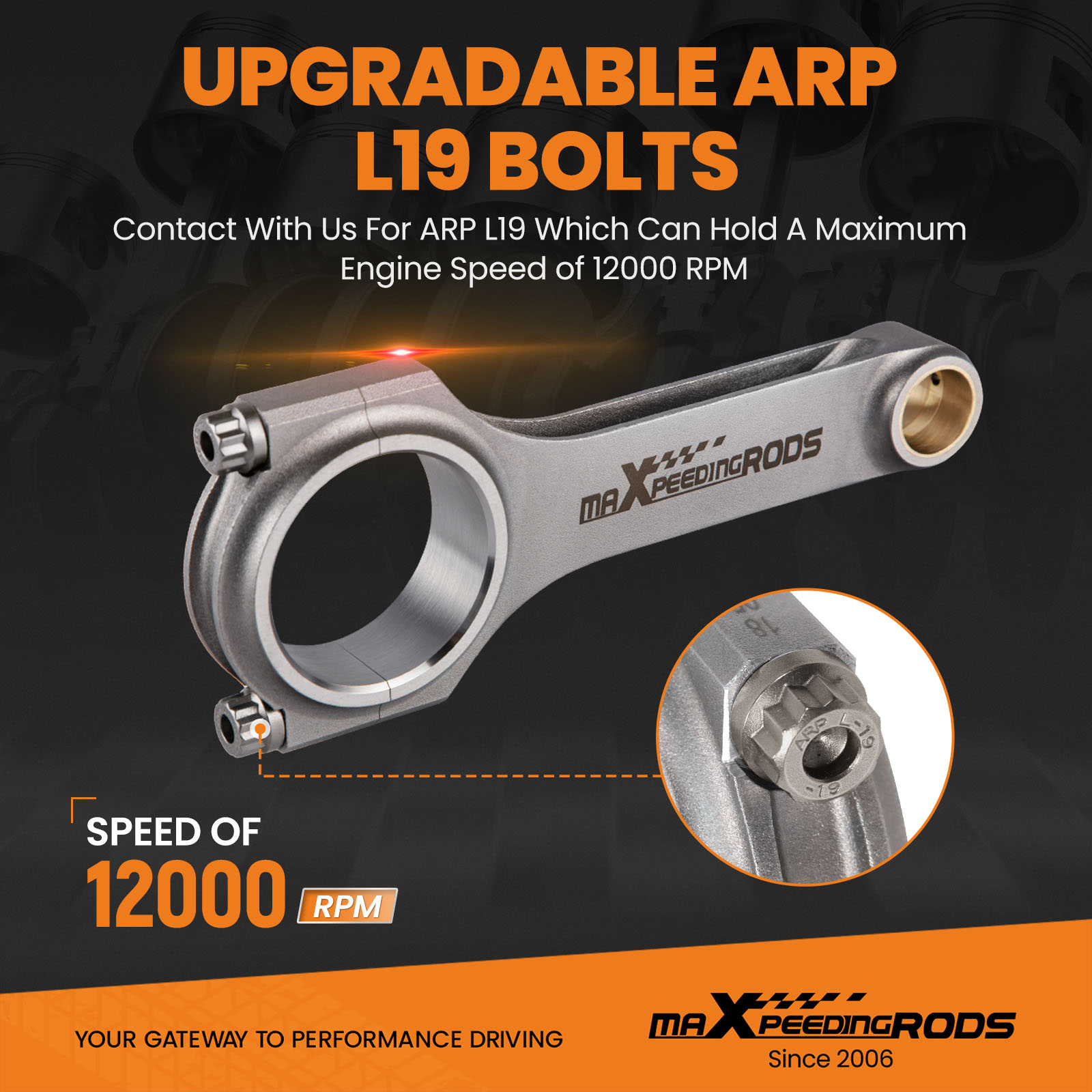

Upgradable ARP L19 Bolts

Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM.

Application

For Honda Acura	K24 K24A1 K24A2 K24A4 K24A8 2.4L
For Honda	CRV 2.4L 02-06 , K24A1
For Honda	ACCORD 2.4L 03-14, K24A4
For Honda	Element 2.4L 03-06, K24A4
For Honda	Odyssey 2.4L 03-08, K24A4
For Honda	Element 2.4L 07-11, K24A8
For Honda	Odyssey 2.4L 08-14, K24A8
For Honda	Accord (USDM) 2.4L 06-07, K24A8
For Acura	TSX 2.4L 04-08, K24A2
Pin Type	Floating Pin Piston

Dimension

Center to center length	152mm/5.984"
Big end diameter	51mm/2.008"
Small end diameter	22mm/0.866"
Big end width	19.8mm/0.78"
Small end width	19.8mm/0.78"

Specification

Quantity	4 Pieces as showing in picture
Bolts	Including ARP 2000 bolts
Bolts Size	ARP 2000 3/8" bolts
Bores finished to	+/- .005mm or .0002"
Balanced to within	+/- 1 g per rod
Advertised Horsepower Rating	600HP-800HP
Top acceleration	9000rpm
Strength of the fastening PSI	220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Warranty	2 years warranty for any manufacturing defect
Package size	28CM21CM10CM

Note

*Professional installation is highly recommended ；

*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
