For Generator Rectifier Board Replaces Coleman Powermate 0063525 0062974 New

Slide Slide Slide Slide Slide Slide Slide Slide
$26.99
Bundle Description
Includes S0064066 Jumper Kit
Modified Item
Yes
Non-Domestic Product
No
Modification Description
Upgraded & improved aftermarket design.
Custom Bundle
Yes
Brand
Unbranded
Type
Circuit Board
Compatible Product
Generator
MPN
0063525 0062974 0062455 & 0062458
Compatible Brand
For Powermate
condition
New
For Generator Rectifier Board Replaces Coleman Powermate 0063525 0062974 New

  • SAME DAY DISPATCH

    orders placed before 11 AM. usually shipped out the same day

  • buy with trust

    professional quality control ensure our products meet your satisfaction

  • HASTLE FREE Returns

    30 days money back guarantee. get the item you ordered, or your money back

  • professional support

    our team is here for you 24/7. for questions about an order or any of our products

Items Descriptions

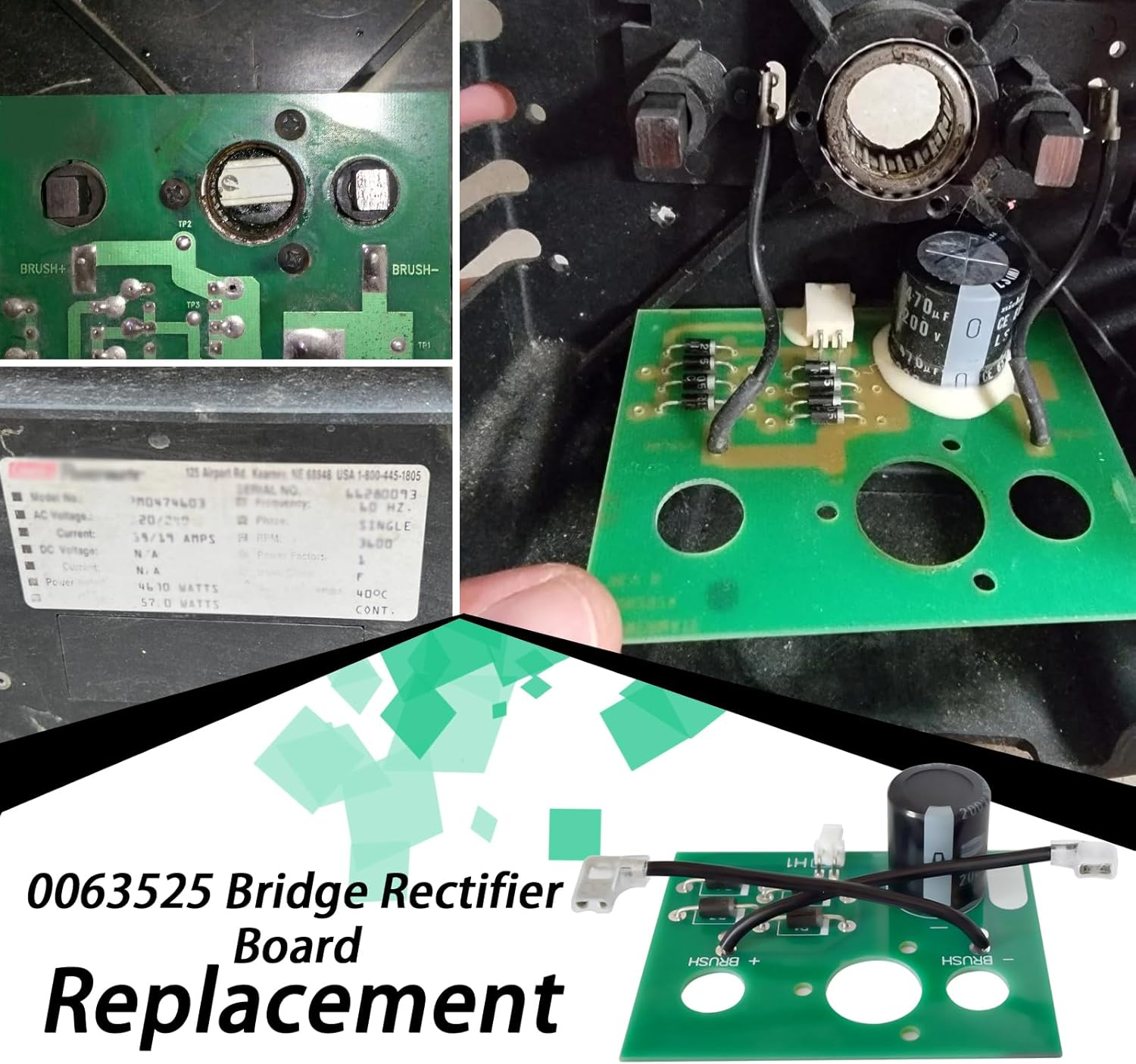

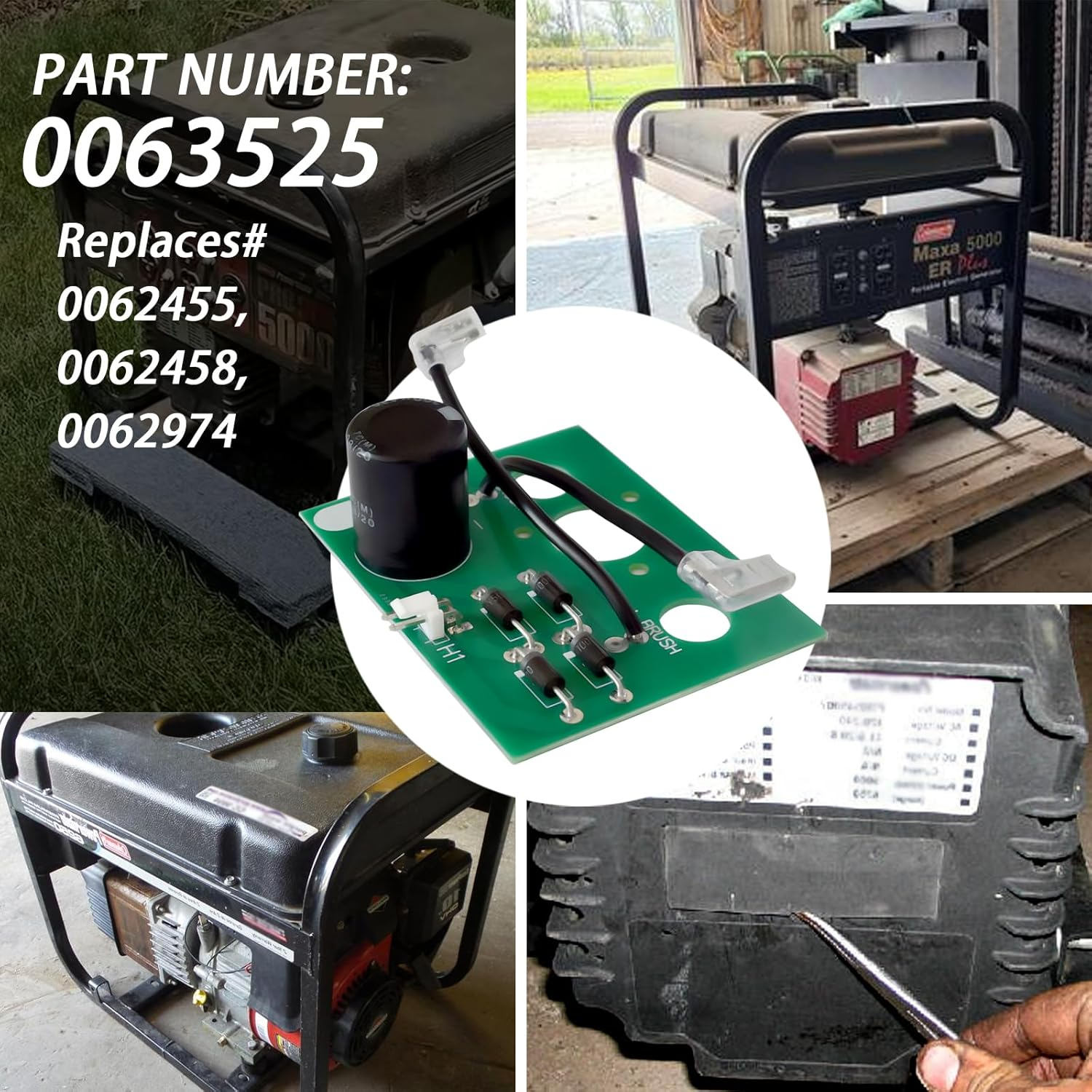

This board is an aftermarket upgraded replacement for Powermate P/N: 0063525, (which also replaces 0062455, 0062458 and 0062974).

IMPROVED DESIGN: This after-market board has been redesigned to address the most common failure-modes associated with the OEM boards - including the OEM version of 0063525. Beware of other sources selling the same old failure-prone OEM 0063525 boards that have been sold for years. Fort Rock Technologies studied the various failure-modes associated with the OEM's designs and addressed them with this replacement.
DESIGN IMPROVEMENTS:

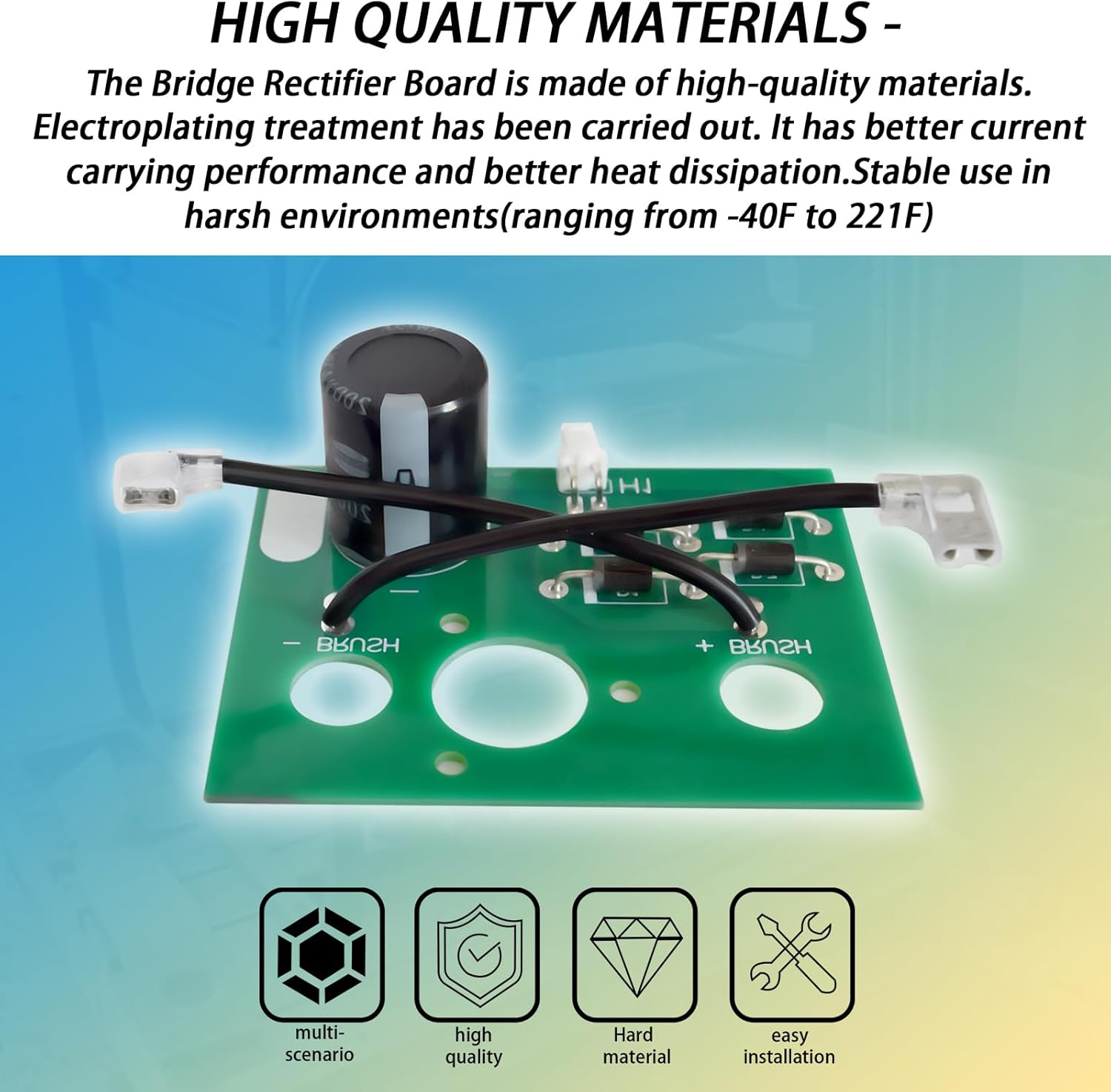

    1.  The printed circuit board is made from high-end FR-4 material and features plated
         through holes for far-greater resistance to vibration and mechanical failures.
         Traces are doubled-up on front and back sides for better current-carrying
         capability and better heat dissipation.

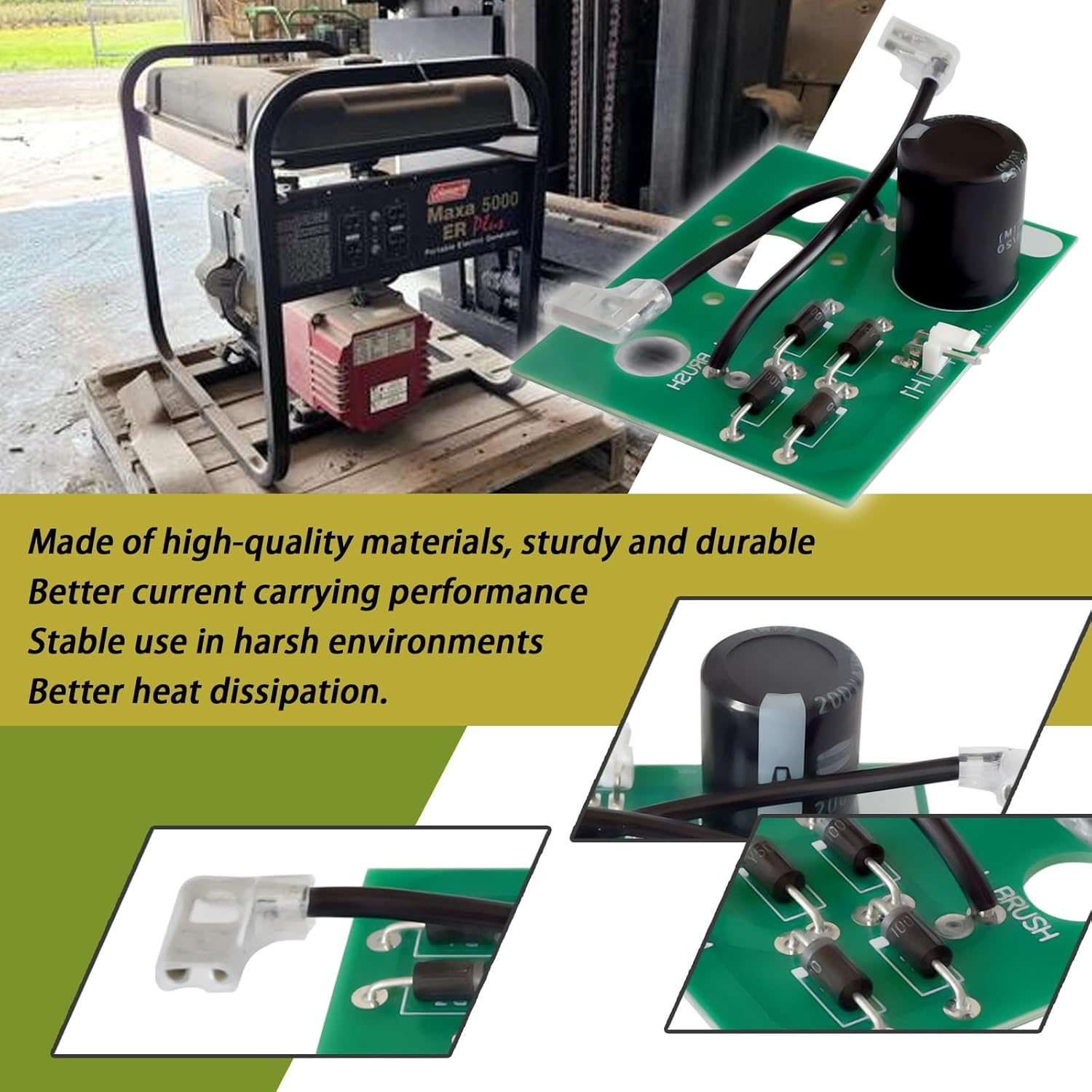

    2.  The bridge rectifier circuit is rated for a full 10A using rectifiers rated for 5A @
         800V.  OEM boards use 2A 600V diodes in parallel in an attempt to create an 8A
         bridge circuit.  This change addresses the most common electrical failure mode.
         For those who appreciate stupid engineering mistakes, please Google-search:
         "Is paralleling diodes a bad idea?"...  (for the record, yes, it is a bad idea!)
    3.  Finished assemblies are silicone conformal-coated for protection against moisture
         and dirt contamination.  OEM boards are not coated!
    4.  Fits directly into the existing brush head without cutting holes!  We use a 1 inch
         tall capacitor that is rated for 3000 hours of operation at extreme temperatures
         ranging from -40F to 221F (-40C to 105C).  This capacitor is designed to last!

It is very common for worn-out brushes to be the cause of failure on the original board... always check the condition of your brushes!  They are very easy to change while you have the Brush Head off of the unit.

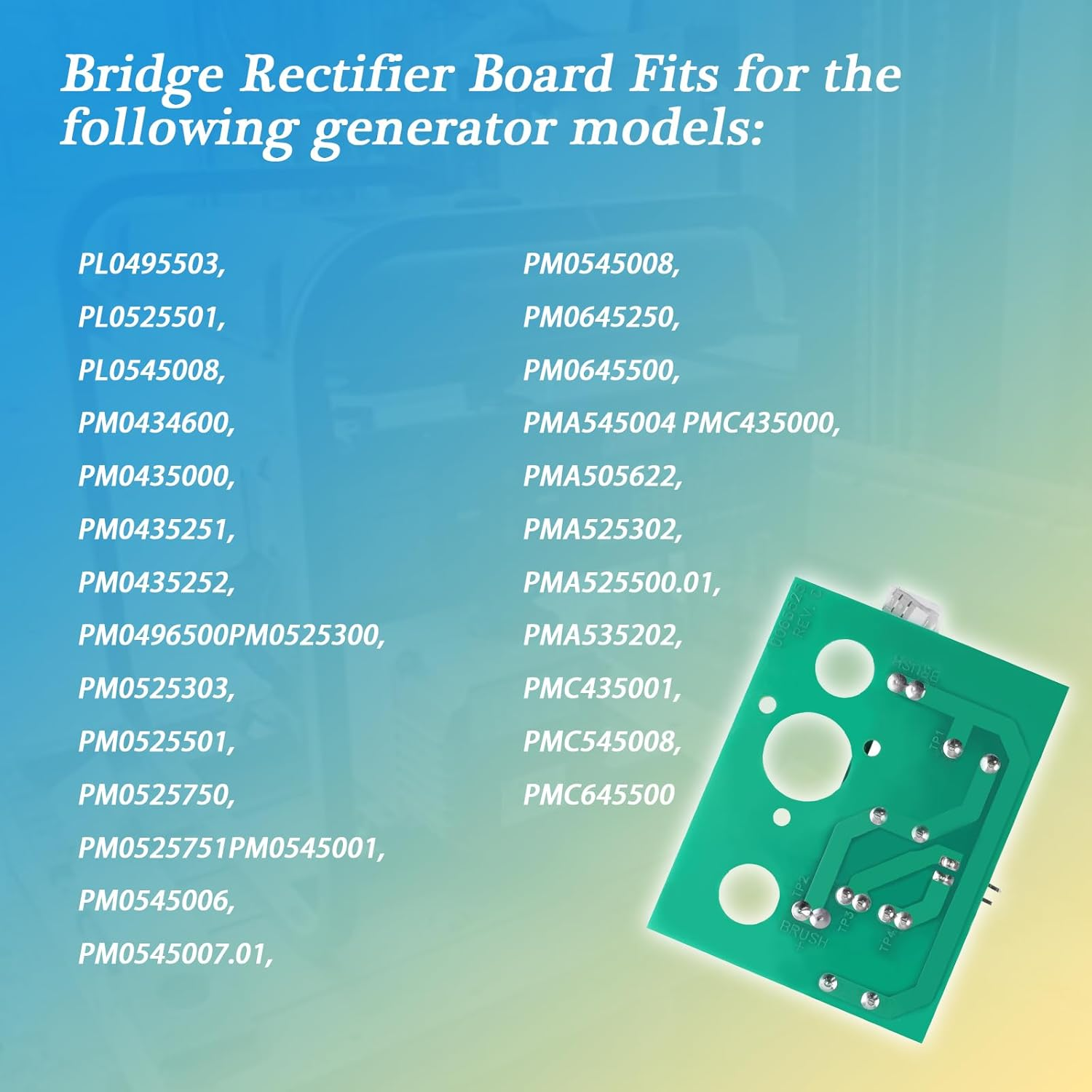

Fits the following Coleman Powermate generator models:
PL0495503, PL0525501, PL0545008PM0434600, PM0435000, PM0435251, PM0435252, PM0496500PM0525300, PM0525303, PM0525501, PM0525750, PM0525751PM0545001, PM0545006, PM0545007.01, PM0545008PM0645250, PM0645500, PMA505622, PMA525302, PMA525500.01, PMA535202, PMA545004 PMC435000, PMC435001, PMC545008, PMC645500
...and most certainly a few more models that we haven't discovered yet!  Contact us if your are in doubt.  We'll figure it out.
